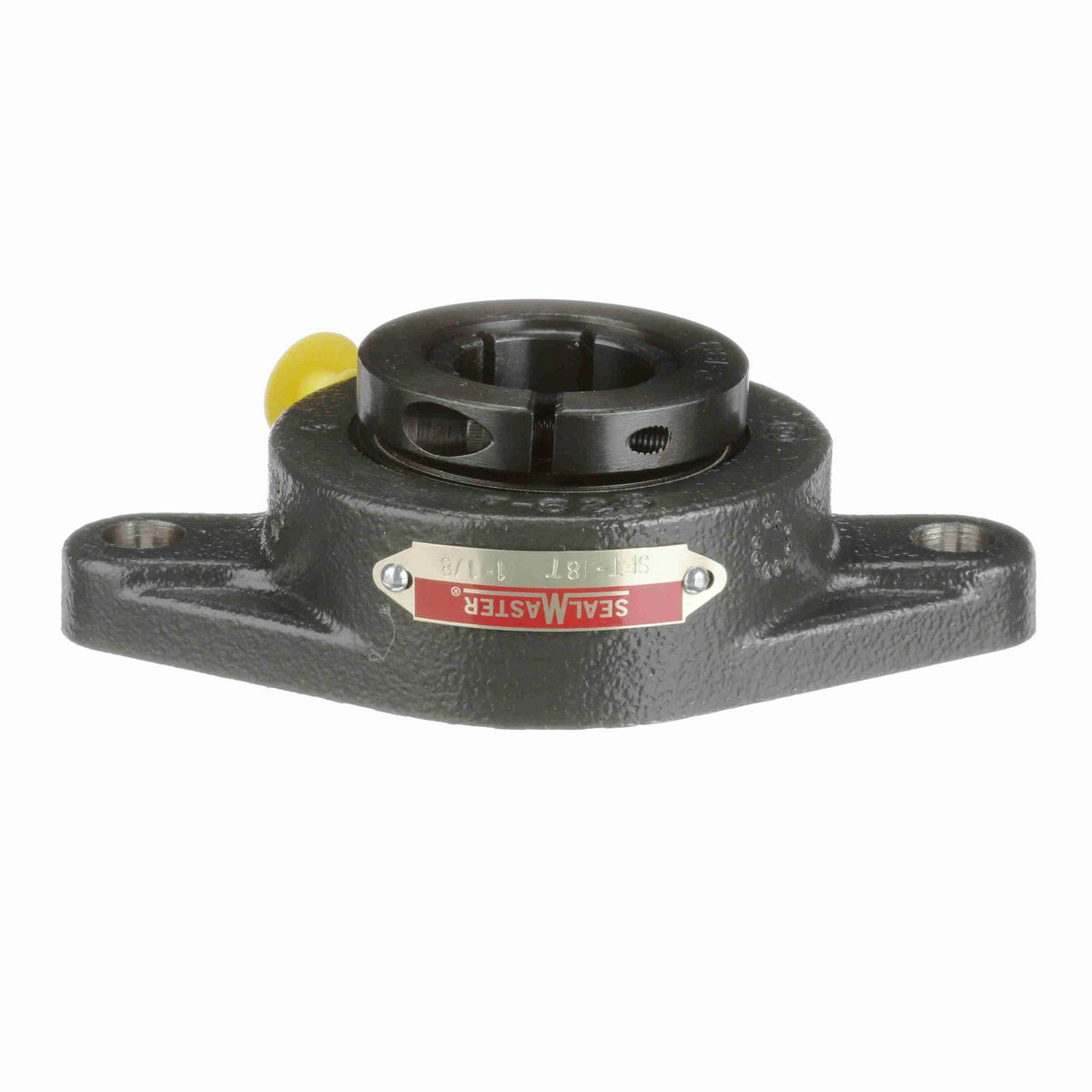

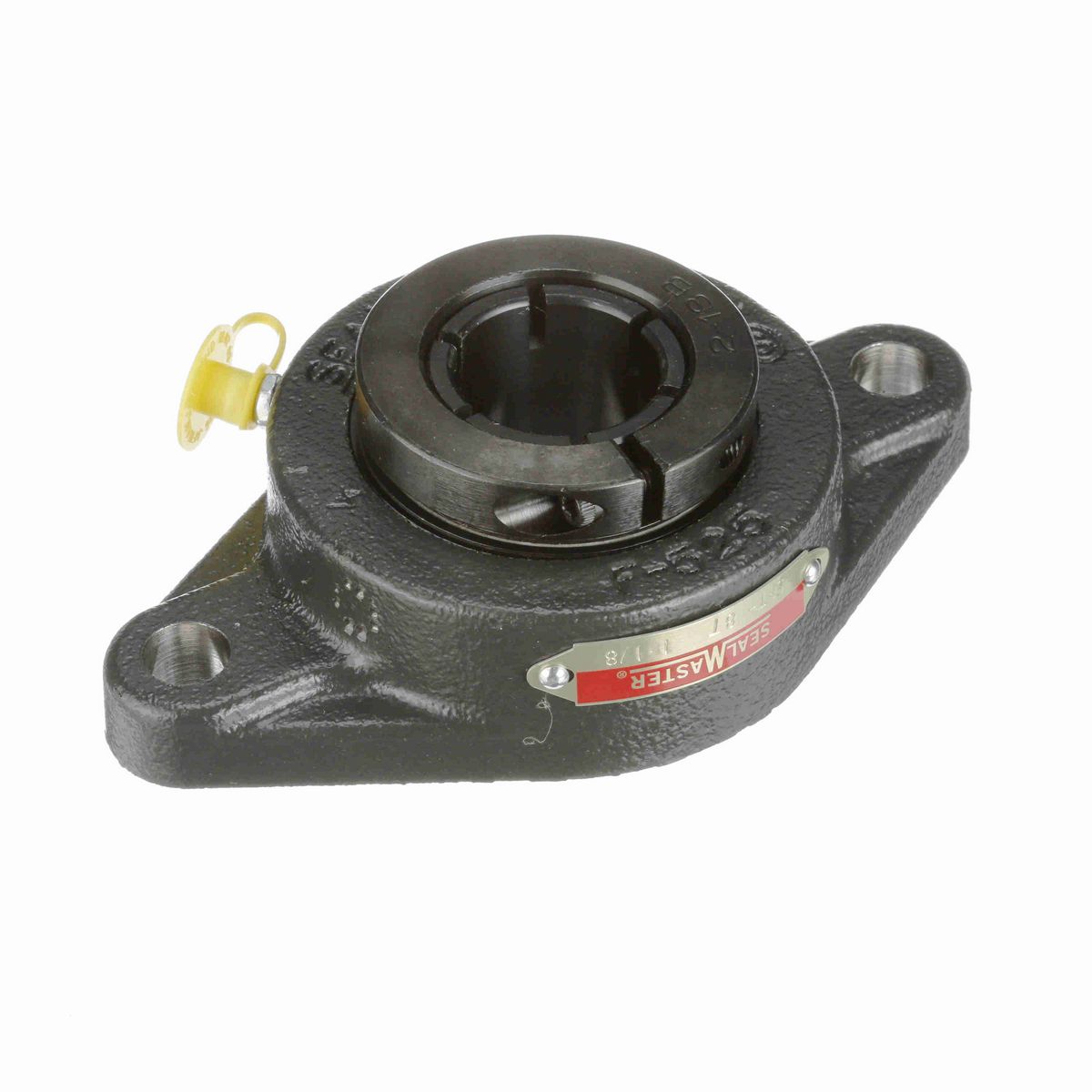

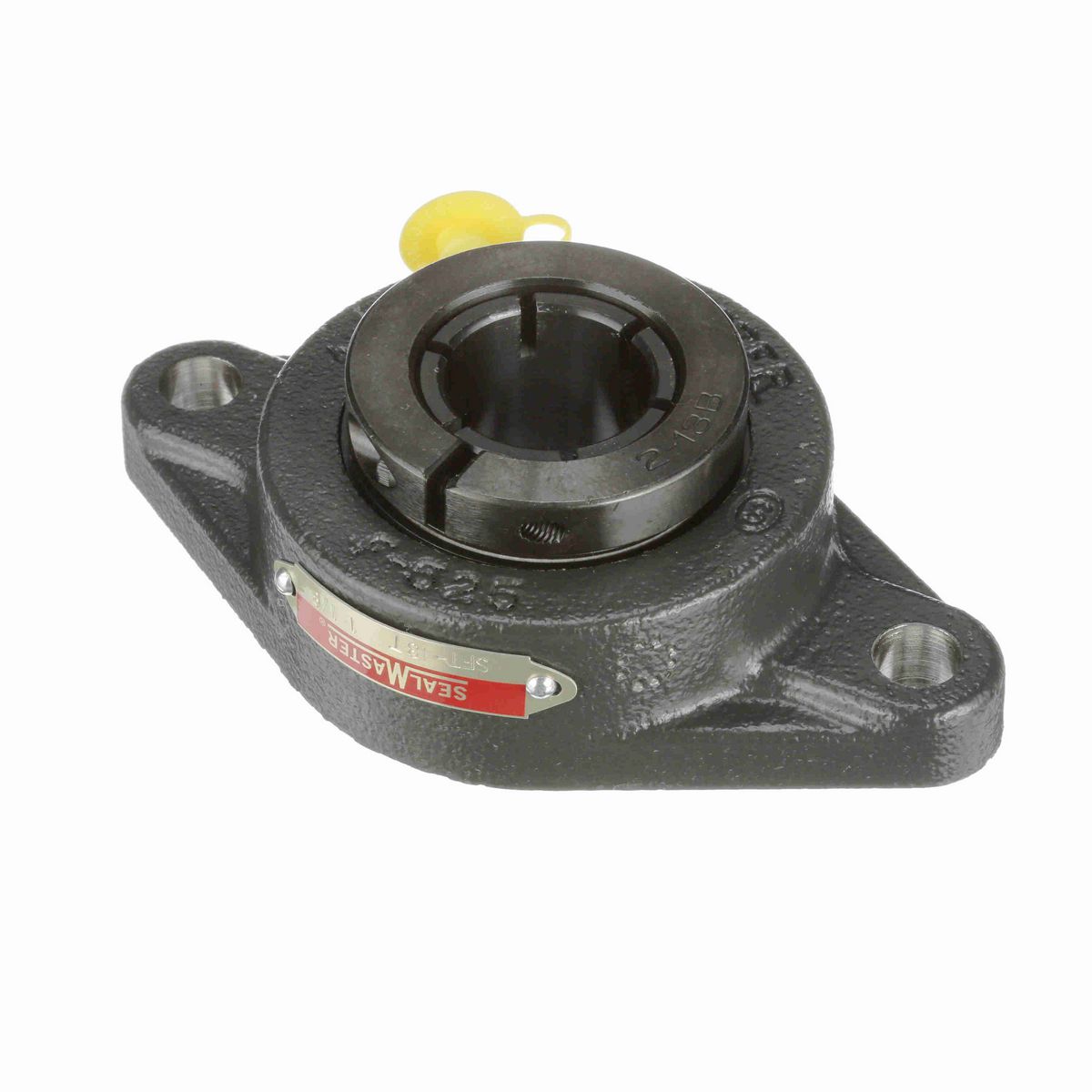

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	3.25 in
Overall Length (in)	5.56 in
Overall Height (in)	1.67 in
Bore Diameter (in)	1.125 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.61 in
Bolt Spacing (in)	4.594 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Setscrew Torque (in-lbs)	85 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.23 in
Ability to Relubricate	Yes
Inner Ring Outside Diameter (in)	1.587 in
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	4,381 lb
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	2,567 lb
Maximum Speed (RPM)	5850 rpm
Insert	2-12T
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Bearing Type	Standard Duty
Vibration Frequency Roller Spin	0.0385 cps
Size Code	2-13
Max Operating Temperature (F)	220 °F
End Cap Available	No
Fixed vs. Expansion	Fixed
Radial Clearance	Standard
Shaft Locking Type	Concentric
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer

General Specifications

UPC	662461030356
Weight	2.38 LB
Packaged Length	3.50 IN
Packaged Width	1.69 IN
Packaged Height	5.75 IN
HTC	8483.20.4040
Country of Origin	United States of America
