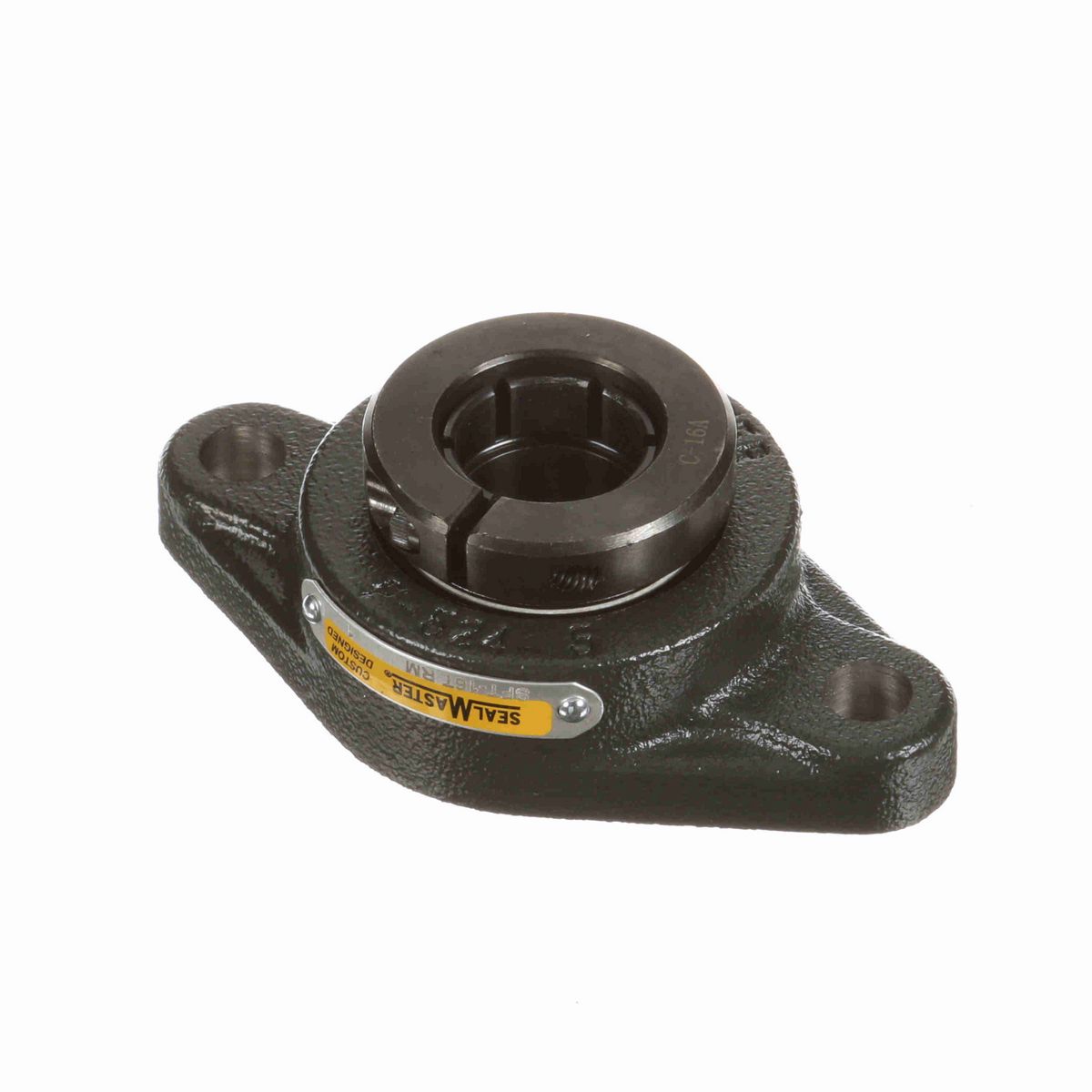

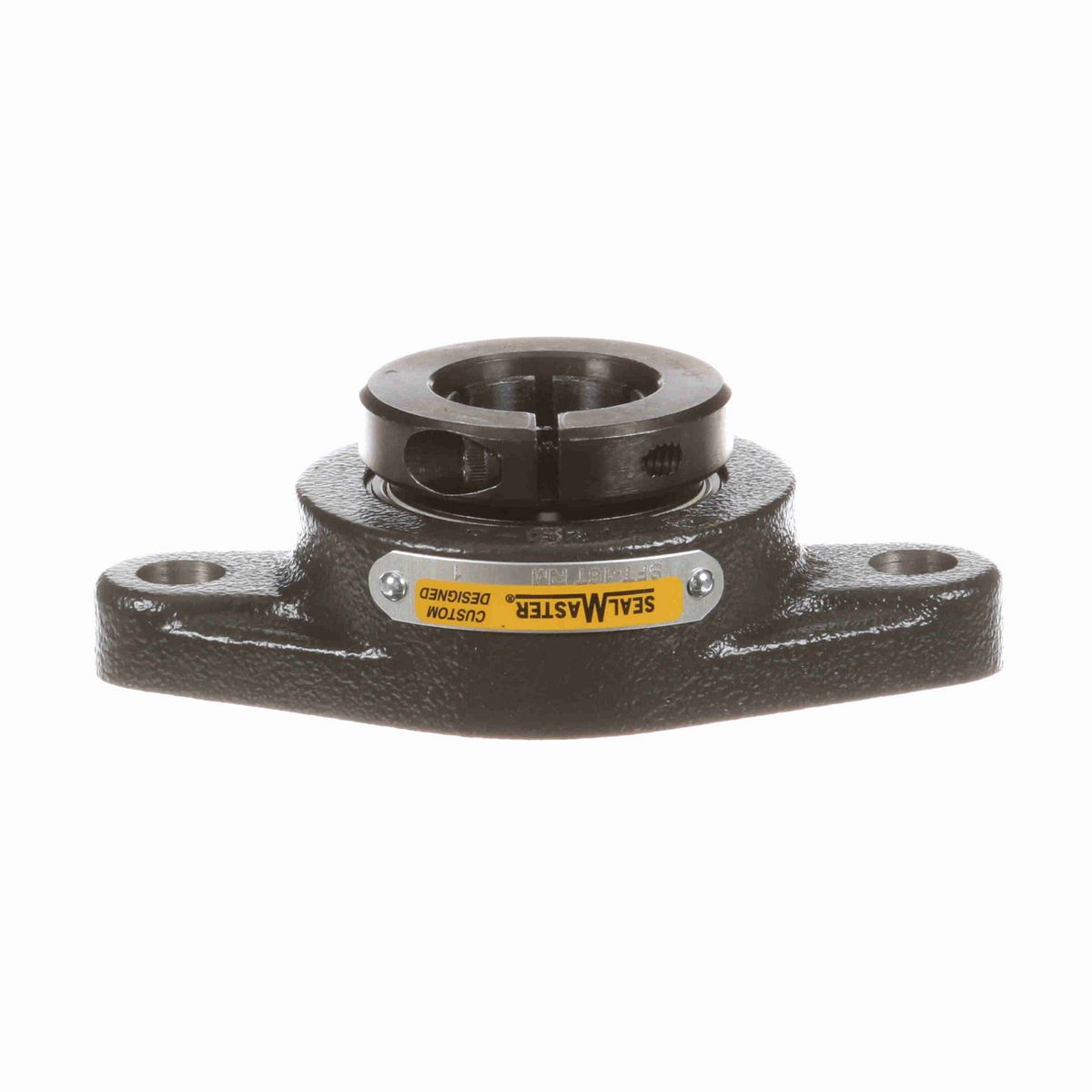

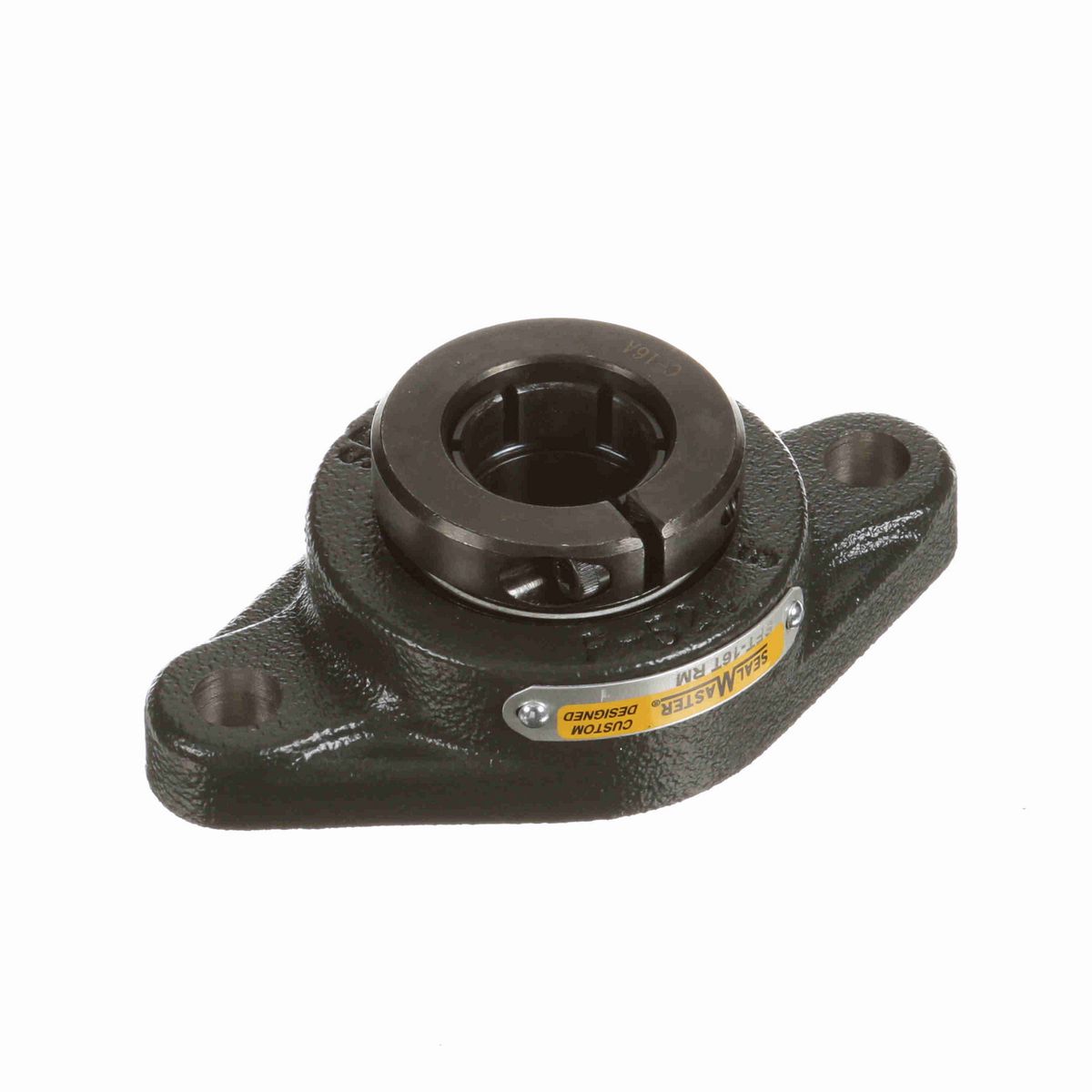

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	2.75 in
Overall Length (in)	4.88 in
Overall Height (in)	1.498 in
Bore Diameter (in)	1 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.48 in
Bolt Spacing (in)	3.8891 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Options	Reduced Maintenance - Lubed for Life
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Ability to Relubricate	No
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	70 in/lbs
Locking Collar Outside Diameter (in)	1.98 in
Vibration Frequency Outer Ring Defect	0.0682 cps
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	1.375 in
Misalignment Capability	±2.0° Misalignment - Static Only
Size Code	2-015
Maximum Speed (RPM)	9000 rpm
Shaft Locking Type	Concentric
Dynamic Load Rating (lb)	2,801 lb
Vibration Frequency Inner Ring Defect	0.0985 cps
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Vibration Frequency Roller Spin	0.0442 cps
Housing Coating	Powder Coated
Max Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0068 cps
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Insert	2-1T RM
Radial Clearance	Standard
Static Load Rating (lb)	1,651 lb
Bearing Type	Standard Duty

General Specifications

UPC	662461346013
Weight	1.62 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
