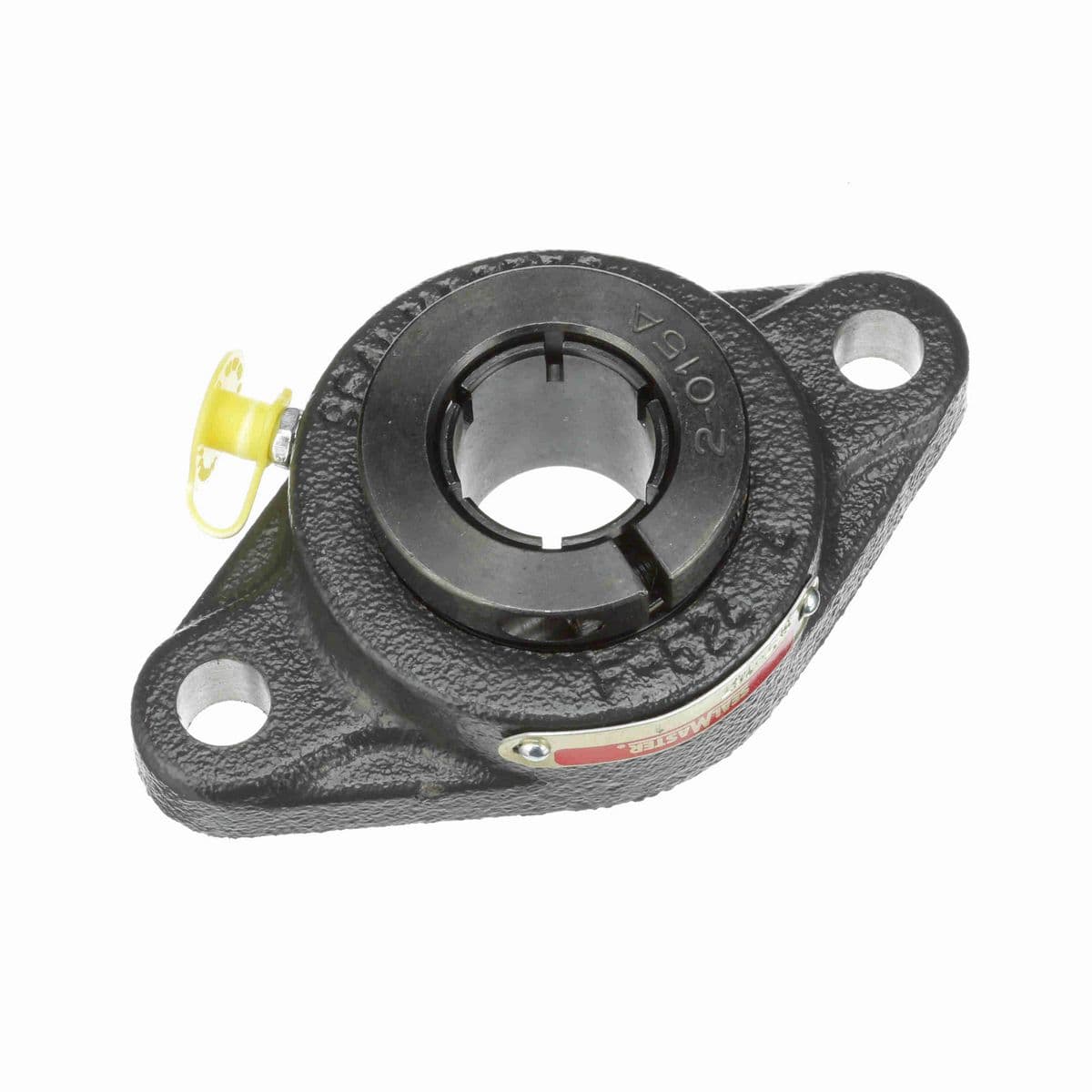

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.75 in
Bolt Size (in)	7/16 in
Overall Height (in)	1.498 in
Overall Length (in)	4.88 in
Bore Diameter (in)	0.875 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.48 in
Bolt Spacing (in)	3.8891 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	1.98 in
Setscrew Torque (in-lbs)	70 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Housing Coating	Powder Coated
Size Code	2-015
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	2,801 lb
Vibration Frequency Inner Ring Defect	0.0985 cps
Inner Ring Outside Diameter (in)	1.375 in
Bearing Type	Standard Duty
End Cap Available	No
Grease Fitting Thread Size	1/4-28
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0442 cps
Insert	2-014T
Static Load Rating (lb)	1,651 lb
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0068 cps
Bearing Insert Finish	Black Oxide
Vibration Frequency Outer Ring Defect	0.0682 cps
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	9000 rpm
Shaft Locking Type	Concentric

General Specifications

UPC	662461129319
Weight	1.80 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
