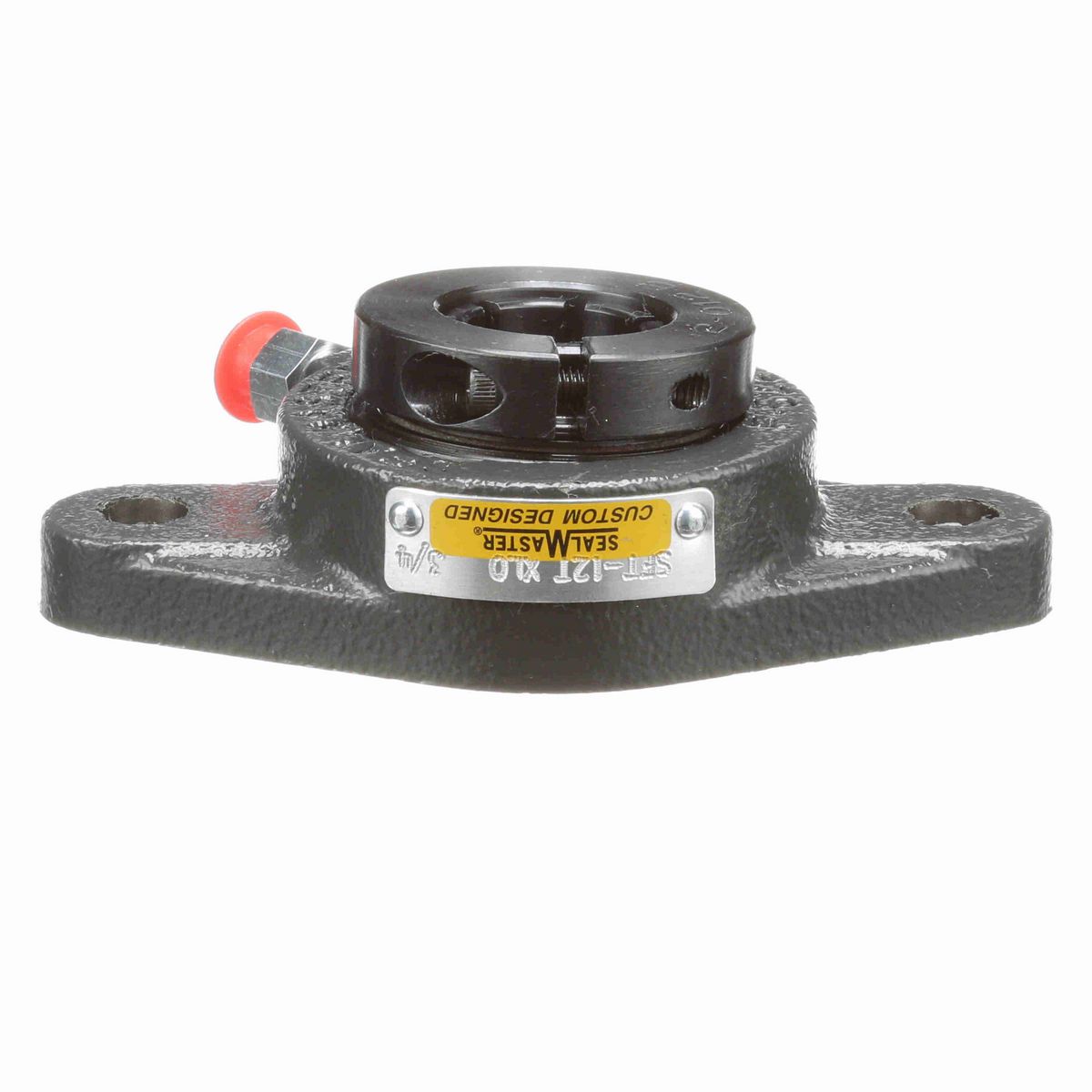

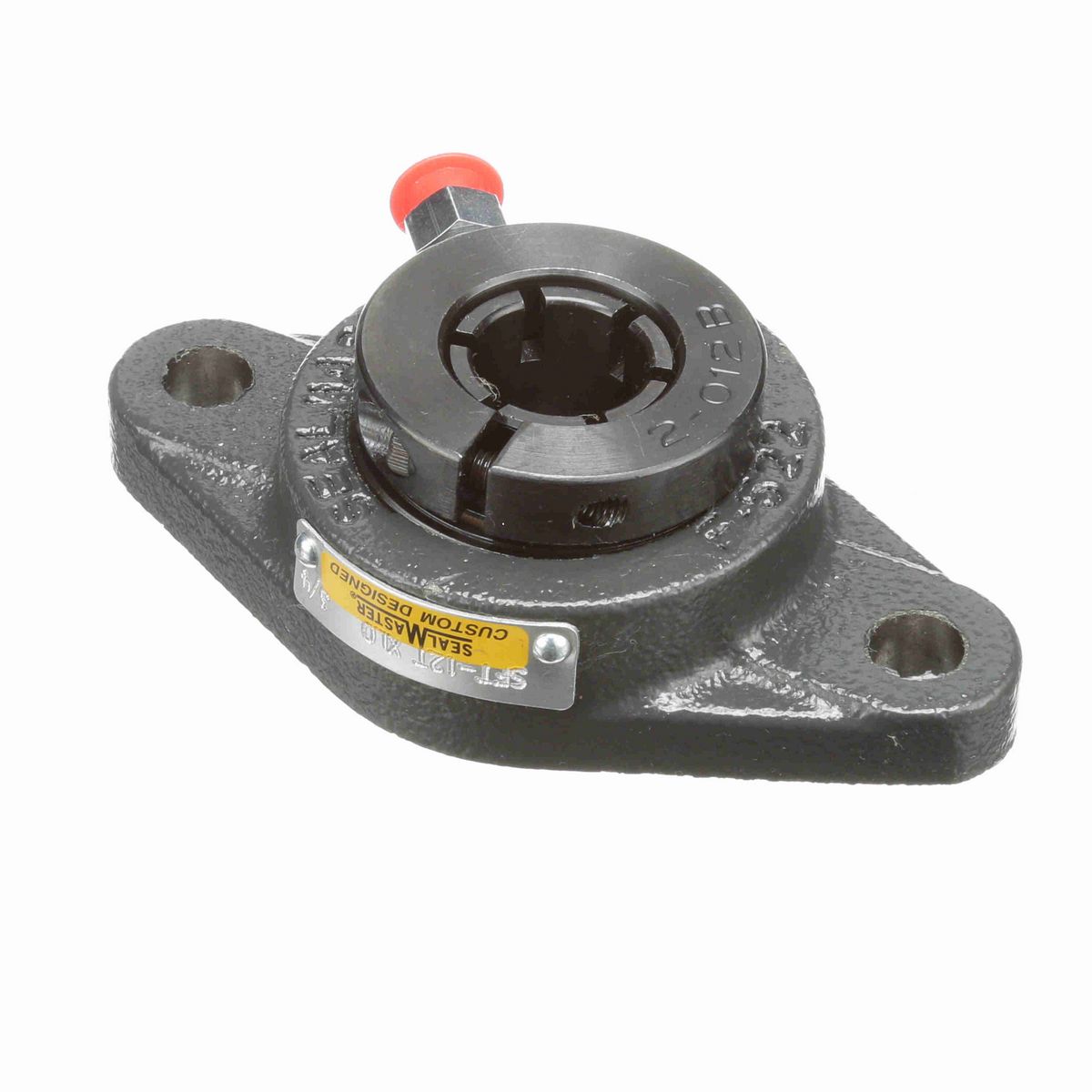

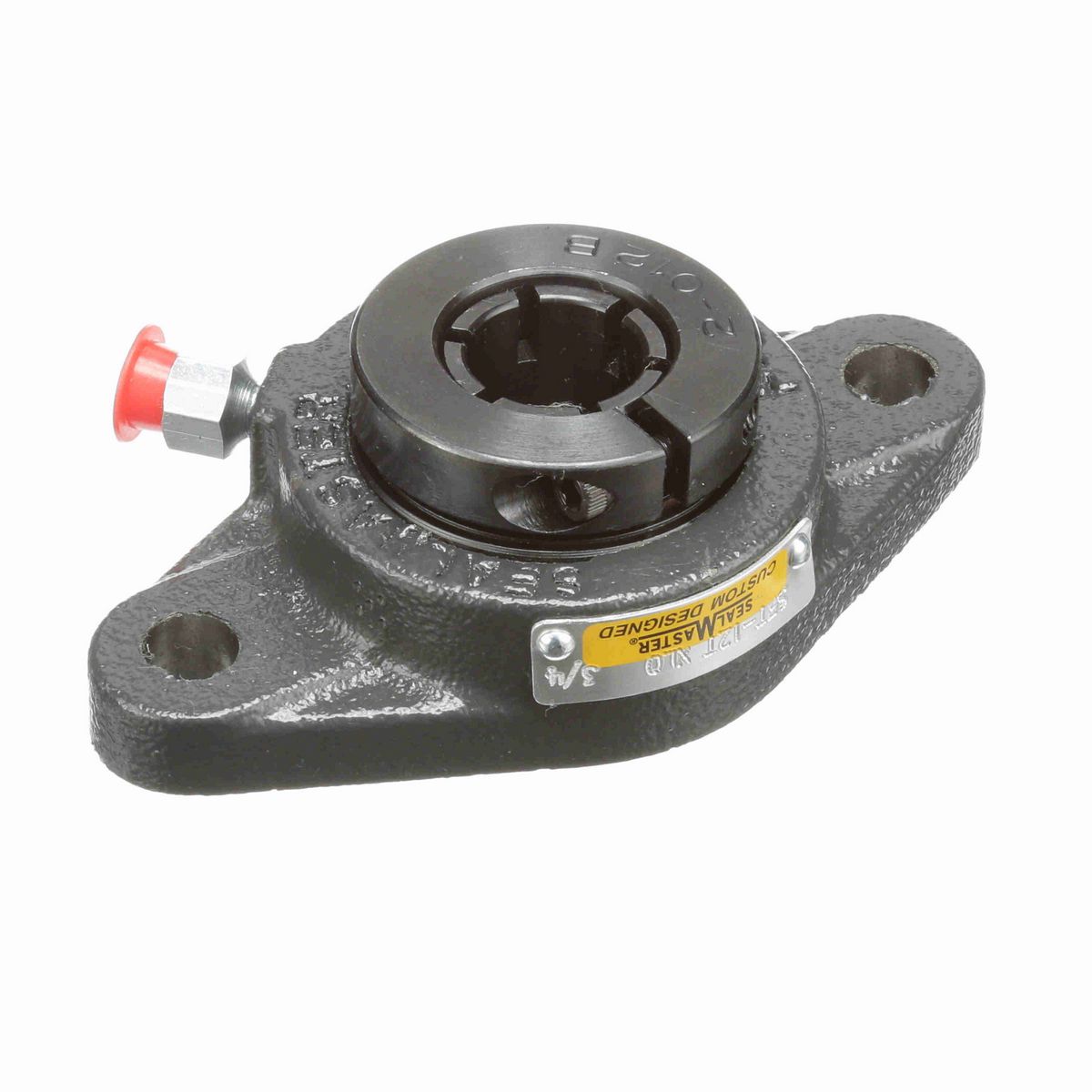

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Nylon retainer to reduce overall drag
• Oil lubricated and supplied with an adapter and plug for easy field relubrication
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
• Looser than standard housing fit for ease of alignment on lightweight frames

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	2.38 in
Overall Height (in)	1.39 in
Overall Length (in)	4.41 in
Bore Diameter (in)	0.75 in
Foot Height (in)	0.44 in
Length Through Bore (in)	1.28 in
Bolt Spacing (in)	3.5310 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Options	Extra Low Drag
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Labryinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	1.75 in
Vibration Frequency Roller Spin	0.0381 cps
Max Operating Temperature (F)	400 °F
End Cap Available	No
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0066 cps
Insert	2-012T XLO
Vibration Frequency Outer Ring Defect	0.0593 cps
Bearing Insert Material	52100 Bearing Steel
Lubricant	Oil Coated Only - No Factory Grease Fill
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	1.192 in
Static Load Rating (lb)	1,444 lb
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	2,611 lb
Vibration Frequency Inner Ring Defect	0.0907 cps
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Size Code	2-012
Maximum Speed (RPM)	2900 rpm
Shaft Locking Type	Concentric
Cage Type	Land Riding Retainer

General Specifications

UPC	662461297766
Weight	1.30 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
