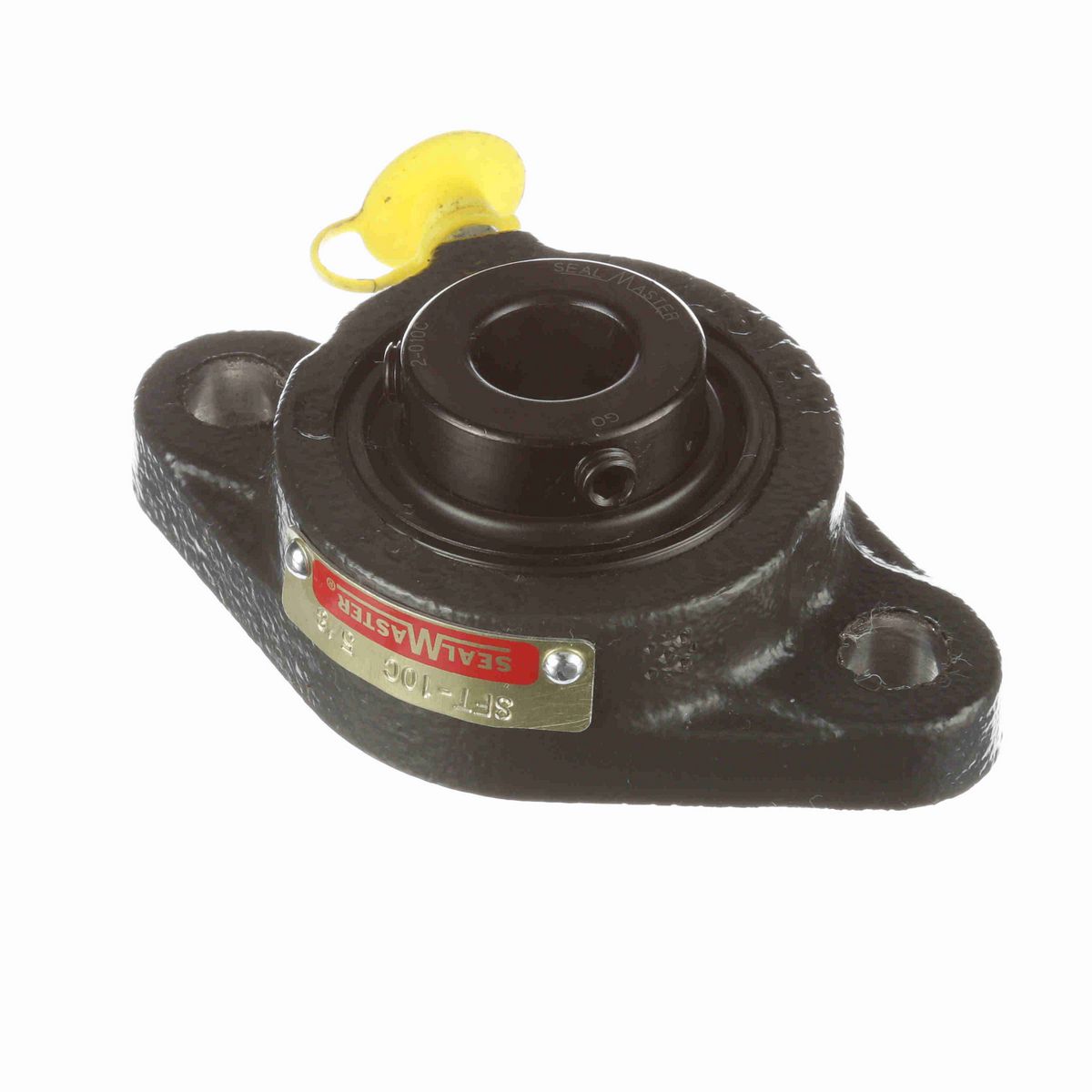

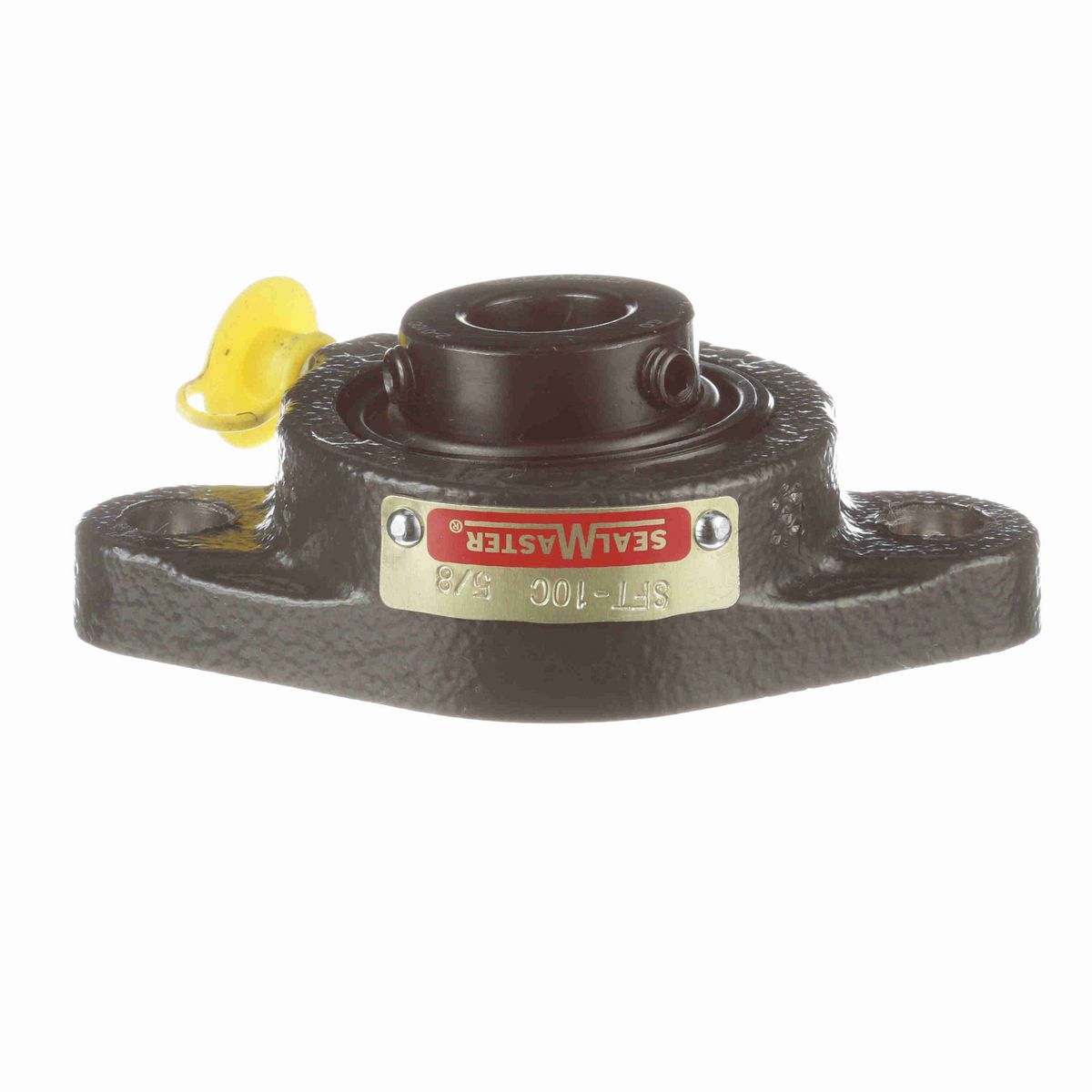

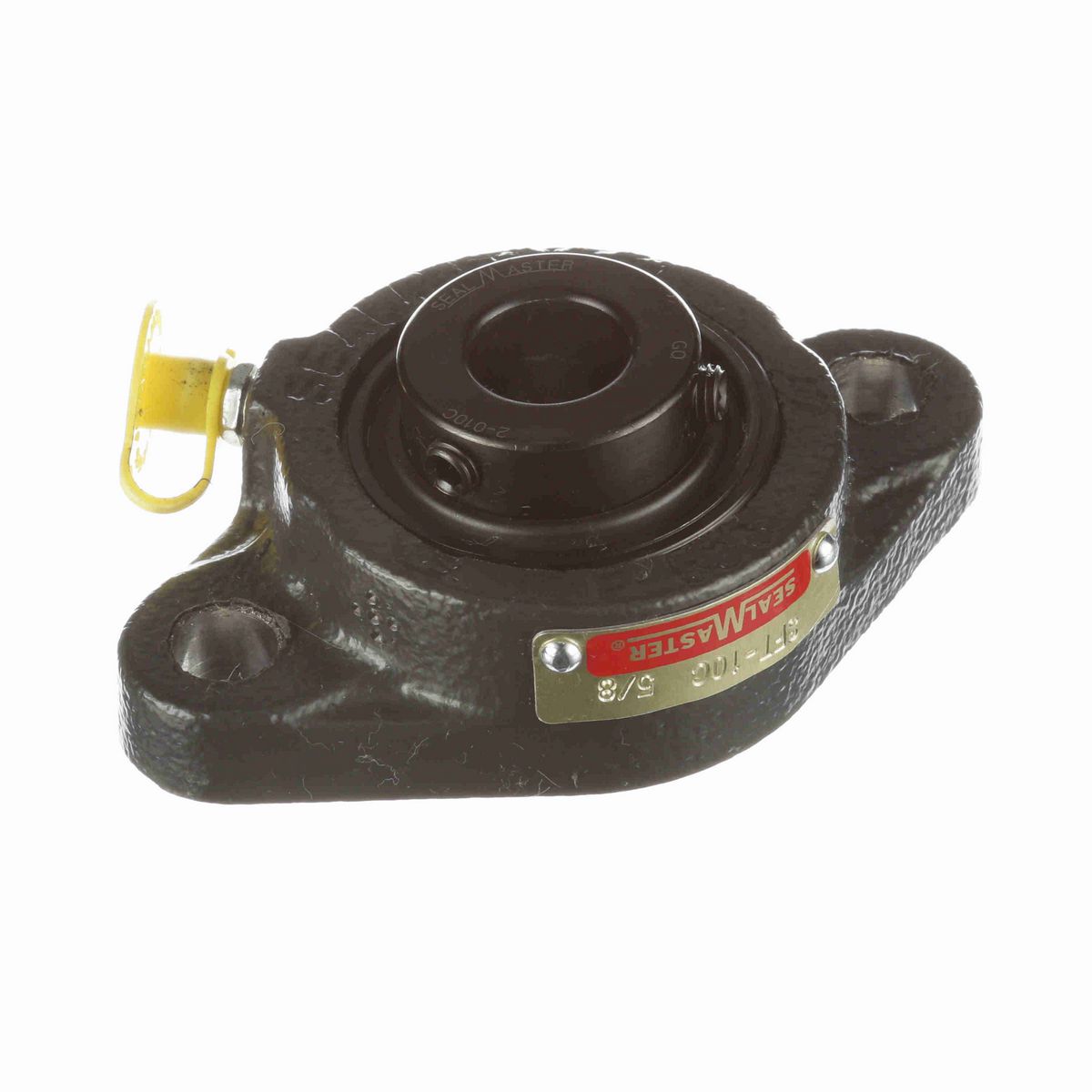

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	2.31 in
Overall Height (in)	1.281 in
Overall Length (in)	3.88 in
Bore Diameter (in)	0.625 in
Foot Height (in)	0.44 in
Length Through Bore (in)	1.219 in
Bolt Spacing (in)	3.0000 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Grease Fitting Thread Size	1/4-28
Maximum Speed (RPM)	7300 rpm
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	2,611 lb
Static Load Rating (lb)	1,444 lb
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Vibration Frequency Roller Spin	0.0381 cps
Insert	2-010C
Size Code	2-012
Vibration Frequency Outer Ring Defect	0.0593 cps
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0066 cps
Vibration Frequency Inner Ring Defect	0.0907 cps
Housing Material	Cast Iron
Bearing Type	Standard Duty
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	1.192 in
Max Operating Temperature (F)	220 °F

General Specifications

UPC	662461022528
Weight	0.98 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
