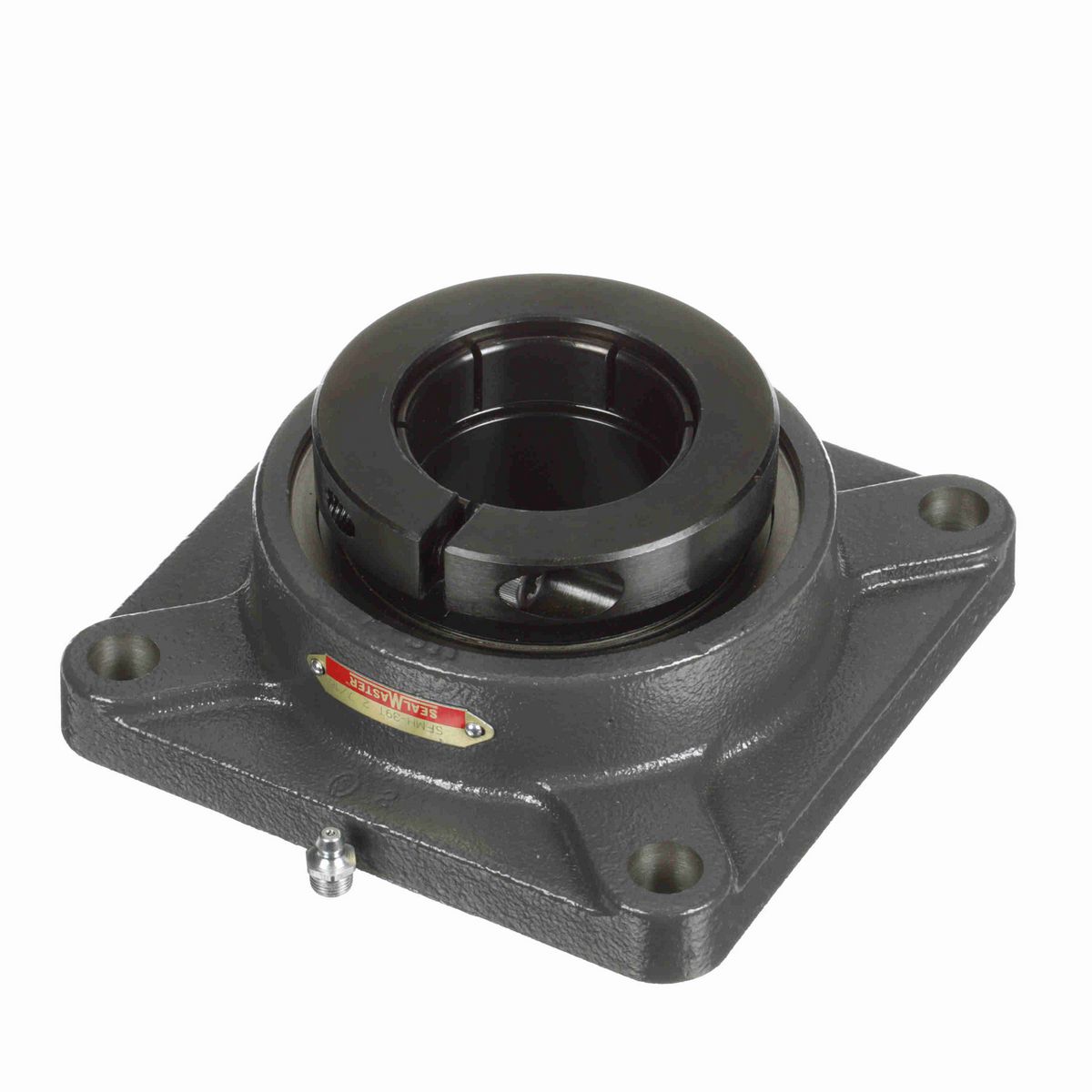

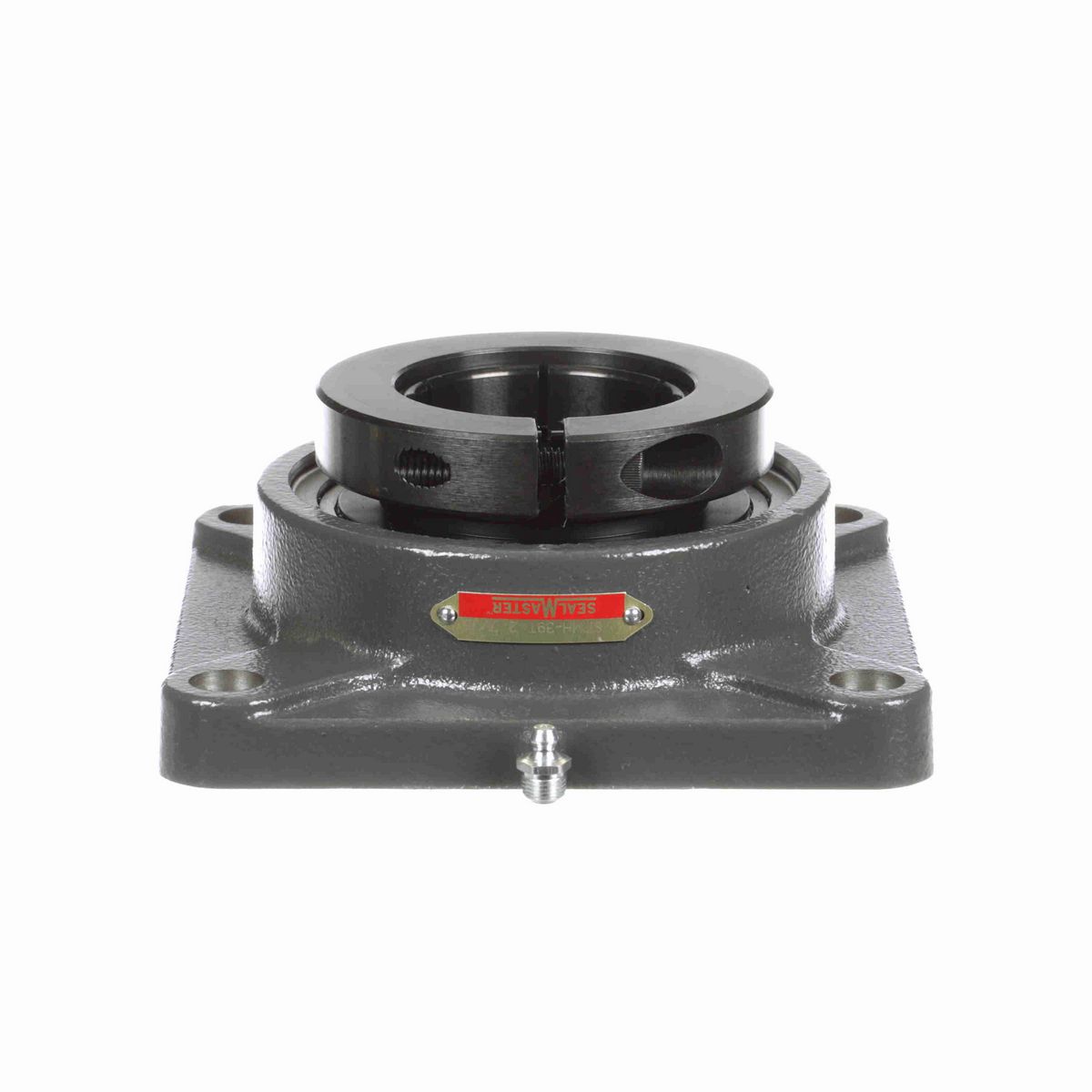

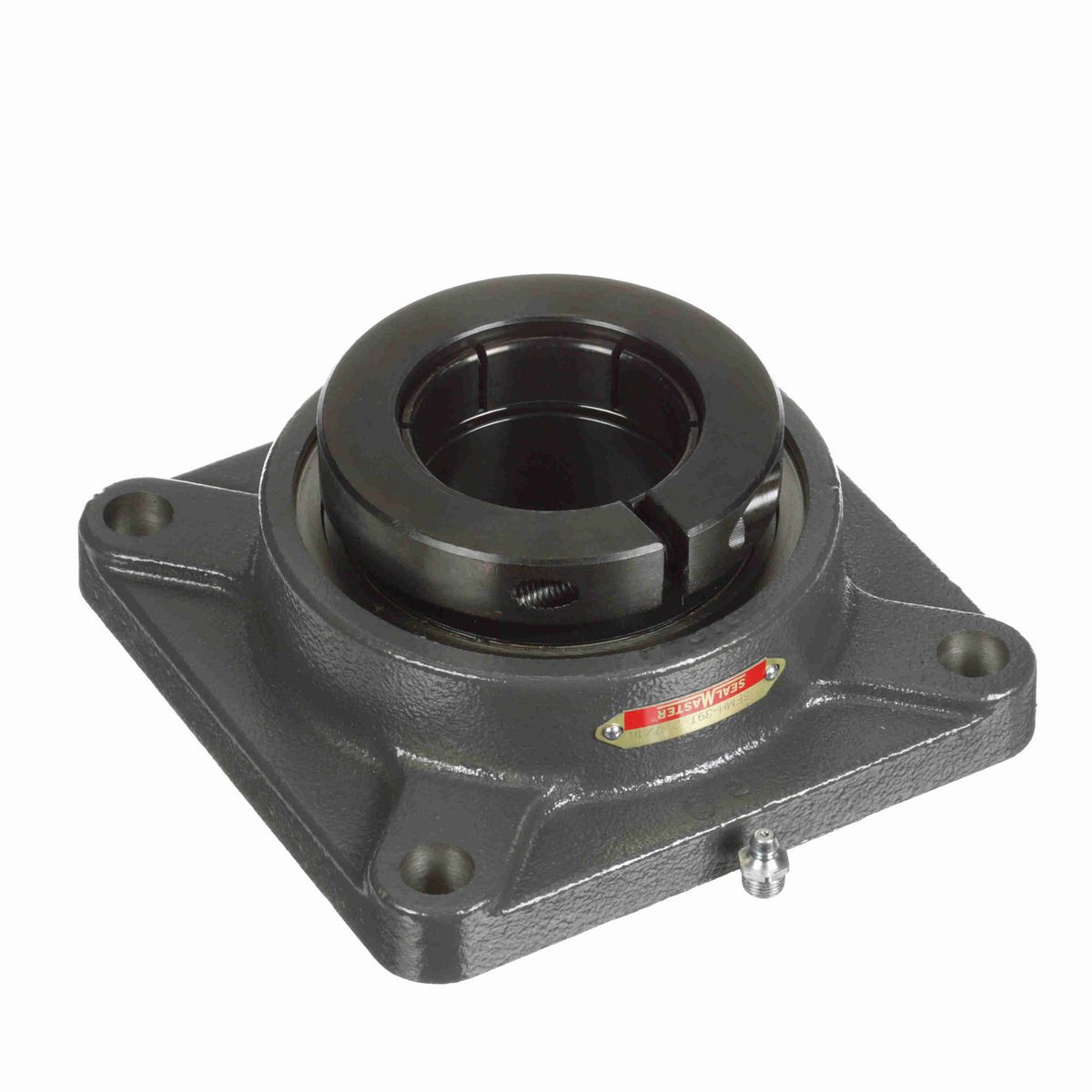

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	6.88 in
Overall Height (in)	2.828 in
Overall Length (in)	6.88 in
Bore Diameter (in)	2.4375 in
Foot Height (in)	0.81 in
Overall Height to End Cap (in)	3.7 in
Length Through Bore (in)	2.83 in
Bolt Spacing (in)	5.6250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	4.22 in
Ability to Relubricate	Yes
Housing Backside Inner Diameter	5
Insert	MH-39T
Static Load Rating (lb)	8,150 lb
Dynamic Load Rating (lb)	11,789 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Inner Ring Defect	0.0988 cps
Shaft Locking Type	Concentric
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	2500 rpm
Max Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0430 cps
Cage Type	Land Riding Retainer
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0678 cps
Size Code	212
Inner Ring Outside Diameter (in)	2.981 in
Radial Clearance	Standard
Vibration Frequency Fundamental Train	0.0068 cps
Bearing Type	Standard Duty

General Specifications

UPC	662461350195
Weight	11.89 LB
Packaged Length	8.60 IN
Packaged Width	9.00 IN
Packaged Height	3.30 IN
HTC	8483.20.4040
Country of Origin	Mexico
