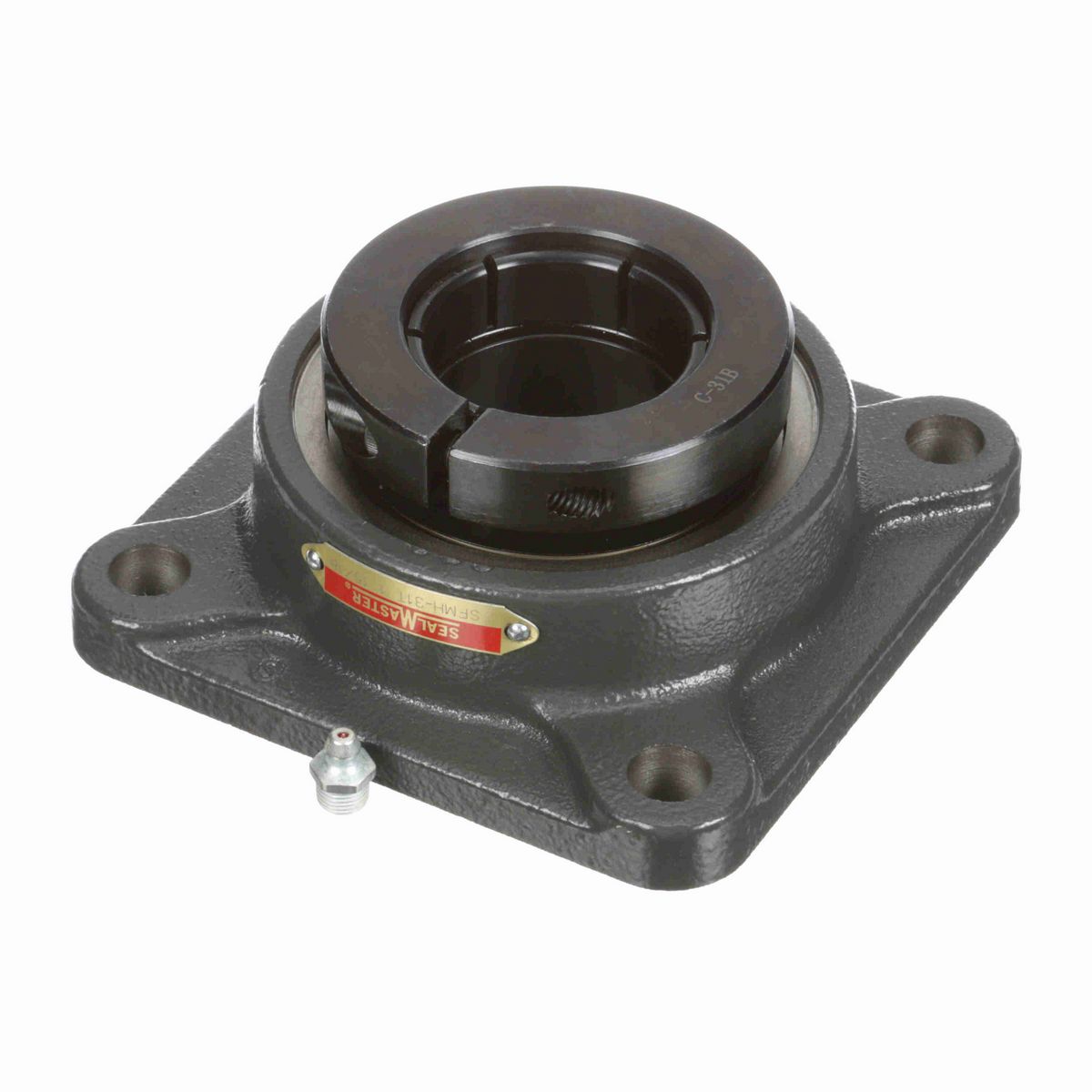

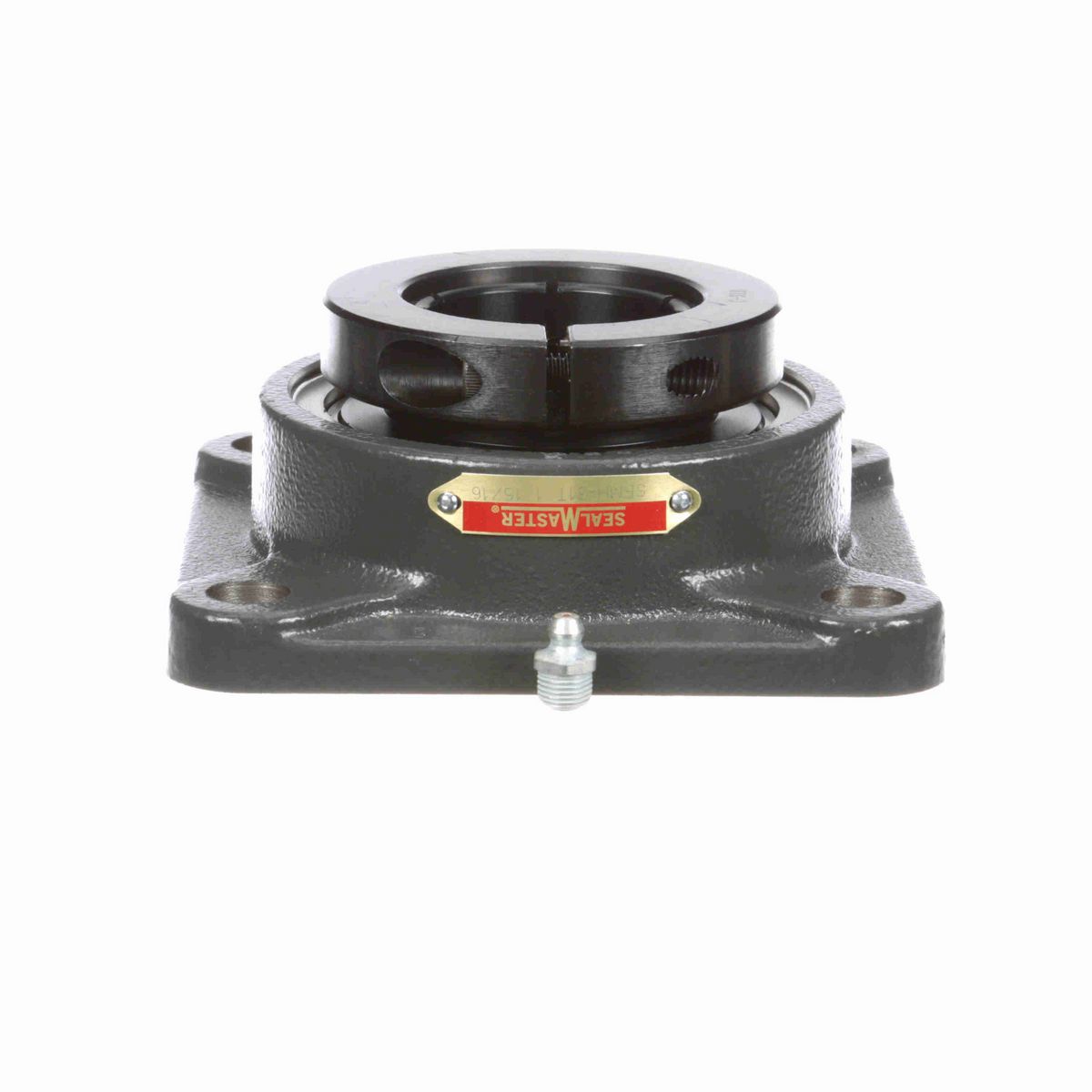

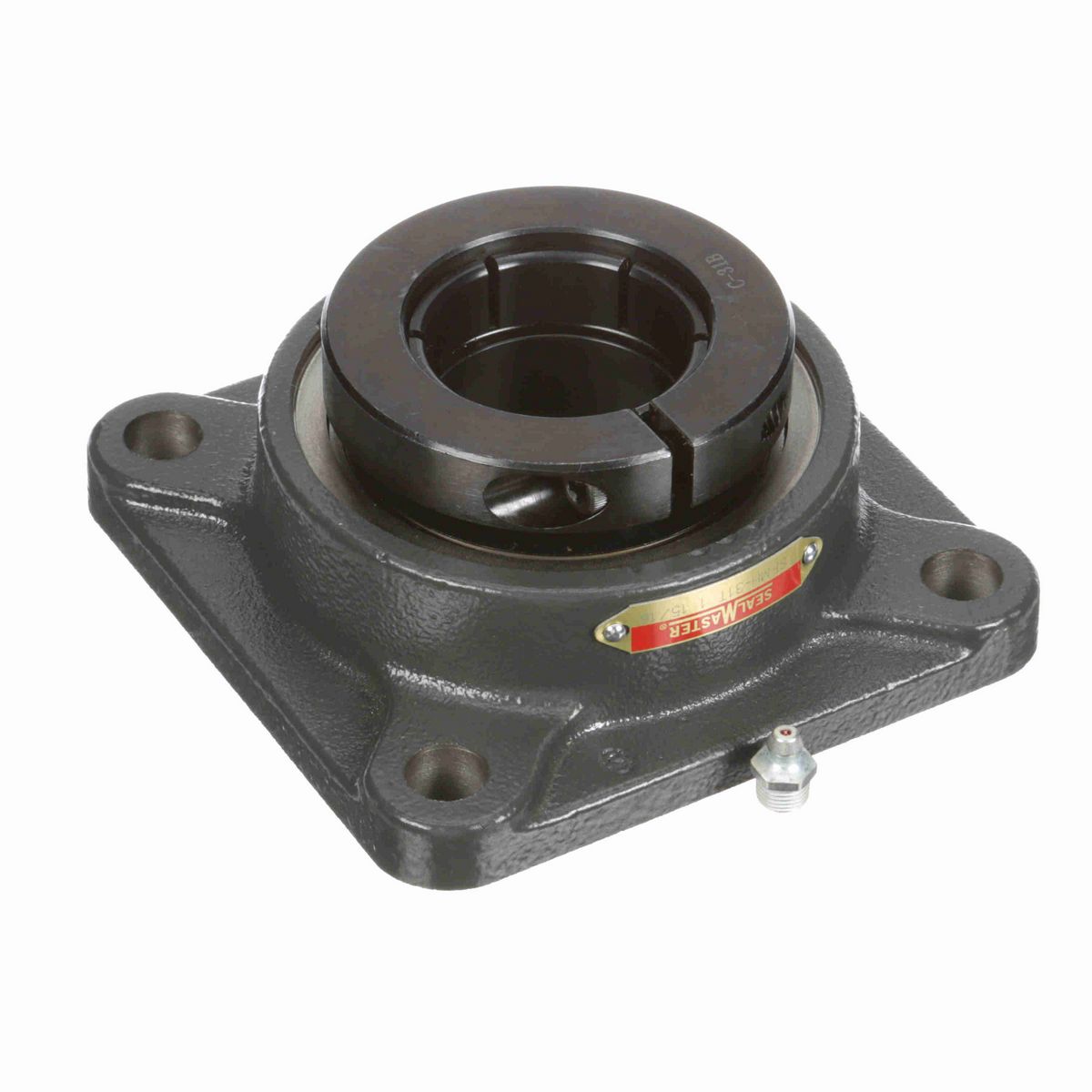

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Overall Width (in)	5.63 in
Bolt Size (in)	9/16 in
Overall Height (in)	2.301 in
Overall Length (in)	5.63 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.58 in
Overall Height to End Cap (in)	2.98 in
Length Through Bore (in)	2.17 in
Bolt Spacing (in)	4.3750 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.47 in
Size Code	210
Shaft Locking Type	Concentric
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
Insert	MH-31T
Housing Coating	Powder Coated
Static Load Rating (lb)	5,216 lb
Housing Backside Inner Diameter	4
Dynamic Load Rating (lb)	7,889 lb
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Bearing Type	Standard Duty
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.469 in
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
End Cap Available	No
Housing Material	Cast Iron
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	3000 rpm

General Specifications

UPC	662461340806
Weight	6.35 LB
Packaged Length	6.90 IN
Packaged Width	6.10 IN
Packaged Height	2.10 IN
HTC	8483.20.4040
Country of Origin	Mexico
