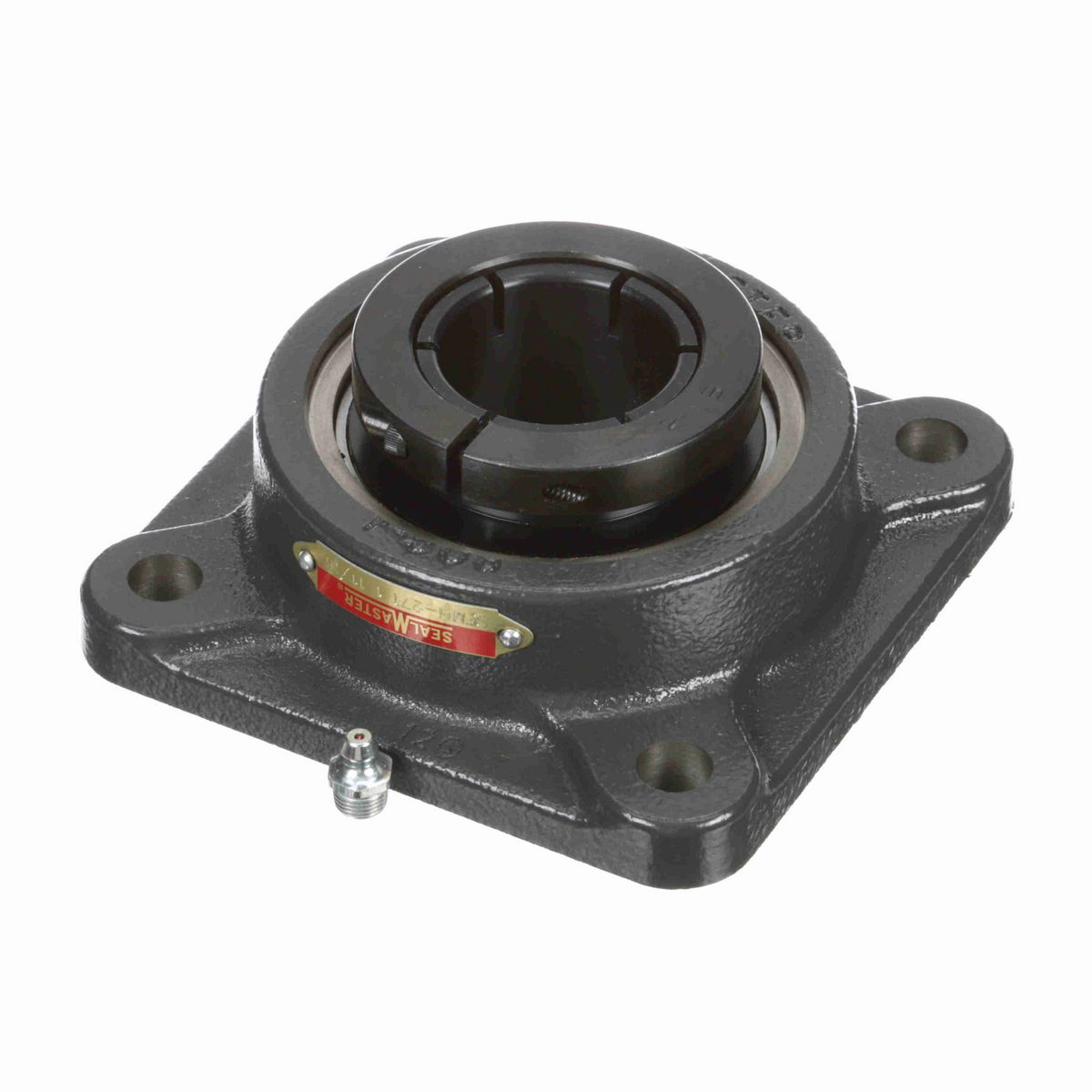

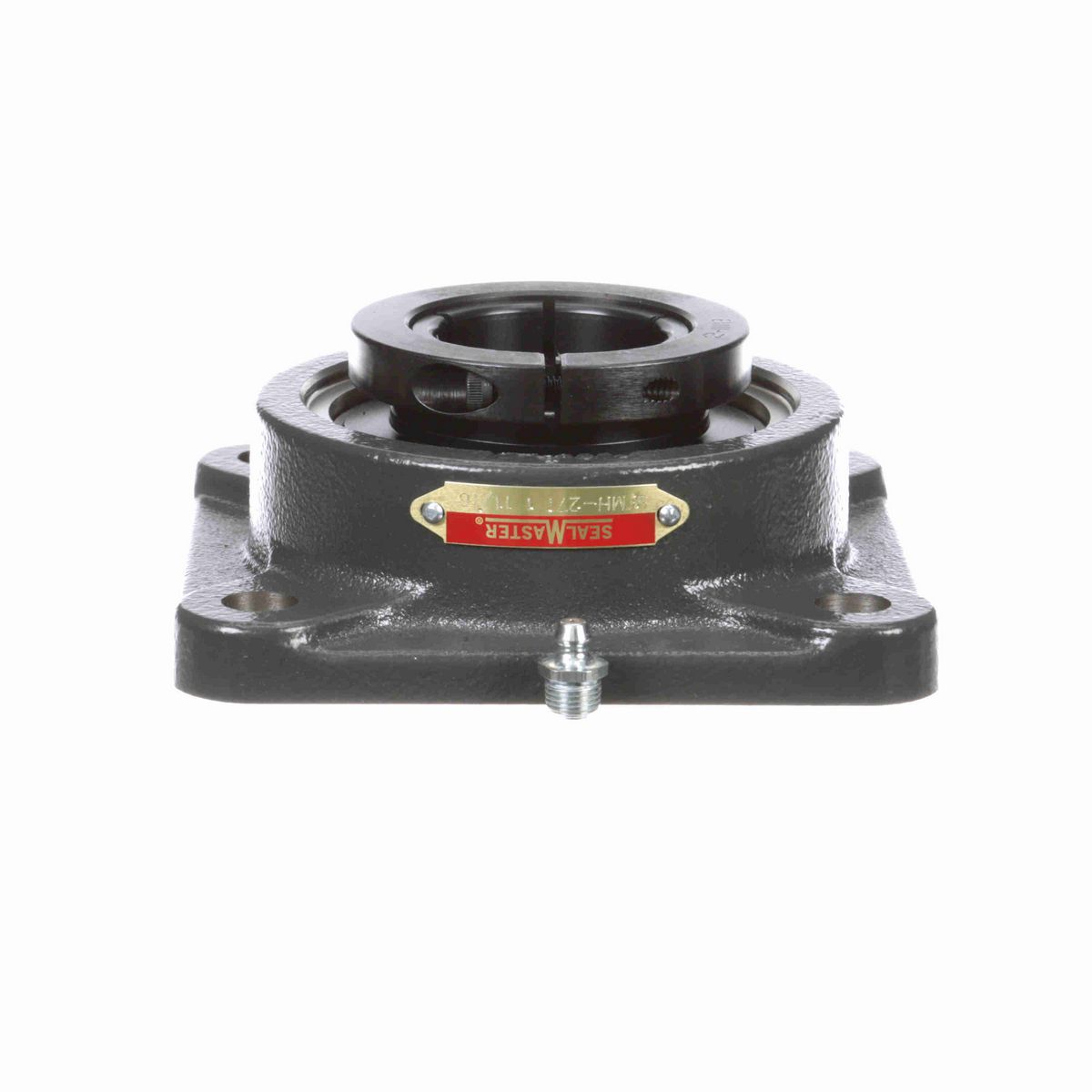

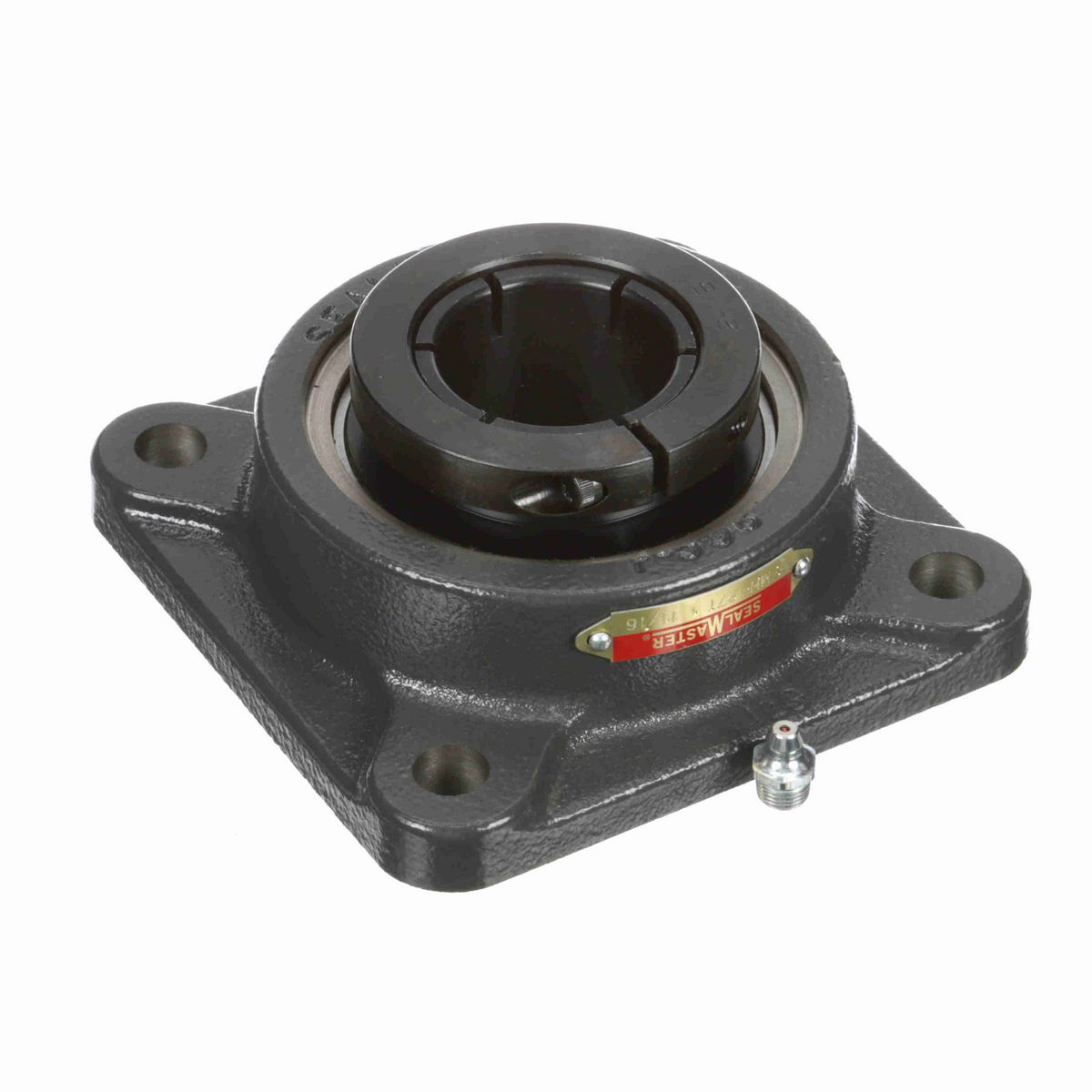

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.38 in
Overall Length (in)	5.38 in
Overall Height (in)	2.164 in
Bore Diameter (in)	1.6875 in
Overall Height to End Cap (in)	2.99 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.06 in
Bolt Spacing (in)	4.125 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3 in
Ability to Relubricate	Yes
Maximum Speed (RPM)	3000 rpm
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Concentric
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Dynamic Load Rating (lb)	7,901 lb
Grease Fitting Thread Size	1/8 NPT
Bearing Type	Standard Duty
Housing Coating	Powder Coated
End Cap Available	No
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	2.28 in
Insert	MH-27T
Max Operating Temperature (F)	220 °F
Housing Backside Inner Diameter	3.88
Fixed vs. Expansion	Fixed
Size Code	209
Static Load Rating (lb)	5,139 lb

General Specifications

UPC	662461340790
Weight	5.81 LB
Packaged Length	6.30 IN
Packaged Width	6.90 IN
Packaged Height	2.40 IN
HTC	8483.20.4040
Country of Origin	Mexico
