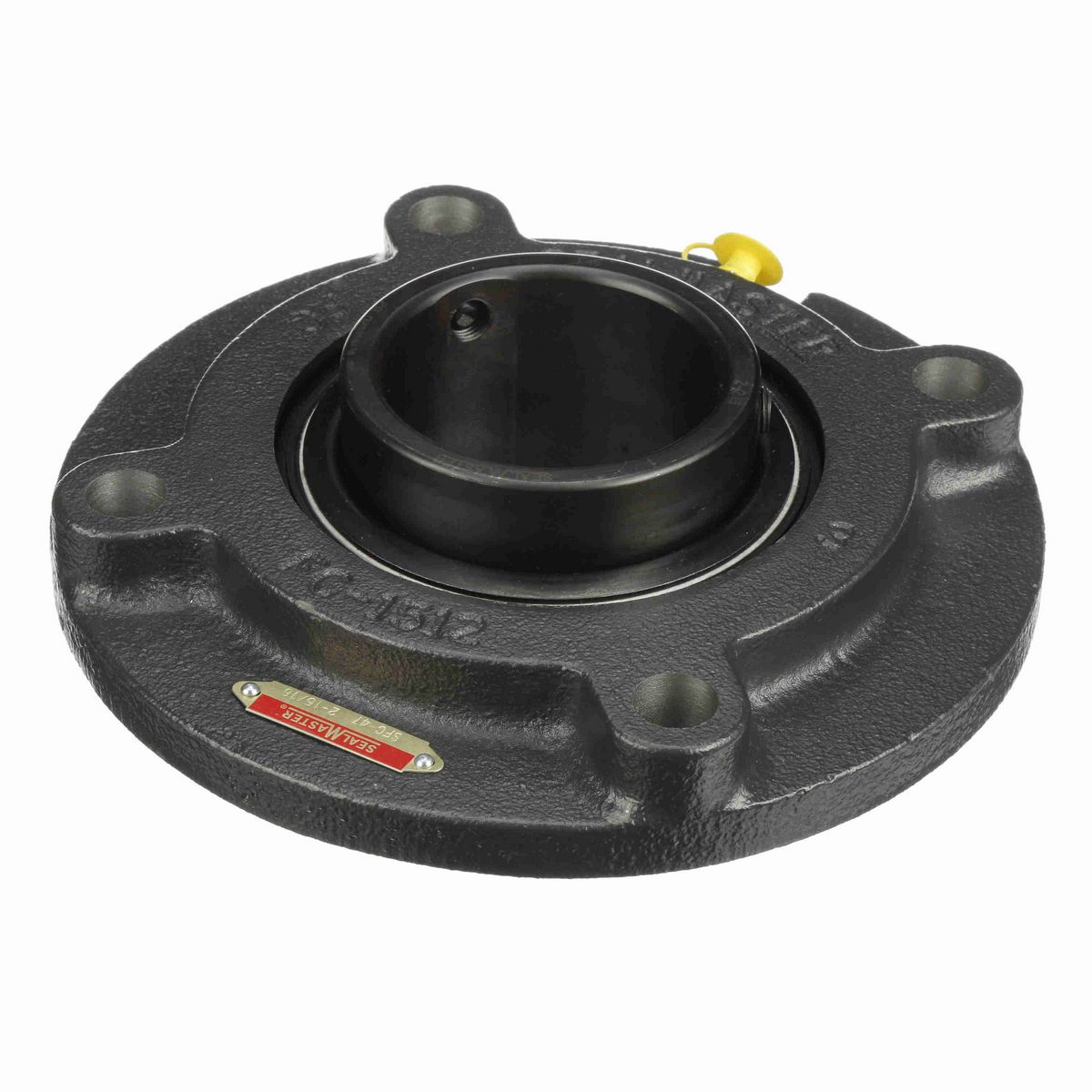

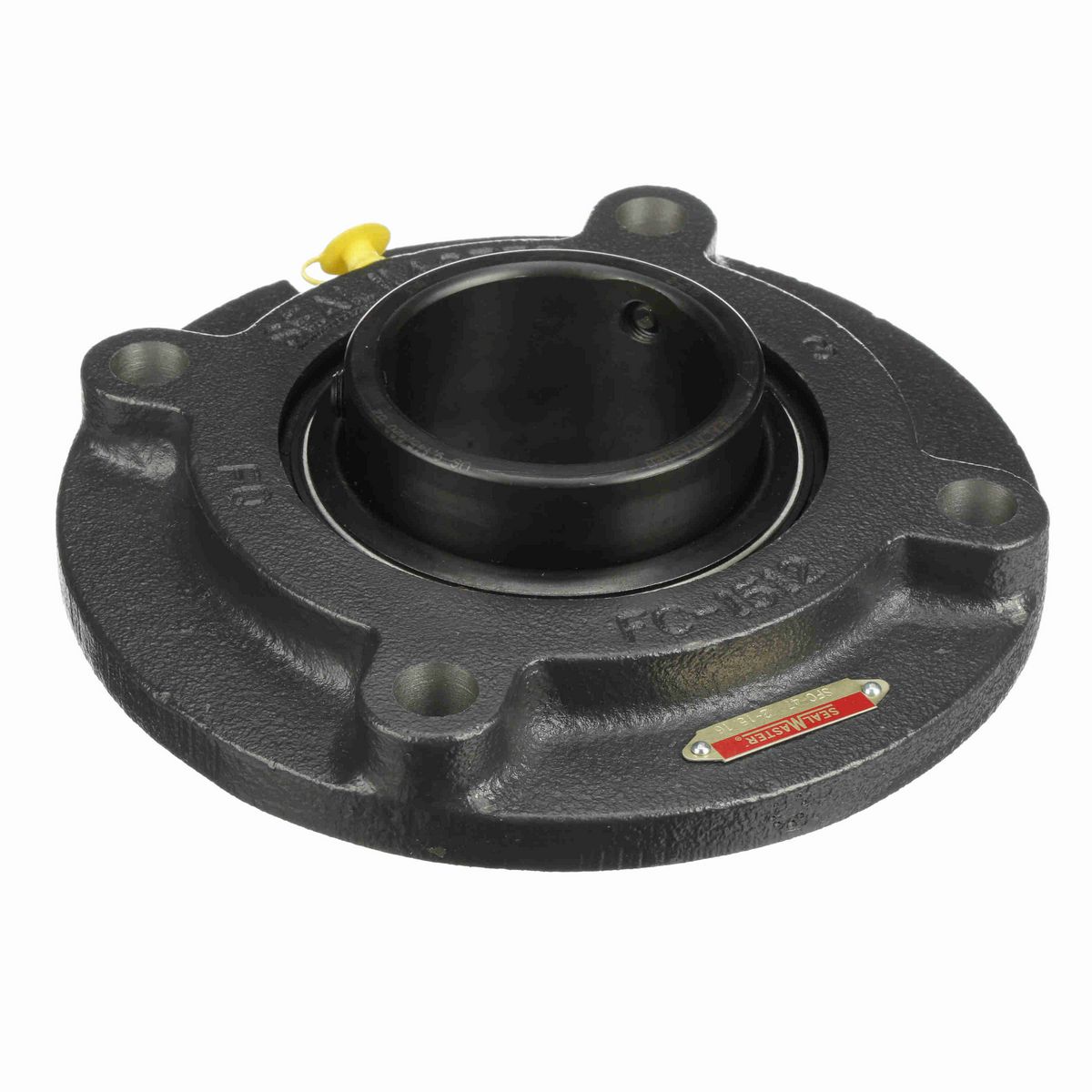

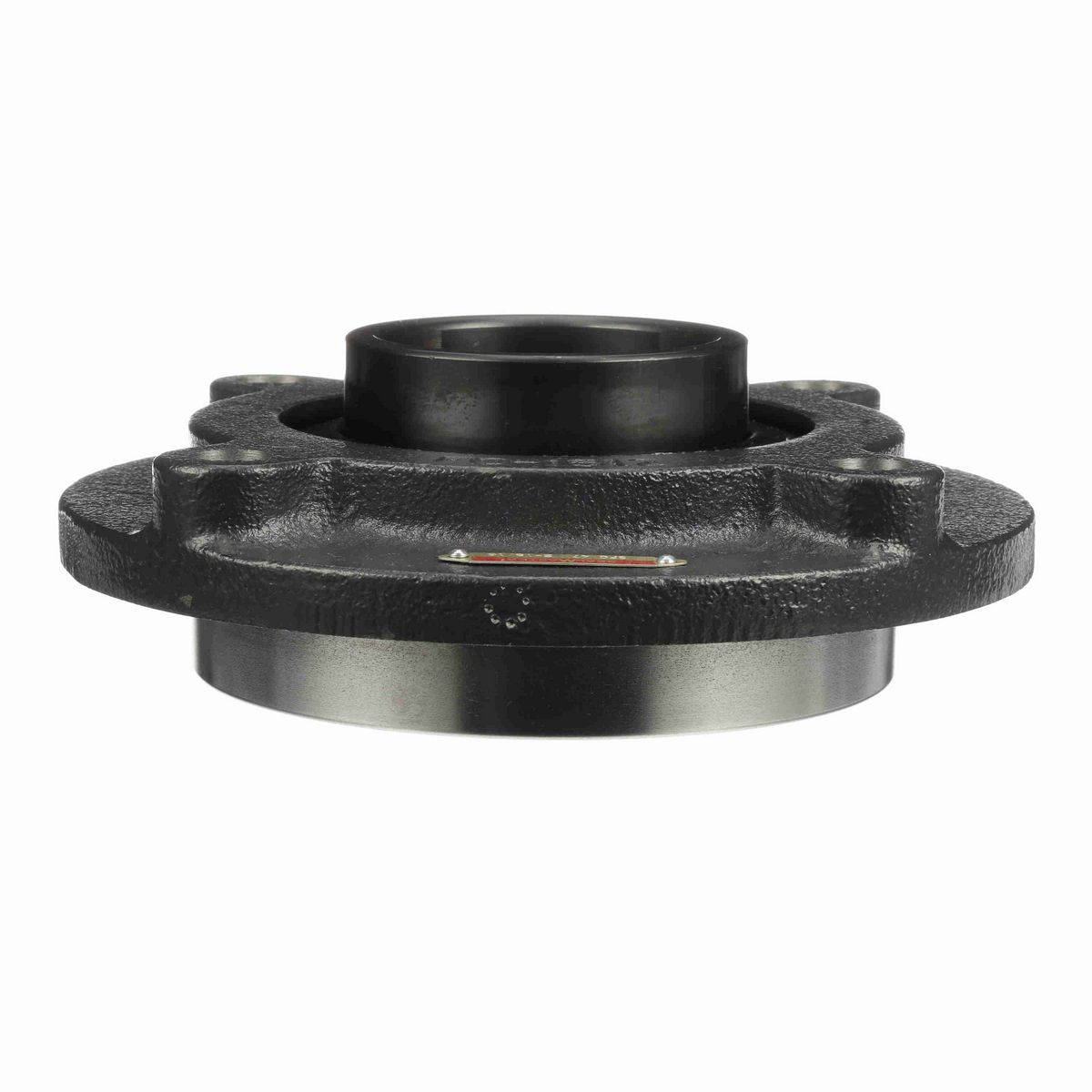

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	8.75 in
Bolt Size (in)	5/8 in
Overall Length (in)	8.75 in
Overall Height (in)	3.06 in
Bore Diameter (in)	2.9375 in
Foot Height (in)	0.56 in
Pilot Diameter (in)	6.375 in
Length Through Bore (in)	3.06 in
Housing Outside Diameter (in)	8.75 in
Bolt Circle (in)	7.5 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	Brass
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Pilot Depth (in)	1.03 in
End Cap Available	No
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/8 NPT
Shaft Locking Type	Set Screw
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Housing Material	Cast Iron
Size Code	2-215
Maximum Speed (RPM)	2450 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	11,224 lb
Dynamic Load Rating (lb)	14,839 lb
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	3.641 in
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
Insert	2-215 SFB

General Specifications

UPC	662461004166
Weight	17.31 LB
Packaged Length	8.88 IN
Packaged Width	9.06 IN
Packaged Height	3.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
