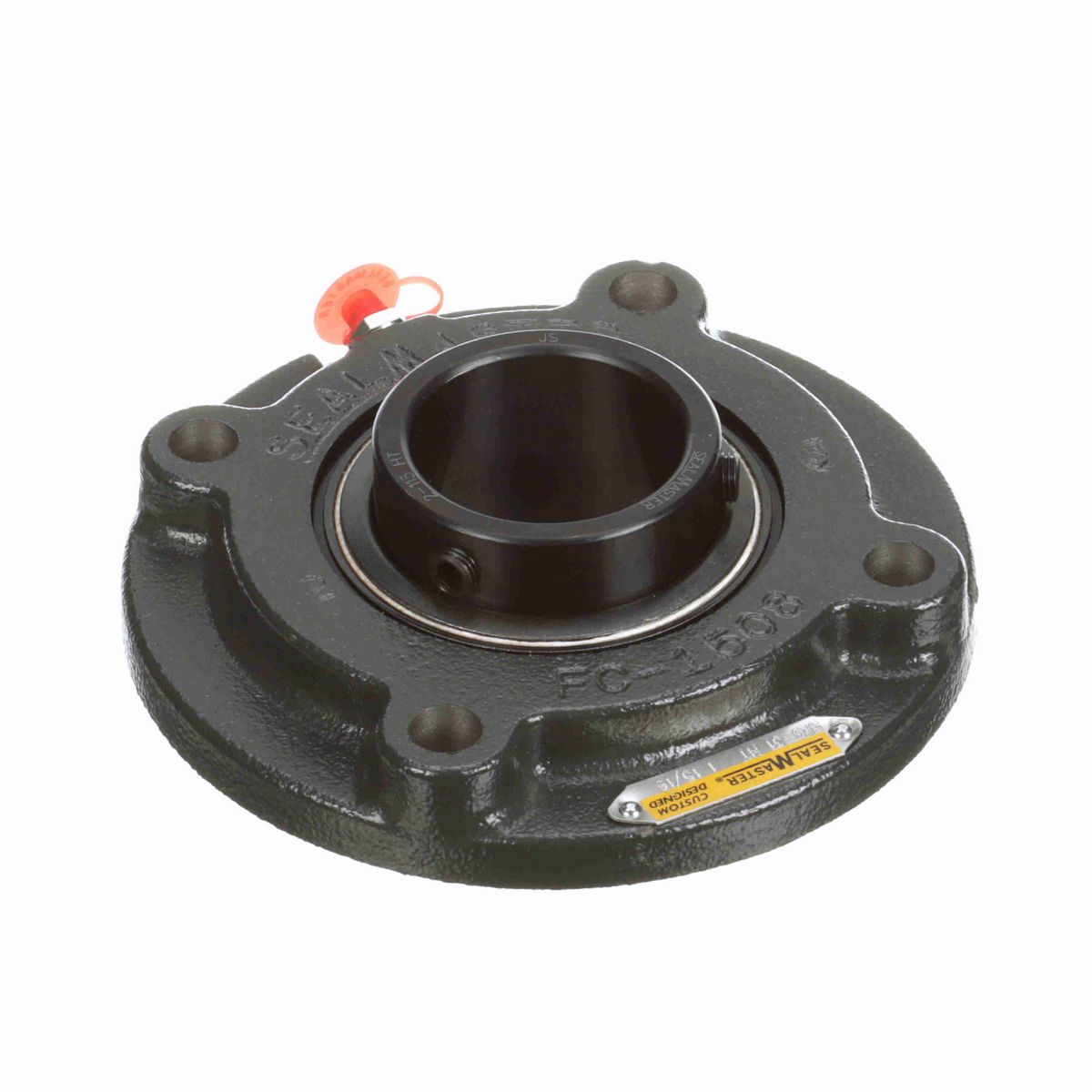

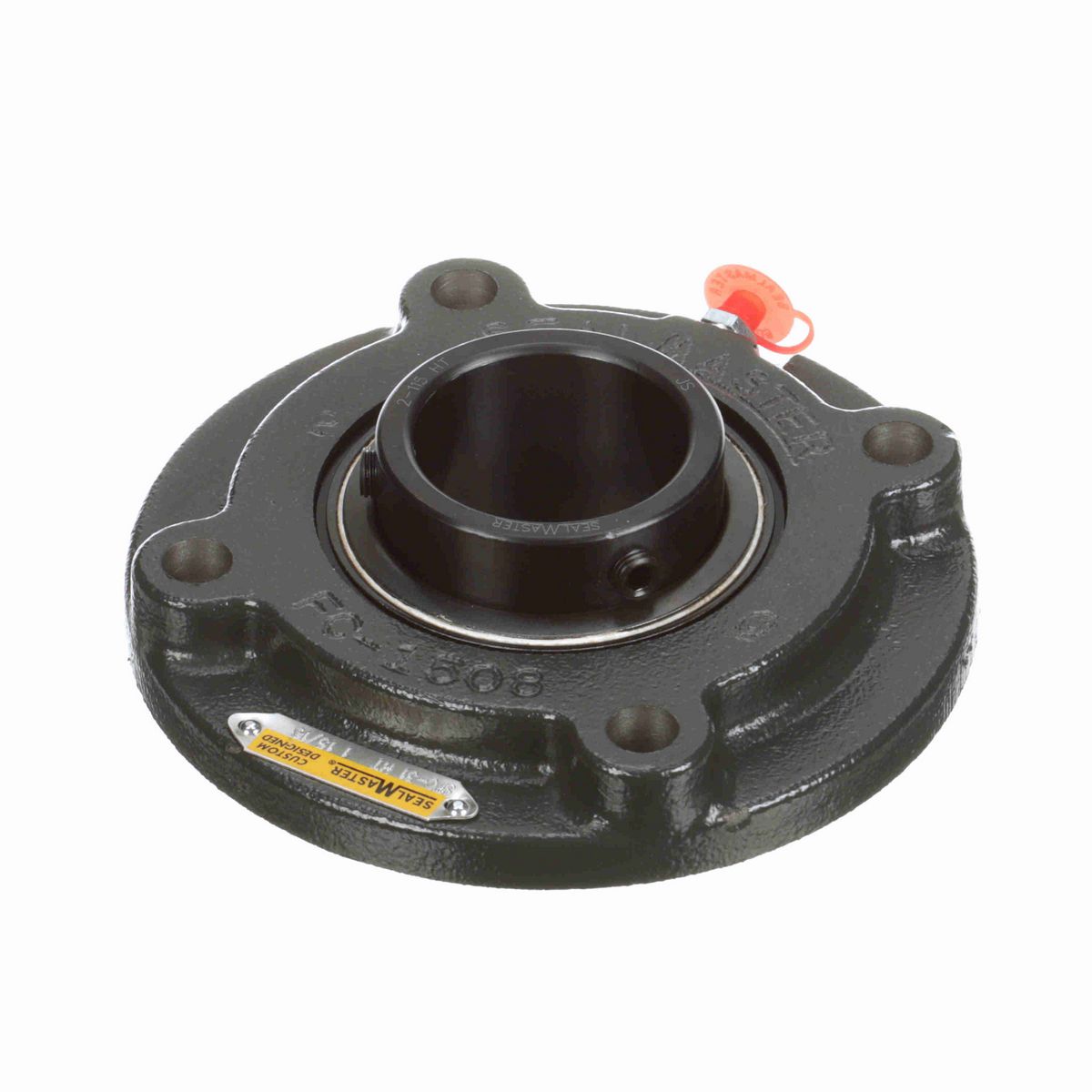

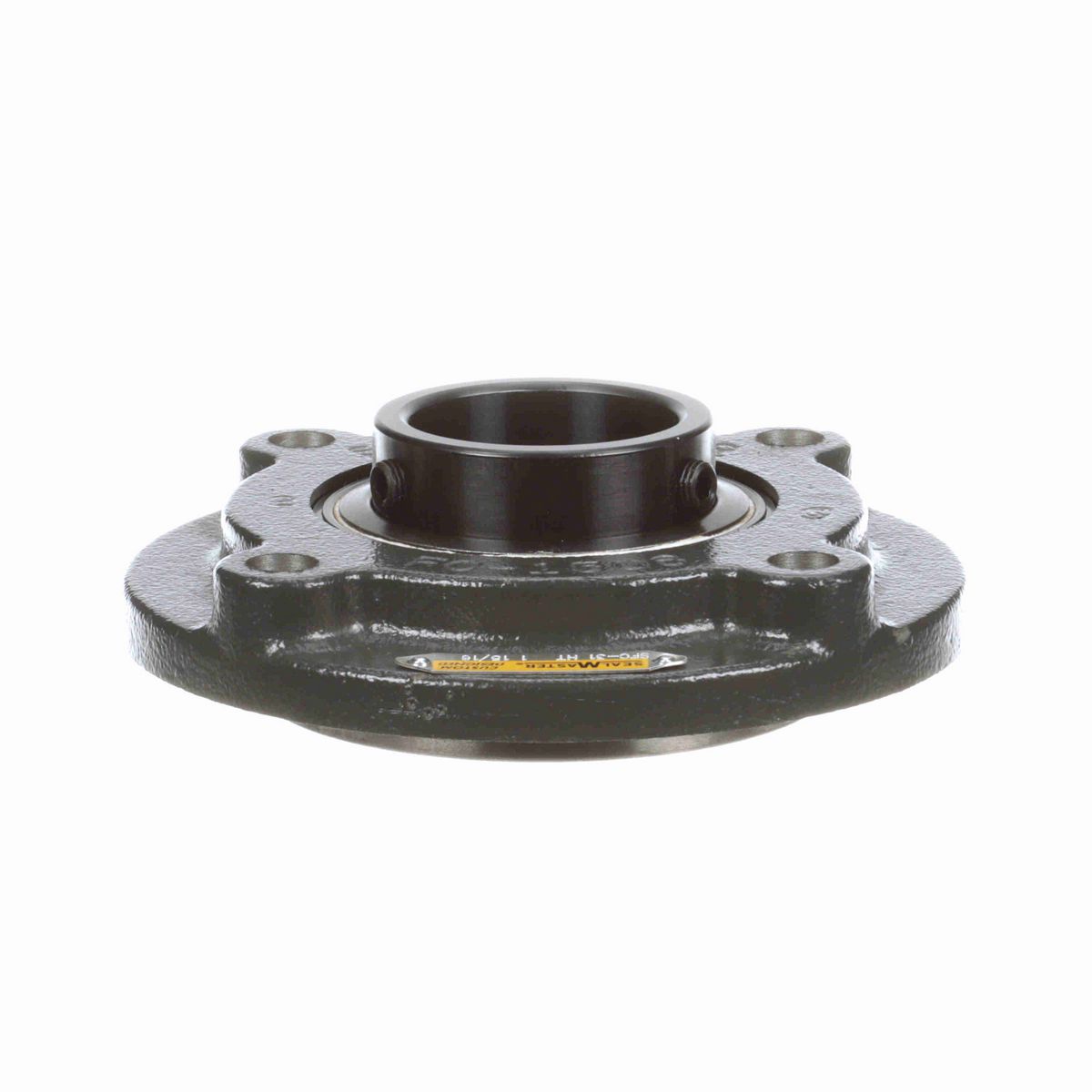

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger for dry and dusty environment
• Increased internal clearance and high temperature grease
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	6.13 in
Overall Height (in)	2.03 in
Overall Length (in)	6.13 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.44 in
Pilot Diameter (in)	4.25 in
Length Through Bore (in)	2.029 in
Housing Outside Diameter (in)	6.13 in
Bolt Circle (in)	5.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Options	High Temperature
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	High Temp Labyrinth
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	0.44 in
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	1550 rpm
Vibration Frequency Outer Ring Defect	0.0683 cps
Radial Clearance	Increased
Cage Type	Land Riding Retainer
Insert	2-115 HT
End Cap Available	No
Lubricant	Lithium Complex Grease With Synthetic Oil
Bearing Type	Standard Duty
Inner Ring Outside Diameter (in)	2.469 in
Vibration Frequency Roller Spin	0.0445 cps
Grease Fitting Thread Size	1/8 NPT
Size Code	2-115
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	400 °F
Dynamic Load Rating (lb)	7,889 lb
Vibration Frequency Inner Ring Defect	0.0984 cps
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0068 cps
Static Load Rating (lb)	5,216 lb
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461315200
Weight	6.50 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
