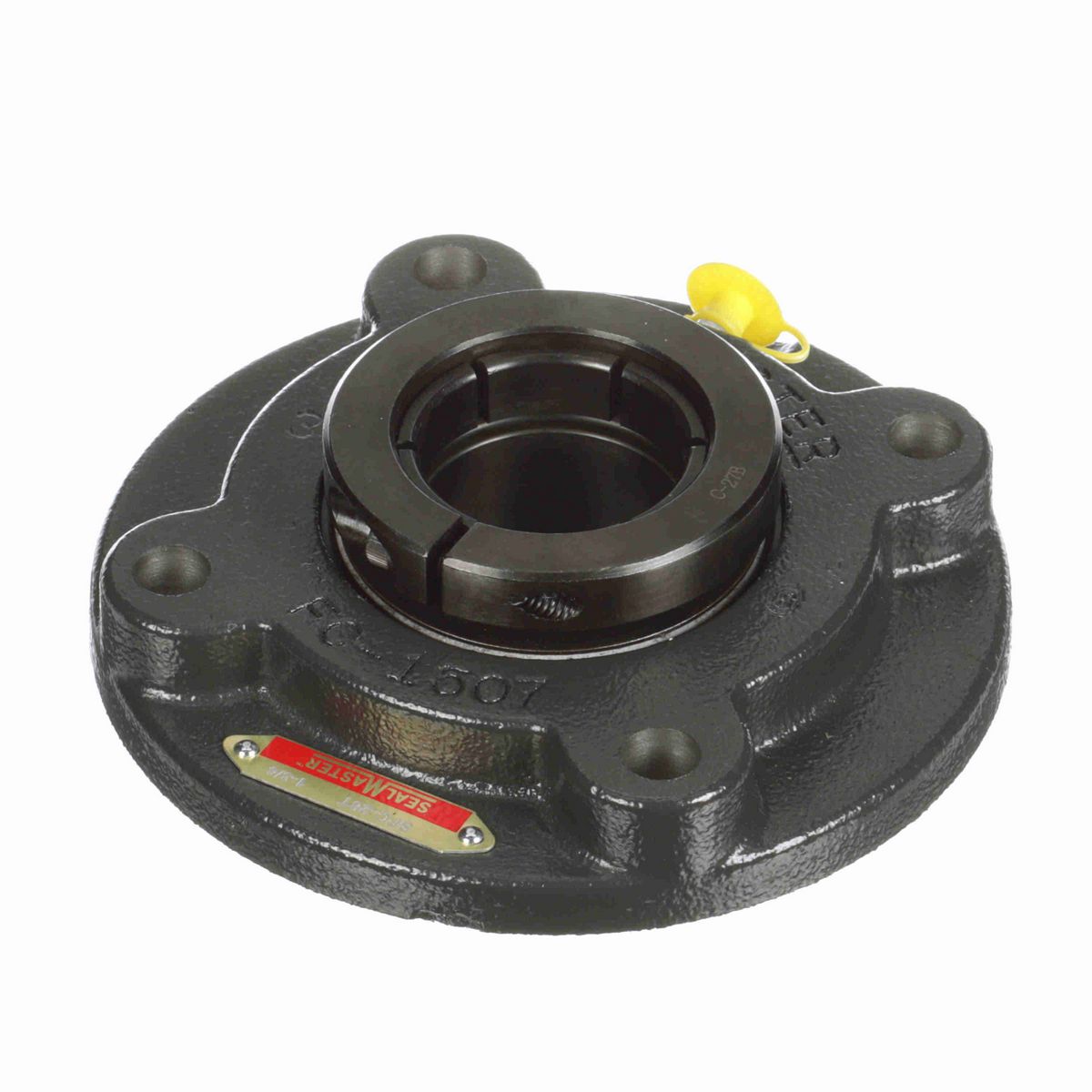

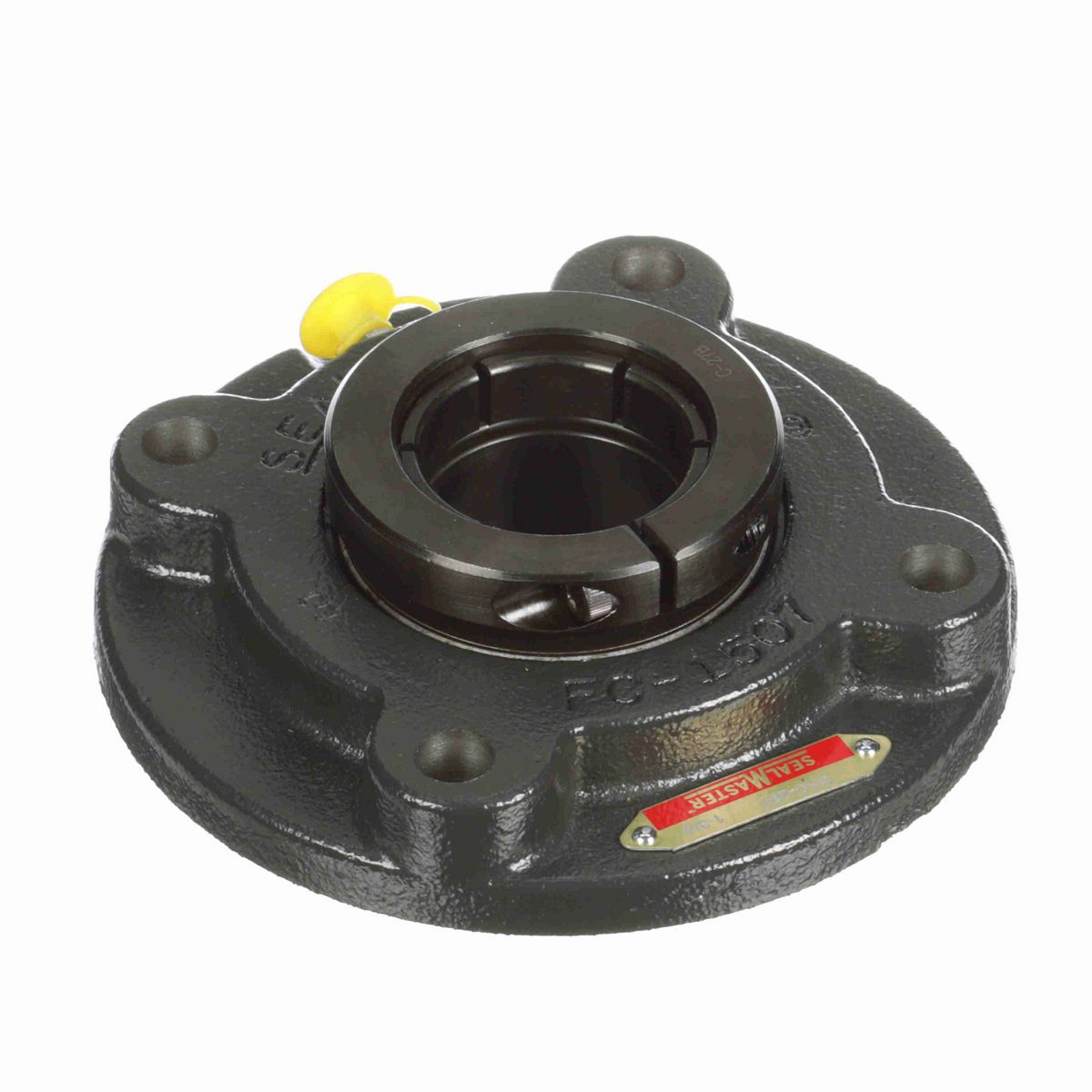

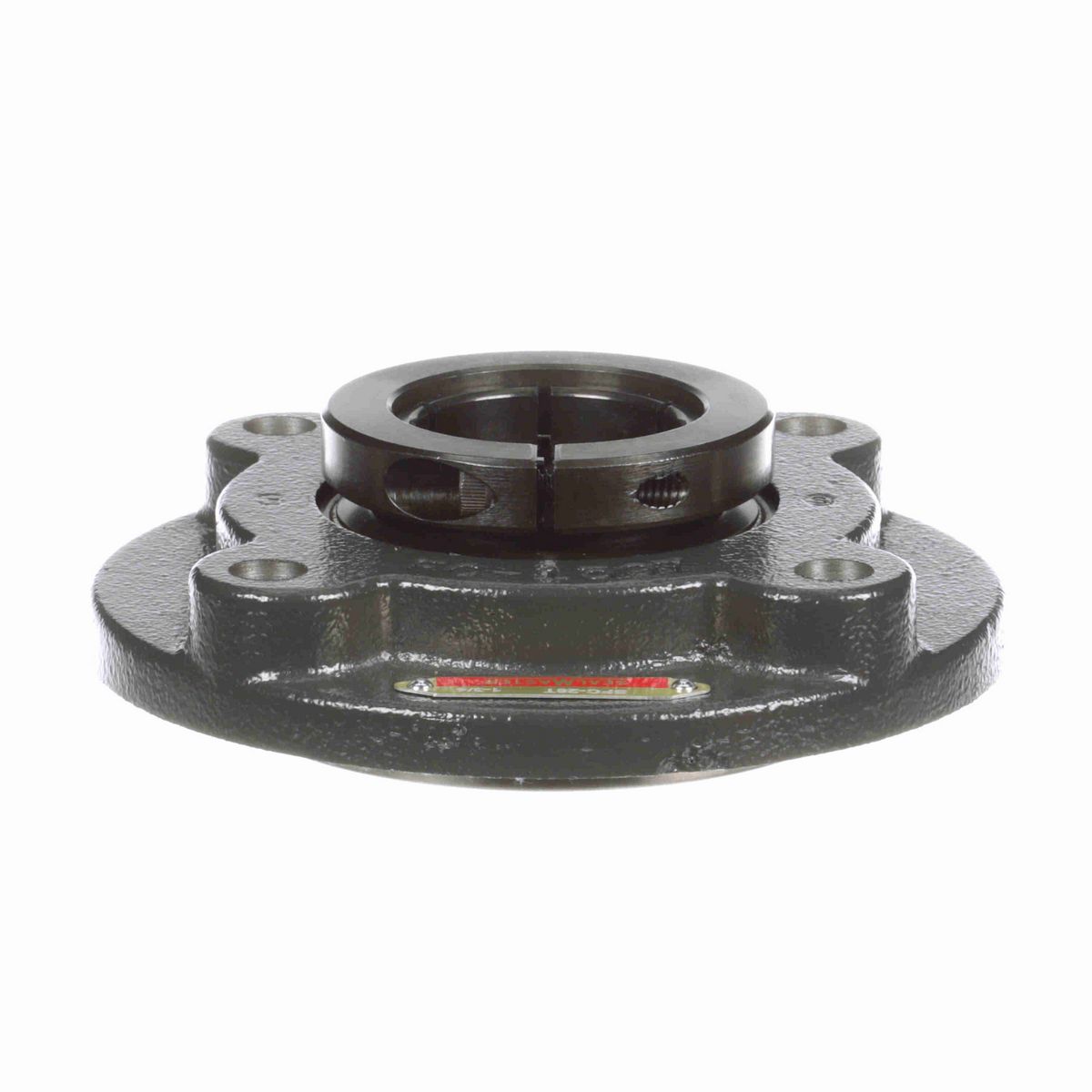

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.13 in
Bolt Size (in)	7/16 in
Overall Height (in)	2.06 in
Overall Length (in)	6.13 in
Bore Diameter (in)	1.75 in
Pilot Diameter (in)	4.25 in
Foot Height (in)	0.44 in
Length Through Bore (in)	2.06 in
Housing Outside Diameter (in)	6.13 in
Bolt Circle (in)	5.125 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	3 in
Ability to Relubricate	Yes
Pilot Depth (in)	0.41 in
Inner Race Heat Treat Method	Zone-Hardened
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,139 lb
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0067 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.297 in
End Cap Available	No
Insert	2-112TC SFB
Grease Fitting Thread Size	1/4-28
Size Code	2-111
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0673 cps
Shaft Locking Type	Concentric
Radial Clearance	Standard
Dynamic Load Rating (lb)	7,901 lb
Housing Coating	Powder Coated
Maximum Speed (RPM)	3800 rpm
Bearing Insert Finish	Black Oxide
Vibration Frequency Roller Spin	0.0417 cps
Vibration Frequency Inner Ring Defect	0.0994 cps

General Specifications

UPC	662461033289
Weight	6.45 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
