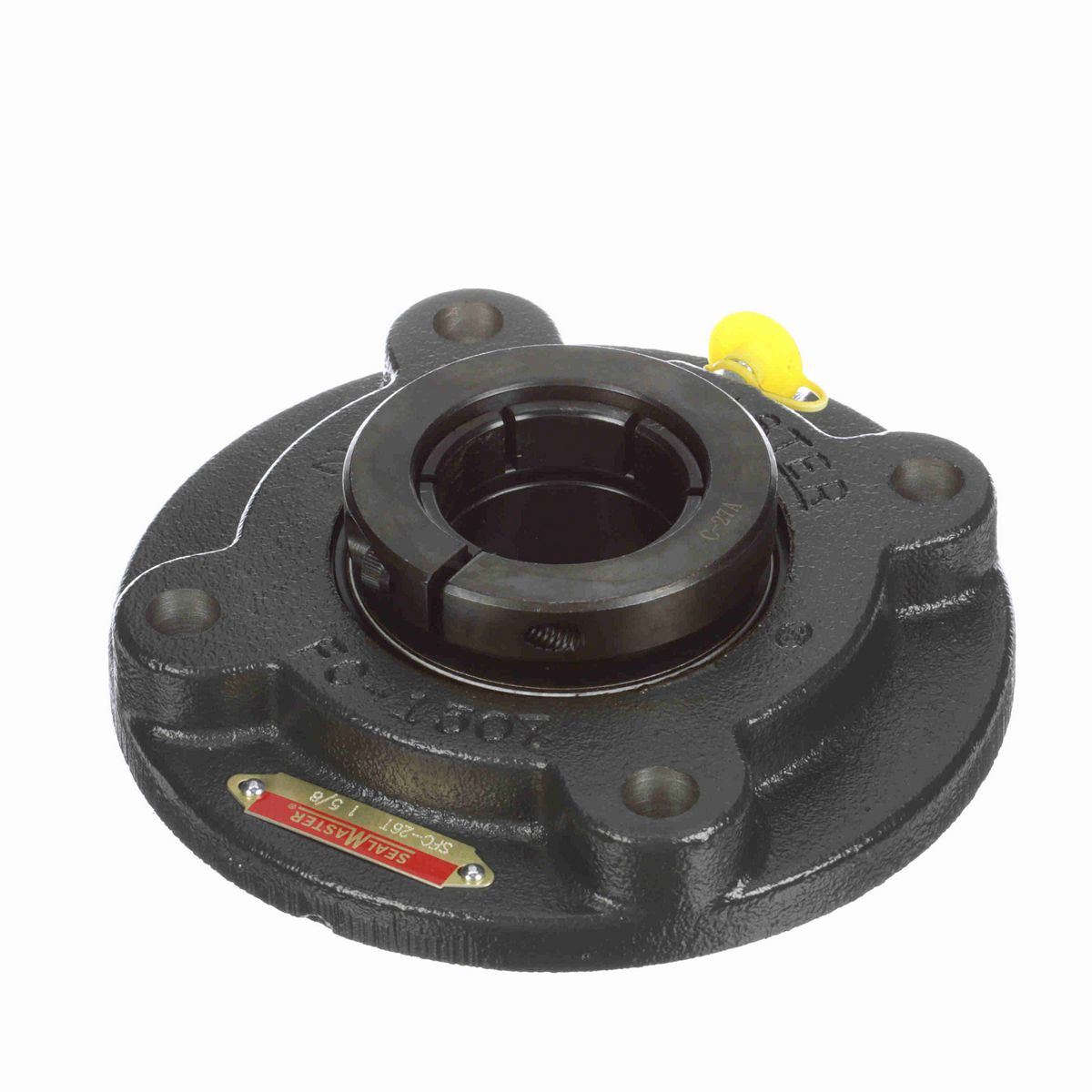

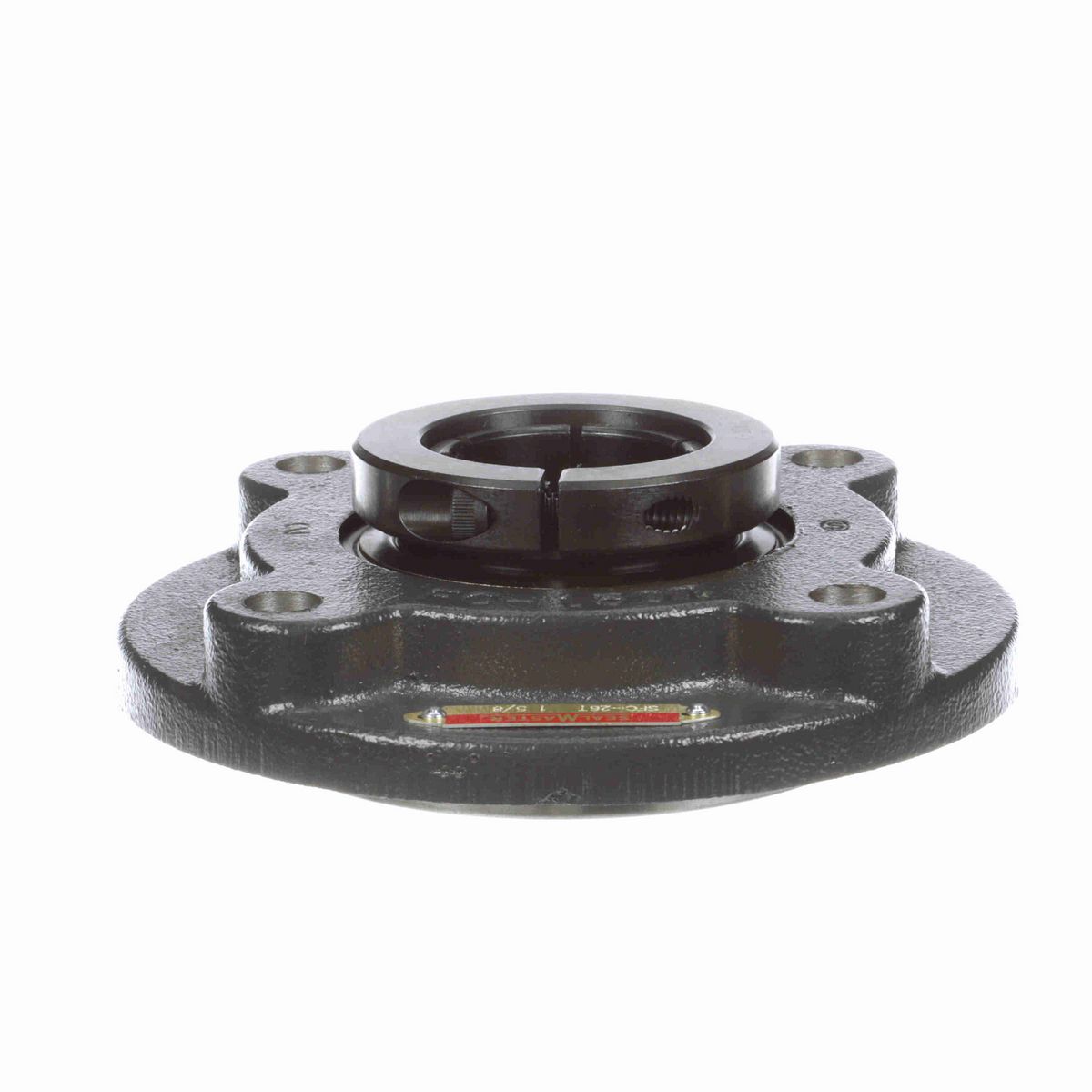

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	6.13 in
Overall Length (in)	6.13 in
Overall Height (in)	2.06 in
Bore Diameter (in)	1.625 in
Pilot Diameter (in)	4.25 in
Foot Height (in)	0.44 in
Length Through Bore (in)	2.06 in
Housing Outside Diameter (in)	6.13 in
Bolt Circle (in)	5.125 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	3 in
Pilot Depth (in)	0.41 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0067 cps
Grease Fitting Thread Size	1/4-28
Housing Material	Cast Iron
Insert	2-110T SFB
Vibration Frequency Outer Ring Defect	0.0673 cps
Static Load Rating (lb)	5,139 lb
Radial Clearance	Standard
Bearing Type	Standard Duty
End Cap Available	No
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0994 cps
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Maximum Speed (RPM)	5300 rpm
Size Code	2-111
Inner Ring Outside Diameter (in)	2.297 in
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,901 lb
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Concentric
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0417 cps
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662461030226
Weight	6.65 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
