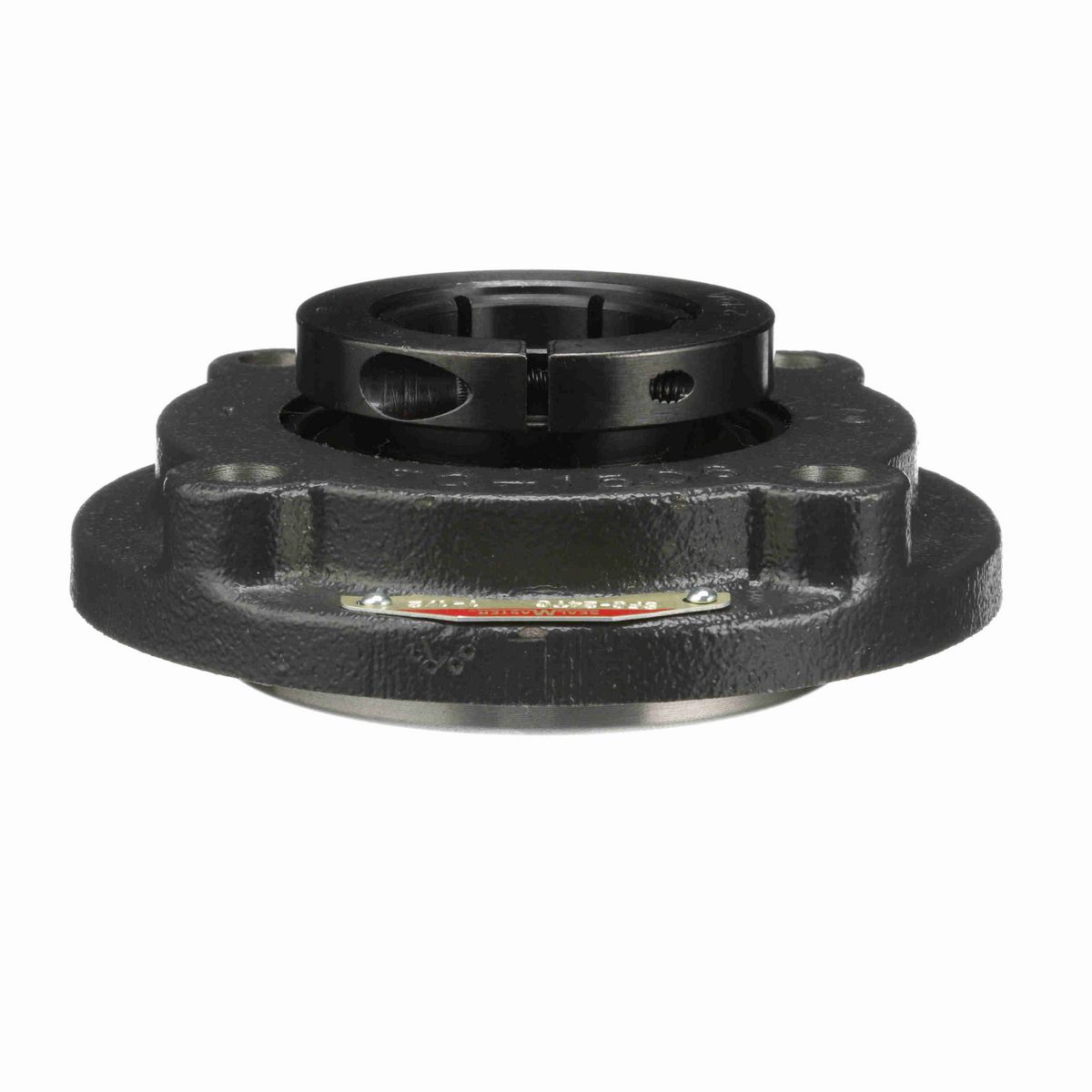

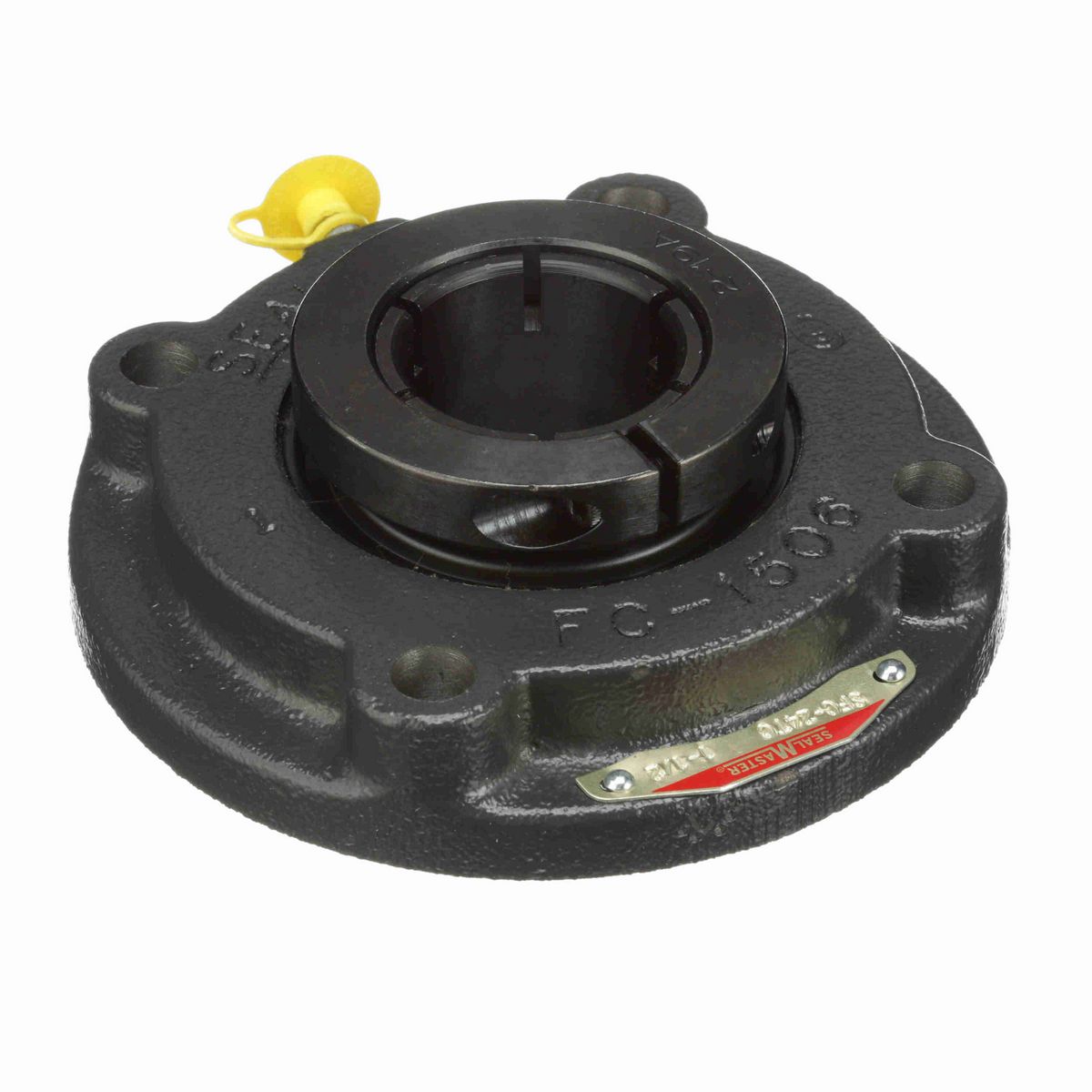

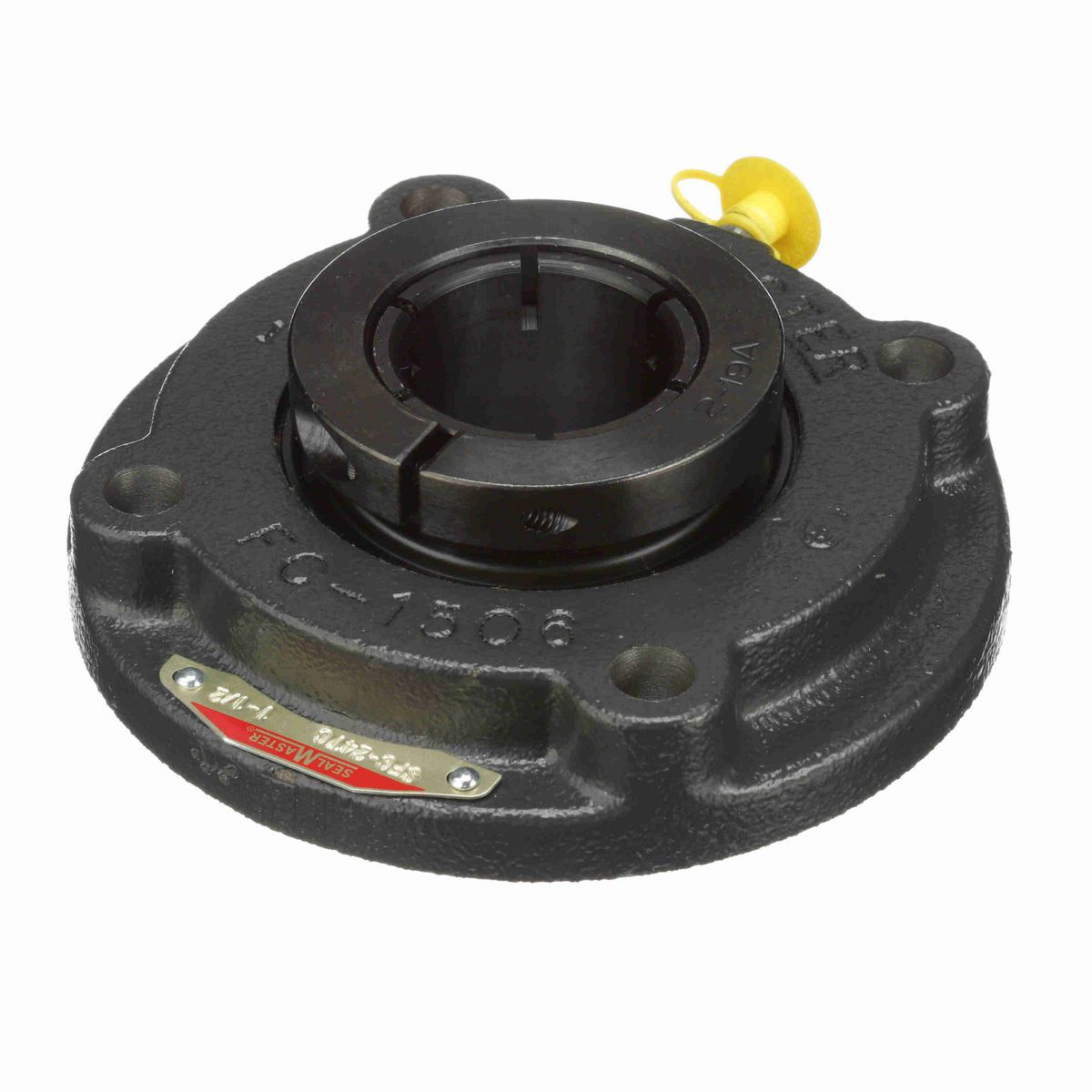

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5.25 in
Bolt Size (in)	3/8 in
Overall Length (in)	5.25 in
Overall Height (in)	2 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.44 in
Pilot Diameter (in)	3.625 in
Length Through Bore (in)	2 in
Housing Outside Diameter (in)	5.25 in
Bolt Circle (in)	4.375 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	0.41 in
Locking Collar Outside Diameter (in)	2.75 in
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0909 cps
Shaft Locking Type	Concentric
Inner Ring Outside Diameter (in)	2.063 in
Vibration Frequency Roller Spin	0.0376 cps
Max Operating Temperature (F)	400 °F
Insert	2-18TC SFB
Grease Fitting Thread Size	1/4-28
Radial Clearance	Standard
Static Load Rating (lb)	4,467 lb
End Cap Available	No
Maximum Speed (RPM)	1800 rpm
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	7,340 lb
Vibration Frequency Outer Ring Defect	0.0591 cps
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0066 cps
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Size Code	2-19
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461033258
Weight	4.90 LB
Packaged Length	5.50 IN
Packaged Width	2.13 IN
Packaged Height	5.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
