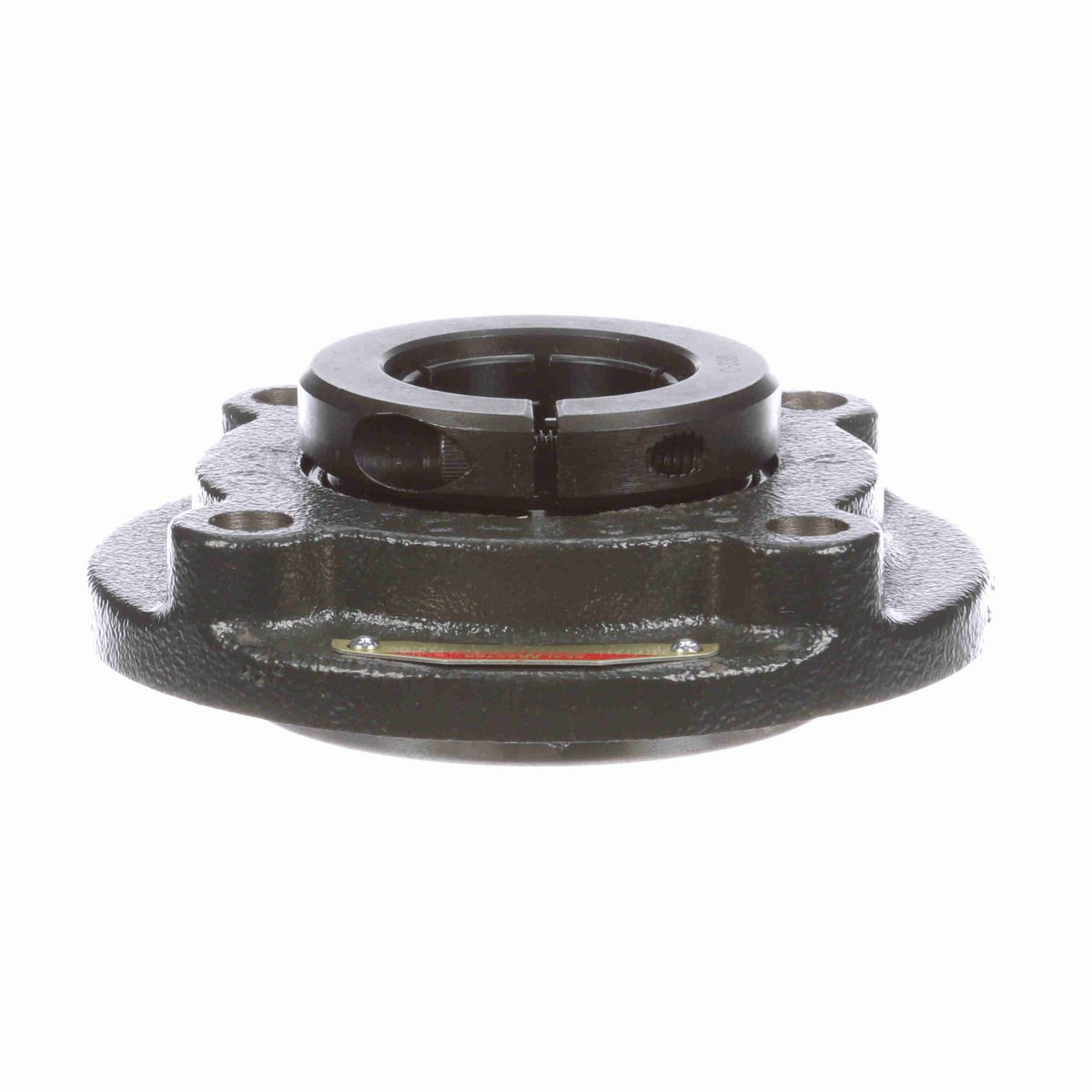

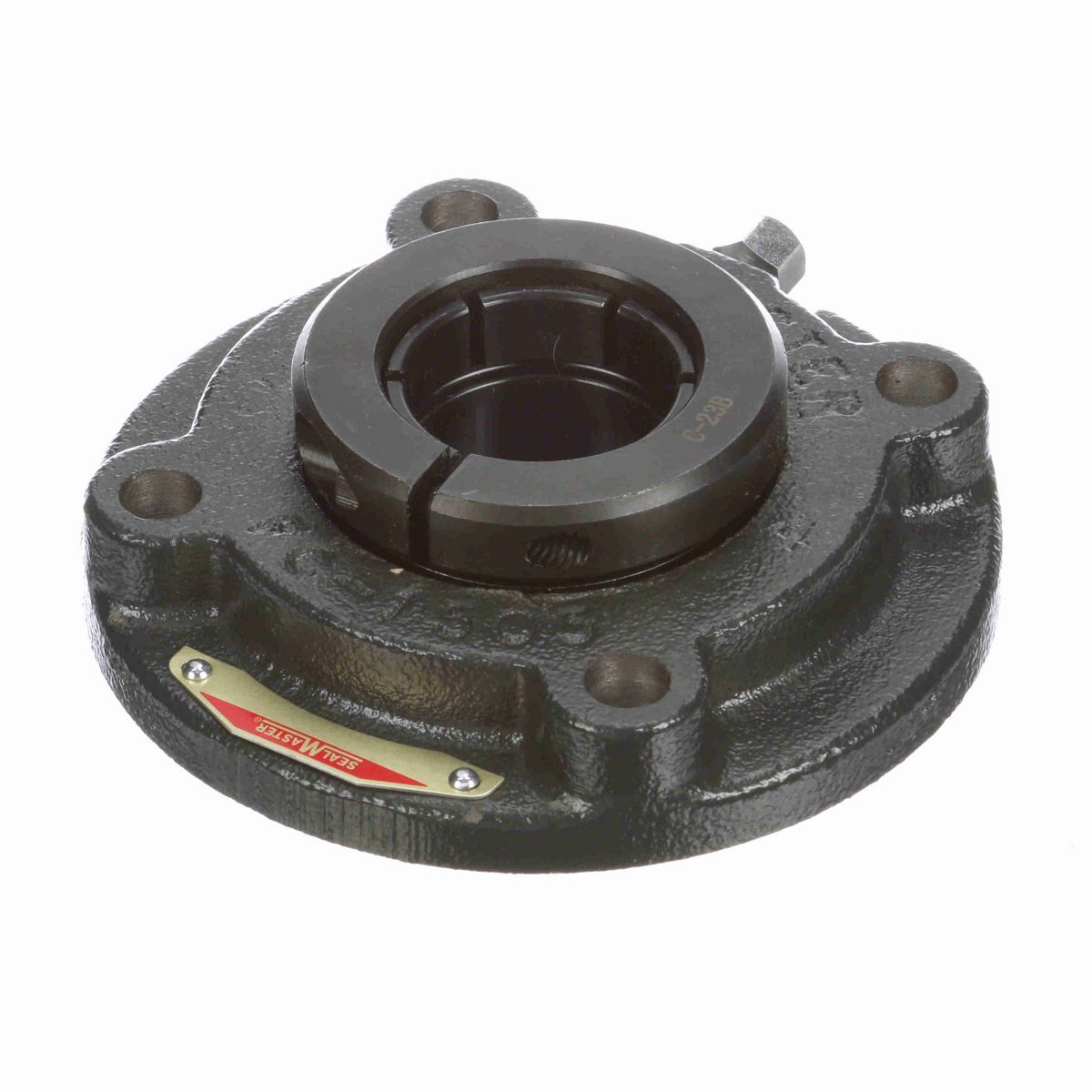

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Labyrinth seal and flinger with oil lubrication for reduced friction and adapter for relubrication
• Reduced internal clearance for less overall end play
• Looser than standard housing fit for ease of alignment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	5 in
Overall Height (in)	1.82 in
Overall Length (in)	5 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	0.38 in
Pilot Diameter (in)	3.375 in
Length Through Bore (in)	1.82 in
Housing Outside Diameter (in)	5 in
Bolt Circle (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Options	Low Drag
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Labryinth Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.5 in
Pilot Depth (in)	0.38 in
Maximum Speed (RPM)	6500 rpm
Cage Type	Land Riding Retainer
Lubricant	Oil Coated Only - No Factory Grease Fill
Vibration Frequency Inner Ring Defect	0.0905 cps
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0595 cps
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Shaft Locking Type	Concentric
End Cap Available	No
Static Load Rating (lb)	3,493 lb
Insert	2-17TX HX
Bearing Insert Finish	Black Oxide
Vibration Frequency Roller Spin	0.0386 cps
Vibration Frequency Fundamental Train	0.0066 cps
Inner Ring Outside Diameter (in)	1.859 in
Bearing Insert Material	52100 Bearing Steel
Size Code	2-17
Dynamic Load Rating (lb)	5,782 lb

General Specifications

UPC	662461202999
Weight	4.20 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
