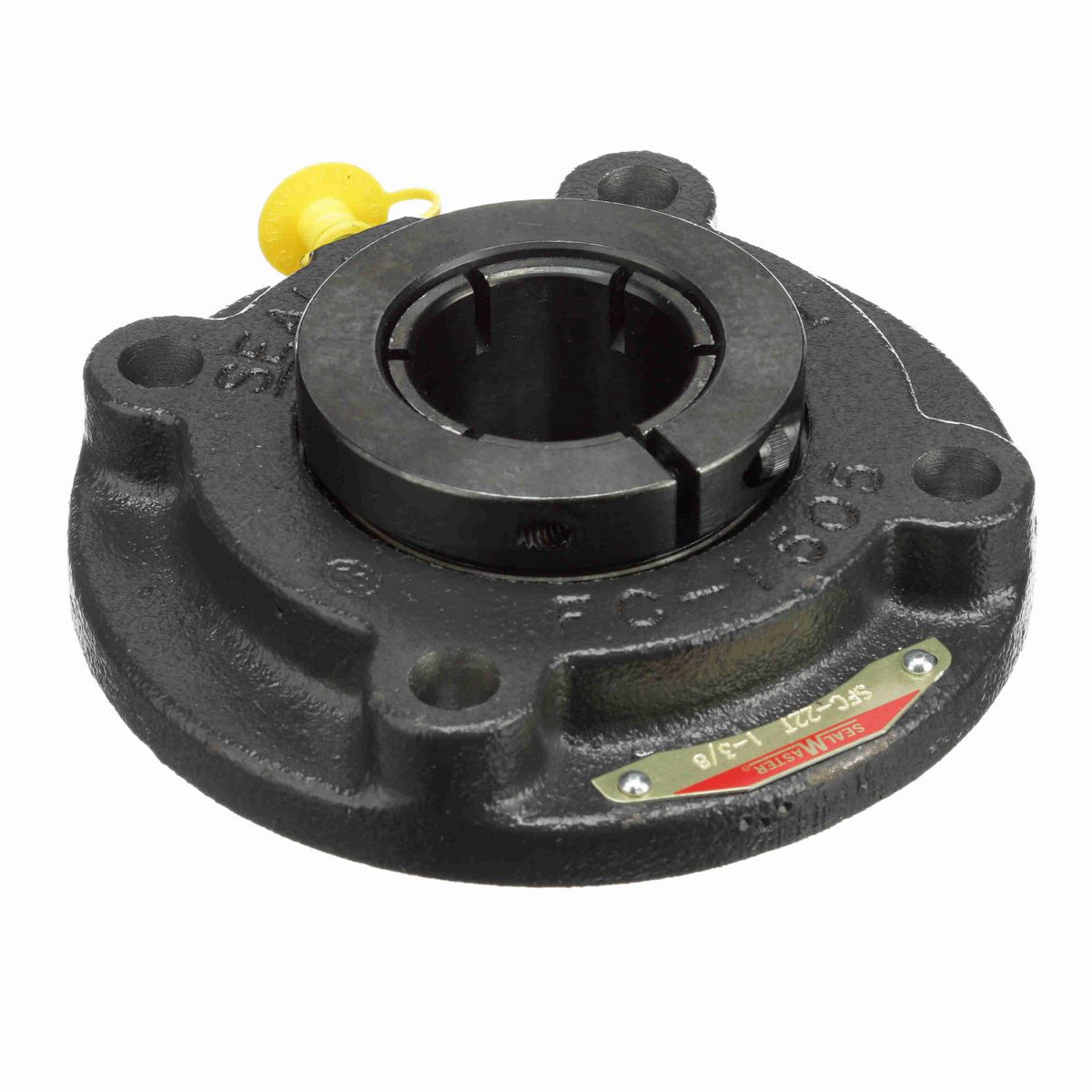

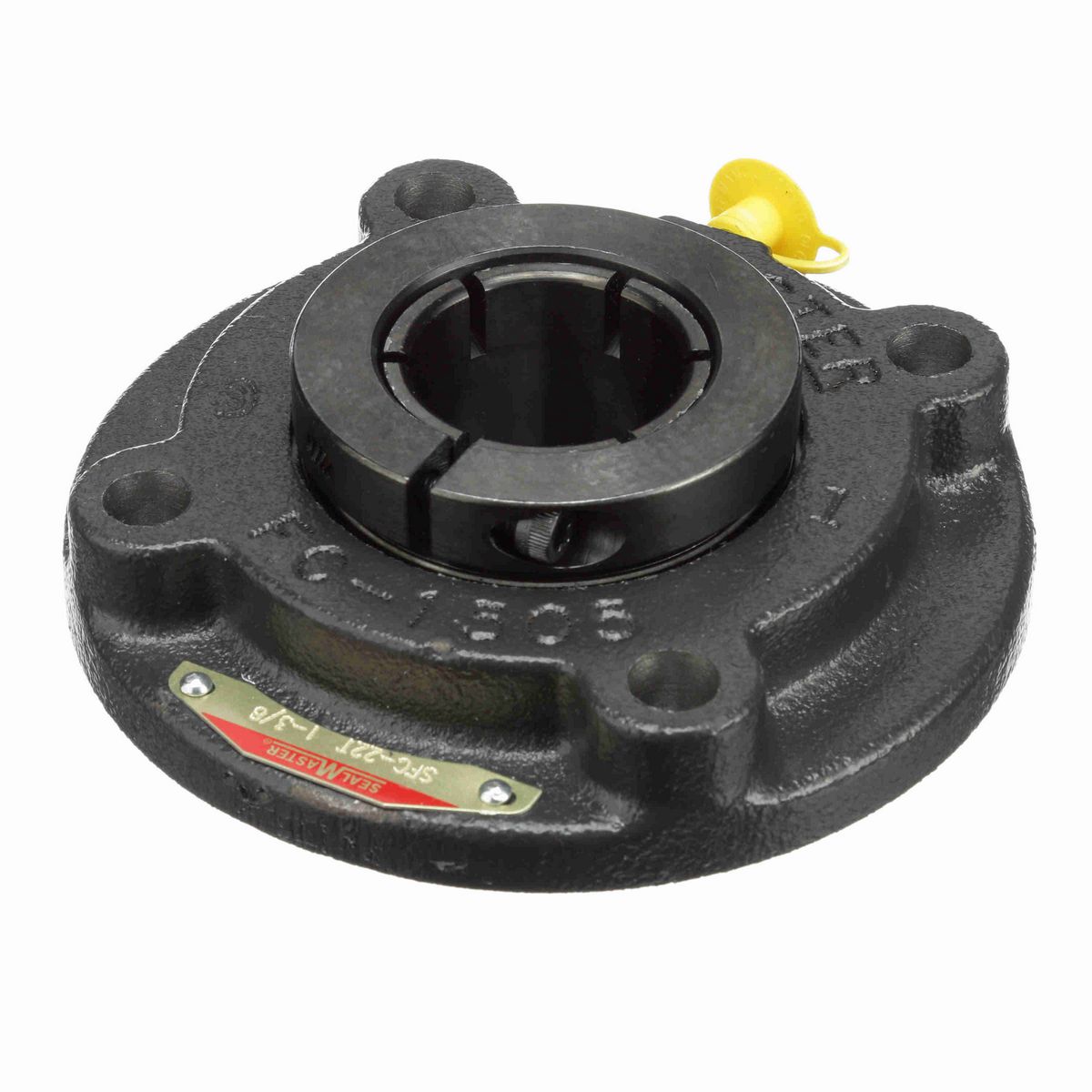

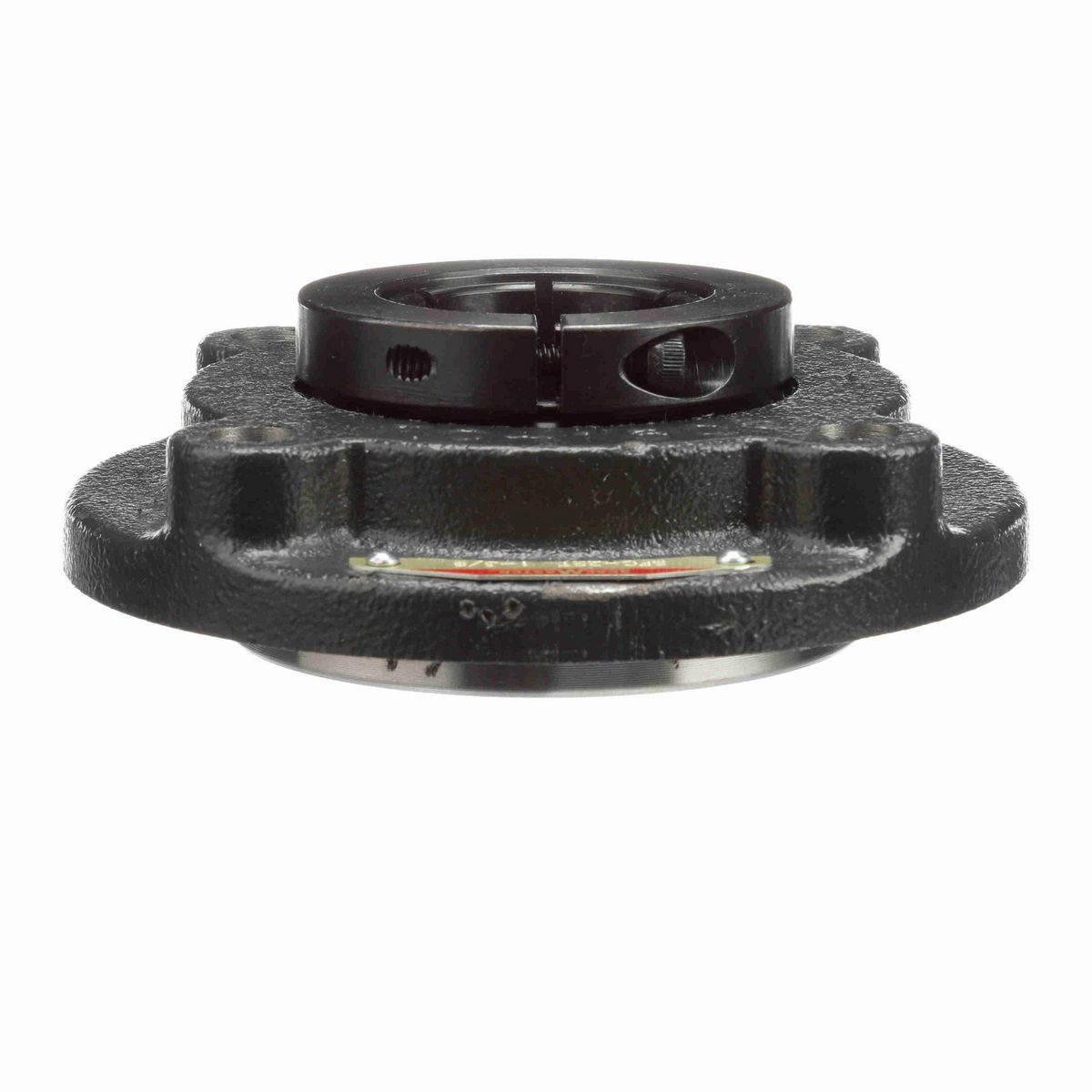

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5 in
Bolt Size (in)	3/8 in
Overall Length (in)	5 in
Overall Height (in)	1.82 in
Bore Diameter (in)	1.375 in
Foot Height (in)	0.38 in
Pilot Diameter (in)	3.375 in
Length Through Bore (in)	1.82 in
Housing Outside Diameter (in)	5 in
Bolt Circle (in)	4.125 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	2.5 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Pilot Depth (in)	0.38 in
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	5,782 lb
Radial Clearance	Standard
Shaft Locking Type	Concentric
Size Code	2-17
Bearing Insert Finish	Black Oxide
Insert	2-16T SFB
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Roller Spin	0.0386 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	1.859 in
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Speed (RPM)	6500 rpm
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Static Load Rating (lb)	3,493 lb

General Specifications

UPC	662461030196
Weight	3.87 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
