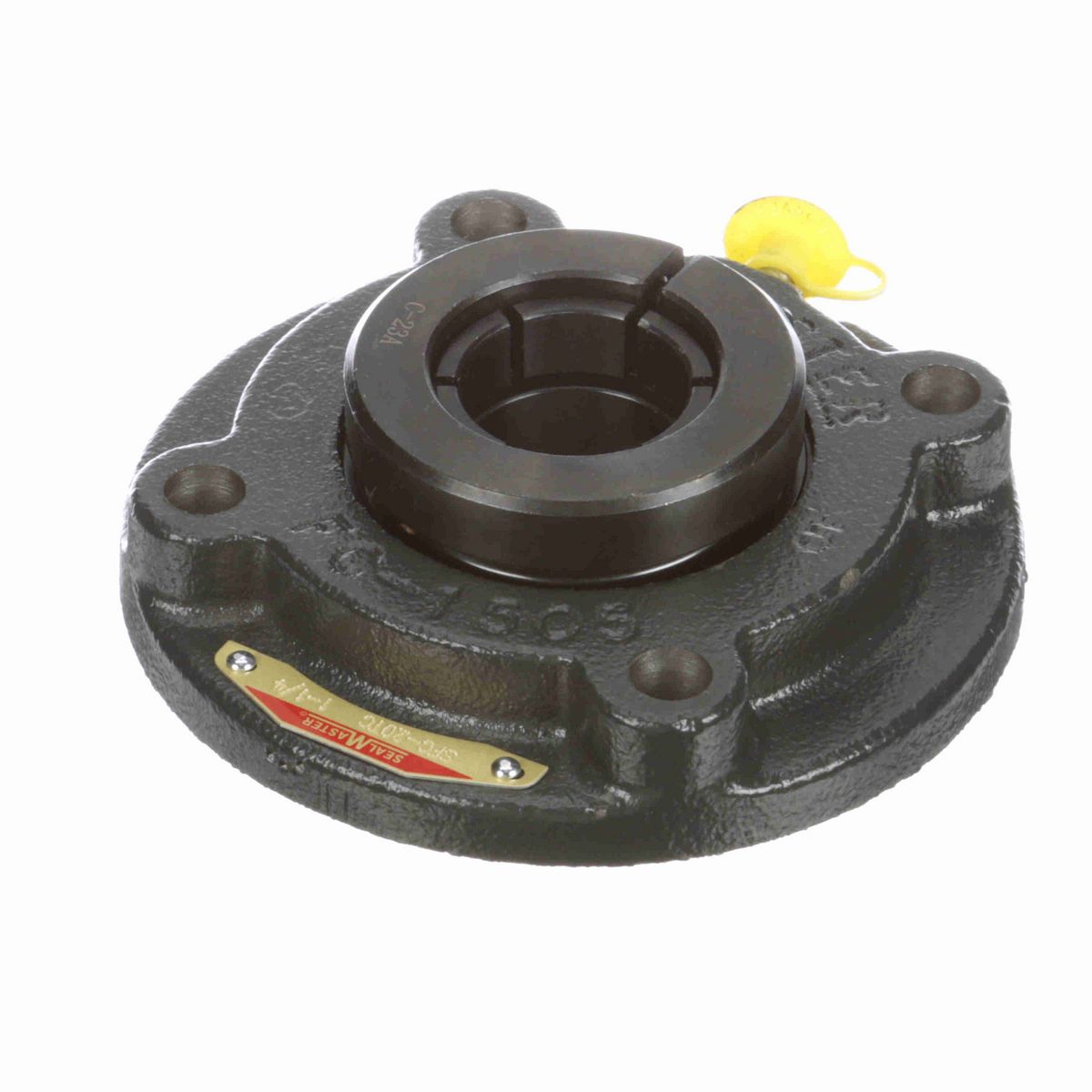

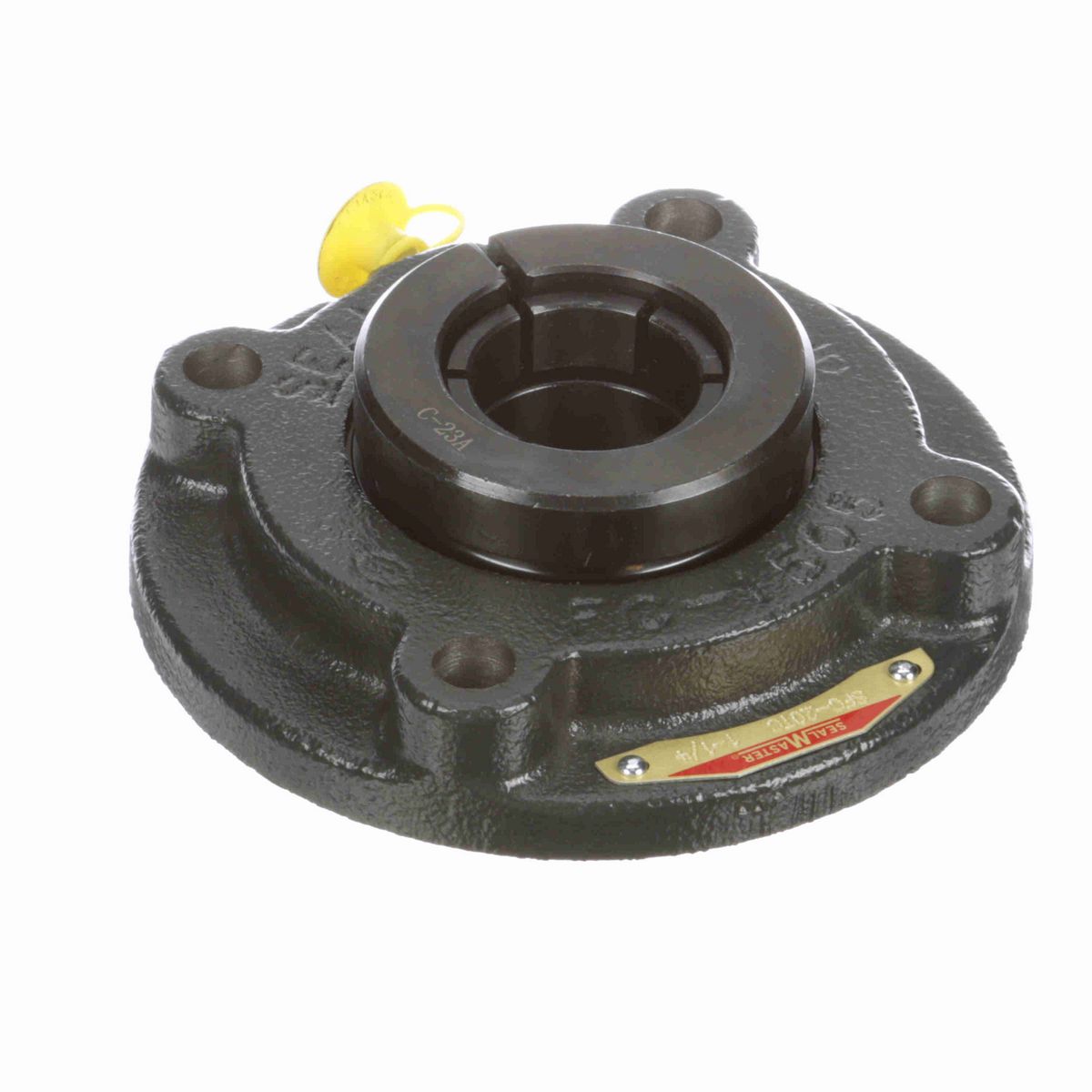

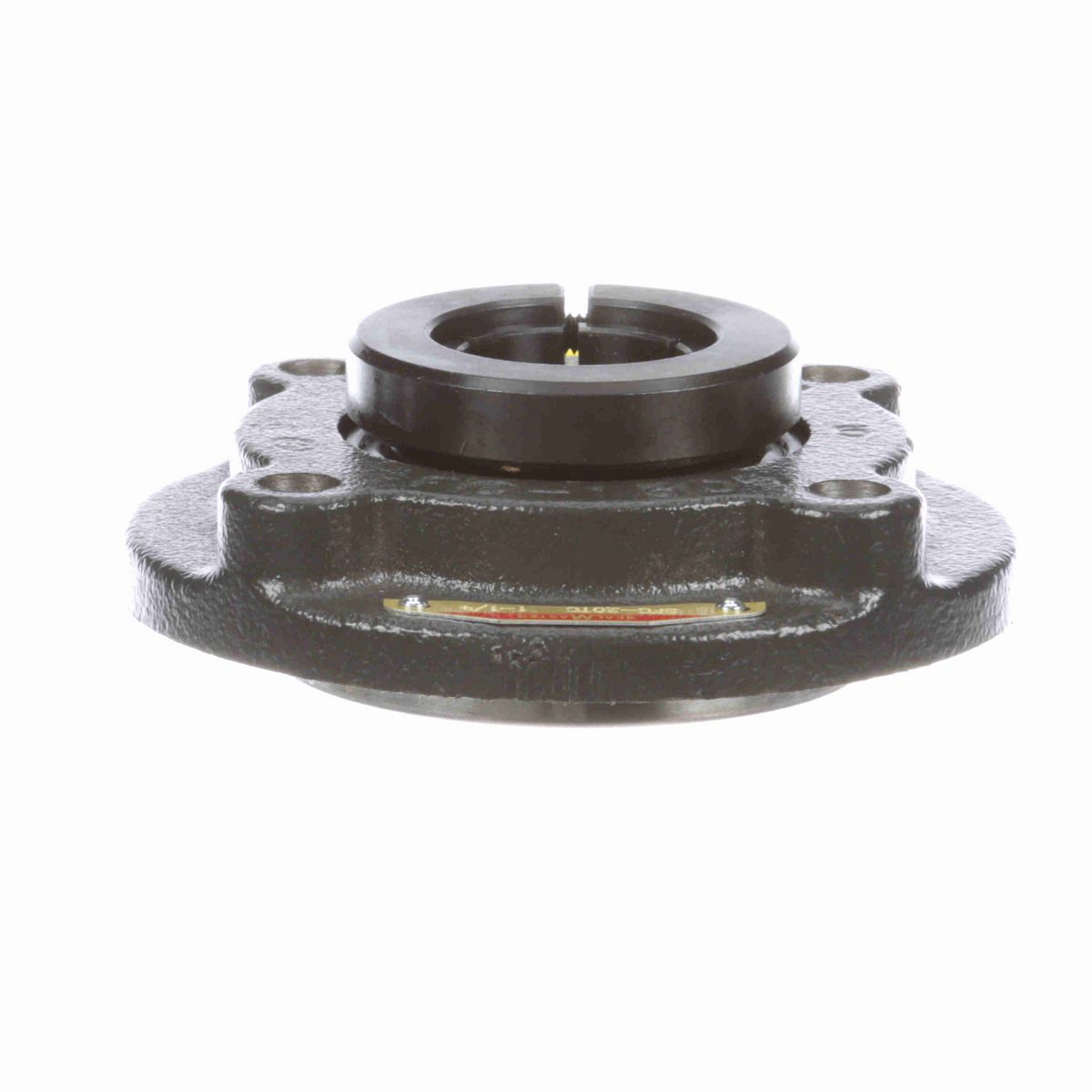

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	5 in
Overall Height (in)	1.82 in
Overall Length (in)	5 in
Bore Diameter (in)	1.25 in
Foot Height (in)	0.38 in
Pilot Diameter (in)	3.375 in
Length Through Bore (in)	1.82 in
Housing Outside Diameter (in)	5 in
Bolt Circle (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.5 in
Ability to Relubricate	Yes
Pilot Depth (in)	0.38 in
Housing Coating	Powder Coated
Radial Clearance	Standard
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0386 cps
Housing Material	Cast Iron
End Cap Available	No
Size Code	2-17
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Type	Standard Duty
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	3,493 lb
Inner Ring Outside Diameter (in)	1.859 in
Maximum Speed (RPM)	4650 rpm
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Inner Ring Defect	0.0905 cps
Grease Fitting Thread Size	1/4-28
Shaft Locking Type	Concentric
Dynamic Load Rating (lb)	5,782 lb
Insert	2-14TC
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer

General Specifications

UPC	662461033227
Weight	3.90 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
