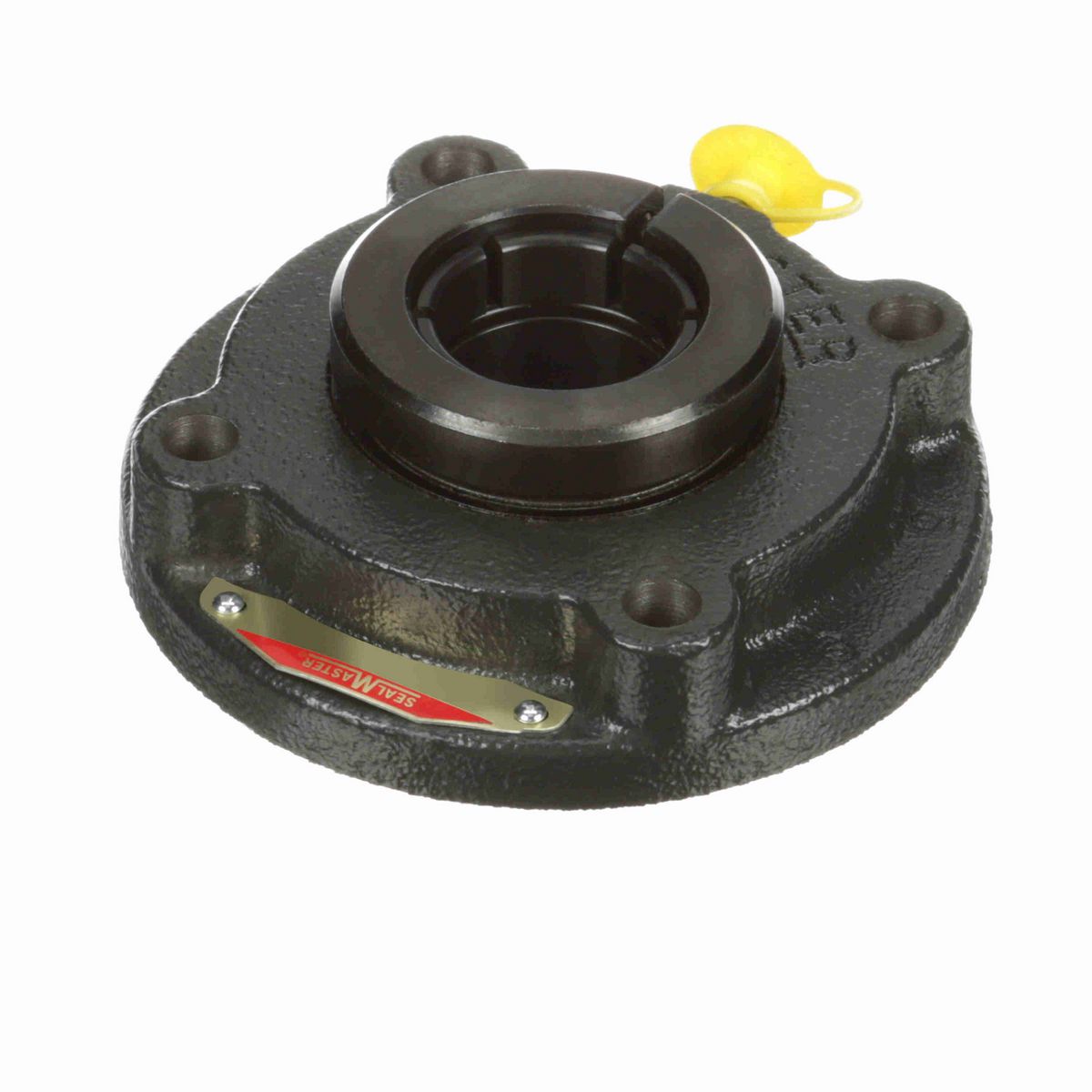

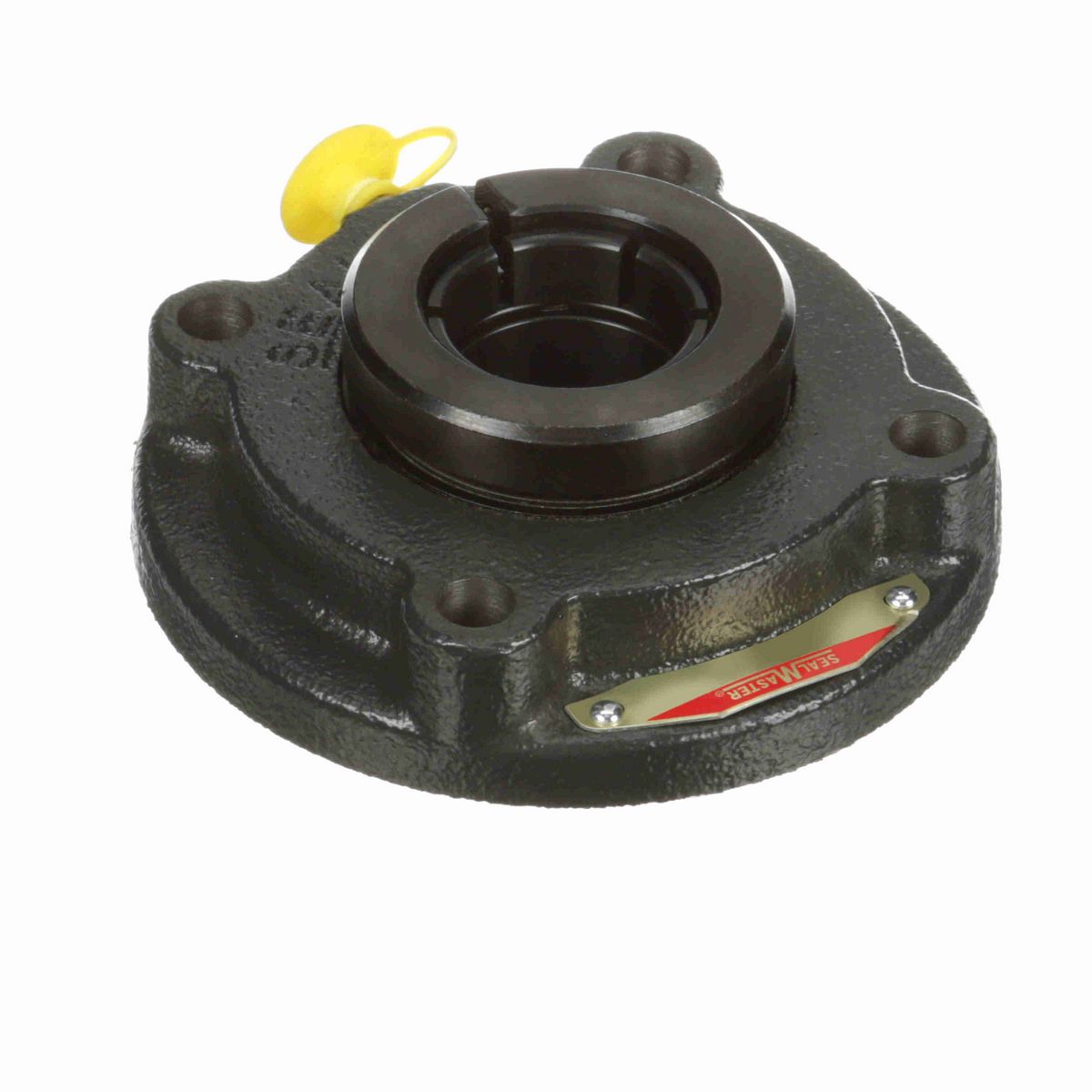

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Nylon retainer to reduce overall drag
• Oil lubricated and supplied with an adapter and plug for easy field relubrication
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
• Looser than standard housing fit for ease of alignment on lightweight frames

Dimensions

Bolt Size (in)	5/16 in
Overall Width (in)	4.38 in
Overall Height (in)	1.61 in
Overall Length (in)	4.38 in
Bore Diameter (in)	1.1875 in
Pilot Diameter (in)	3 in
Foot Height (in)	0.38 in
Length Through Bore (in)	1.61 in
Housing Outside Diameter (in)	4.38 in
Bolt Circle (in)	3.625 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Options	Extra Low Drag
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Labryinth Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	2.11 in
Pilot Depth (in)	0.25 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	2,567 lb
Lubricant	Oil Coated Only - No Factory Grease Fill
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Concentric
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Bearing Type	Standard Duty
End Cap Available	No
Inner Ring Outside Diameter (in)	1.594 in
Max Operating Temperature (F)	220 °F
Housing Coating	Powder Coated
Radial Clearance	Standard
Grease Fitting Thread Size	1/4-28
Vibration Frequency Outer Ring Defect	0.0595 cps
Size Code	2-13
Insert	2-13T SFB XLO
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Fundamental Train	0.0066 cps
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	4,381 lb
Vibration Frequency Roller Spin	0.0385 cps
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Speed (RPM)	2150 rpm

General Specifications

UPC	662461322284
Weight	3.20 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8483.20.4040
Country of Origin	United States of America
