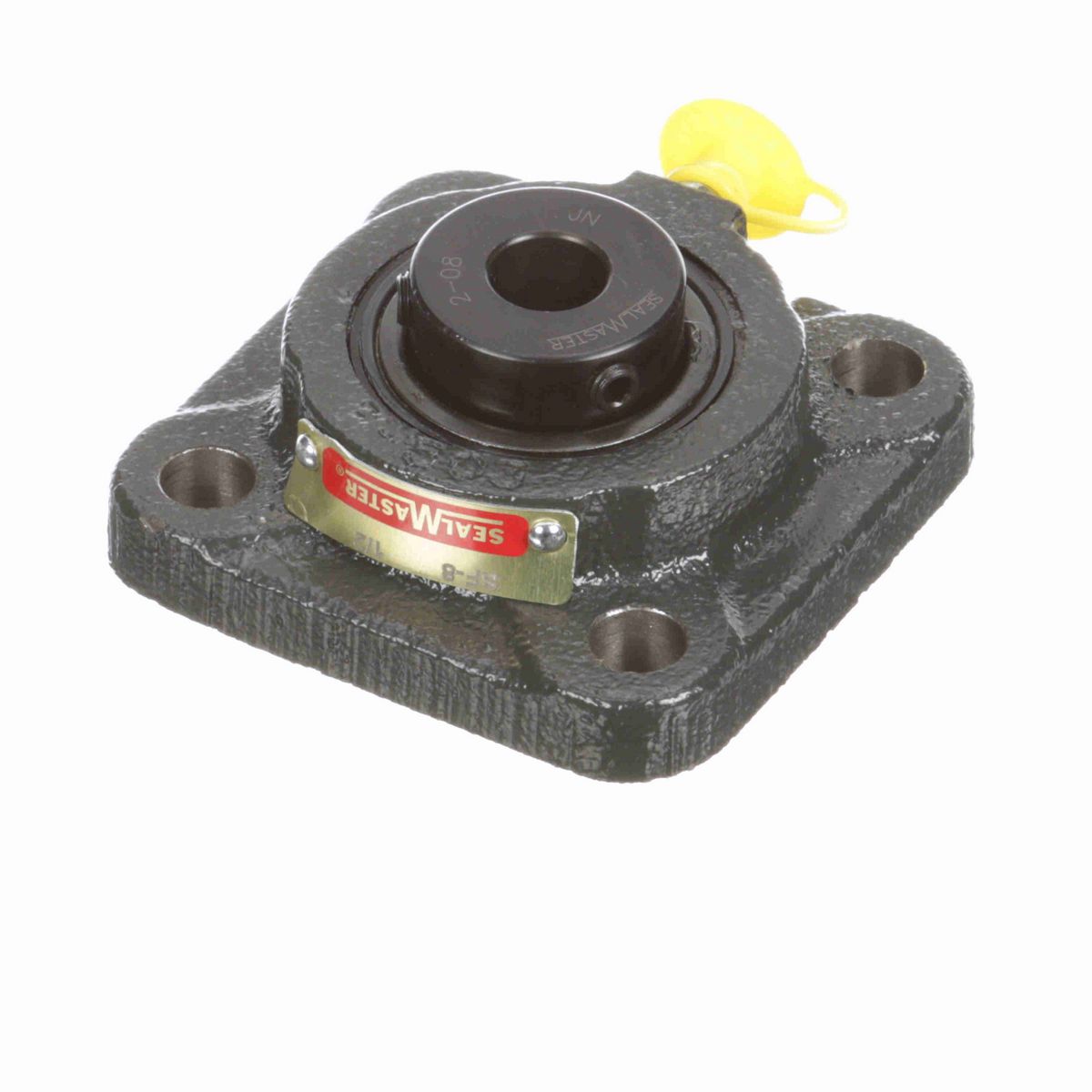

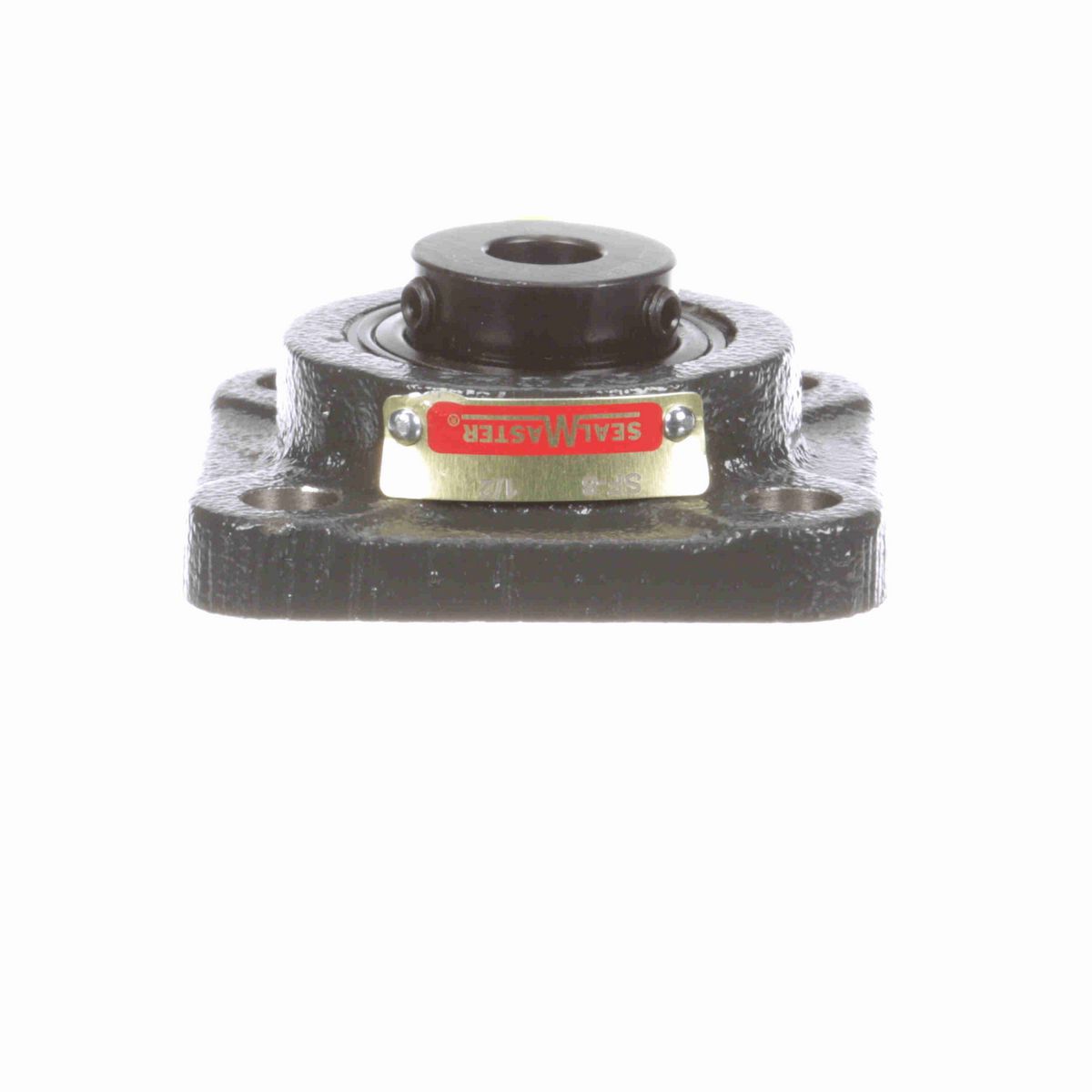

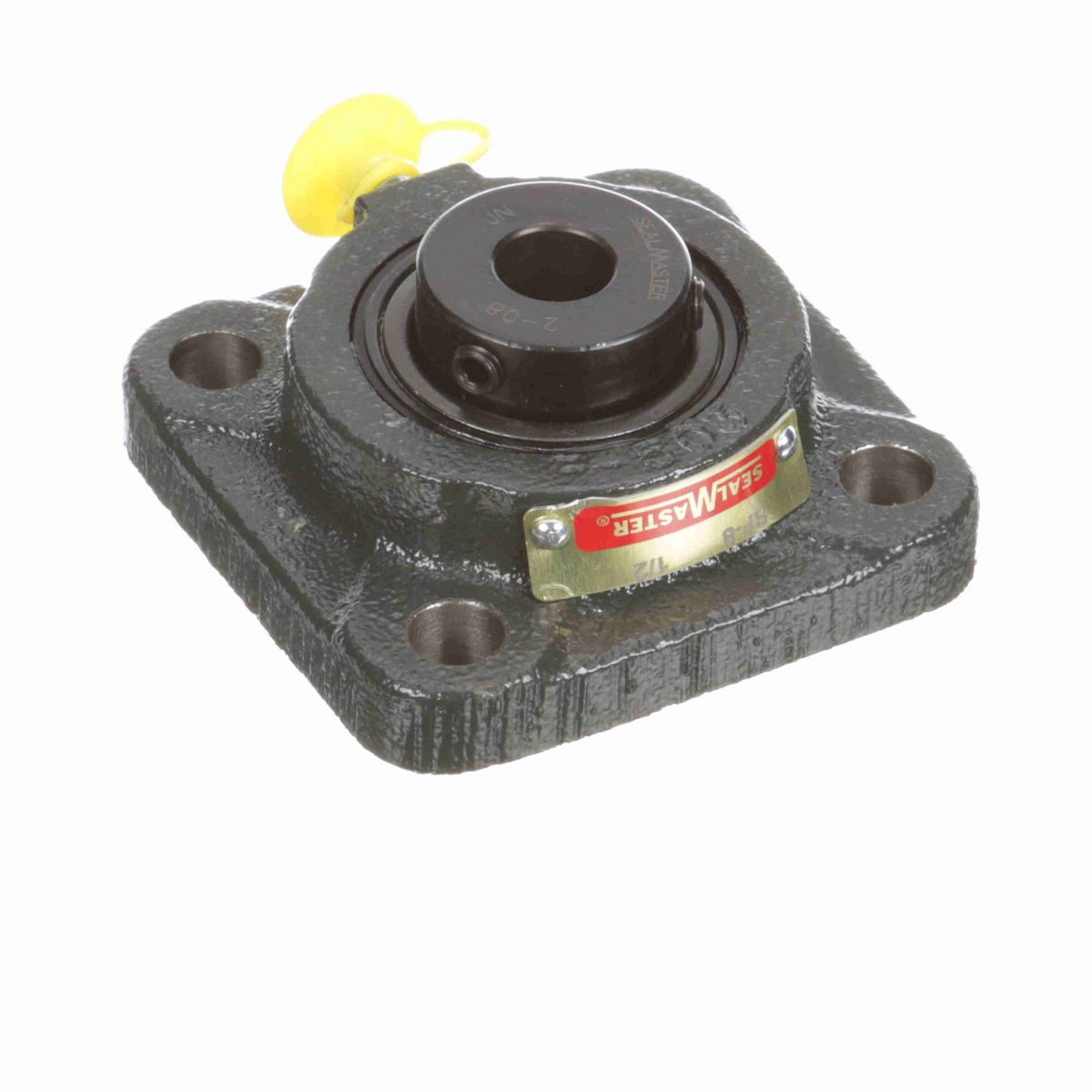

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.00 in
Bolt Size (in)	3/8 in
Overall Length (in)	3 in
Overall Height (in)	1.281 in
Bore Diameter (in)	0.5 in
Foot Height (in)	0.44 in
Length Through Bore (in)	1.219 in
Bolt Spacing (in)	2.1250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Material	52100 Bearing Steel
Insert	2-08
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Bearing Type	Standard Duty
Inner Ring Outside Diameter (in)	1.192 in
Housing Material	Cast Iron
Static Load Rating (lb)	1,444 lb
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0907 cps
Size Code	2-012
Vibration Frequency Outer Ring Defect	0.0593 cps
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Roller Spin	0.0381 cps
Maximum Speed (RPM)	7300 rpm
Shaft Locking Type	Set Screw
Dynamic Load Rating (lb)	2,611 lb
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0066 cps
Housing Backside Inner Diameter	2
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/4-28

General Specifications

UPC	662461003336
Weight	1.40 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
