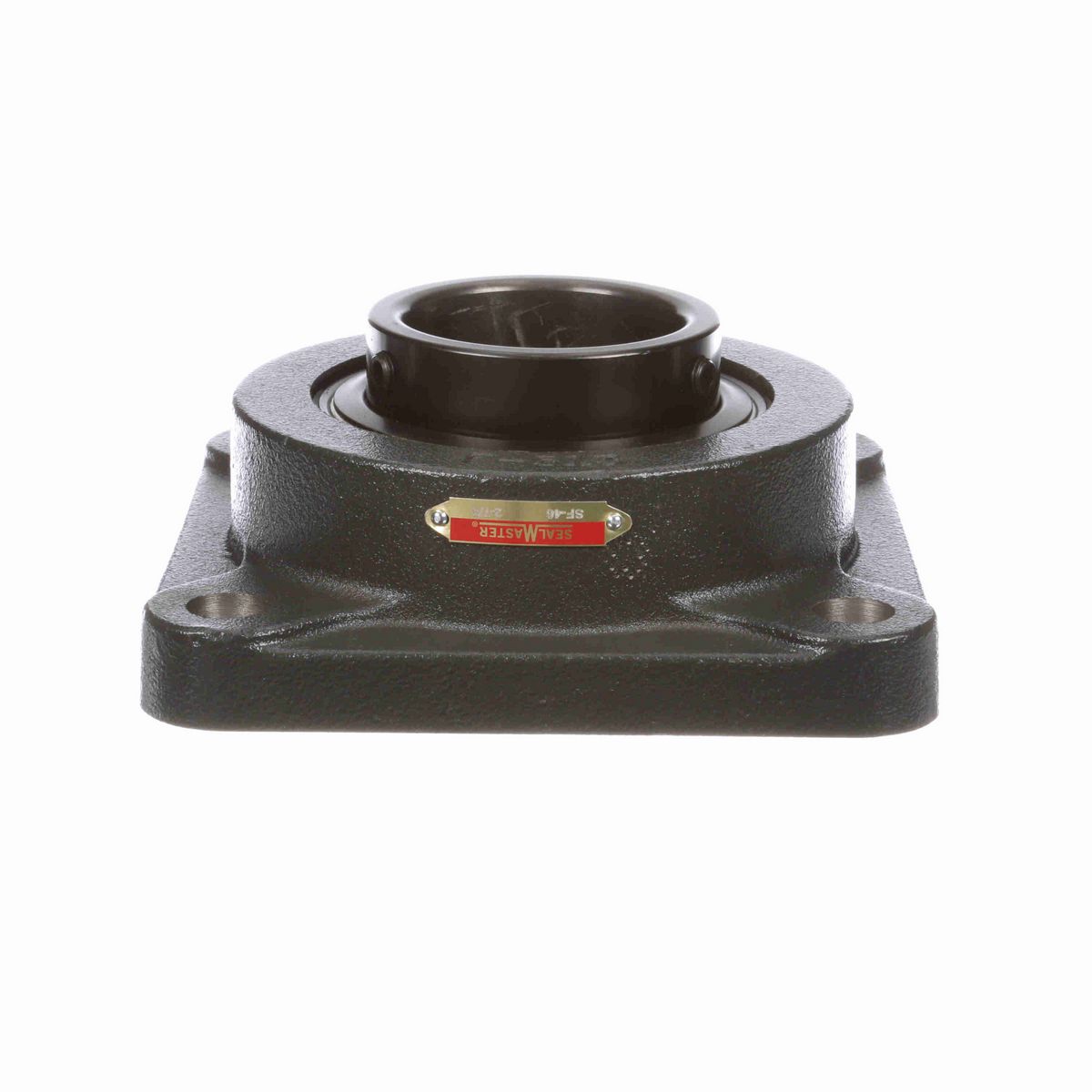

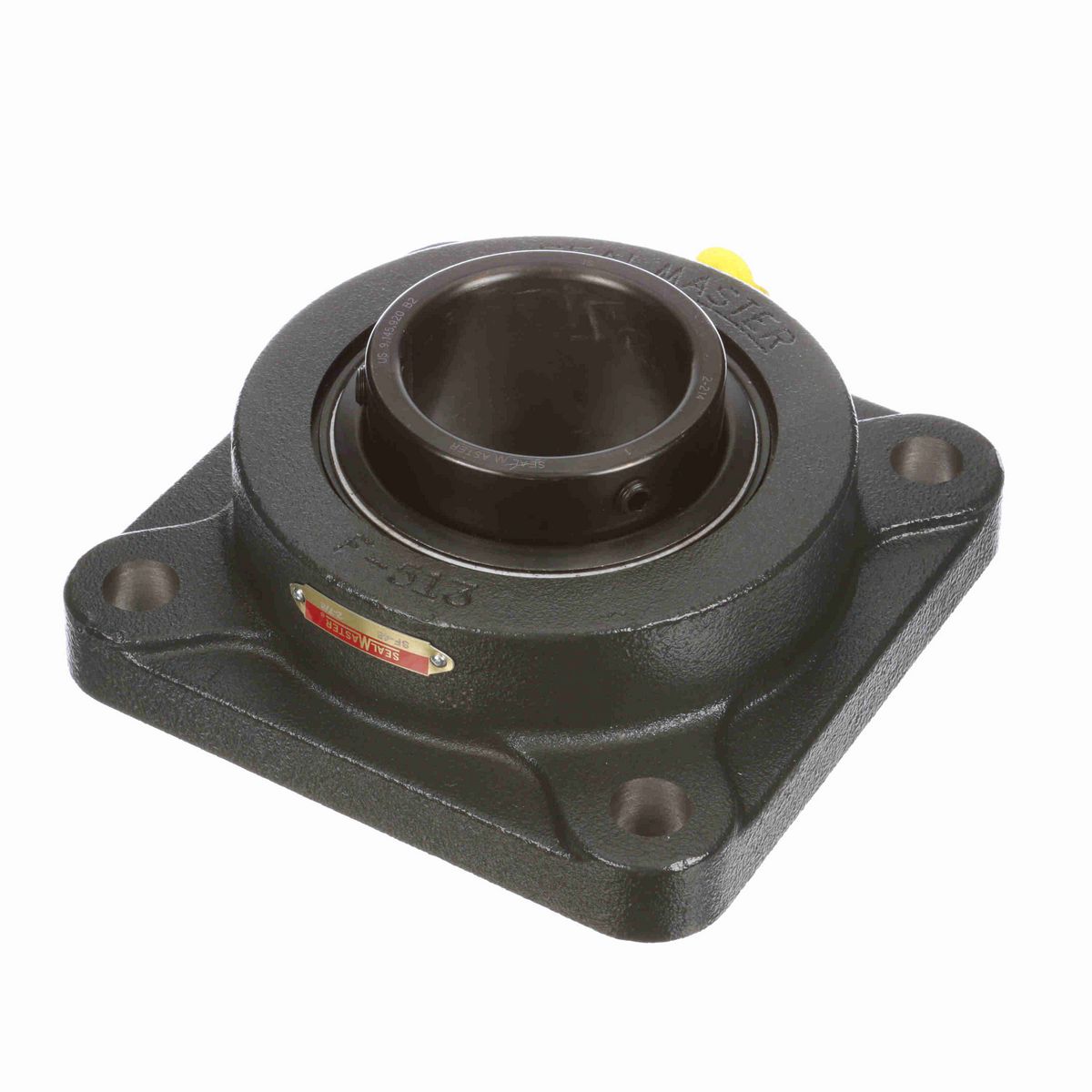

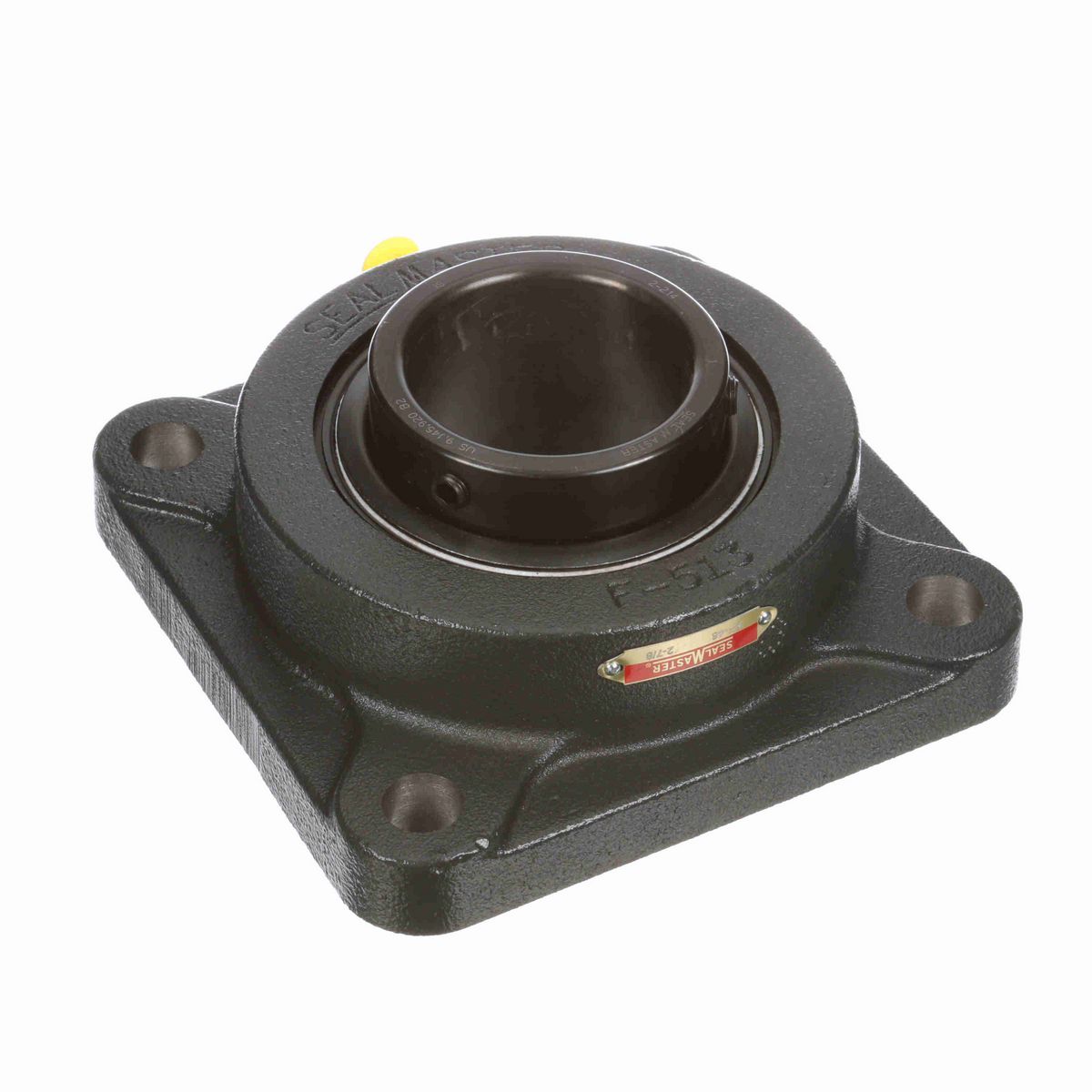

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/4 in
Overall Width (in)	7.75 in
Overall Height (in)	3.188 in
Overall Length (in)	7.75 in
Bore Diameter (in)	2.875 in
Foot Height (in)	1 in
Length Through Bore (in)	3.06 in
Bolt Spacing (in)	6.0000 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	Brass
Housing Type	Flange, Four Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Setscrew Torque (in-lbs)	350-450 in/lbs
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (RPM)	2450 rpm
Max Operating Temperature (F)	220 °F
Housing Backside Inner Diameter	5.88
Dynamic Load Rating (lb)	14,839 lb
Shaft Locking Type	Set Screw
Insert	2-214
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Cage Type	Land Riding Retainer
End Cap Available	No
Housing Material	Cast Iron
Static Load Rating (lb)	11,224 lb
Size Code	2-215
Grease Fitting Thread Size	1/8 NPT
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	3.644 in
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662461003695
Weight	18.55 LB
Packaged Length	8.13 IN
Packaged Width	7.94 IN
Packaged Height	3.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
