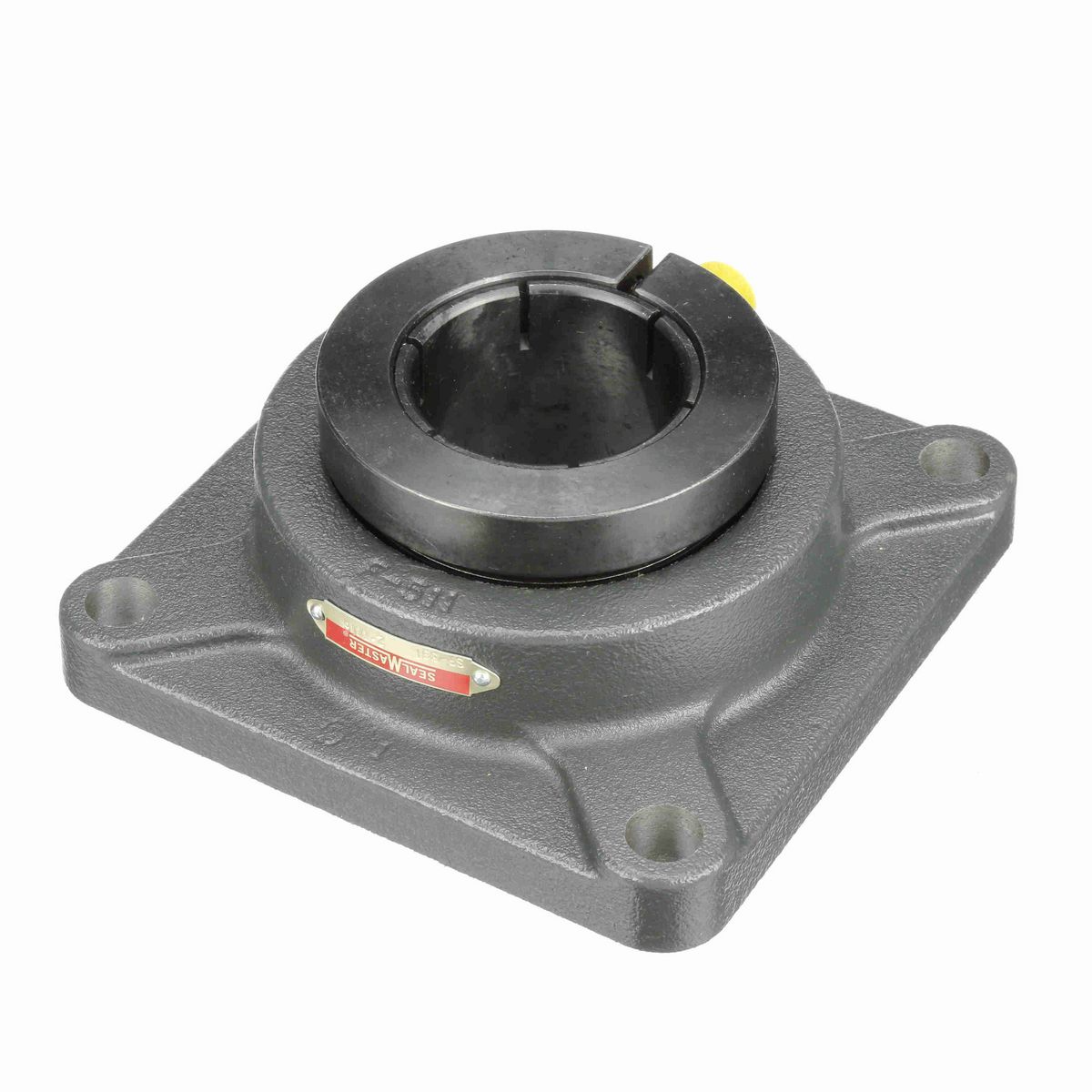

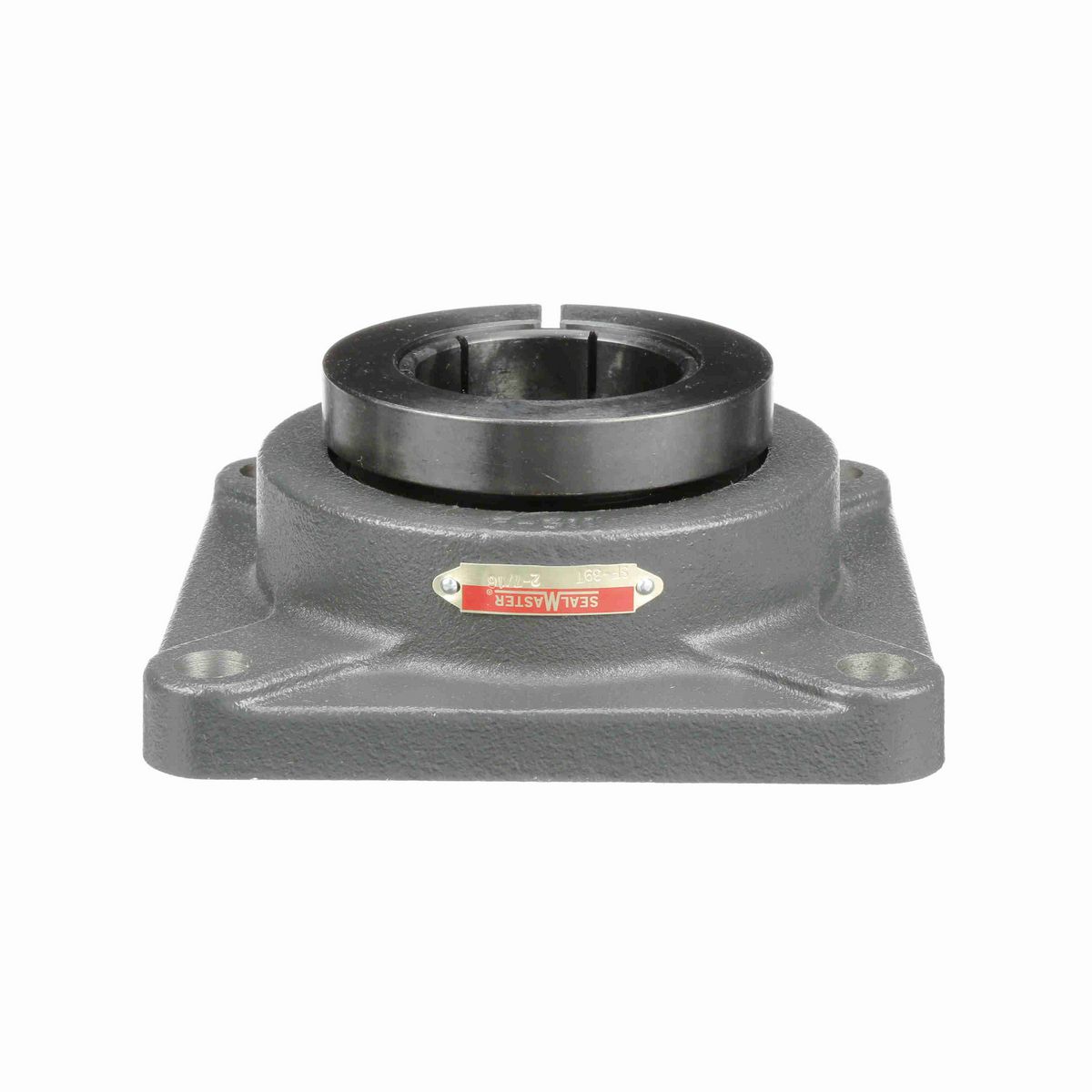

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.88 in
Bolt Size (in)	5/8 in
Overall Length (in)	6.88 in
Overall Height (in)	2.75 in
Bore Diameter (in)	2.4375 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.83 in
Bolt Spacing (in)	5.6250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	4.22 in
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	11,789 lb
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Inner Ring Outside Diameter (in)	2.981 in
Bearing Insert Finish	Black Oxide
Housing Backside Inner Diameter	5
Maximum Speed (RPM)	4100 rpm
Size Code	2-27
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
End Cap Available	No
Static Load Rating (lb)	8,150 lb
Shaft Locking Type	Concentric
Radial Clearance	Standard
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/8 NPT
Bearing Type	Standard Duty
Insert	2-27T
Housing Coating	Powder Coated

General Specifications

UPC	662461030141
Weight	12.38 LB
Packaged Length	7.00 IN
Packaged Width	7.19 IN
Packaged Height	3.31 IN
HTC	8483.20.4040
Country of Origin	Mexico
