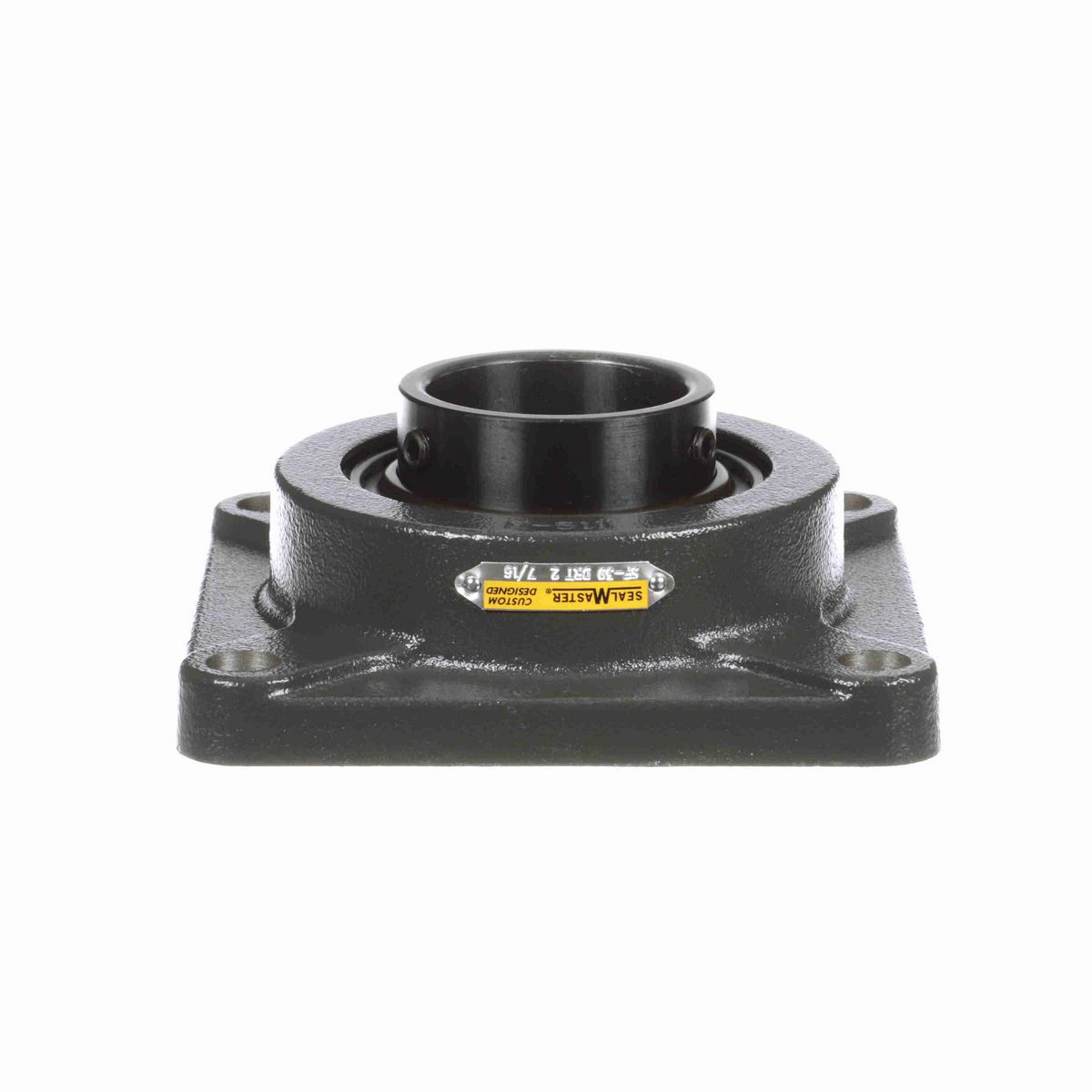

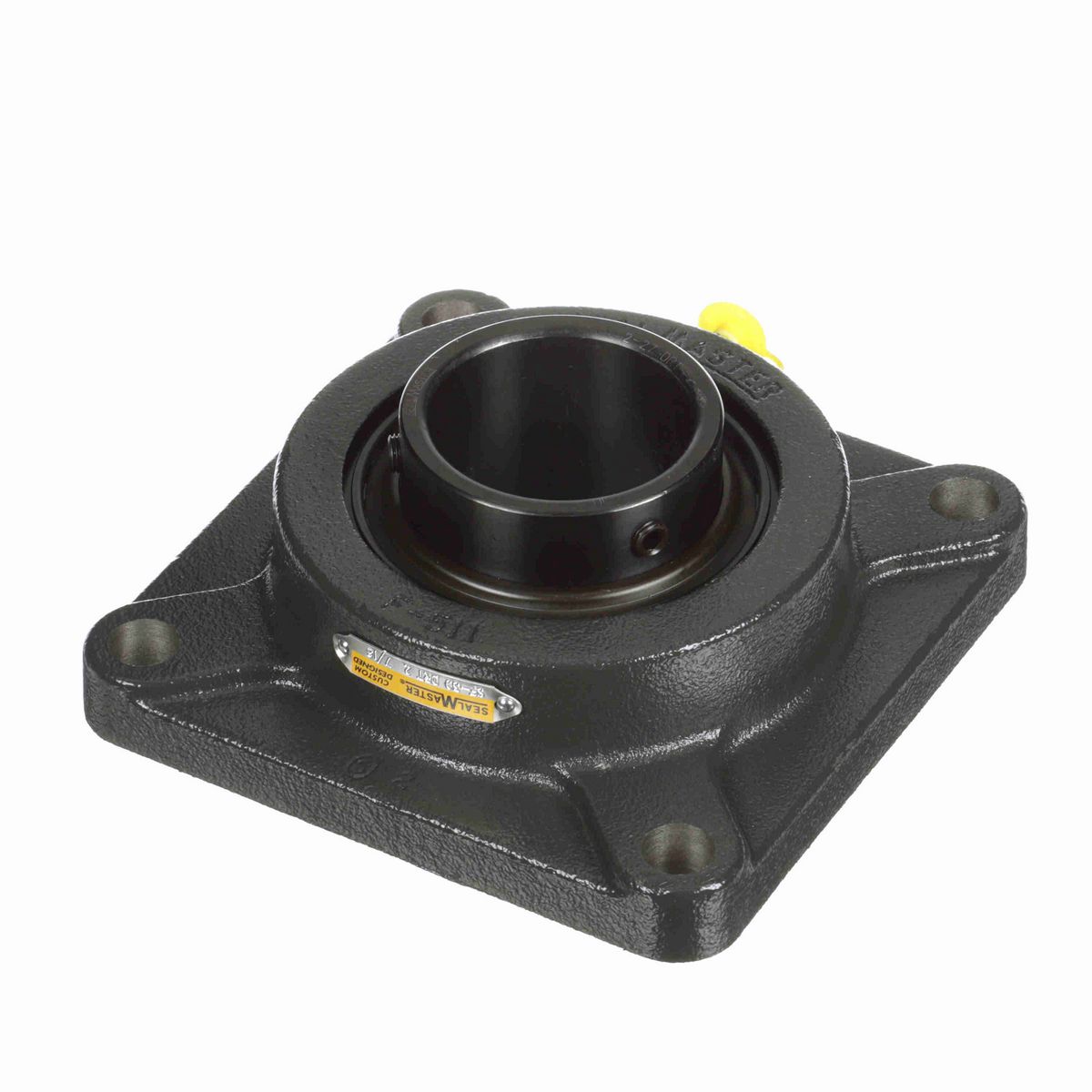

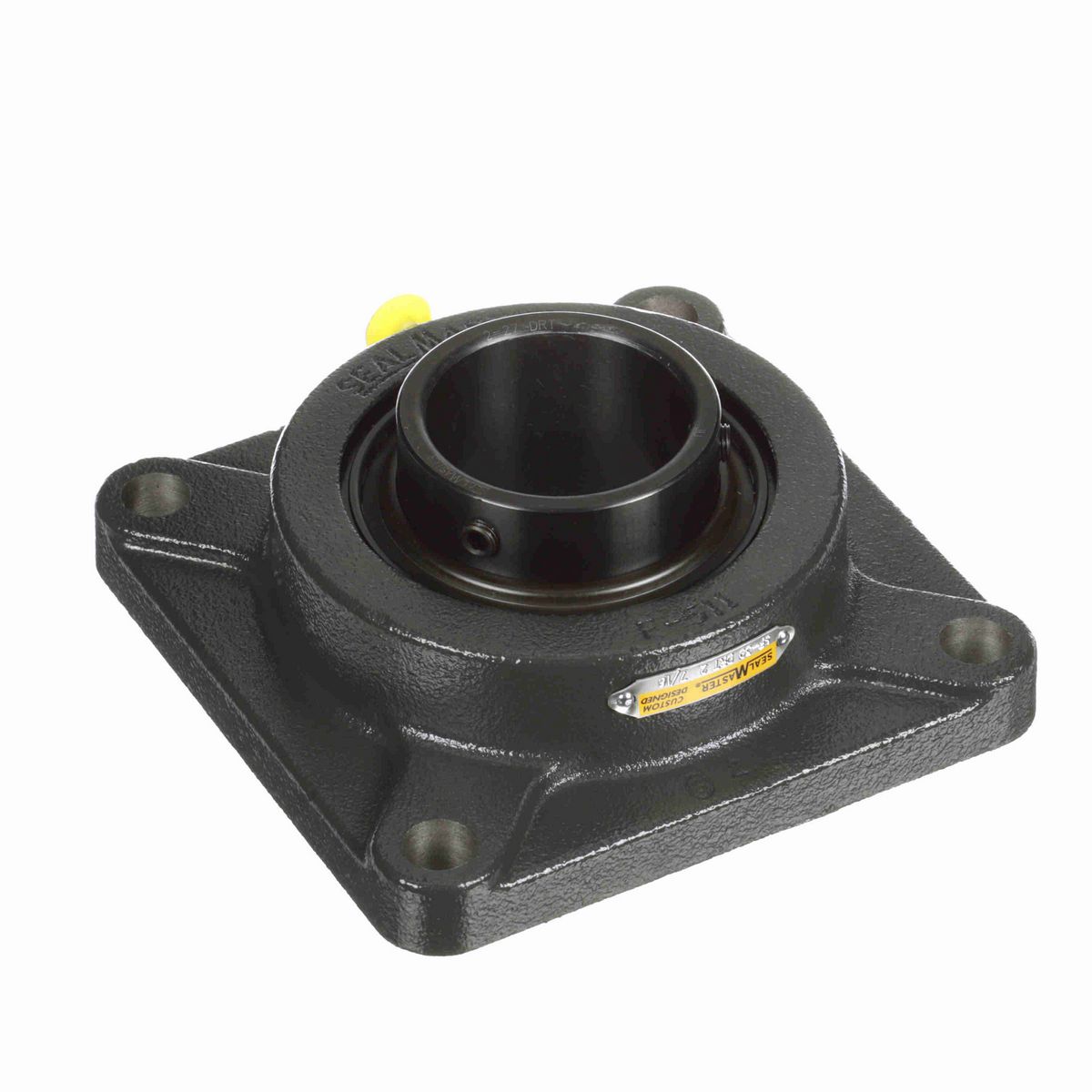

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.88 in
Bolt Size (in)	5/8 in
Overall Length (in)	6.88 in
Overall Height (in)	2.688 in
Bore Diameter (in)	2.4375 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.559 in
Bolt Spacing (in)	5.6250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Options	High Contamination
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Multi-Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	250-300 in/lbs
Bearing Type	Standard Duty
Size Code	2-27
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	2-27 DRT
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	8,150 lb
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	11,789 lb
Inner Ring Outside Diameter (in)	2.981 in
Housing Backside Inner Diameter	5
Maximum Speed (RPM)	650 rpm
Lubricant	Lithium Complex NLGI 2 Grease - 100% Fill
Housing Coating	Powder Coated
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461327302
Weight	11.00 LB
Packaged Length	7.19 IN
Packaged Width	7.00 IN
Packaged Height	3.31 IN
HTC	8483.20.4040
Country of Origin	United States of America
