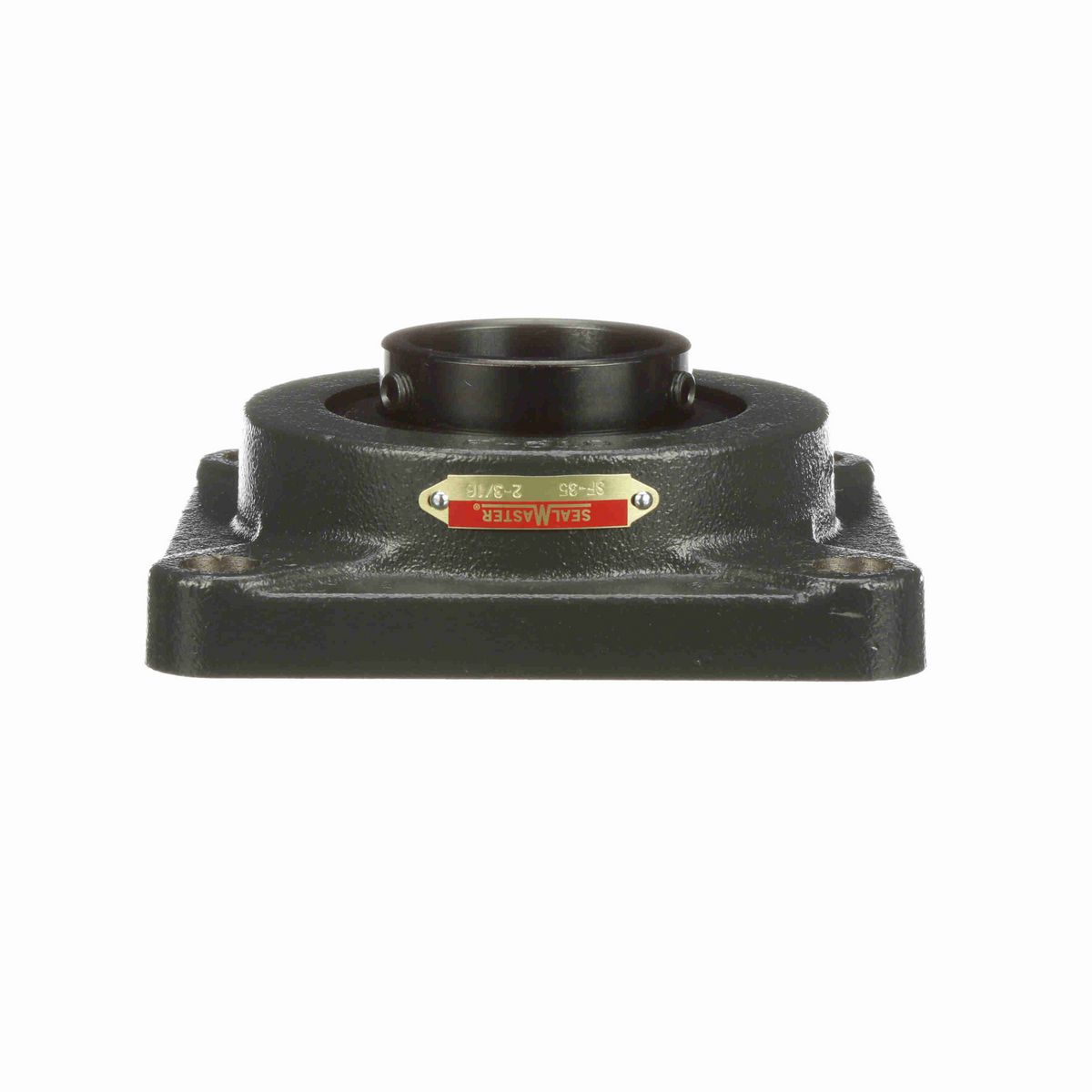

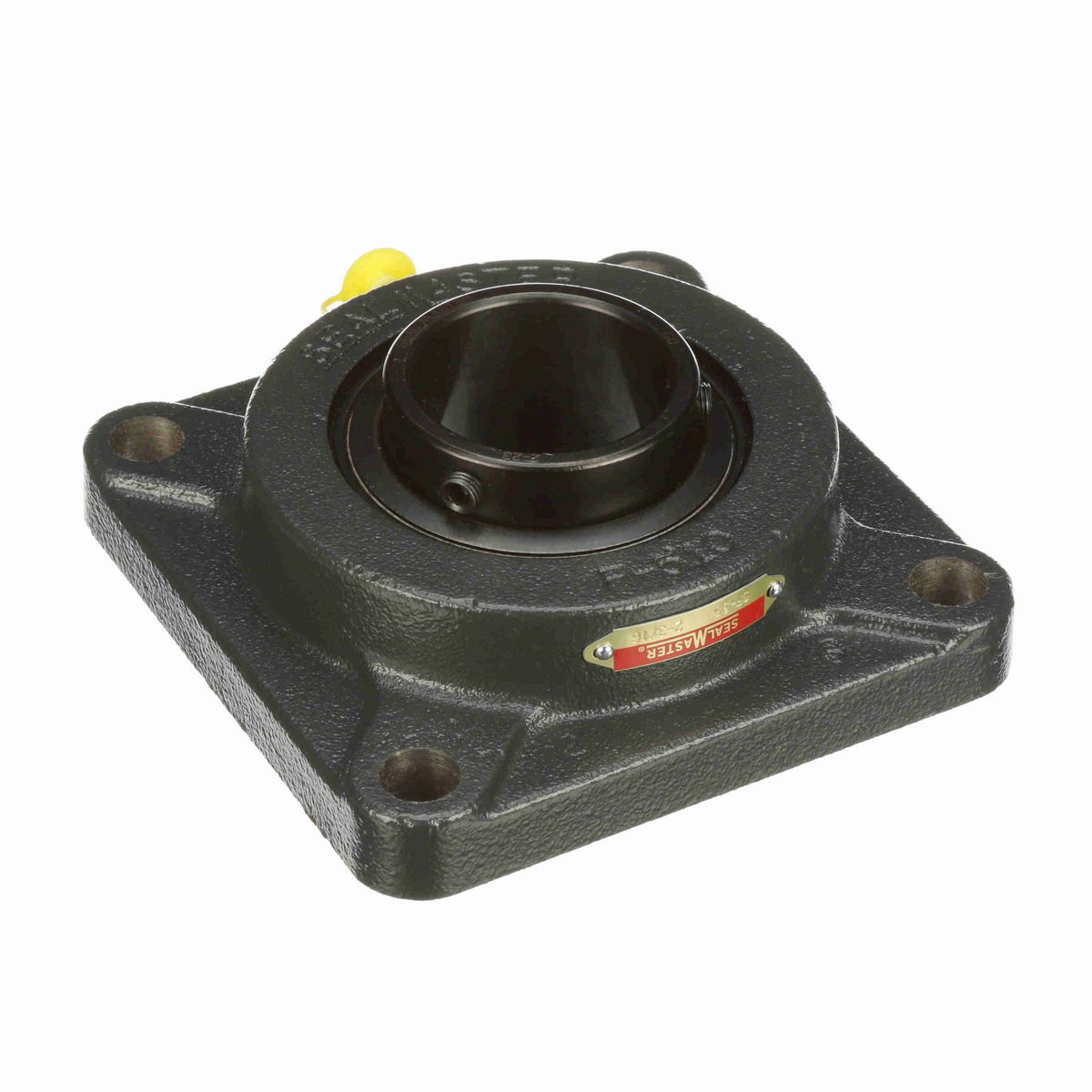

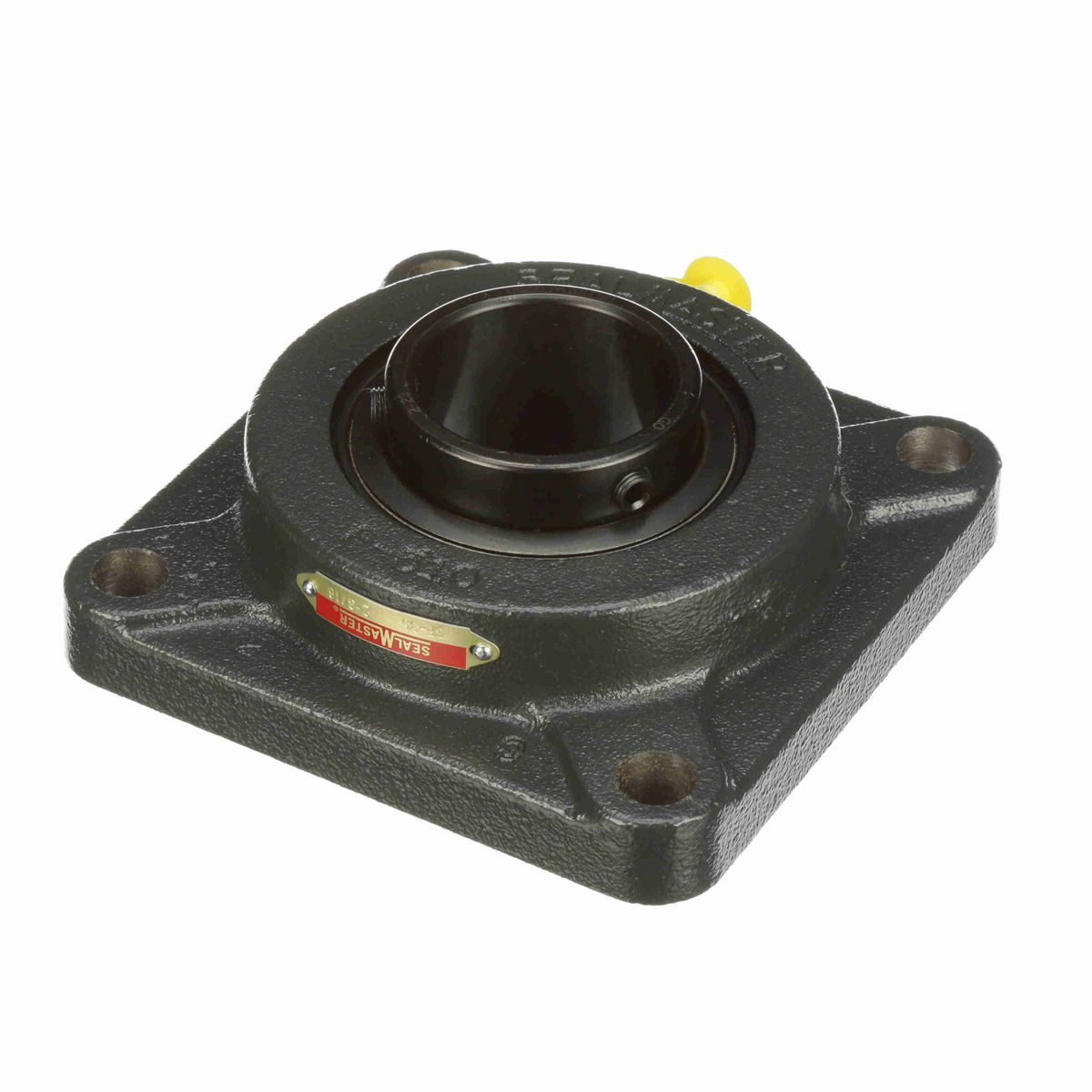

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.38 in
Bolt Size (in)	5/8 in
Overall Height (in)	2.313 in
Overall Length (in)	6.38 in
Bore Diameter (in)	2.1875 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.184 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Dynamic Load Rating (lb)	9,752 lb
Bearing Insert Finish	Black Oxide
End Cap Available	No
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	3250 rpm
Housing Backside Inner Diameter	4.25
Inner Ring Outside Diameter (in)	2.723 in
Bearing Type	Standard Duty
Insert	2-23
Shaft Locking Type	Set Screw
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Size Code	2-23
Static Load Rating (lb)	6,601 lb
Grease Fitting Thread Size	1/8 NPT
Housing Material	Cast Iron
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662461003626
Weight	9.98 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	Mexico
