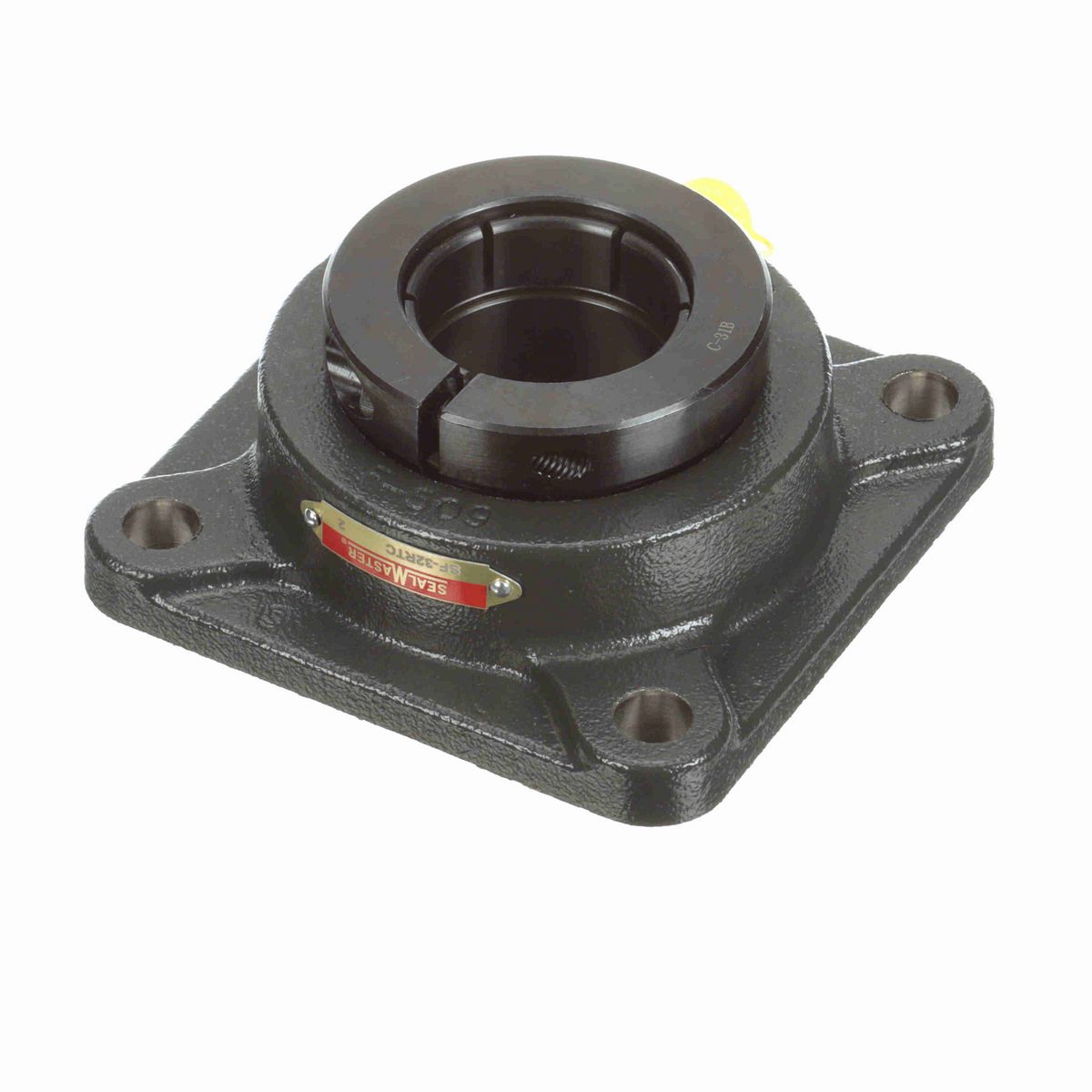

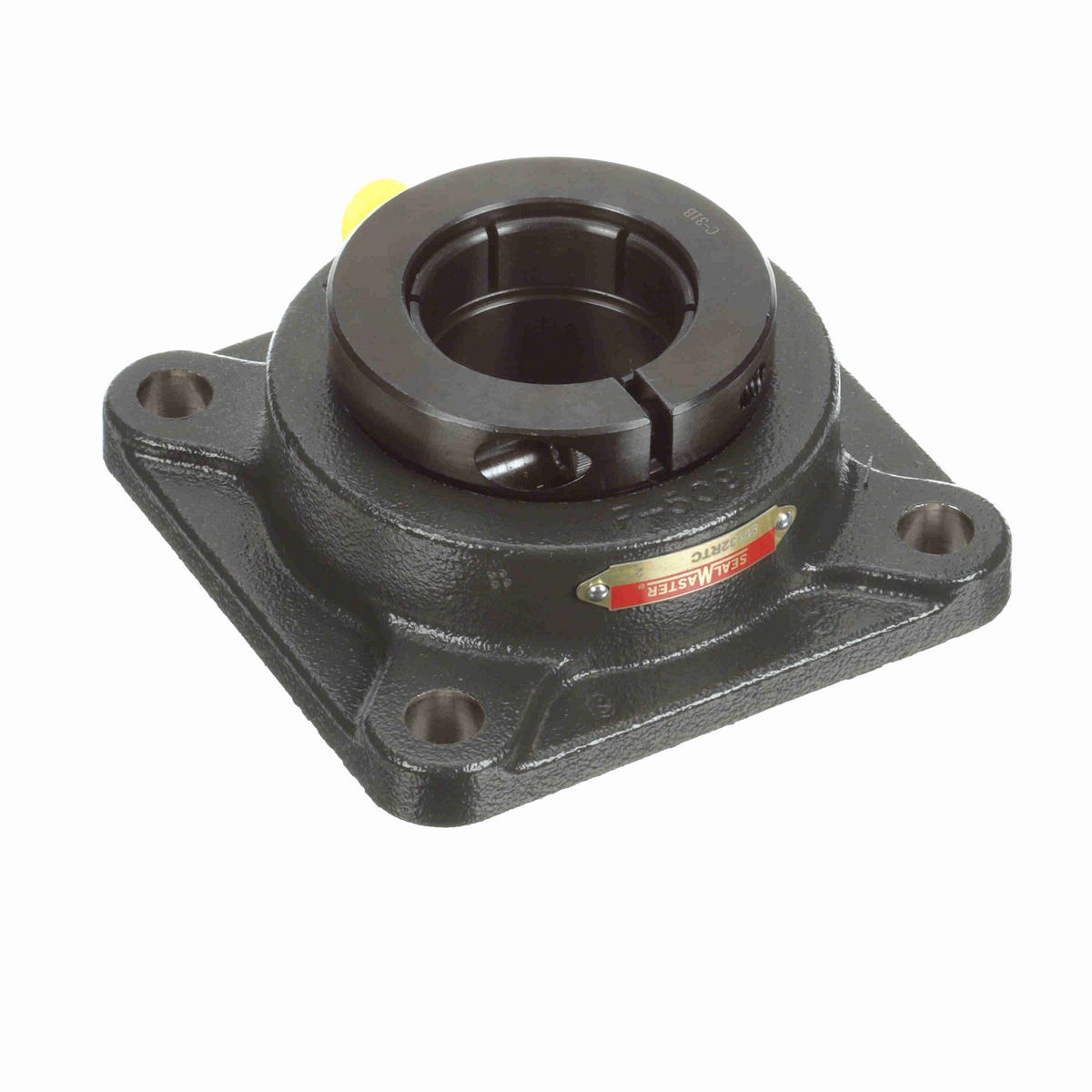

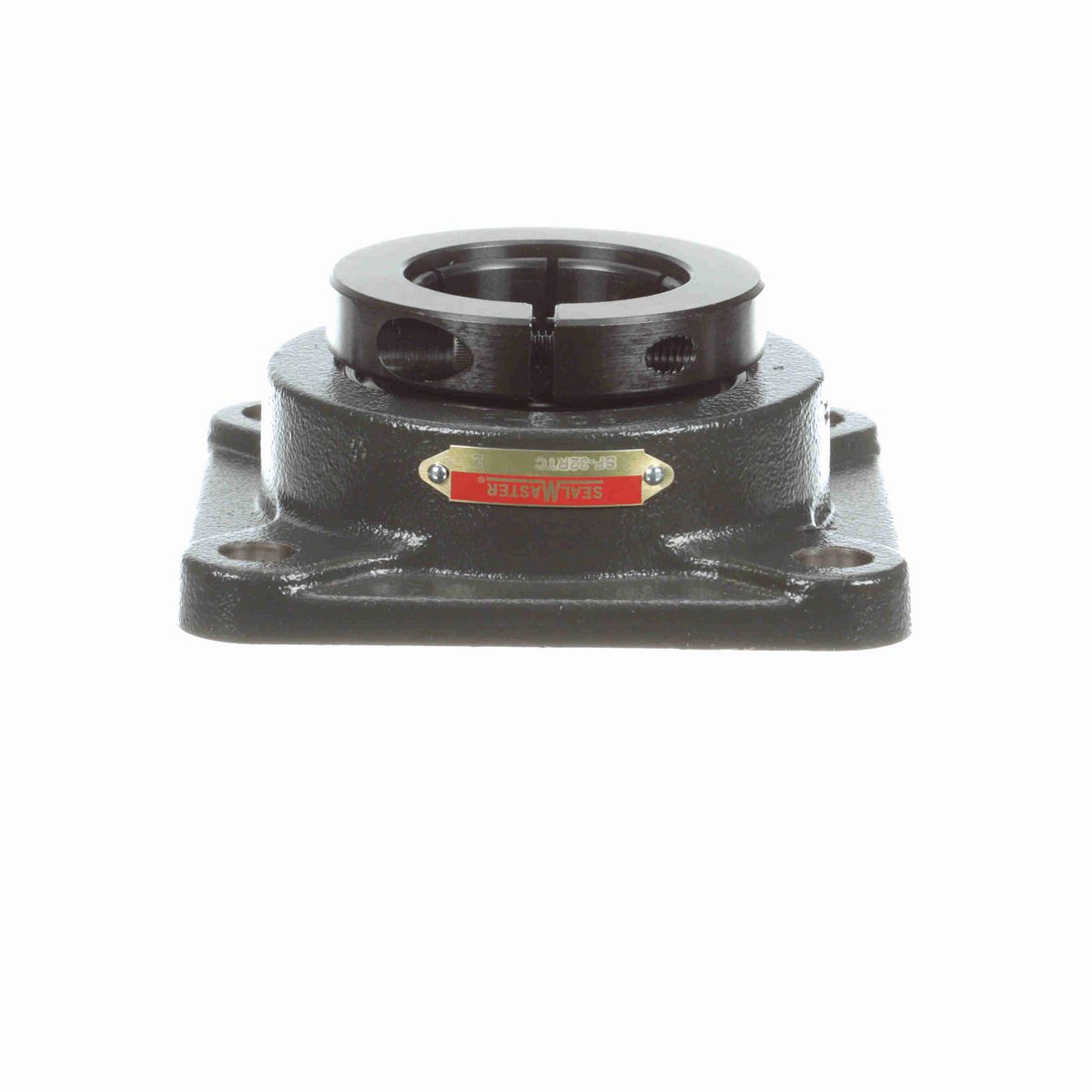

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5.63 in
Bolt Size (in)	9/16 in
Overall Length (in)	5.63 in
Overall Height (in)	2.3 in
Bore Diameter (in)	2 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.17 in
Bolt Spacing (in)	4.3750 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	3.35 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/8 NPT
Size Code	2-115
Inner Ring Outside Diameter (in)	2.469 in
Radial Clearance	Standard
Housing Backside Inner Diameter	4
Dynamic Load Rating (lb)	7,889 lb
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Insert	1-2TC
Shaft Locking Type	Concentric
Static Load Rating (lb)	5,216 lb
Maximum Speed (RPM)	3550 rpm
Bearing Type	Standard Duty

General Specifications

UPC	662461066270
Weight	6.67 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
