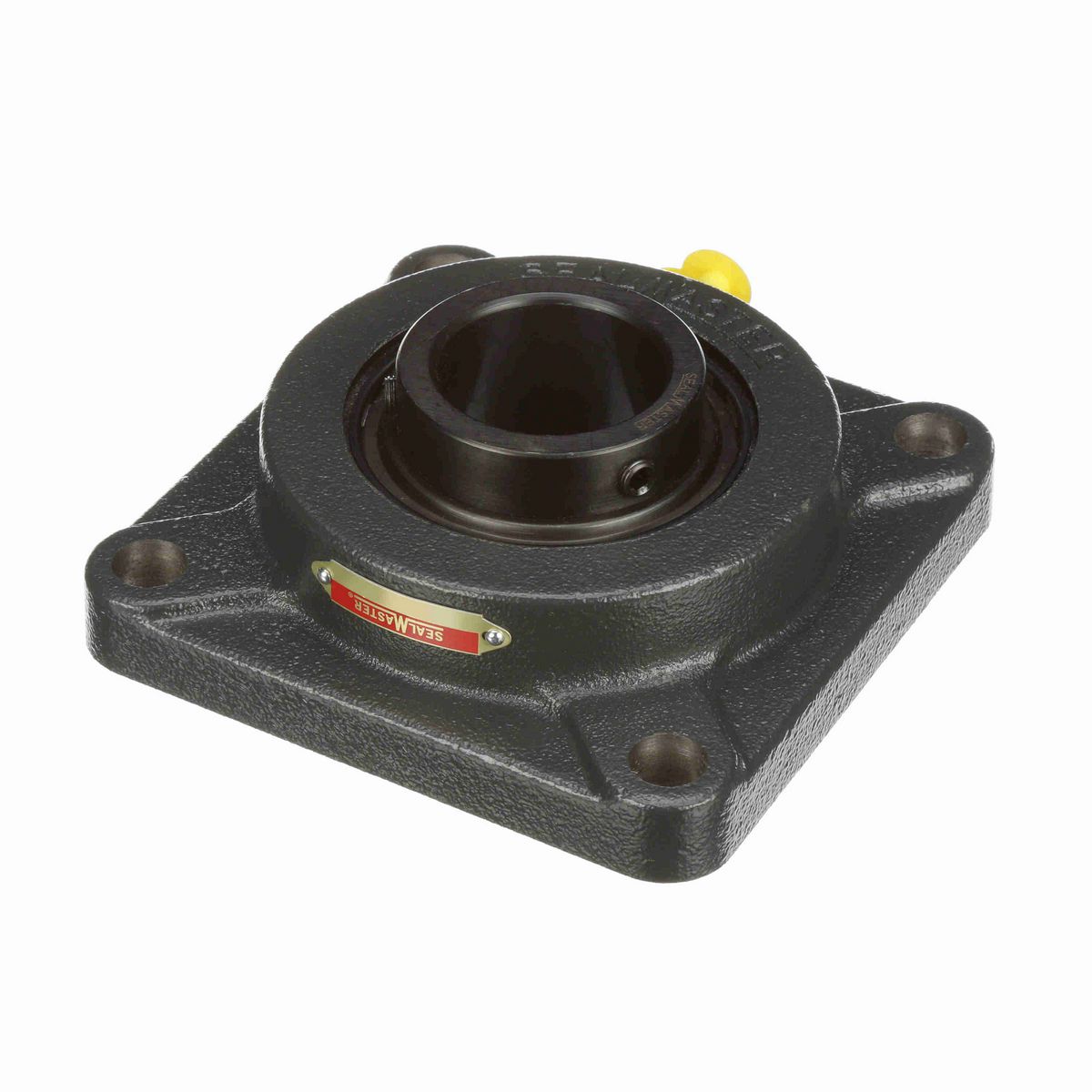

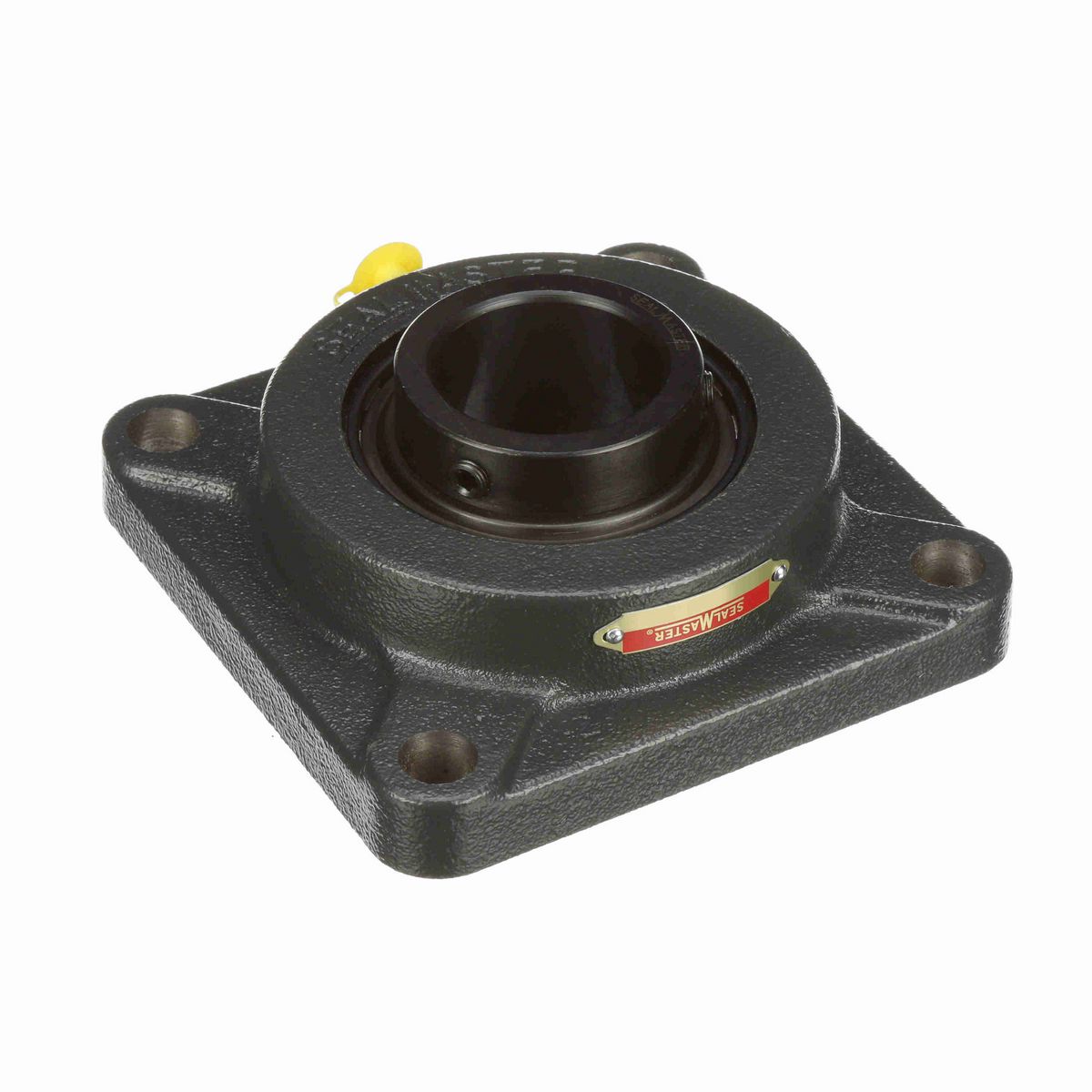

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	6.38 in
Overall Length (in)	6.38 in
Overall Height (in)	2.313 in
Bore Diameter (in)	2 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.184 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Options	High Contamination
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Multi-Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Coating	Powder Coated
End Cap Available	No
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Size Code	2-23
Grease Fitting Thread Size	1/8 NPT
Static Load Rating (lb)	6,601 lb
Housing Material	Cast Iron
Insert	2-2 DRT
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease - 100% Fill
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	300 rpm
Dynamic Load Rating (lb)	9,752 lb
Radial Clearance	Standard
Bearing Type	Standard Duty
Housing Backside Inner Diameter	4.25
Shaft Locking Type	Set Screw
Inner Ring Outside Diameter (in)	2.723 in

General Specifications

UPC	662461327258
Weight	10.50 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
