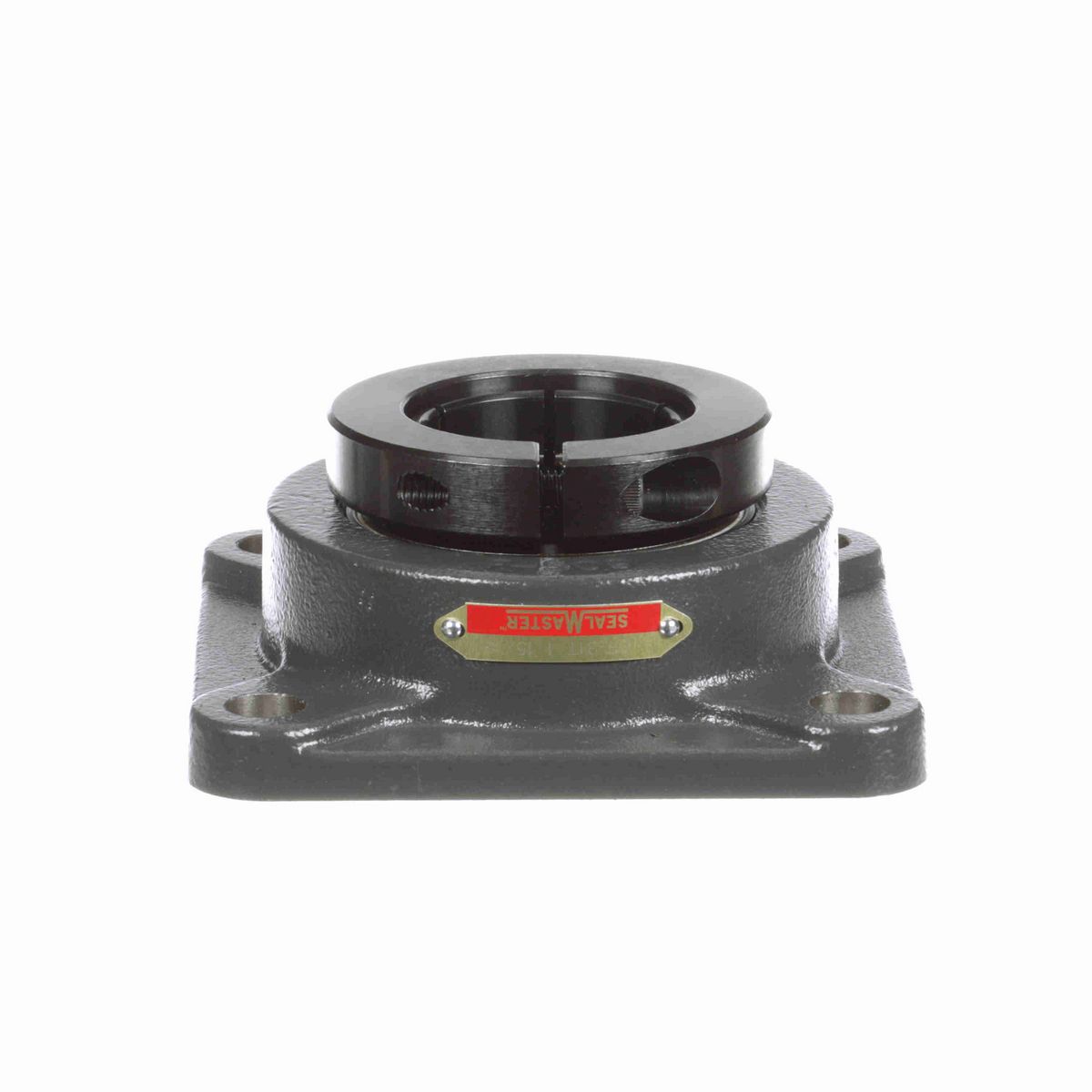

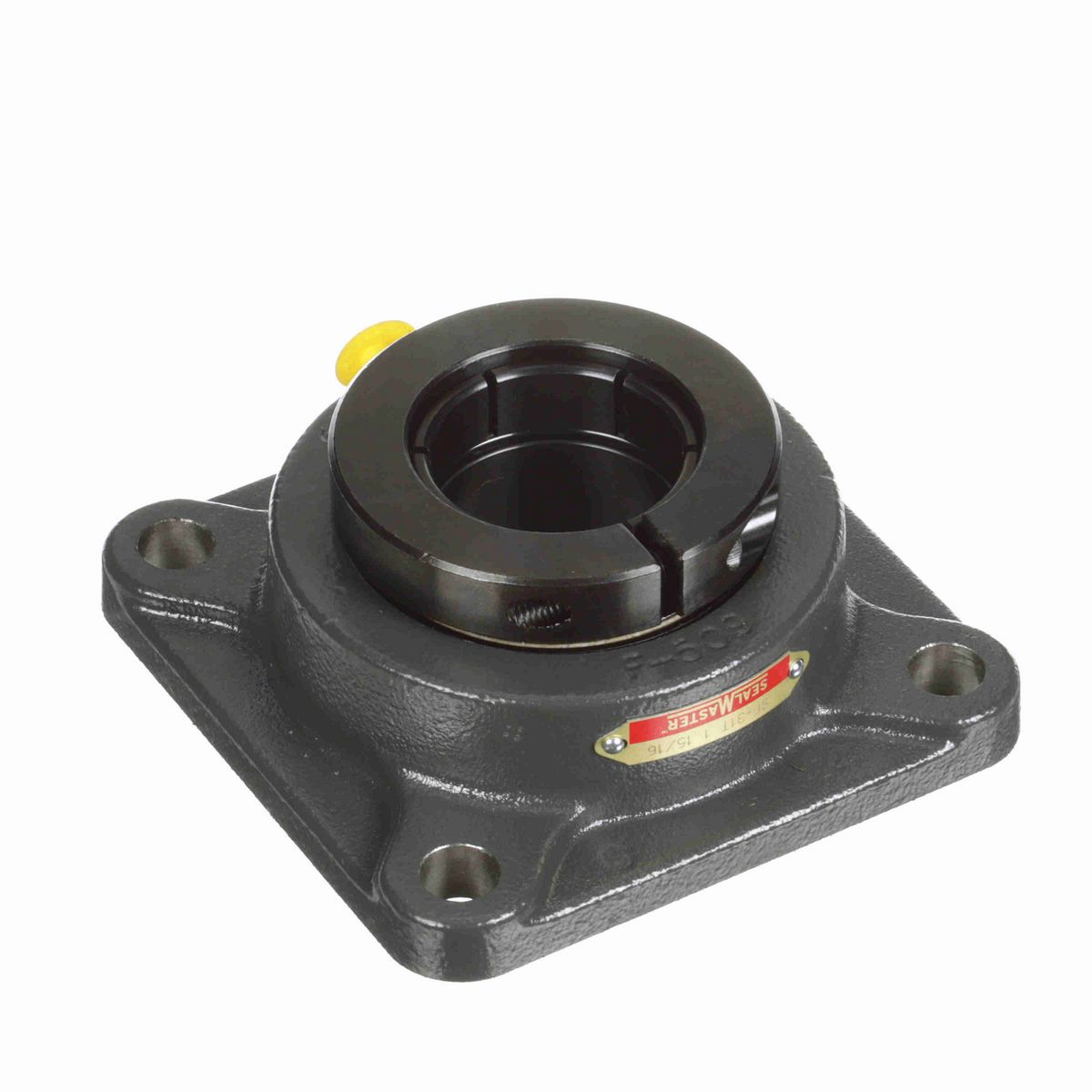

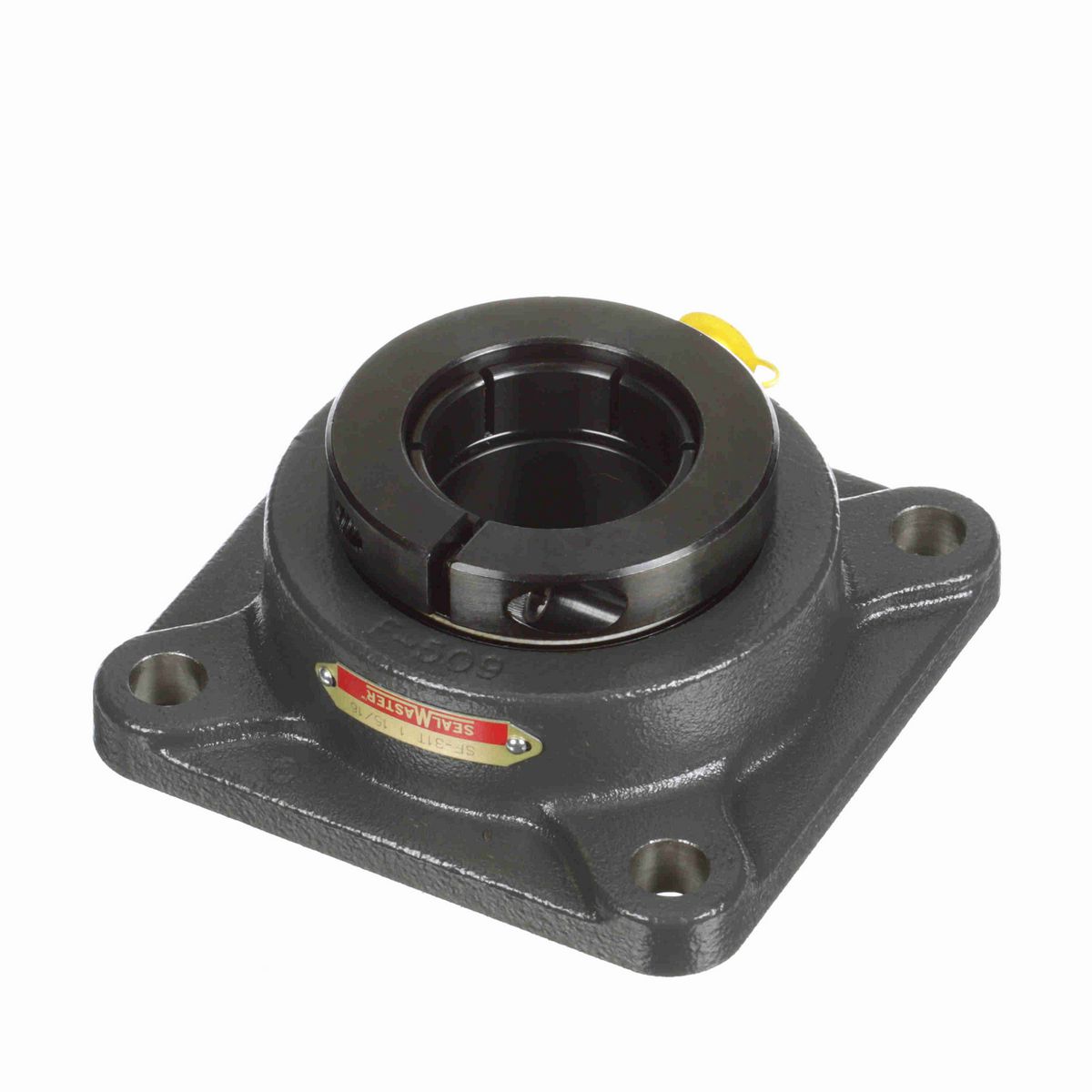

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.63 in
Overall Length (in)	5.63 in
Overall Height (in)	2.3 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.17 in
Bolt Spacing (in)	4.3750 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3.35 in
Ability to Relubricate	Yes
Shaft Locking Type	Concentric
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/8 NPT
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	5000 rpm
Bearing Type	Standard Duty
Insert	2-115T
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	7,889 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	2.469 in
Housing Coating	Powder Coated
Size Code	2-115
Cage Type	Land Riding Retainer
Housing Backside Inner Diameter	4
Static Load Rating (lb)	5,216 lb
End Cap Available	No

General Specifications

UPC	662461030080
Weight	6.97 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	Mexico
