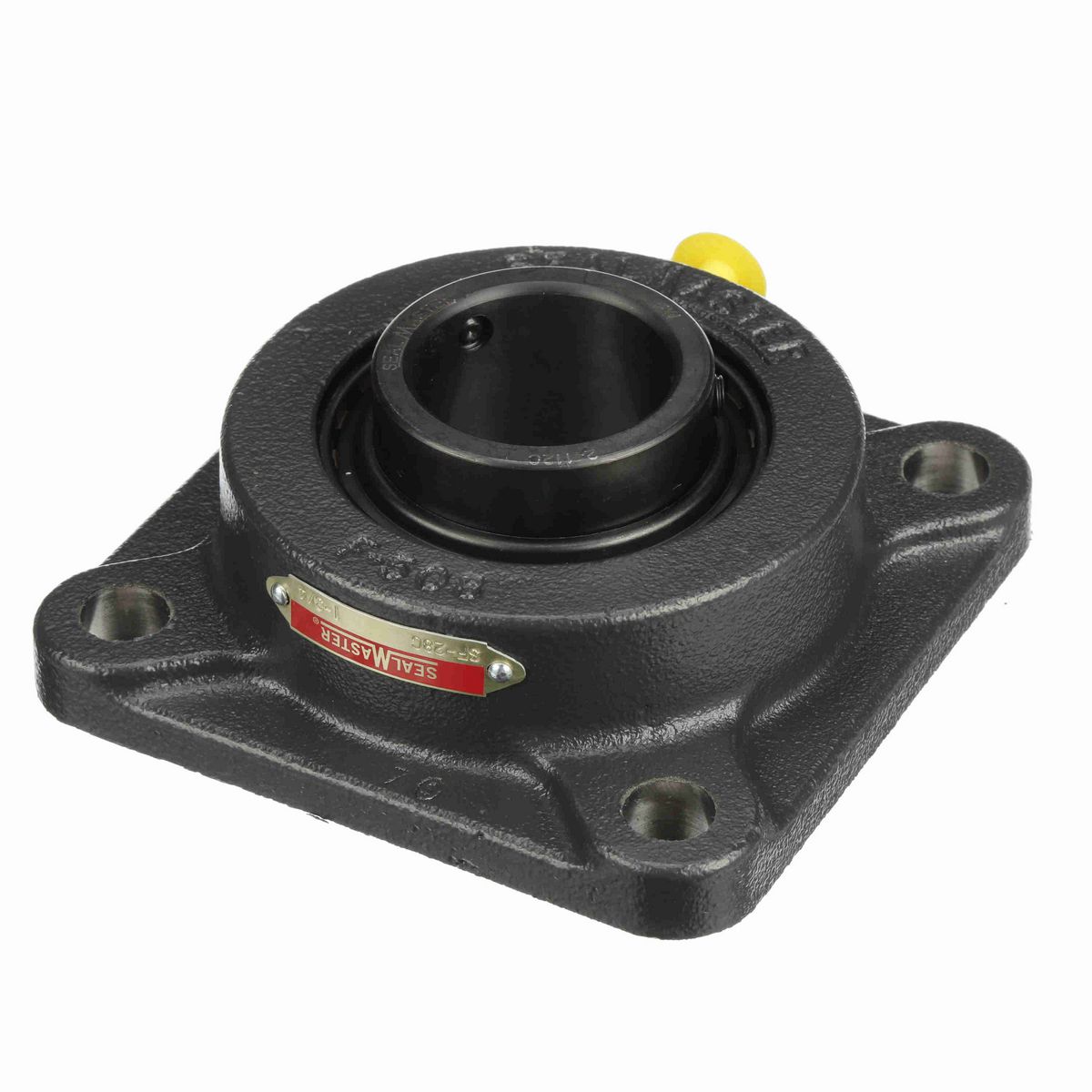

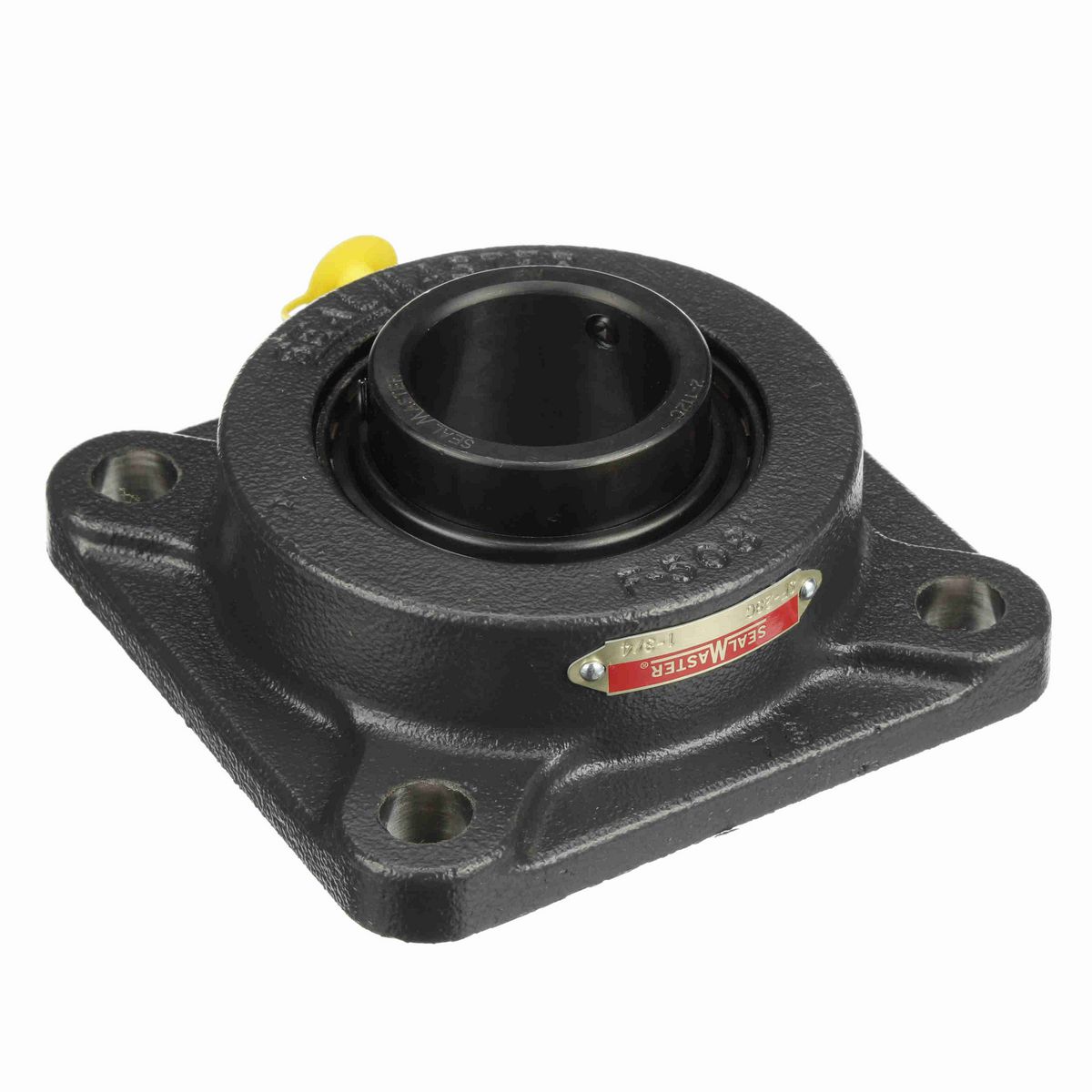

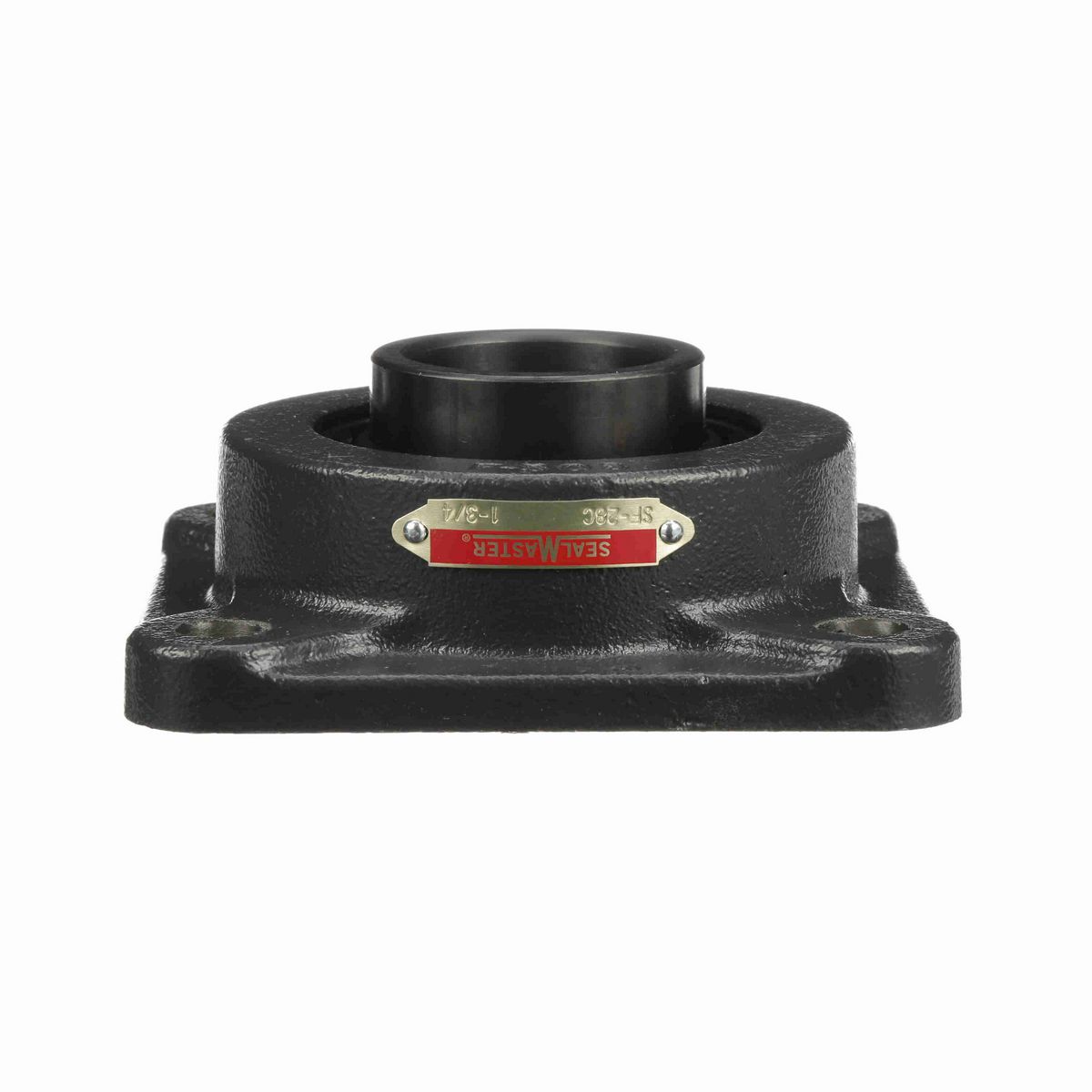

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.38 in
Overall Length (in)	5.38 in
Overall Height (in)	2.047 in
Bore Diameter (in)	1.75 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.934 in
Bolt Spacing (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Radial Clearance	Standard
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Insert	2-112C
Housing Material	Cast Iron
Bearing Type	Standard Duty
Housing Backside Inner Diameter	3.88
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Set Screw
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Size Code	2-111
Maximum Speed (RPM)	3800 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.307 in
Static Load Rating (lb)	5,139 lb
Dynamic Load Rating (lb)	7,901 lb

General Specifications

UPC	662461022054
Weight	5.75 LB
Packaged Length	6.06 IN
Packaged Width	5.94 IN
Packaged Height	2.19 IN
HTC	8483.20.4040
Country of Origin	United States of America
