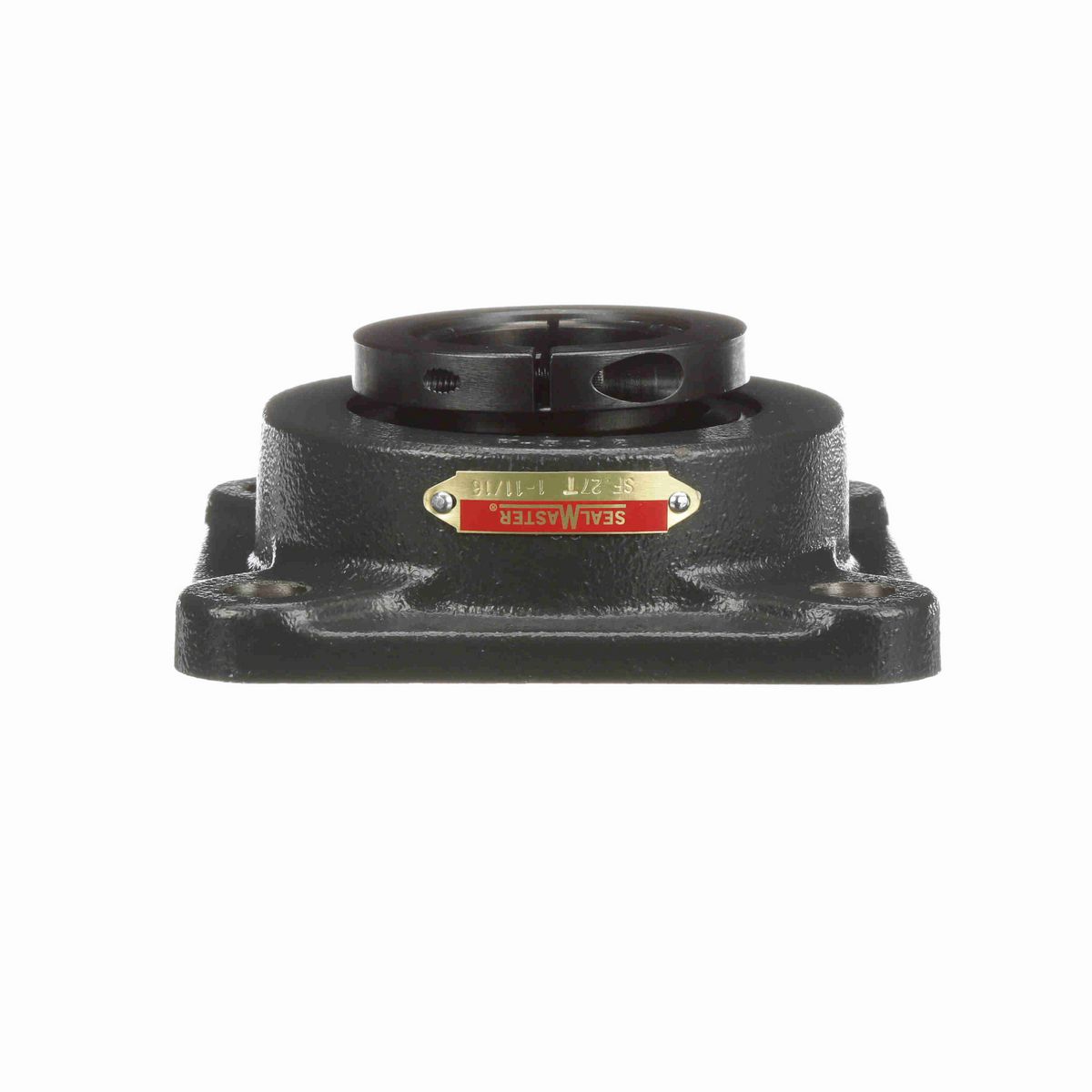

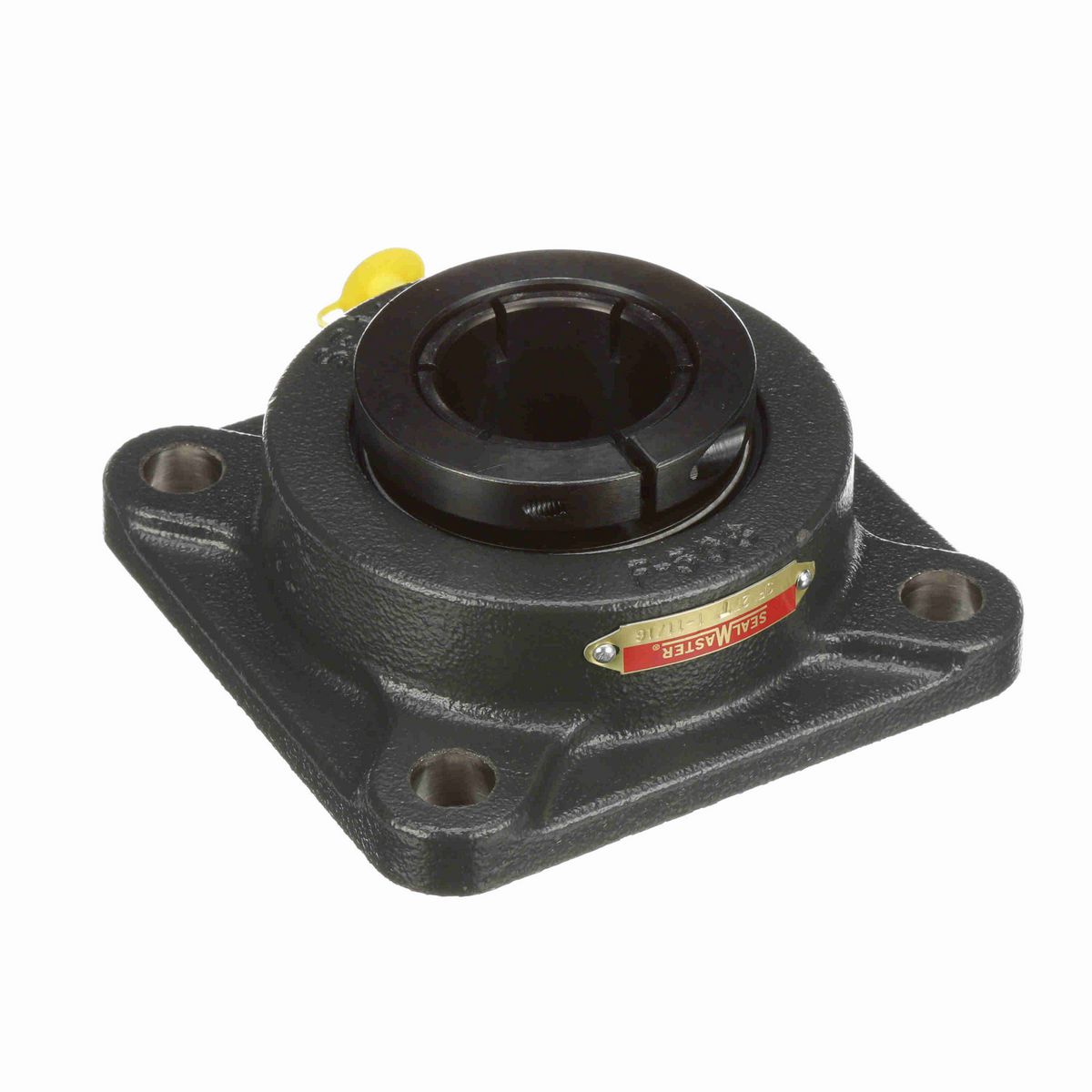

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.38 in
Overall Length (in)	5.38 in
Overall Height (in)	2.167 in
Bore Diameter (in)	1.6875 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.06 in
Bolt Spacing (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3 in
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	7,901 lb
Bearing Type	Standard Duty
Inner Ring Outside Diameter (in)	2.307 in
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-111
Housing Coating	Powder Coated
Static Load Rating (lb)	5,139 lb
Grease Fitting Thread Size	1/4-28
Bearing Insert Finish	Black Oxide
Insert	2-111T
Housing Material	Cast Iron
End Cap Available	No
Maximum Speed (RPM)	5300 rpm
Shaft Locking Type	Concentric
Housing Backside Inner Diameter	3.88

General Specifications

UPC	662461030066
Weight	6.18 LB
Packaged Length	5.94 IN
Packaged Width	6.06 IN
Packaged Height	2.19 IN
HTC	8483.20.4040
Country of Origin	United States of America
