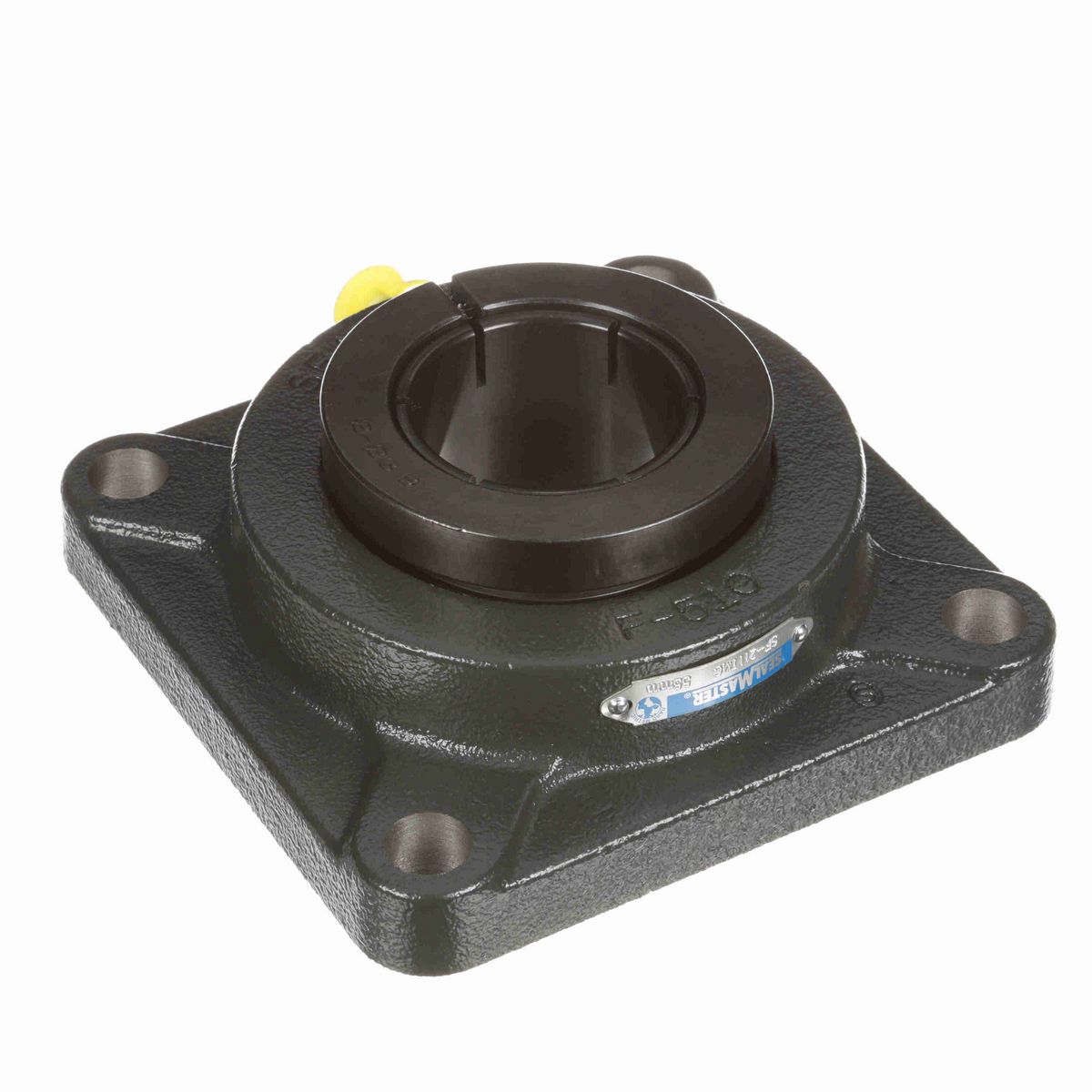

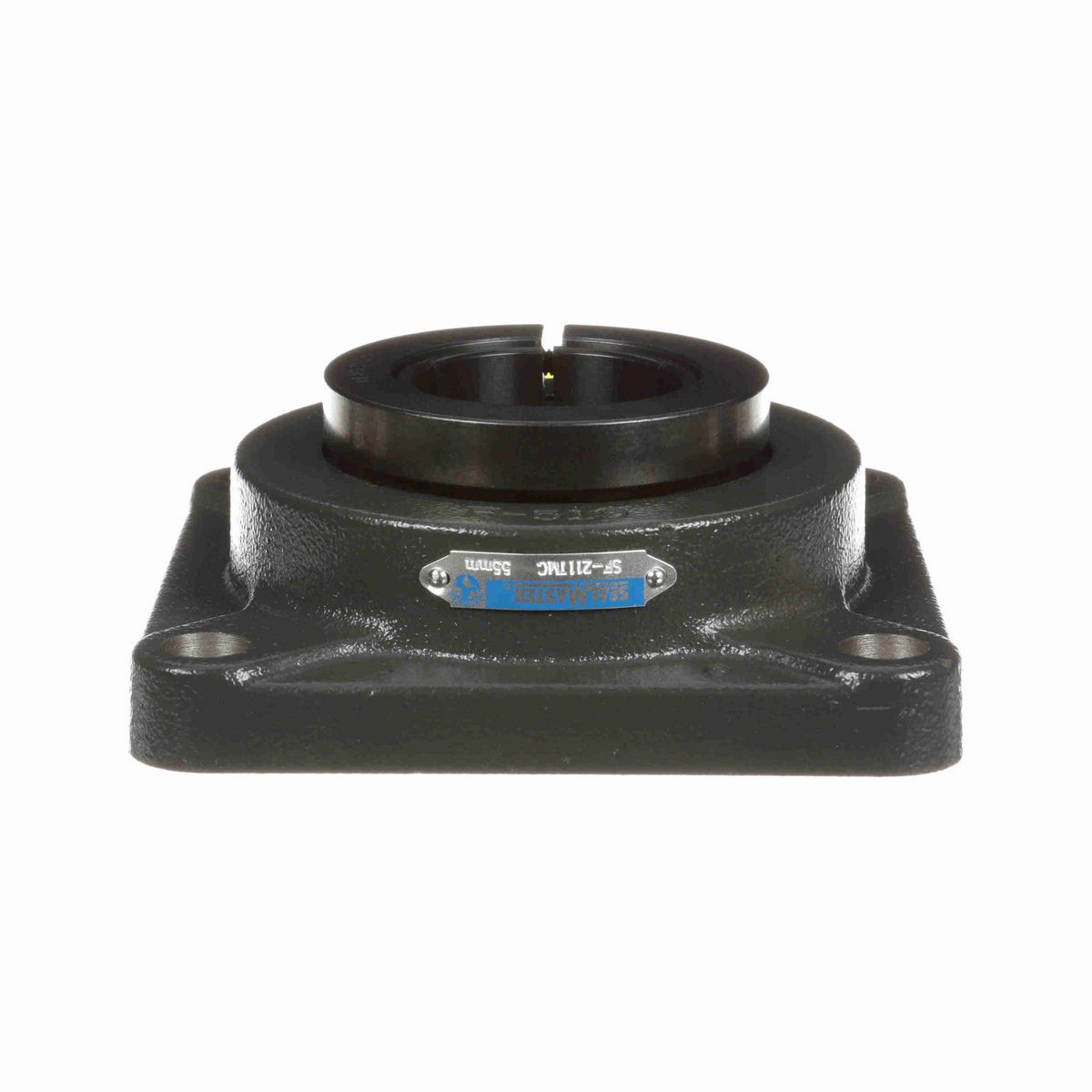

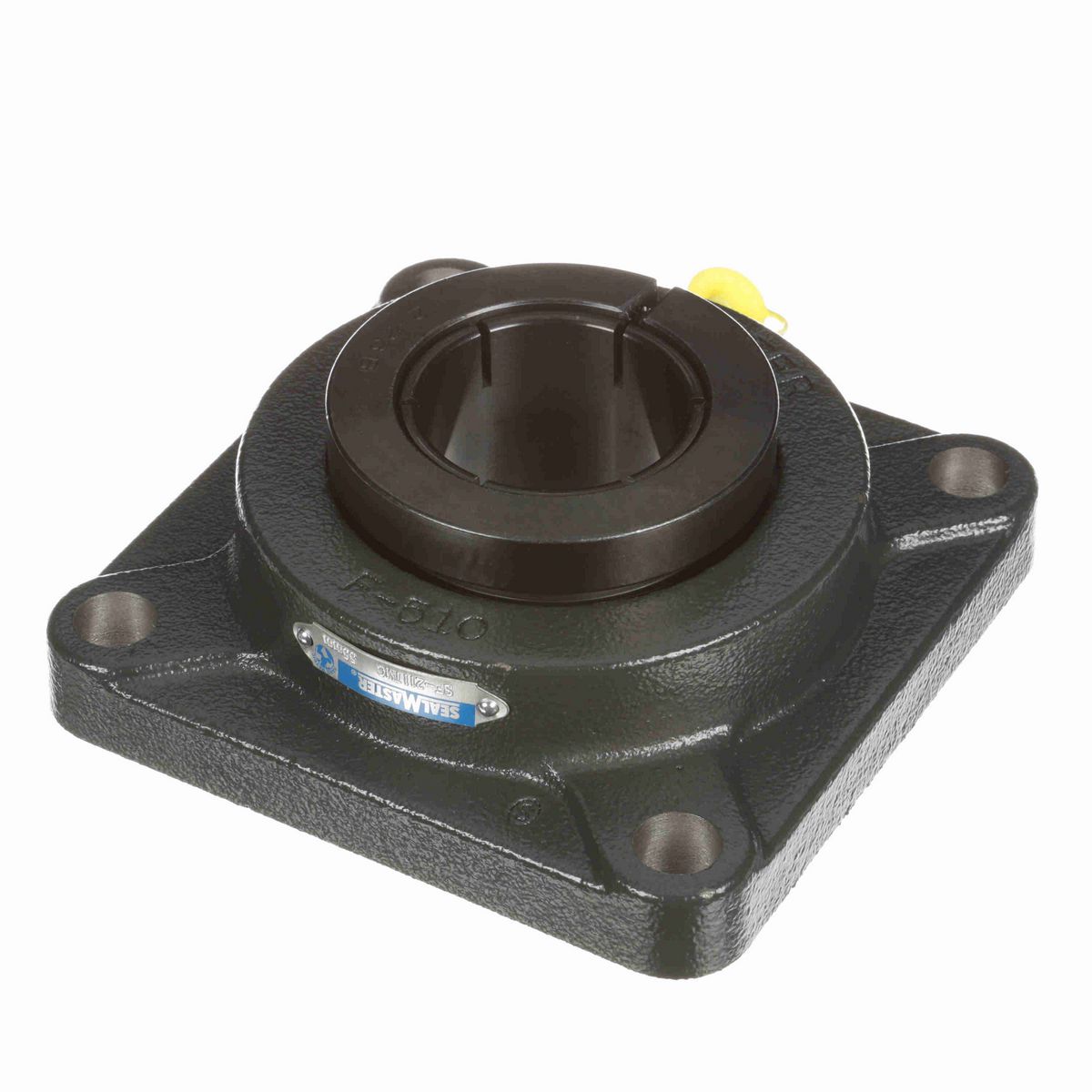

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal with black oxide bearing races
• Metric fitting and mounting bolts
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	6.38 in
Bolt Size (mm)	M16 mm
Overall Height (in)	2.313 in
Overall Length (in)	6.38 in
Bore Diameter (mm)	55 mm
Foot Height (in)	0.81 in
Length Through Bore (in)	2.33 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	3.6 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Material	52100 Bearing Steel
Insert	5211TMC
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Shaft Locking Type	Concentric
Size Code	2-23
Bearing Type	Standard Duty
Housing Backside Inner Diameter	4.25
Housing Material	Cast Iron
Static Load Rating (lb)	6,601 lb
Max Operating Temperature (F)	220 °F
End Cap Available	No
Inner Ring Outside Diameter (in)	2.723 in
Cage Type	Land Riding Retainer
Maximum Speed (RPM)	3250 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	9,752 lb
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461253885
Weight	11.10 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
