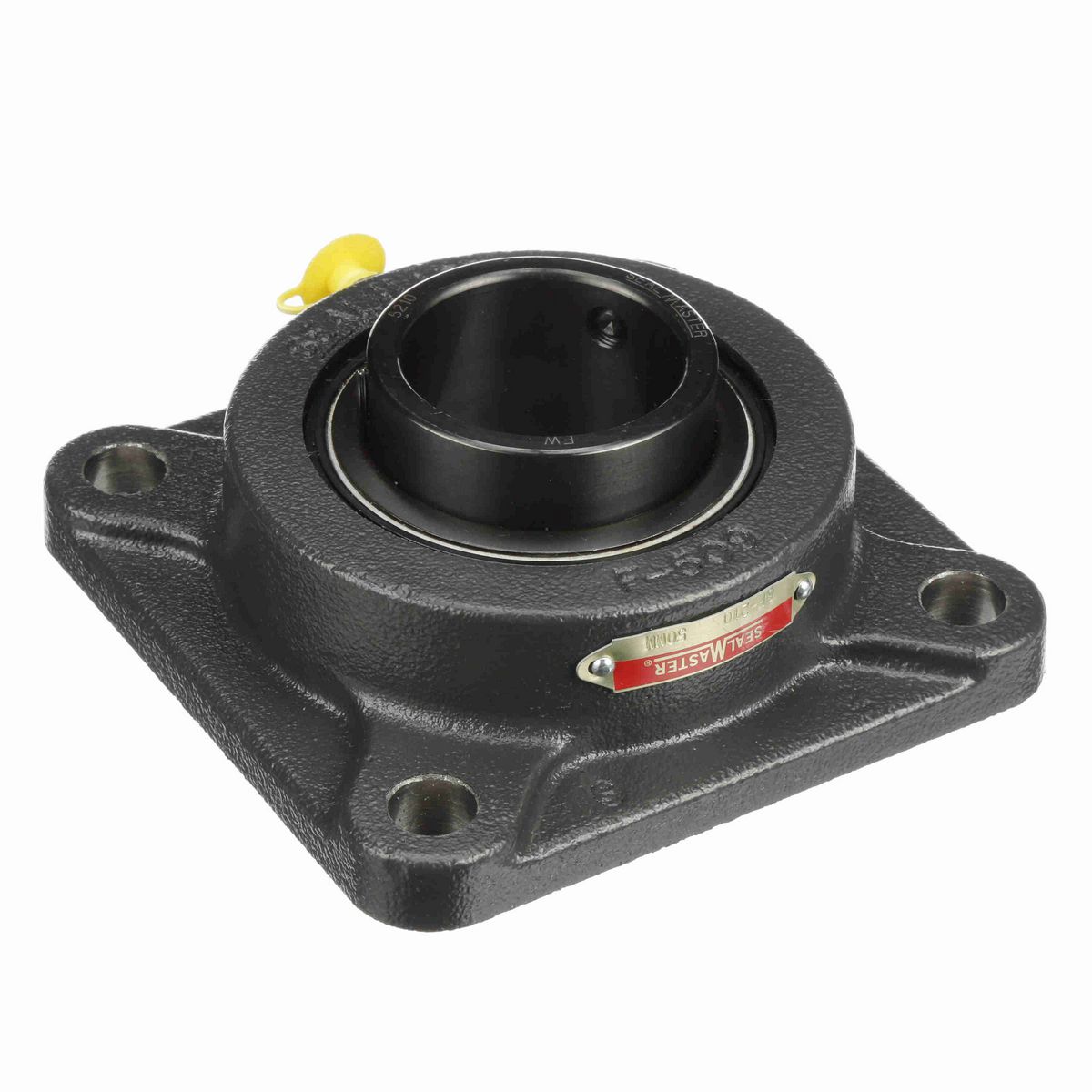

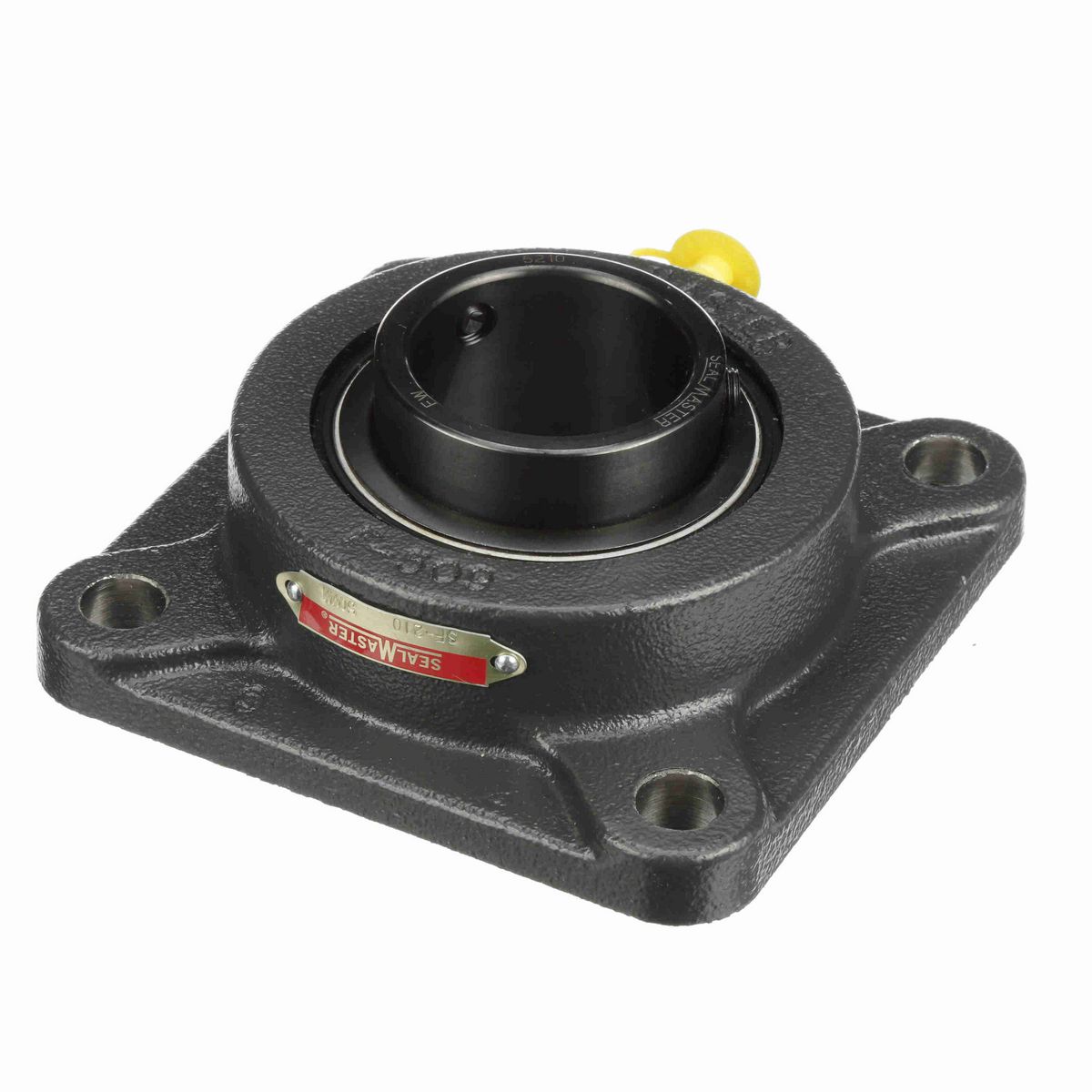

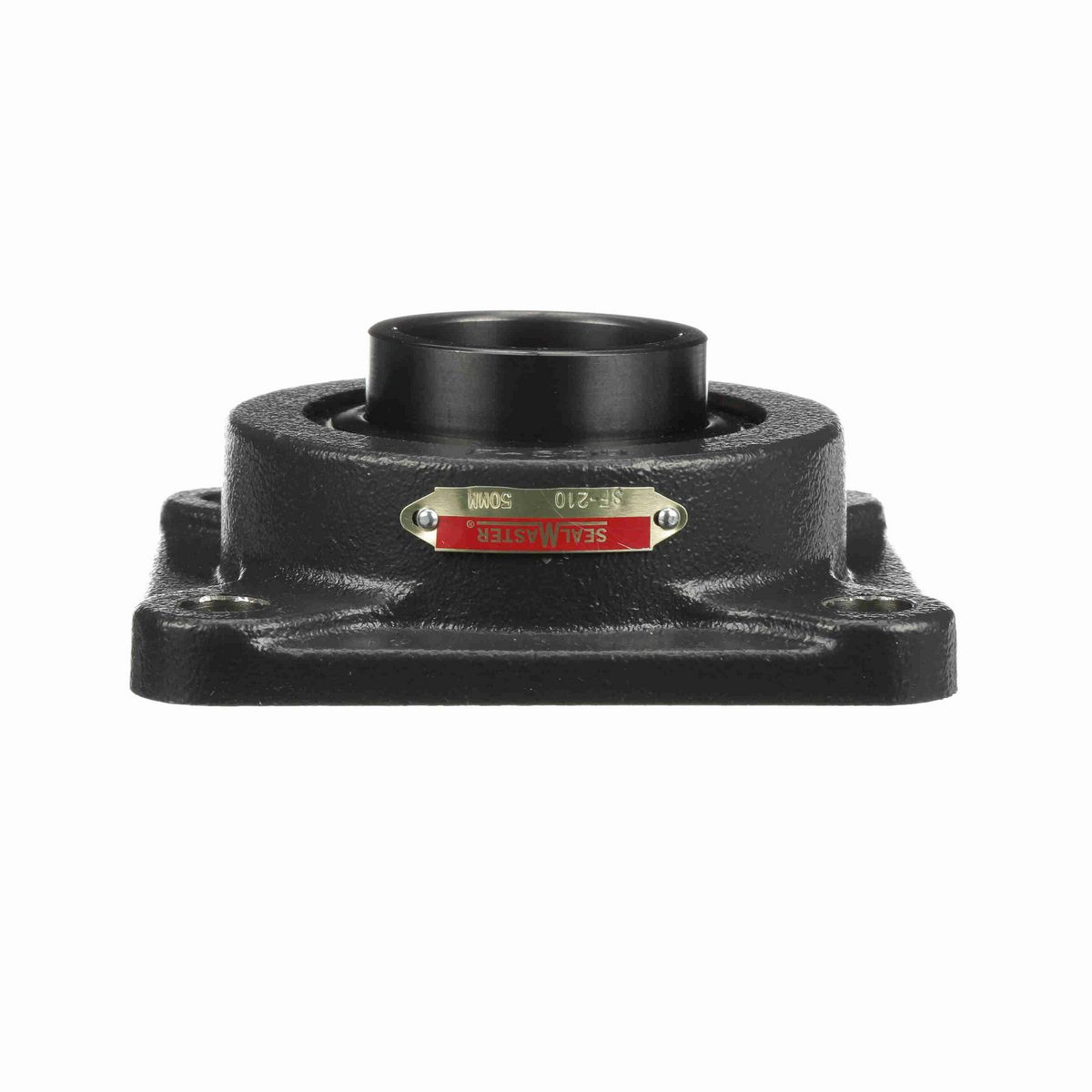

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.63 in
Bolt Size (mm)	M16 mm
Overall Height (in)	2.156 in
Overall Length (in)	5.63 in
Bore Diameter (mm)	50 mm
Foot Height (in)	0.56 in
Length Through Bore (in)	2.027 in
Bolt Spacing (in)	4.3750 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Bearing Type	Standard Duty
Size Code	2-115
Inner Ring Outside Diameter (in)	2.469 in
Max Operating Temperature (F)	220 °F
Insert	5210
Shaft Locking Type	Set Screw
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Grease Fitting Thread Size	1/8 NPT
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,216 lb
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Dynamic Load Rating (lb)	7,889 lb
Housing Backside Inner Diameter	4
Maximum Speed (RPM)	3550 rpm
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662461052310
Weight	6.13 LB
Packaged Length	6.50 IN
Packaged Width	6.75 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
