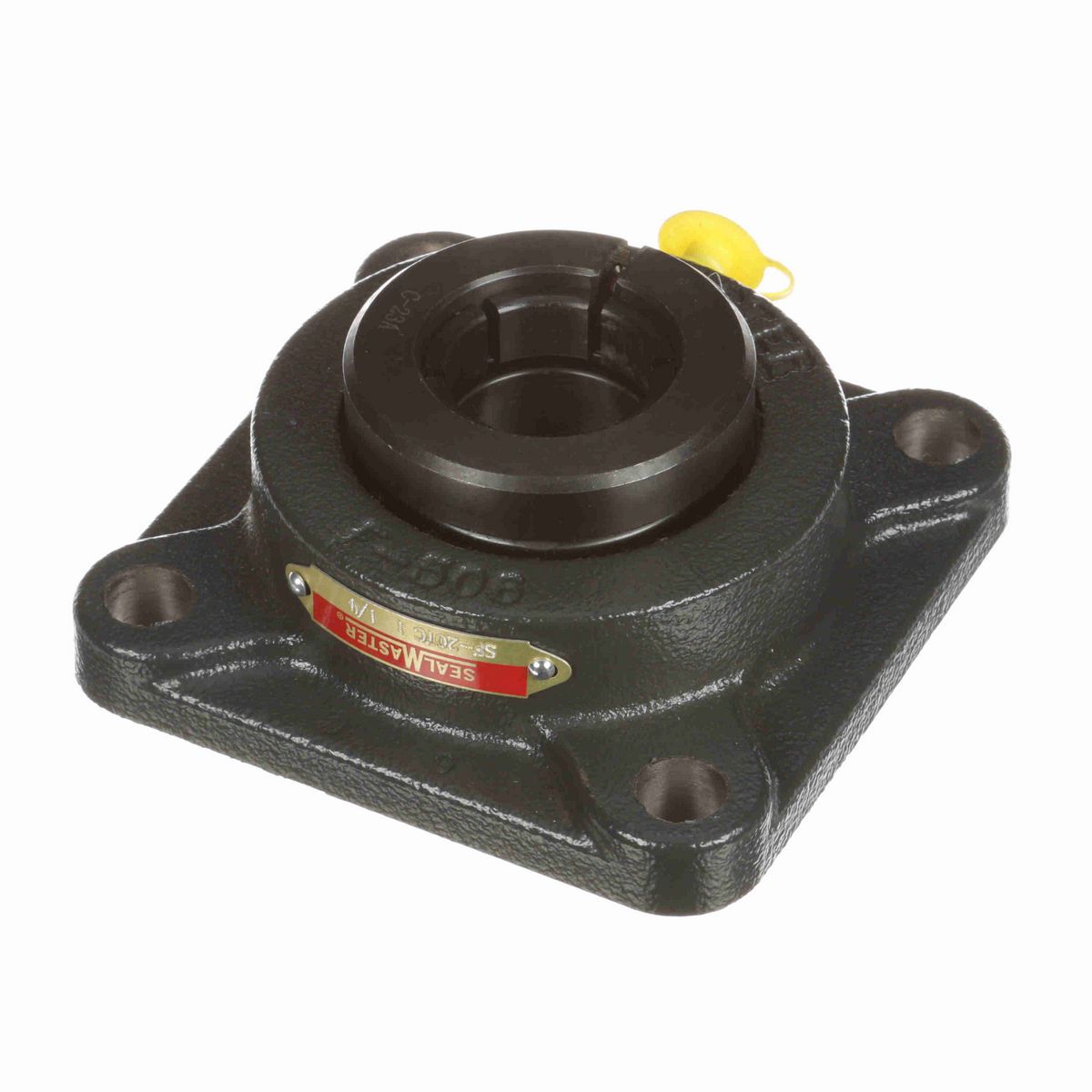

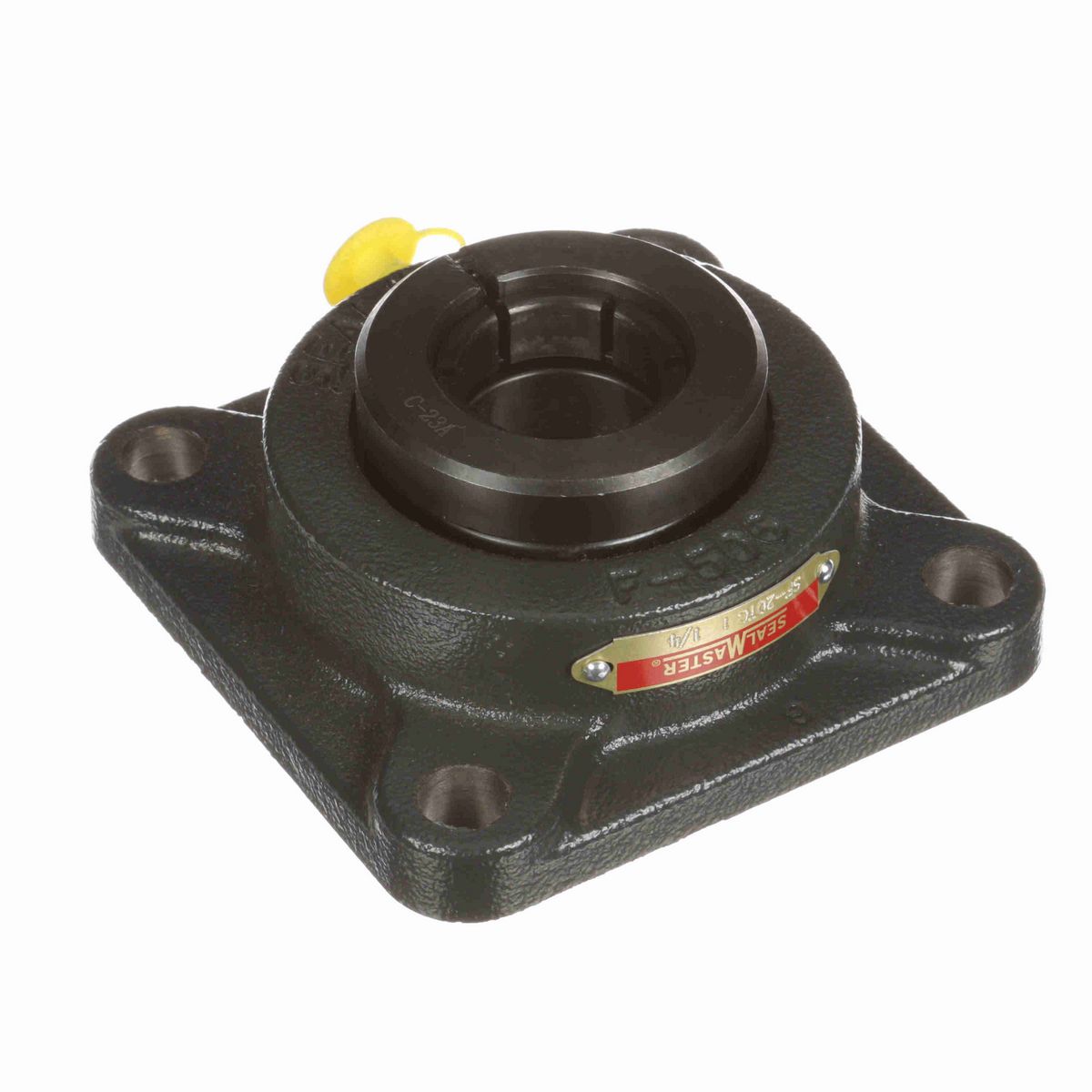

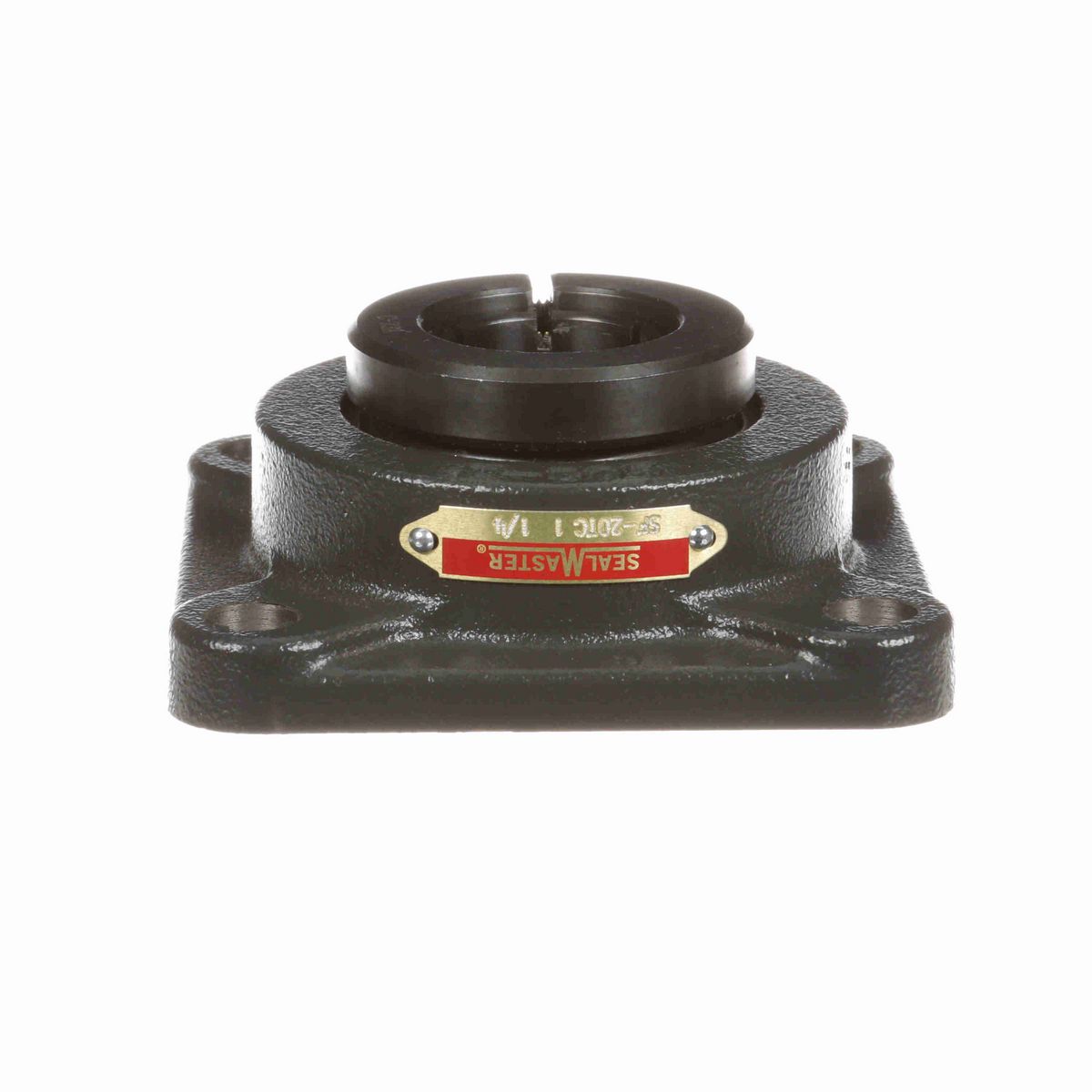

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	4.63 in
Bolt Size (in)	1/2 in
Overall Length (in)	4.63 in
Overall Height (in)	1.81 in
Bore Diameter (in)	1.25 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.75 in
Bolt Spacing (in)	3.6250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.50 in
Ability to Relubricate	Yes
Size Code	2-17
Vibration Frequency Roller Spin	0.0386 cps
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	1.86 in
Static Load Rating (lb)	3,493 lb
Bearing Type	Standard Duty
Maximum Speed (RPM)	4650 rpm
Shaft Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0066 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Housing Backside Inner Diameter	3.31
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	2-14TC
Dynamic Load Rating (lb)	5,782 lb
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/4-28

General Specifications

UPC	662461033067
Weight	4.10 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
