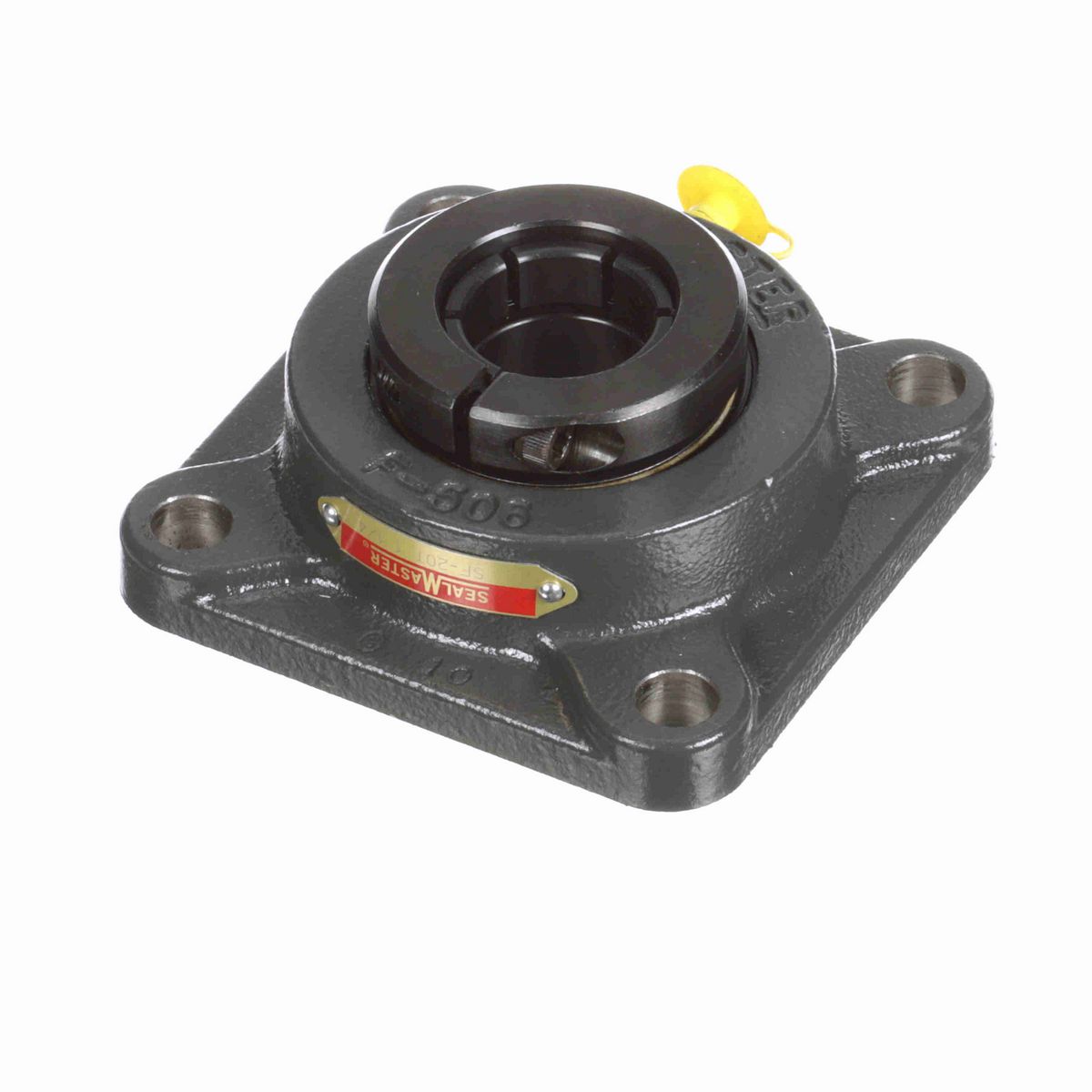

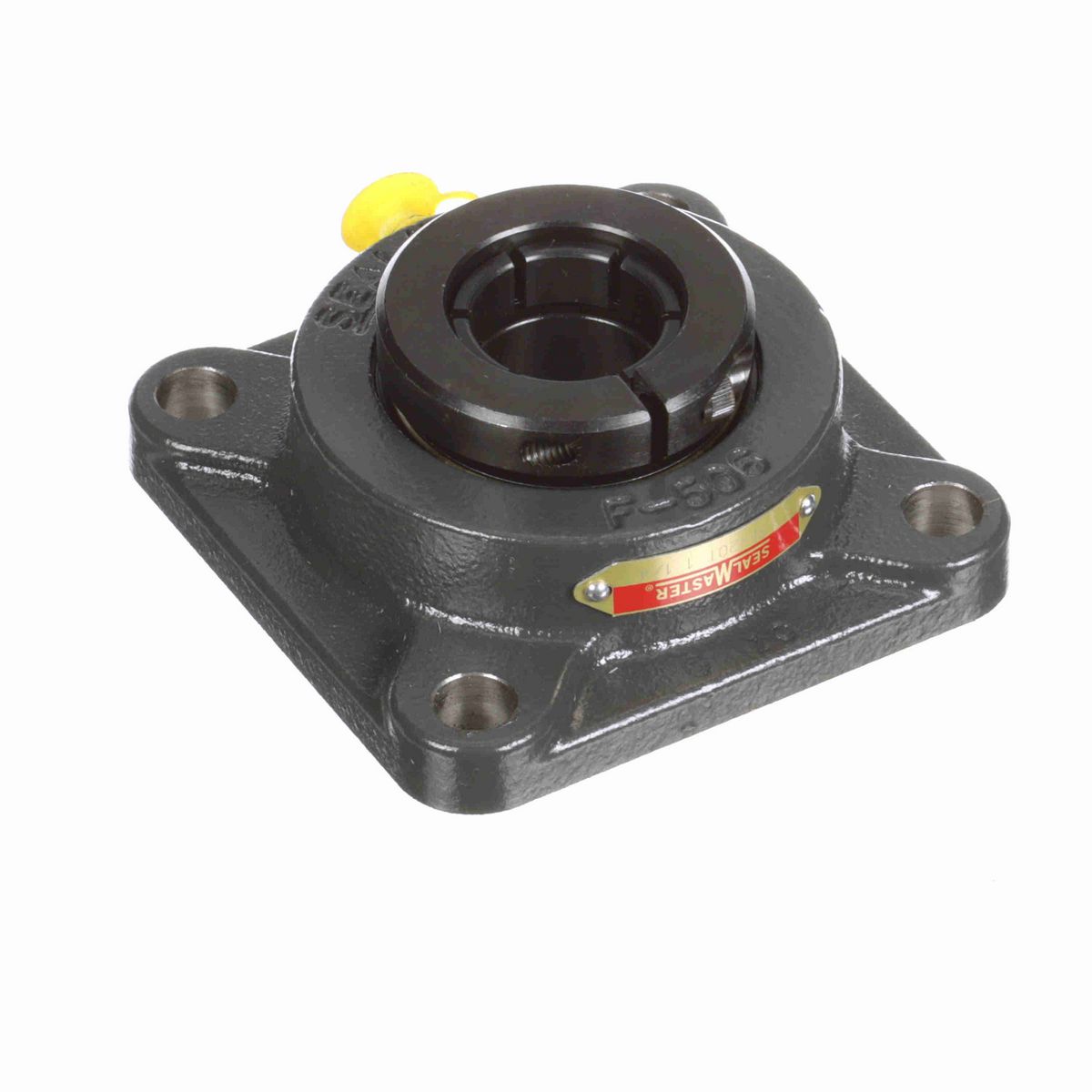

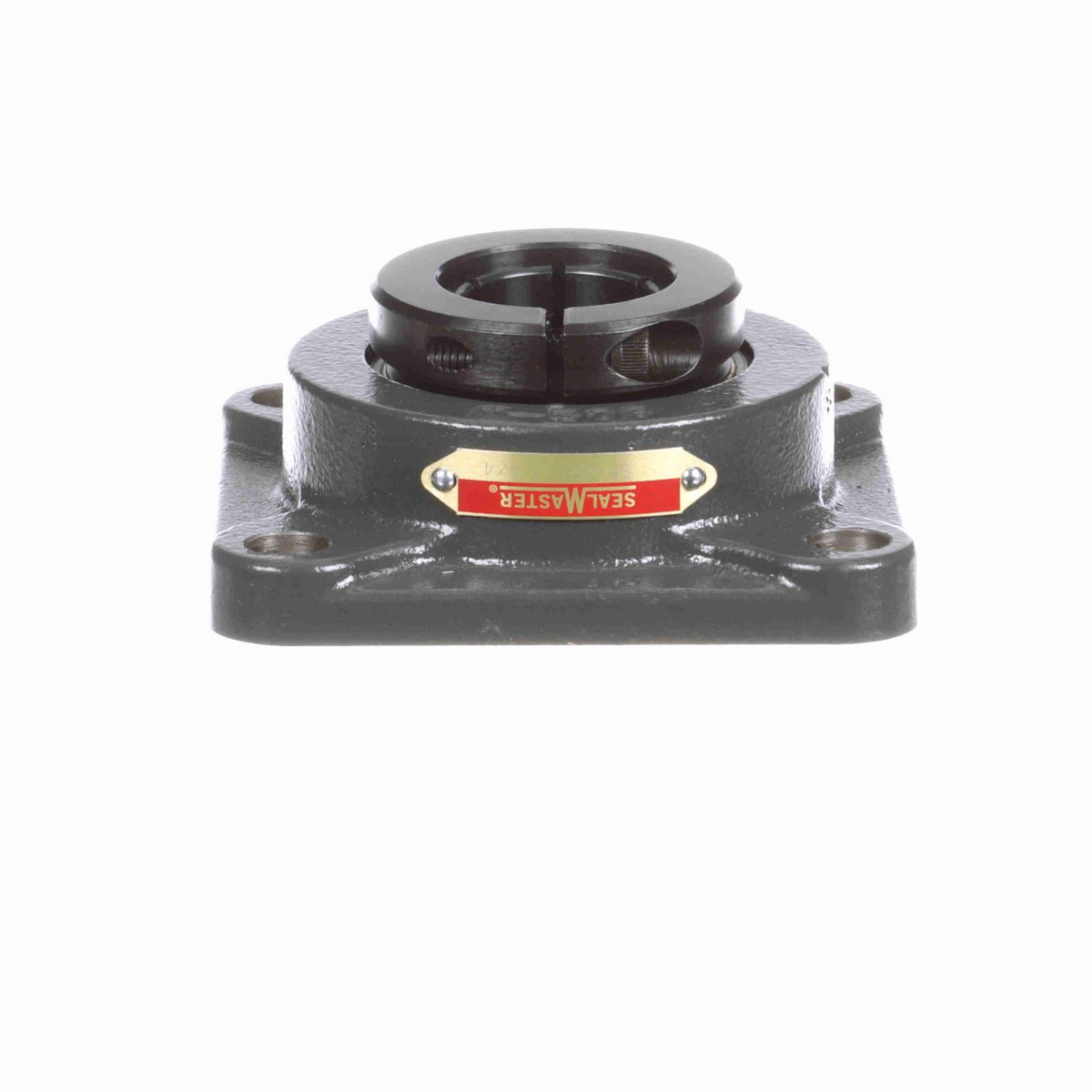

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	4.63 in
Bolt Size (in)	1/2 in
Overall Height (in)	1.81 in
Overall Length (in)	4.63 in
Bore Diameter (in)	1.25 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.75 in
Bolt Spacing (in)	3.6250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.50 in
Housing Coating	Powder Coated
Max Operating Temperature (F)	220 °F
Static Load Rating (lb)	3,493 lb
Cage Type	Land Riding Retainer
Housing Material	Cast Iron
Vibration Frequency Inner Ring Defect	0.0905 cps
Dynamic Load Rating (lb)	5,782 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	6500 rpm
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Size Code	2-17
Vibration Frequency Outer Ring Defect	0.0595 cps
Housing Backside Inner Diameter	3.31
Vibration Frequency Roller Spin	0.0386 cps
End Cap Available	No
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0066 cps
Insert	2-14T
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	1.86 in
Shaft Locking Type	Concentric

General Specifications

UPC	662461030011
Weight	4.04 LB
Packaged Length	2.00 IN
Packaged Width	5.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	Mexico
