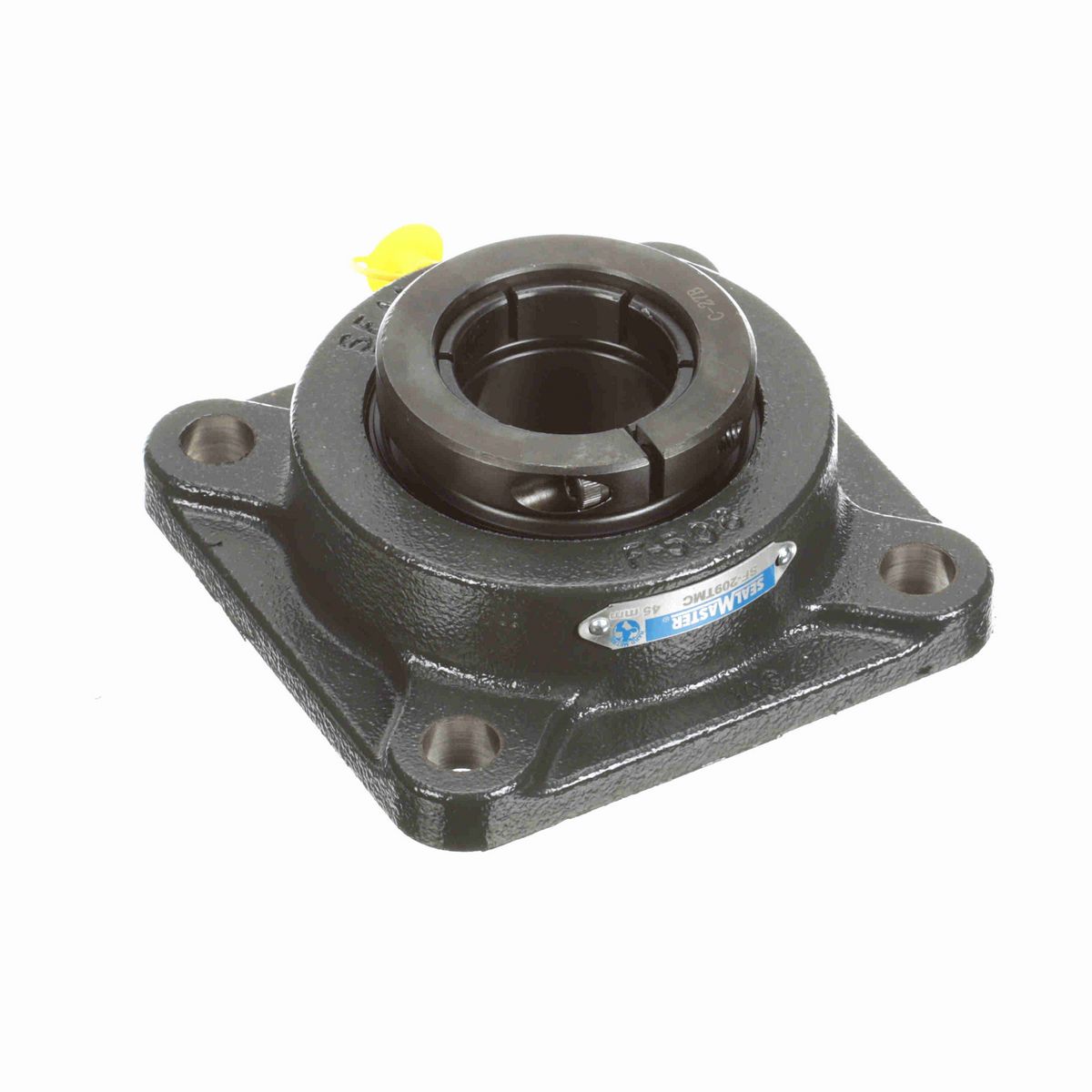

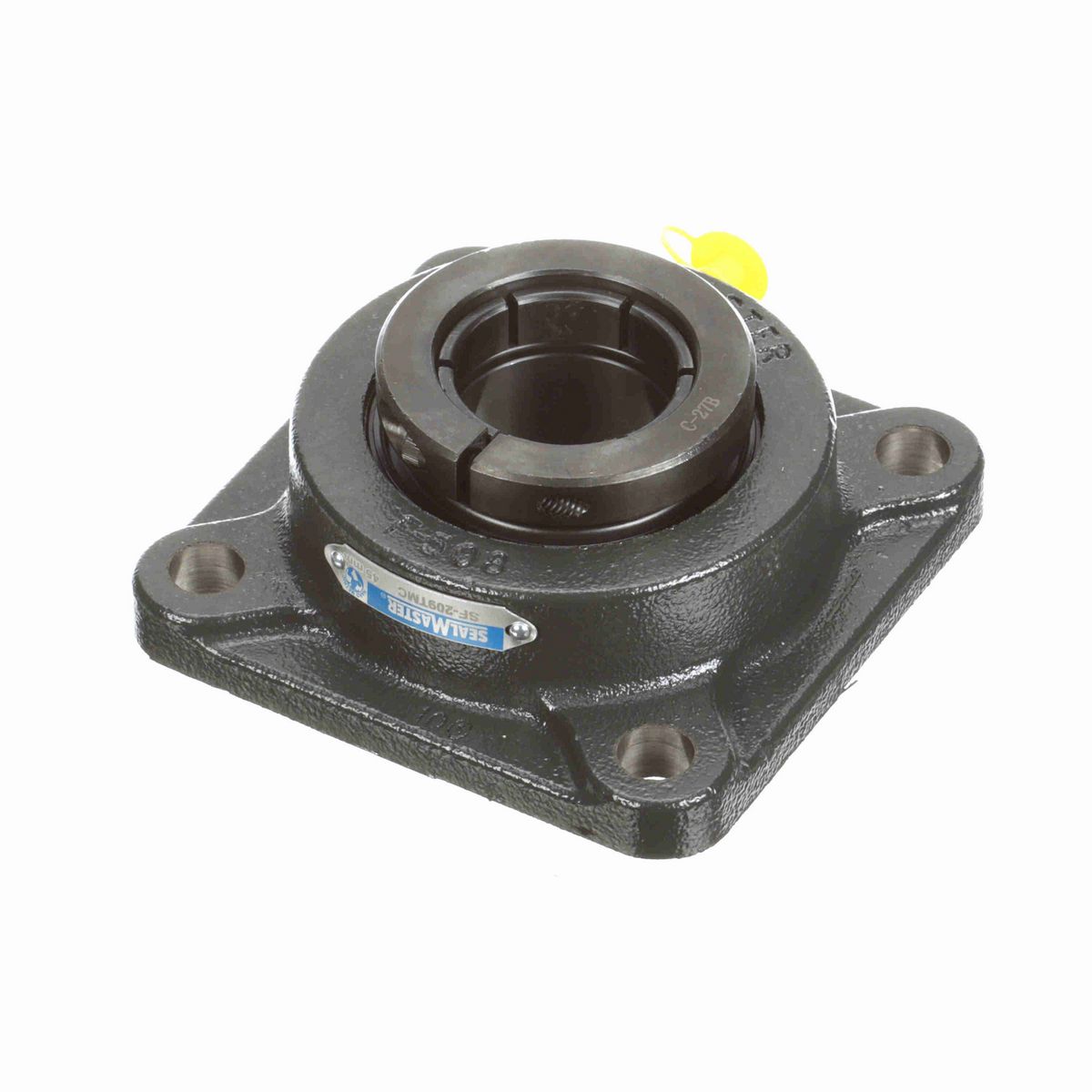

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal with black oxide bearing races
• Metric fitting and mounting bolts
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5.38 in
Bolt Size (in)	9/16 in
Bolt Size (mm)	M14 mm
Overall Length (in)	5.38 in
Overall Height (in)	2.167 in
Bore Diameter (mm)	45 mm
Foot Height (in)	0.56 in
Length Through Bore (in)	2.06 in
Bolt Spacing (in)	4.125 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Maximum Speed (RPM)	3800 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	5209TMC
End Cap Available	No
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (F)	220 °F
Inner Ring Outside Diameter (in)	2.307 in
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	7,901 lb
Cage Type	Land Riding Retainer
Housing Material	Cast Iron
Housing Backside Inner Diameter	3.88
Shaft Locking Type	Concentric
Radial Clearance	Standard
Static Load Rating (lb)	5,139 lb
Size Code	2-111

General Specifications

UPC	662461253861
Weight	5.85 LB
Packaged Length	5.94 IN
Packaged Width	6.06 IN
Packaged Height	2.19 IN
HTC	8483.20.4040
Country of Origin	United States of America
