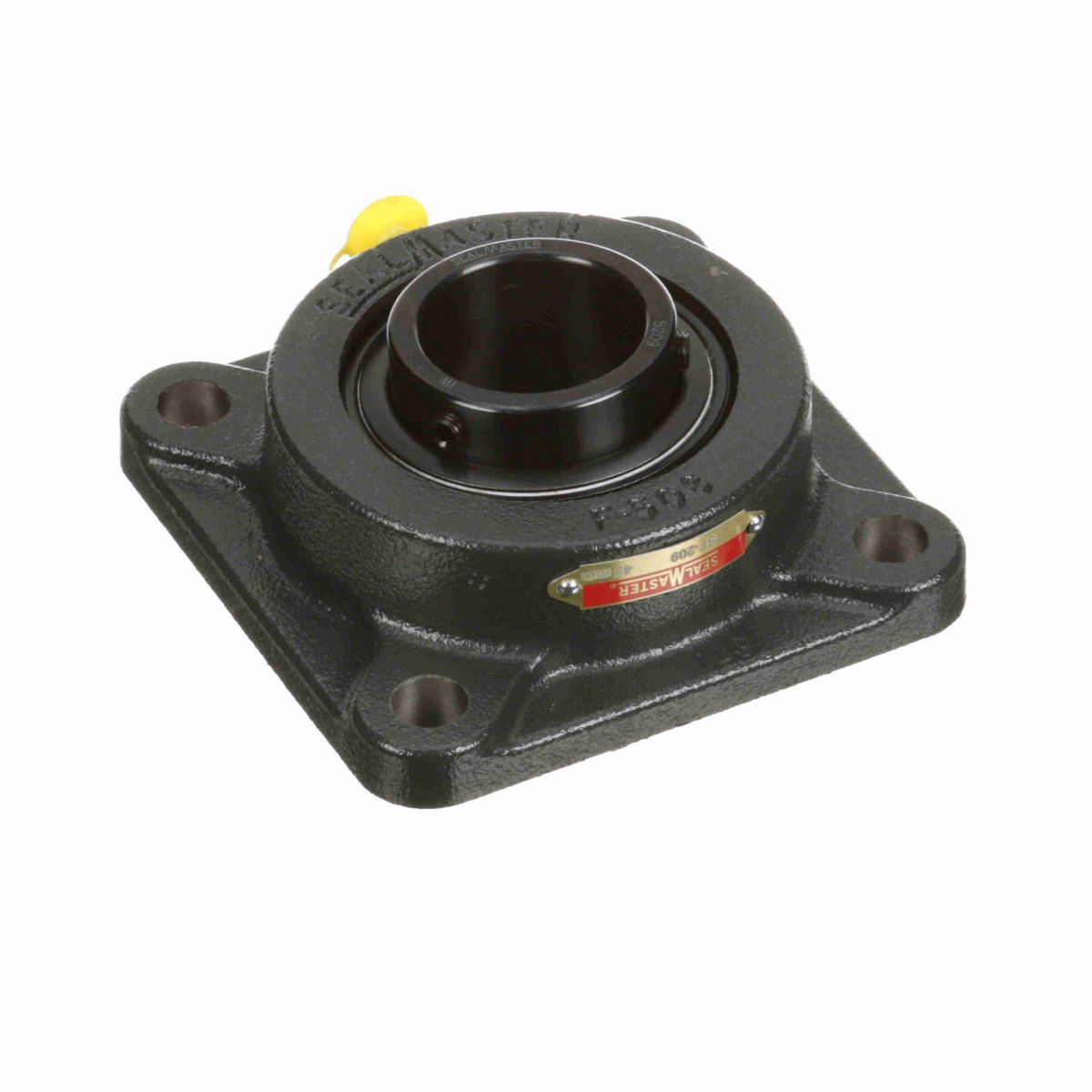

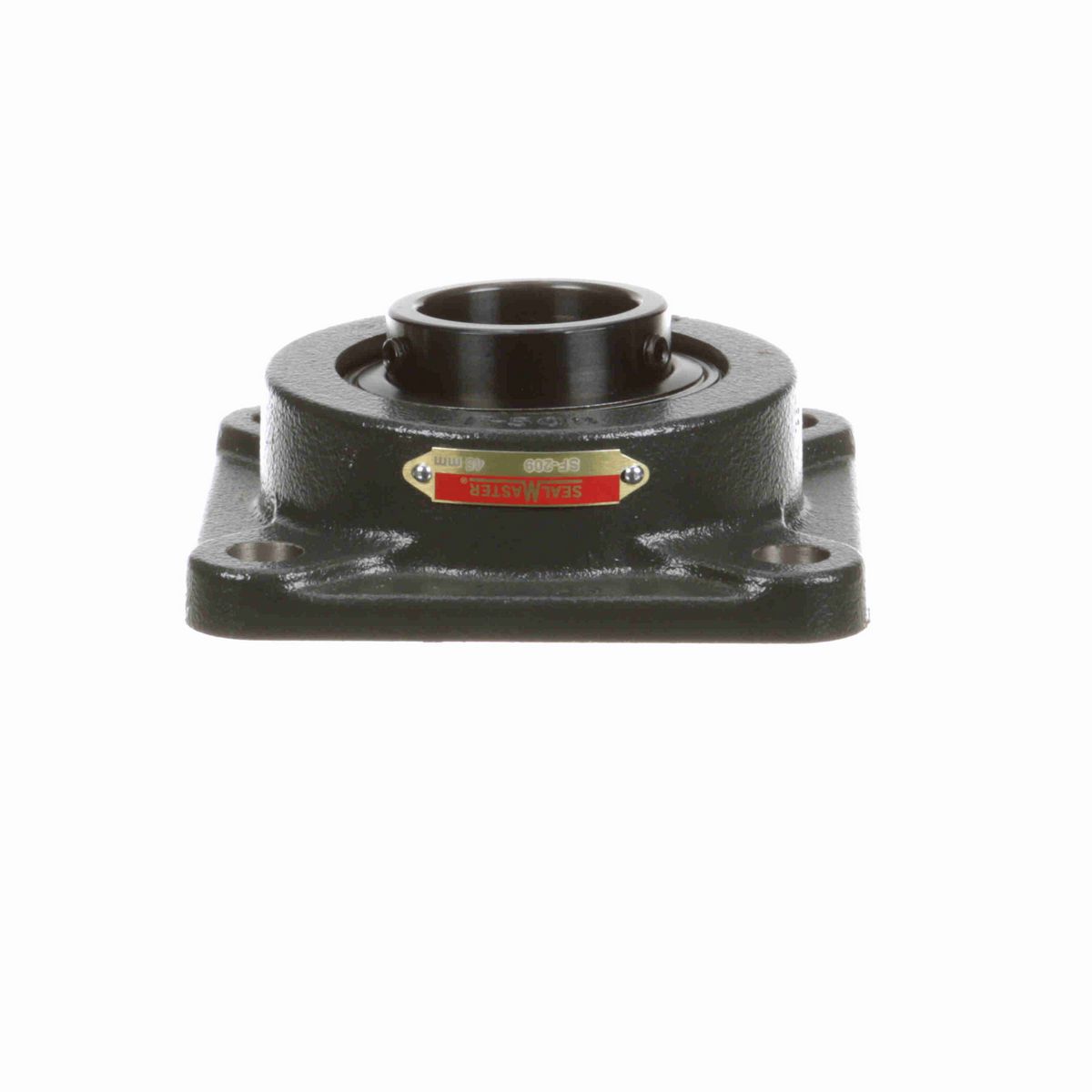

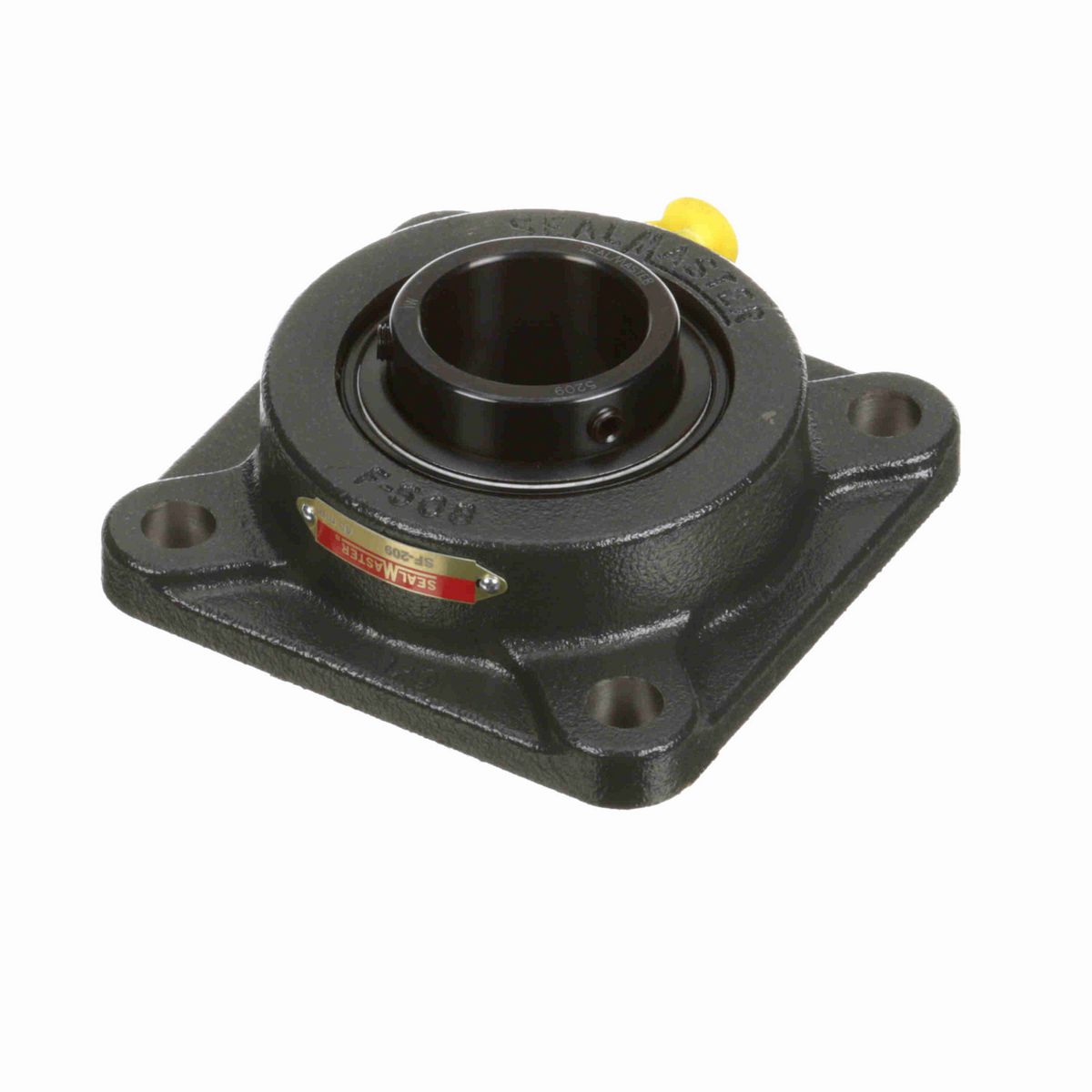

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	5.38 in
Bolt Size (mm)	M14 mm
Overall Length (in)	5.38 in
Overall Height (in)	2.047 in
Bore Diameter (mm)	45 mm
Foot Height (in)	0.56 in
Length Through Bore (in)	1.934 in
Bolt Spacing (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	7,901 lb
Housing Backside Inner Diameter	3.88
End Cap Available	No
Shaft Locking Type	Set Screw
Static Load Rating (lb)	5,139 lb
Insert	5209
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Size Code	2-111
Inner Ring Outside Diameter (in)	2.307 in
Housing Material	Cast Iron
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	3800 rpm
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F

General Specifications

UPC	662461052303
Weight	5.70 LB
Packaged Length	6.06 IN
Packaged Width	5.94 IN
Packaged Height	2.19 IN
HTC	8483.20.4040
Country of Origin	United States of America
