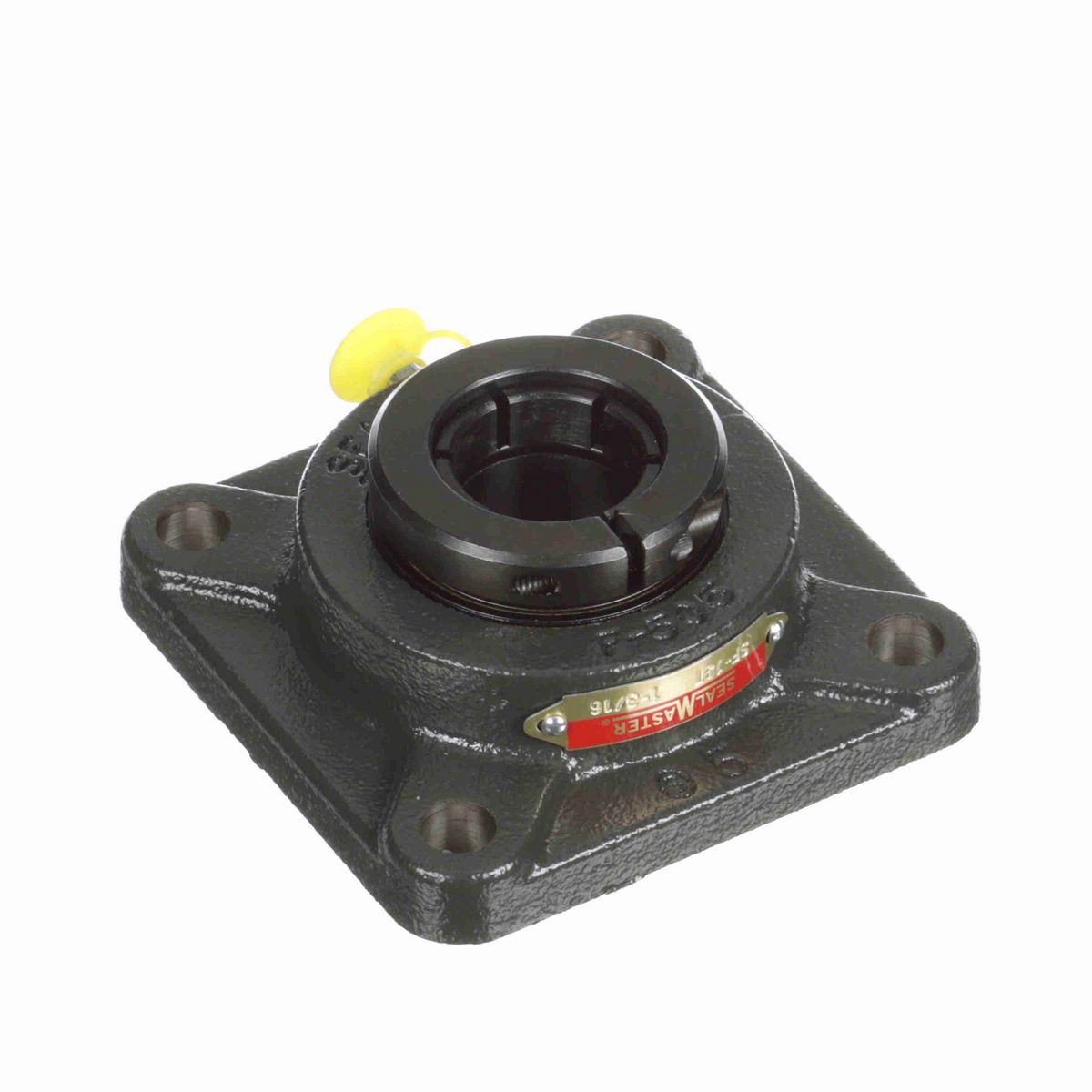

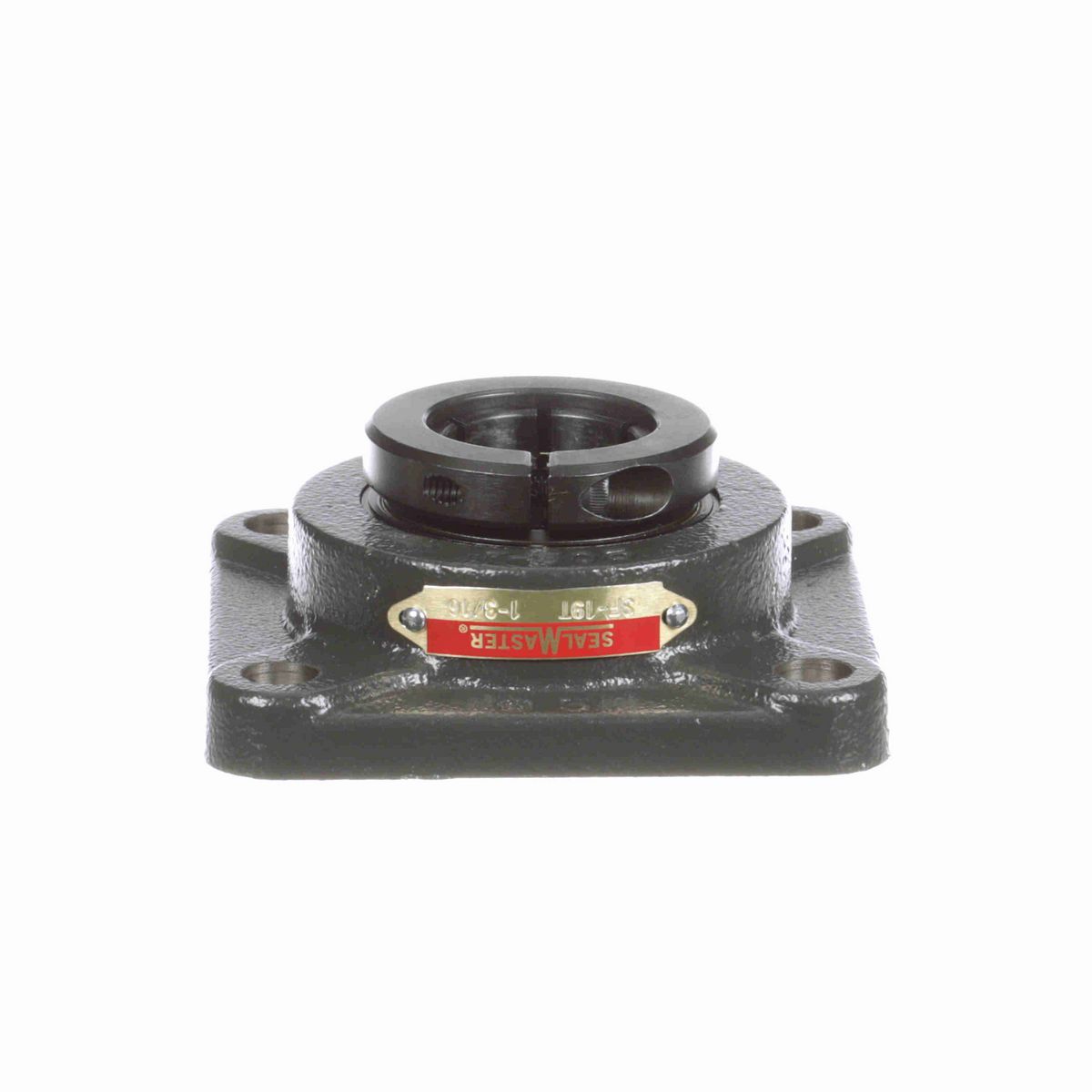

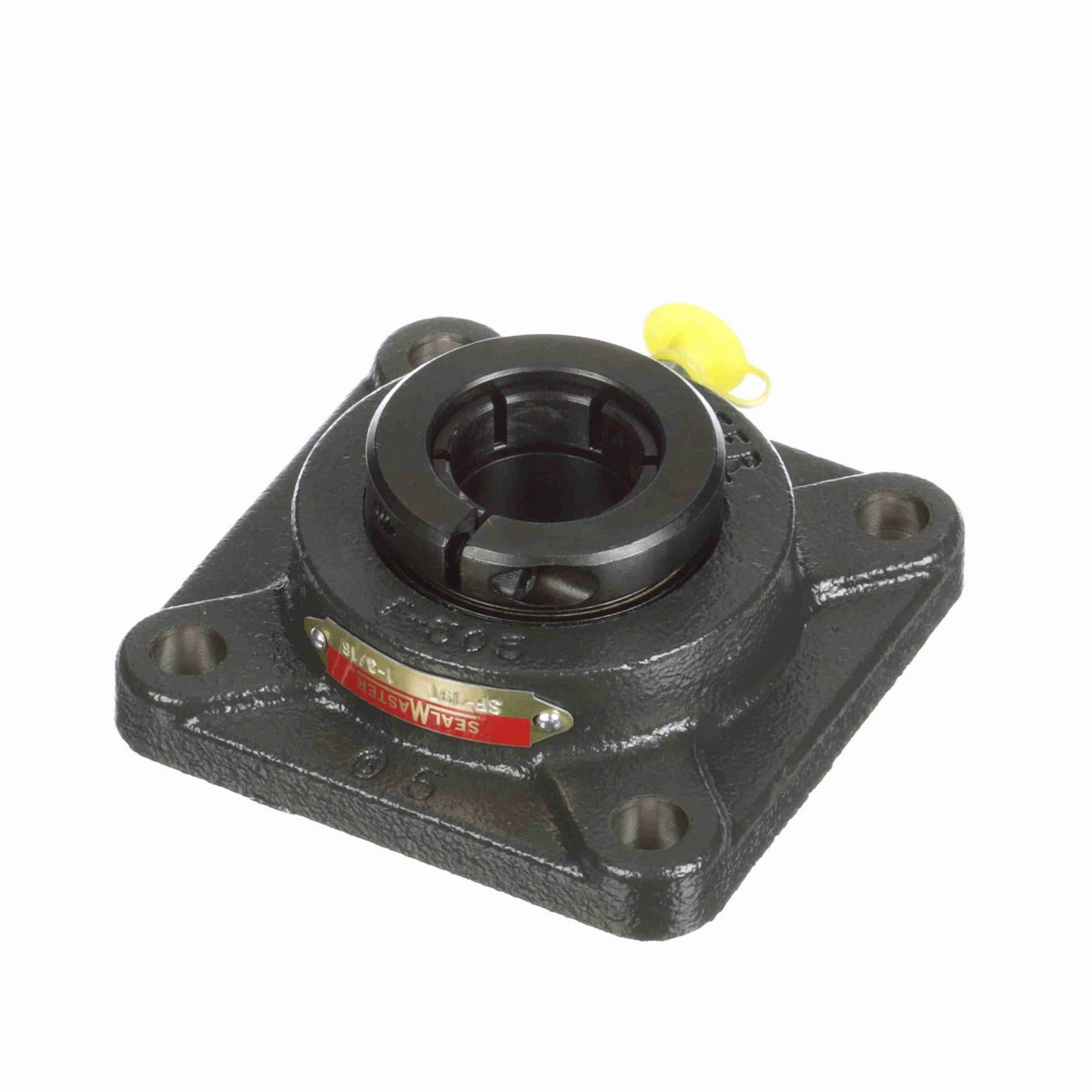

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	4.25 in
Overall Length (in)	4.25 in
Overall Height (in)	1.67 in
Bore Diameter (in)	1.1875 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.61 in
Bolt Spacing (in)	3.2500 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 220 °F
Locking Collar Outside Diameter (in)	2.23 in
Setscrew Torque (in-lbs)	85 in/lbs
Housing Backside Inner Diameter	2.88
Static Load Rating (lb)	2,567 lb
Vibration Frequency Roller Spin	0.0385 cps
Insert	2-13T
Vibration Frequency Outer Ring Defect	0.0595 cps
Inner Ring Outside Diameter (in)	1.594 in
Size Code	2-13
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Radial Clearance	Standard
Dynamic Load Rating (lb)	4,381 lb
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Speed (RPM)	7600 rpm
Housing Material	Cast Iron
Grease Fitting Thread Size	1/4-28
Bearing Type	Standard Duty
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Bearing Insert Finish	Black Oxide Inner Ring
Shaft Locking Type	Concentric
Housing Coating	Powder Coated
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461030004
Weight	2.99 LB
Packaged Length	1.69 IN
Packaged Width	4.50 IN
Packaged Height	4.56 IN
HTC	8483.20.4040
Country of Origin	United States of America
