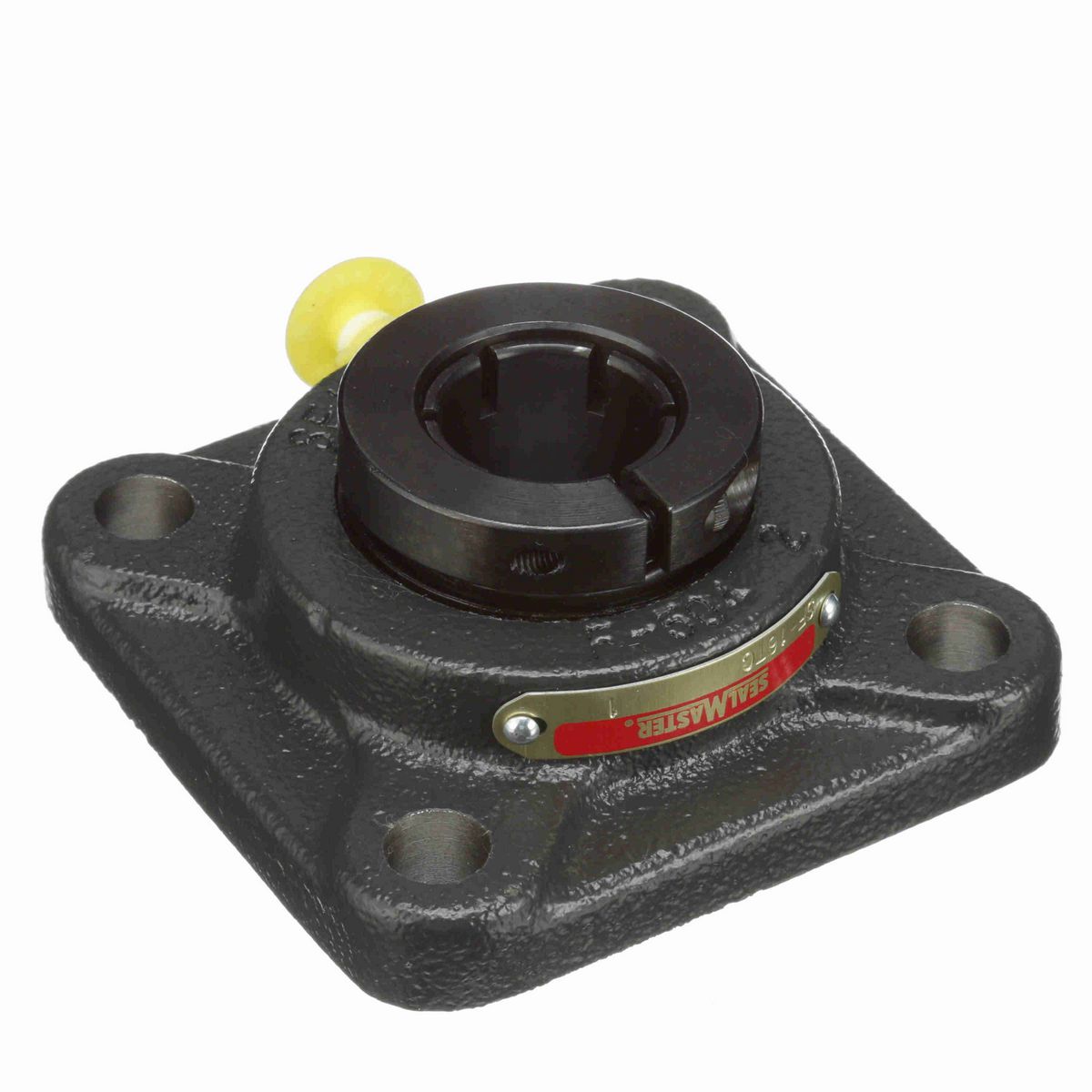

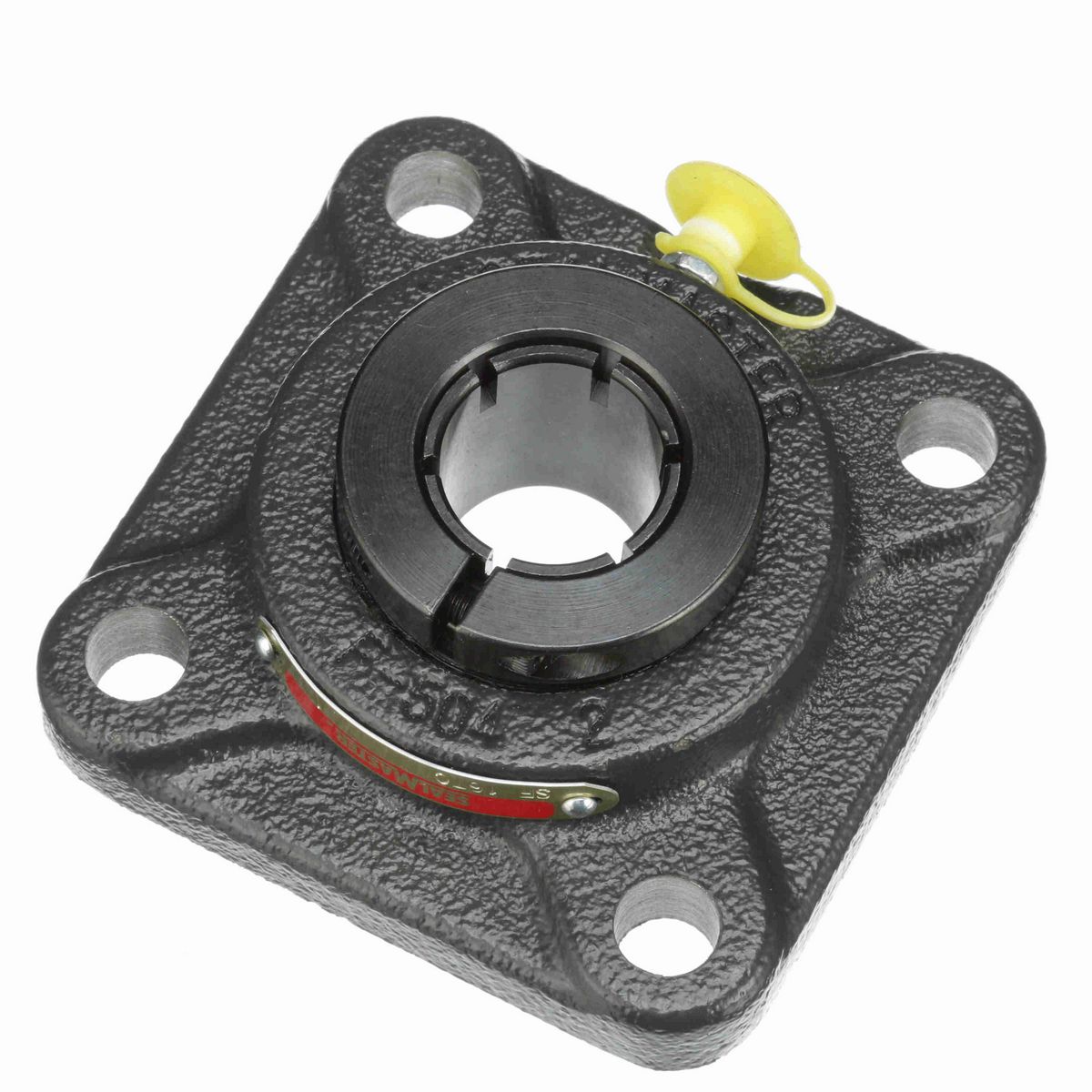

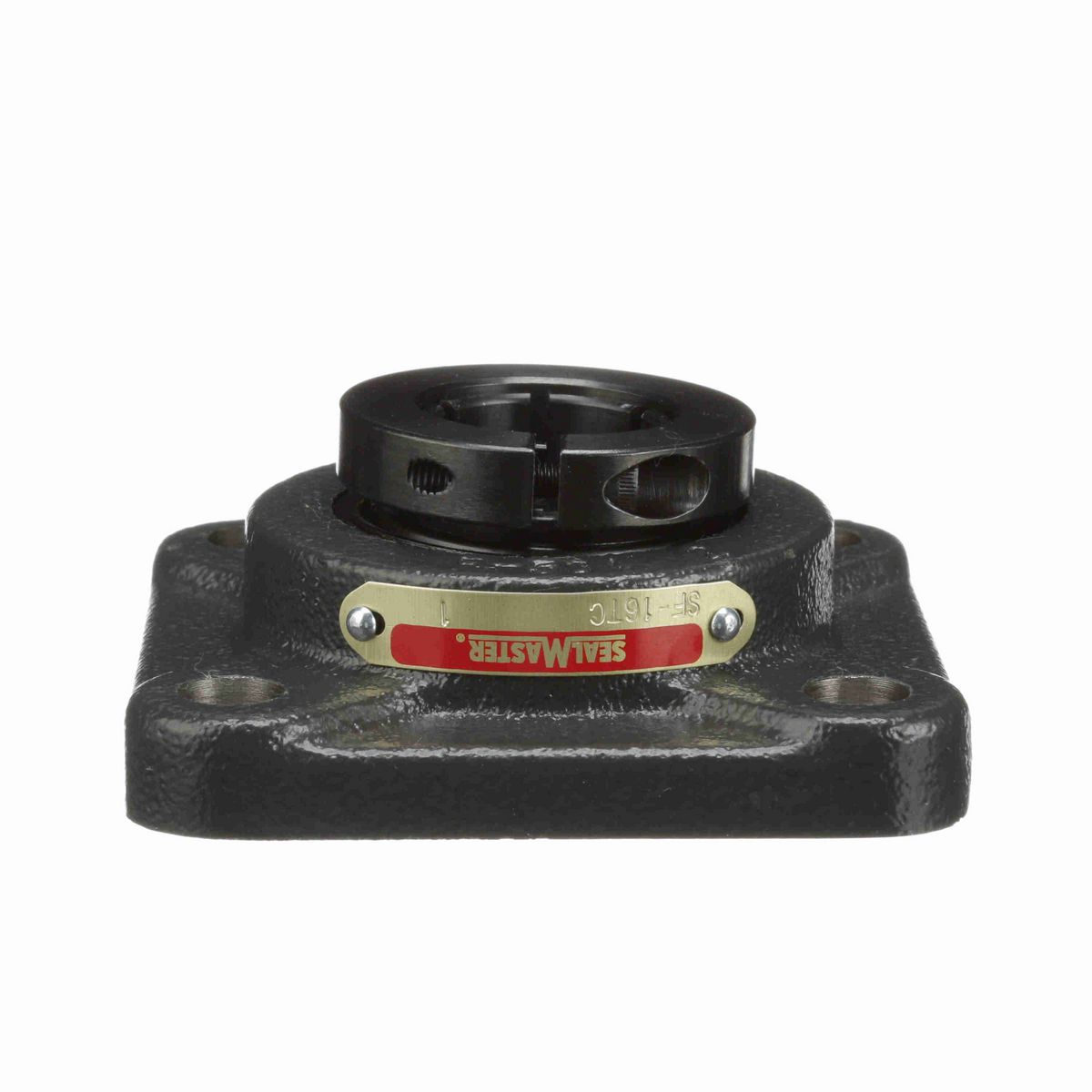

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.75 in
Bolt Size (in)	7/16 in
Overall Length (in)	3.75 in
Overall Height (in)	1.548 in
Bore Diameter (in)	1 in
Foot Height (in)	0.53 in
Length Through Bore (in)	1.48 in
Bolt Spacing (in)	2.7500 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Operating Temperature Range (F)	-20 to 220 °F
Locking Collar Outside Diameter (in)	1.98 in
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	85 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Grease Fitting Thread Size	1/4-28
Inner Ring Outside Diameter (in)	1.375 in
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	2,801 lb
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Insert	2-1TC
Bearing Insert Finish	Black Oxide Inner Ring
Maximum Speed (RPM)	6350 rpm
Static Load Rating (lb)	1,651 lb
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Roller Spin	0.0442 cps
Shaft Locking Type	Concentric
End Cap Available	No
Housing Backside Inner Diameter	2.38
Size Code	2-015
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0985 cps
Bearing Type	Standard Duty

General Specifications

UPC	662461033036
Weight	2.16 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
