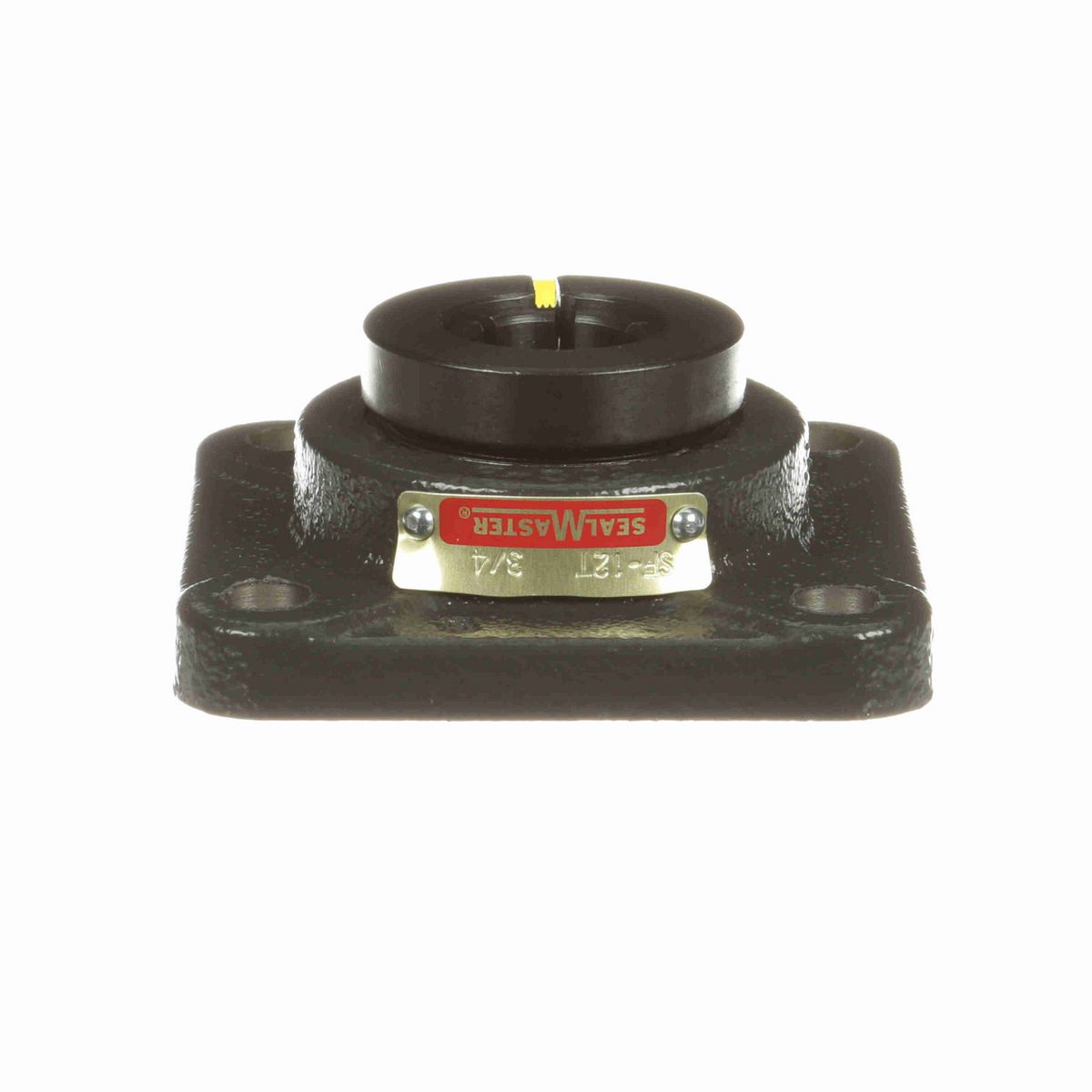

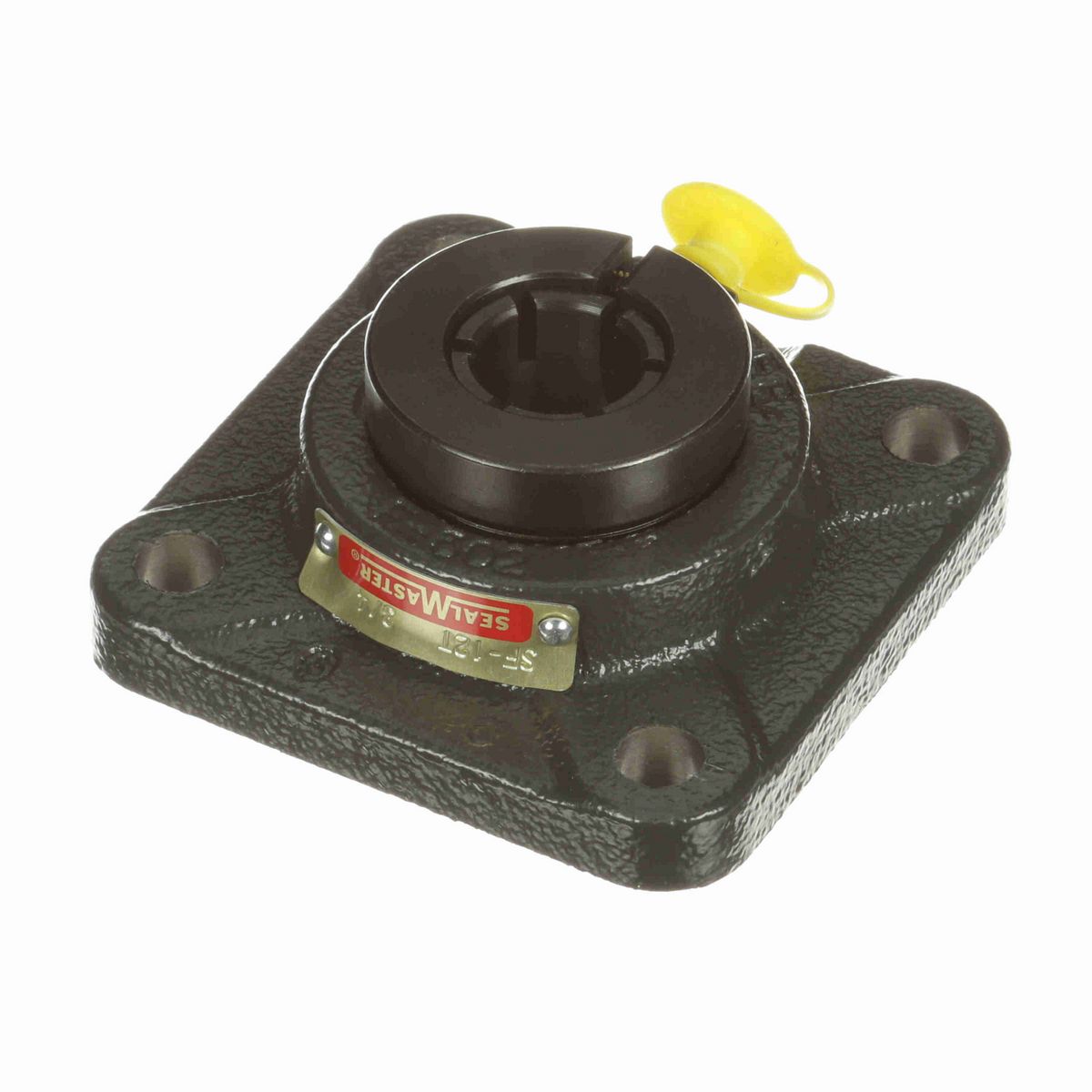

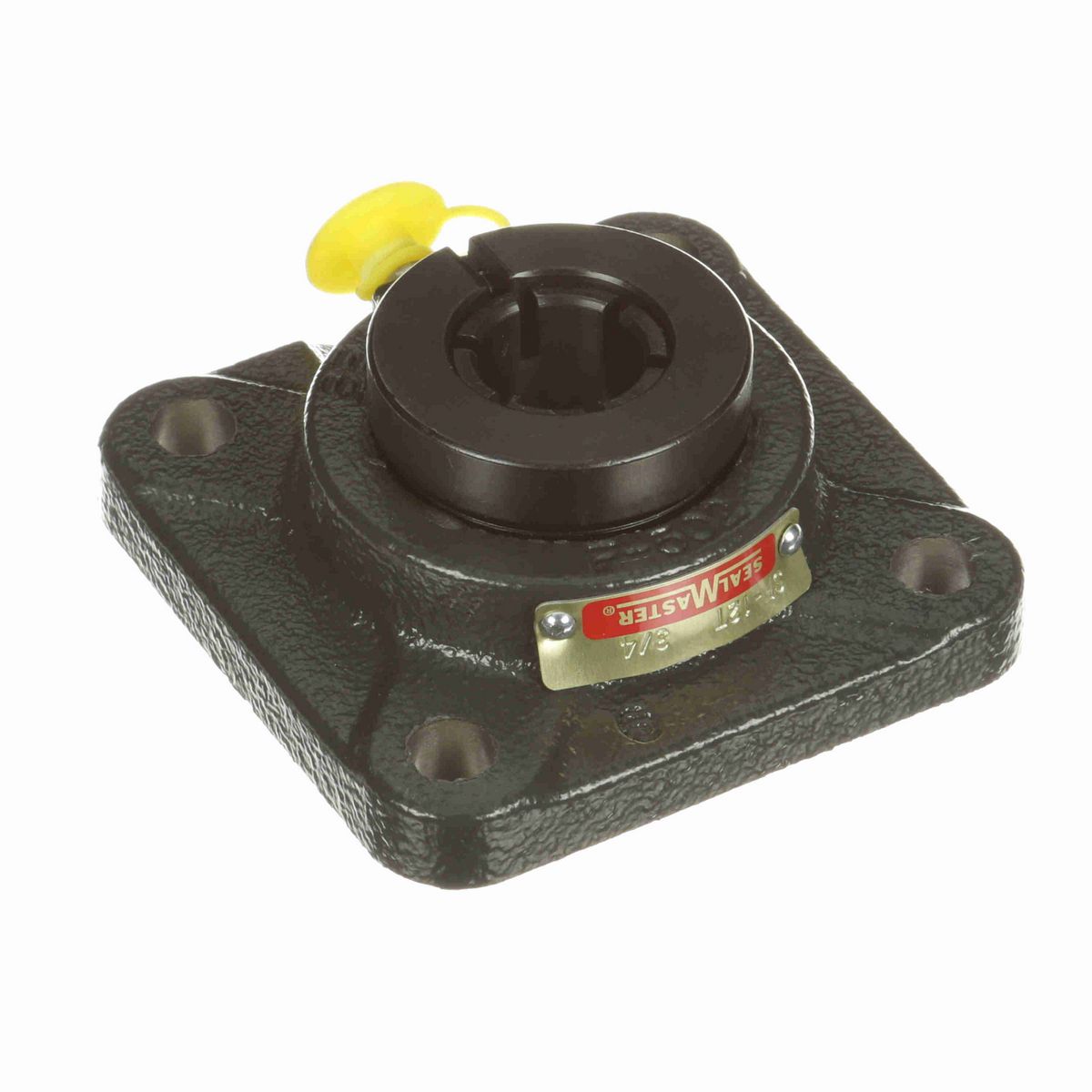

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	3.38 in
Overall Length (in)	3.38 in
Overall Height (in)	1.39 in
Bore Diameter (in)	0.75 in
Foot Height (in)	0.44 in
Length Through Bore (in)	1.28 in
Bolt Spacing (in)	2.5000 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	1.75 in
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0066 cps
Housing Backside Inner Diameter	2
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	2,611 lb
End Cap Available	No
Shaft Locking Type	Concentric
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Roller Spin	0.0381 cps
Inner Ring Outside Diameter (in)	1.192 in
Static Load Rating (lb)	1,444 lb
Cage Type	Land Riding Retainer
Housing Material	Cast Iron
Maximum Speed (RPM)	10200 rpm
Housing Coating	Powder Coated
Insert	2-012T
Vibration Frequency Outer Ring Defect	0.0593 cps
Size Code	2-012
Vibration Frequency Inner Ring Defect	0.0907 cps
Grease Fitting Thread Size	1/4-28
Bearing Type	Standard Duty
Max Operating Temperature (F)	220 °F

General Specifications

UPC	662461029961
Weight	1.60 LB
Packaged Length	1.50 IN
Packaged Width	4.00 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
