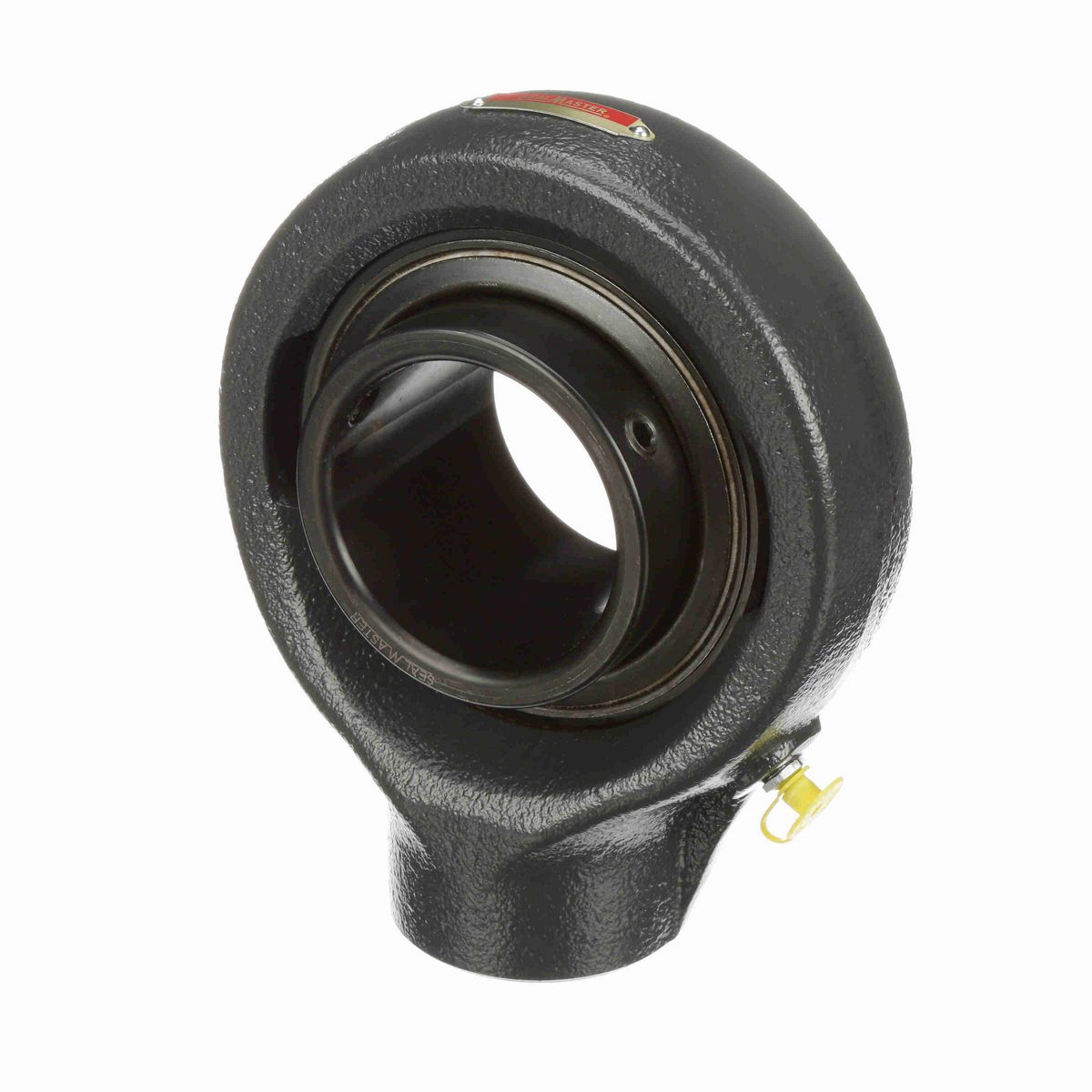

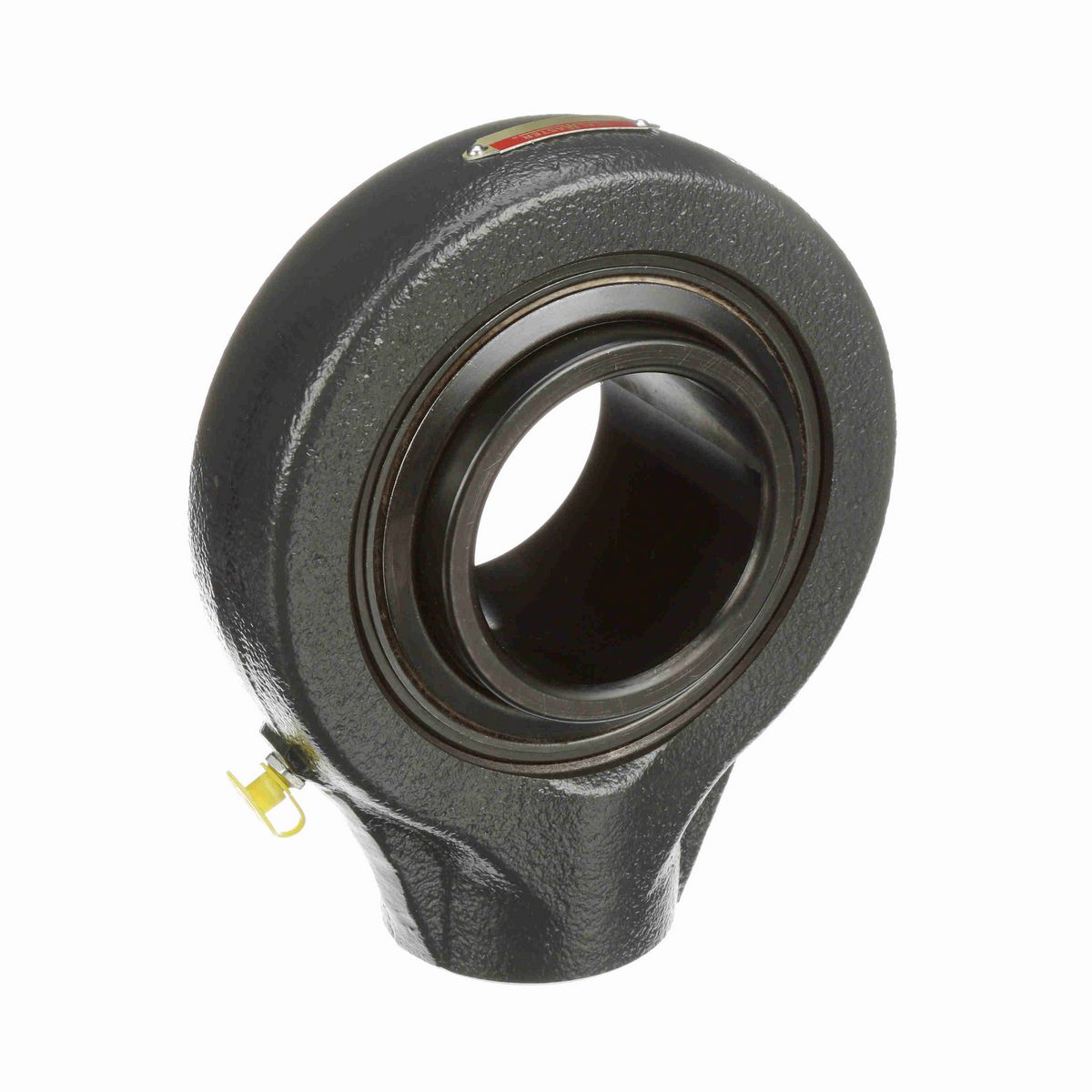

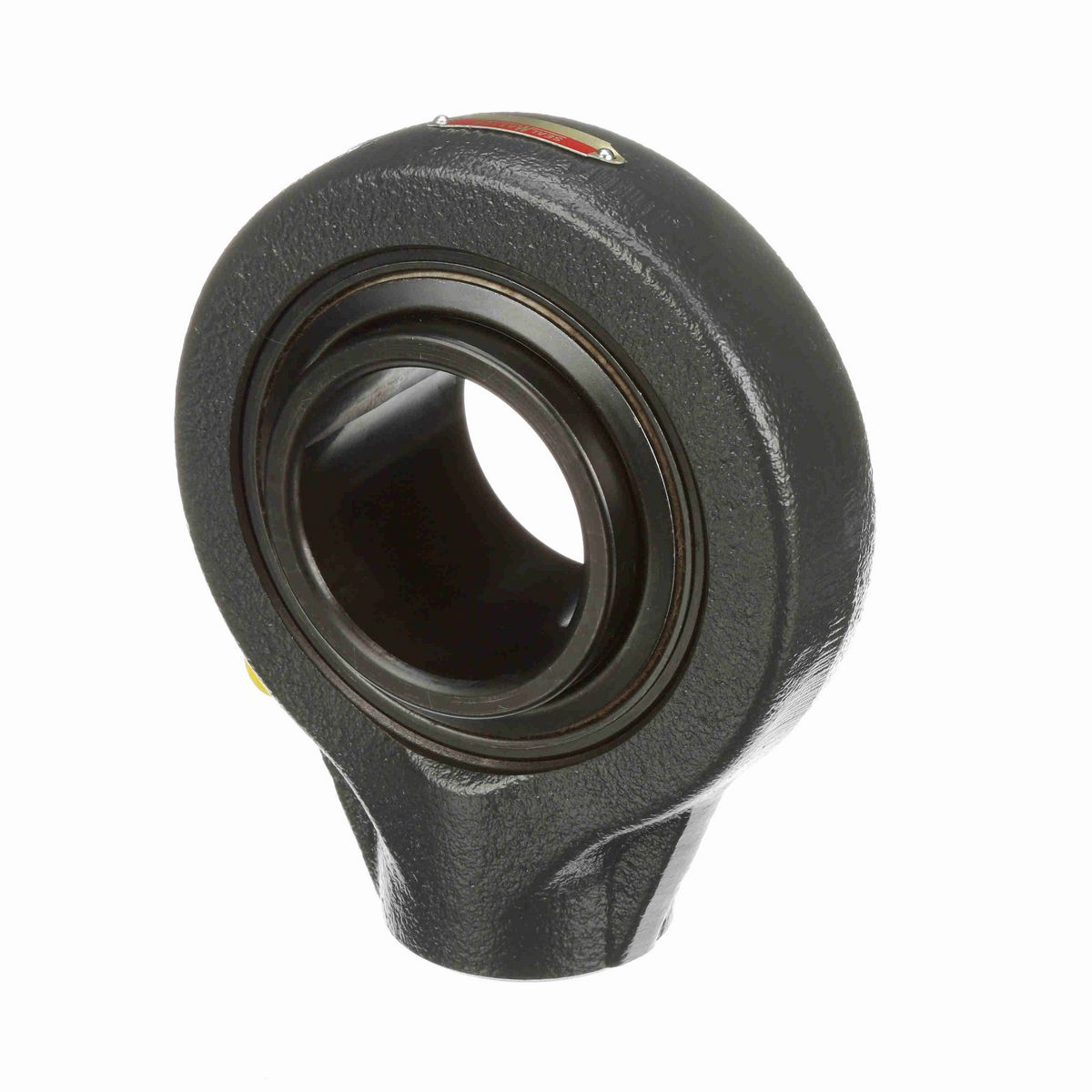

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Reduced internal clearance and tight housing fit for vibratory applications
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1 1/2-11 1/2
Overall Height (in)	7.88 in
Overall Width (in)	3.06 in
Overall Length (in)	6.5 in
Base Width (in)	2.75 in
Bore Diameter (in)	2.9375 in
Thread Depth (in)	1.25 in
Base to Center Height (in)	4.625 in
Length Through Bore (in)	3.063 in
Centerline to Outermost Bearing Face (in)	1.75 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Options	High Vibration Features
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	Brass
Series	SEHB
Housing Type	Hanger Unit
Seal Type	Felt Labyrinth Seal
Housing Style	Hanger Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	11,224 lb
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
End Cap Available	No
Cage Type	Land Riding Retainer
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	14,839 lb
Vibration Frequency Roller Spin	0.0476 cps
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0069 cps
Housing Coating	Powder Coated
Size Code	2-215
Vibration Frequency Inner Ring Defect	0.1072 cps
Maximum Speed (RPM)	2450 rpm
Inner Ring Outside Diameter (in)	3.641 in
Shaft Locking Type	Set Screw
Bearing Insert Finish	Black Oxide
Vibration Frequency Outer Ring Defect	0.0761 cps
Insert	2-215
Grease Fitting Thread Size	1/8 NPT
Lubricant	Lithium Complex NLGI 2 Grease
Housing Width (in)	1.75 in

General Specifications

UPC	662461098820
Weight	14.60 LB
Packaged Length	8.13 IN
Packaged Width	7.94 IN
Packaged Height	3.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
