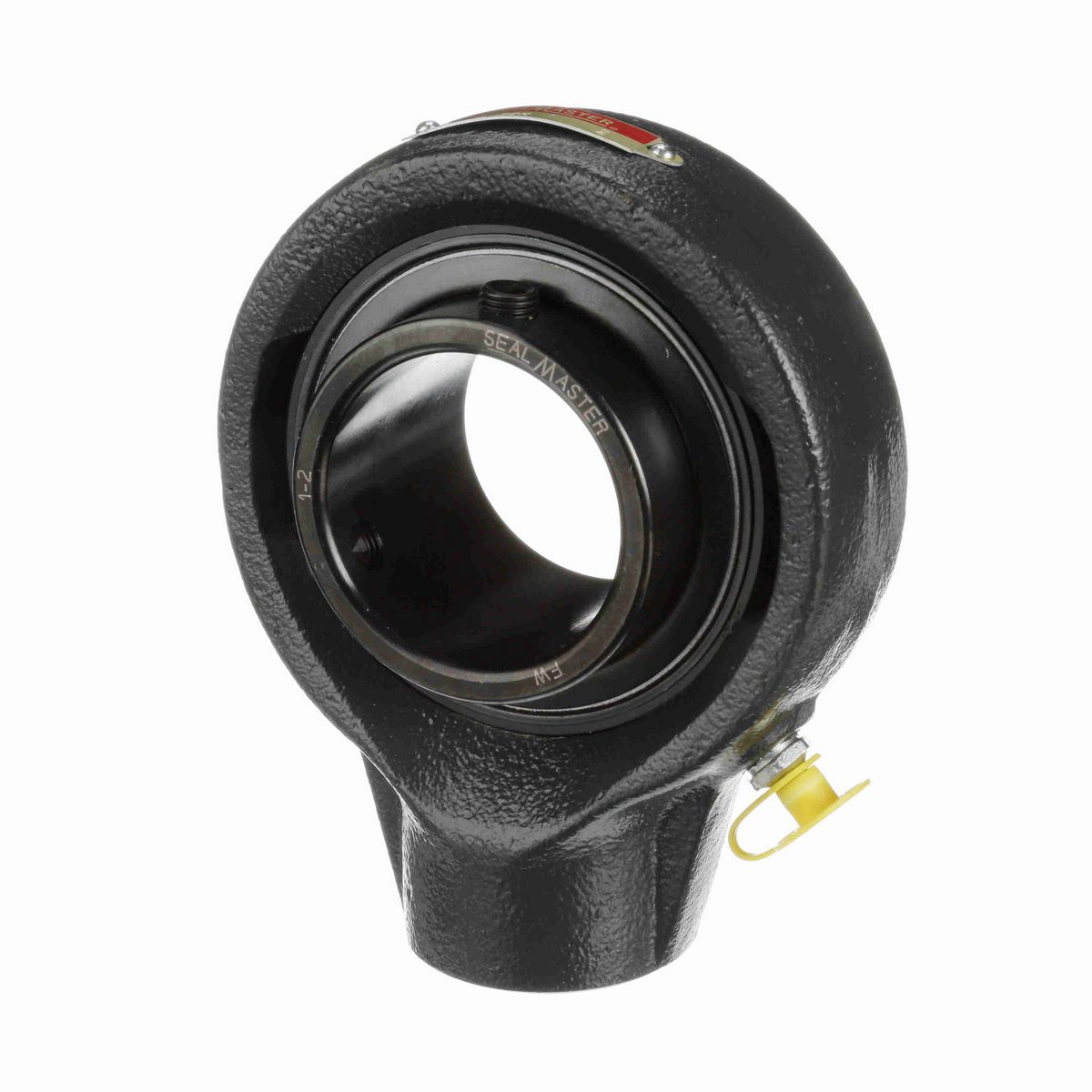

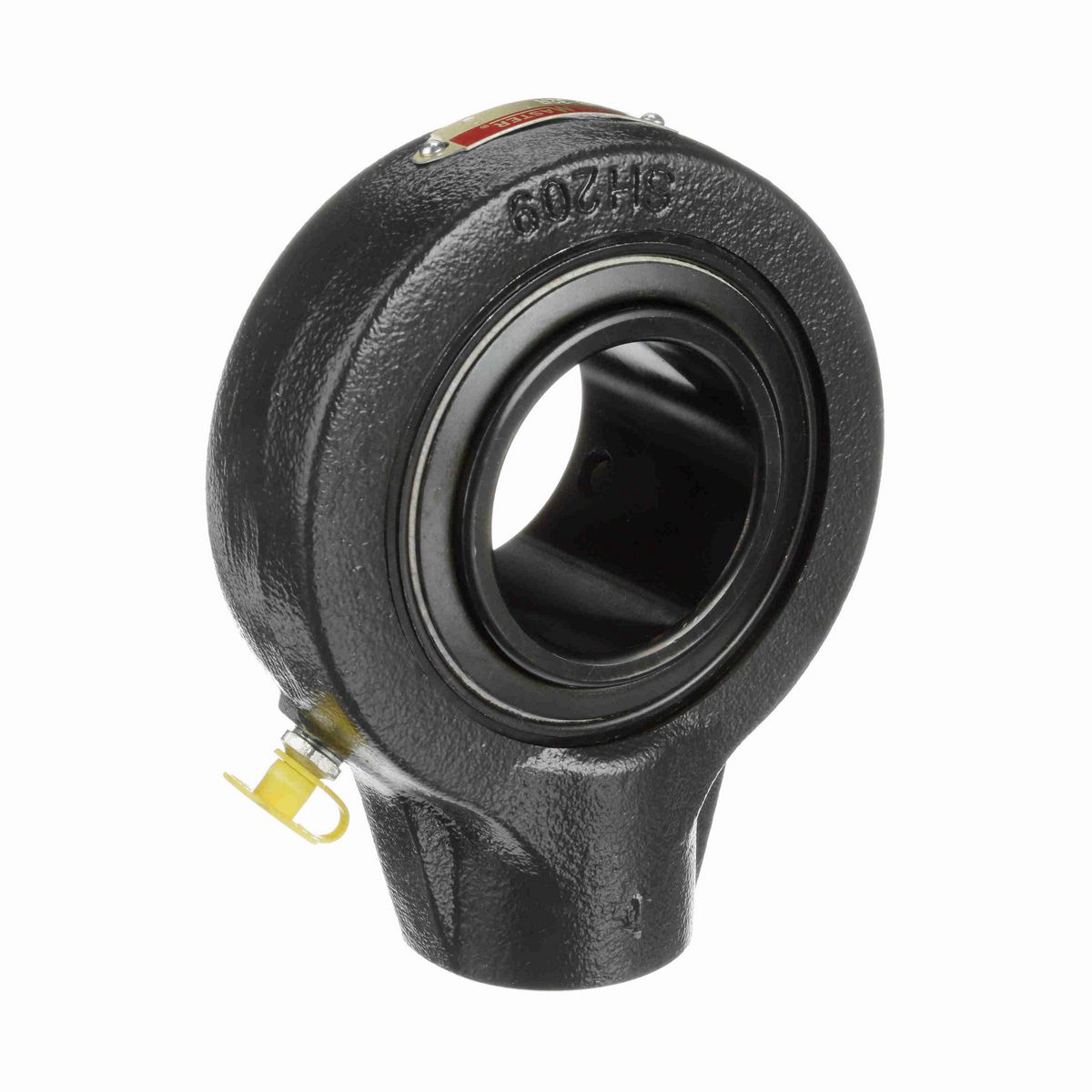

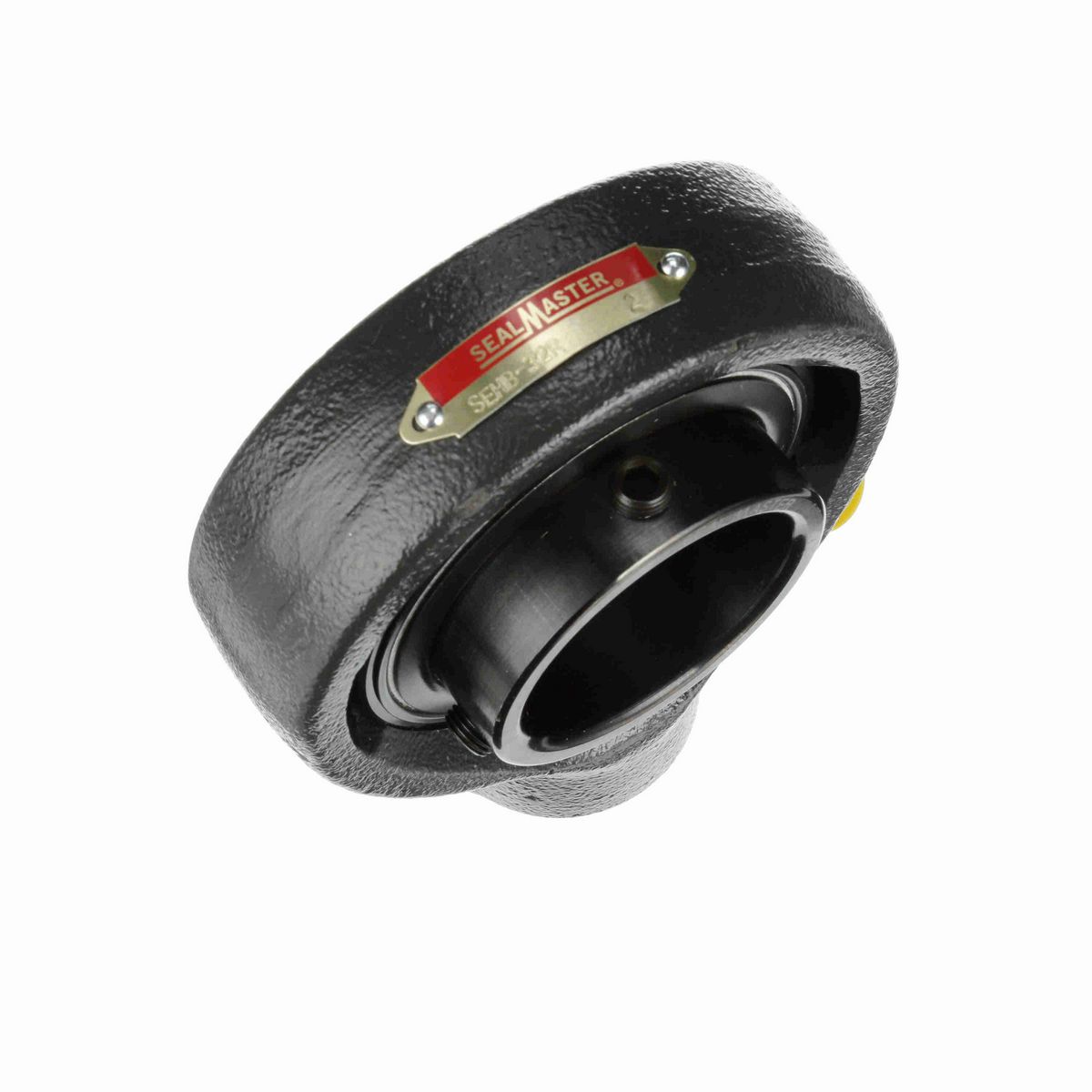

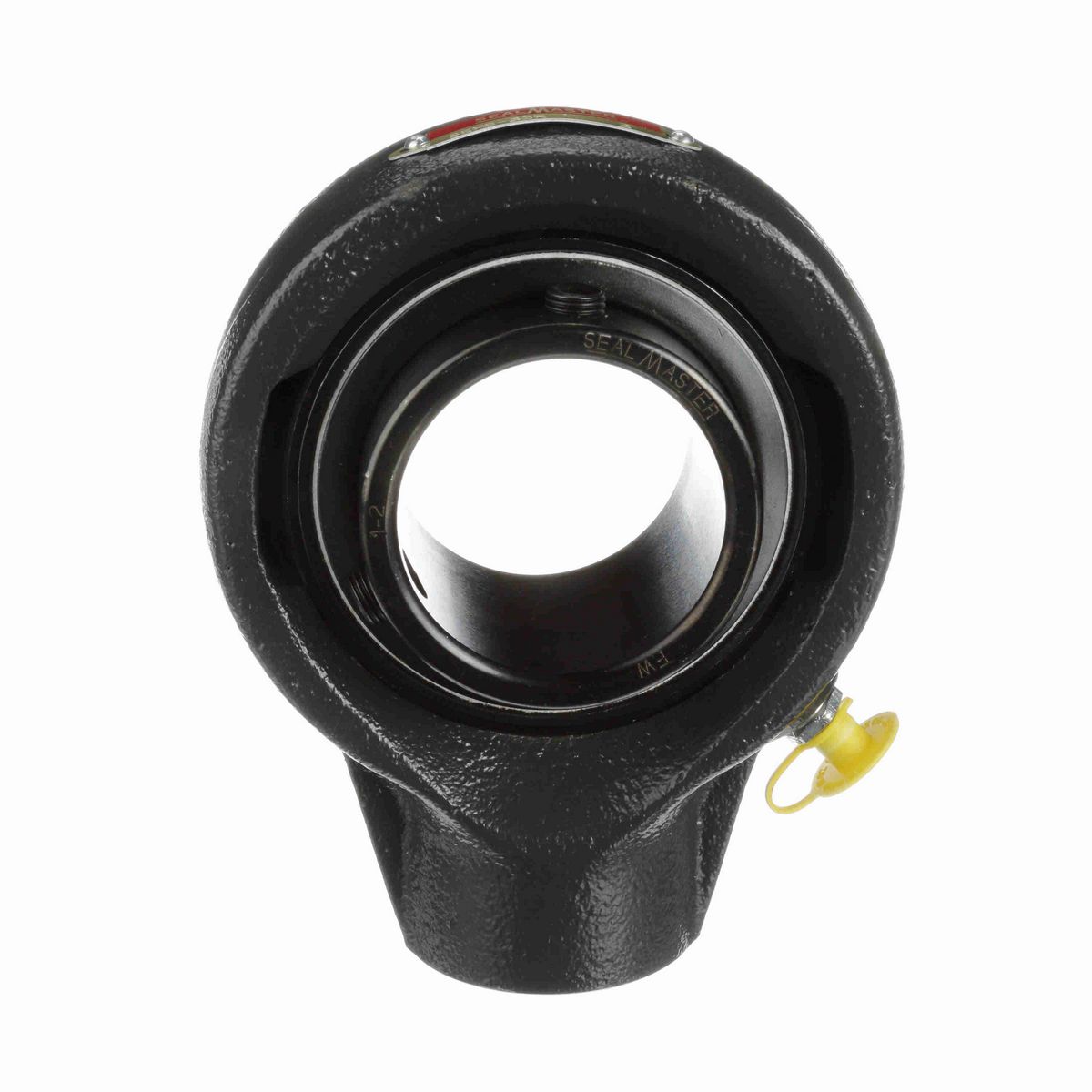

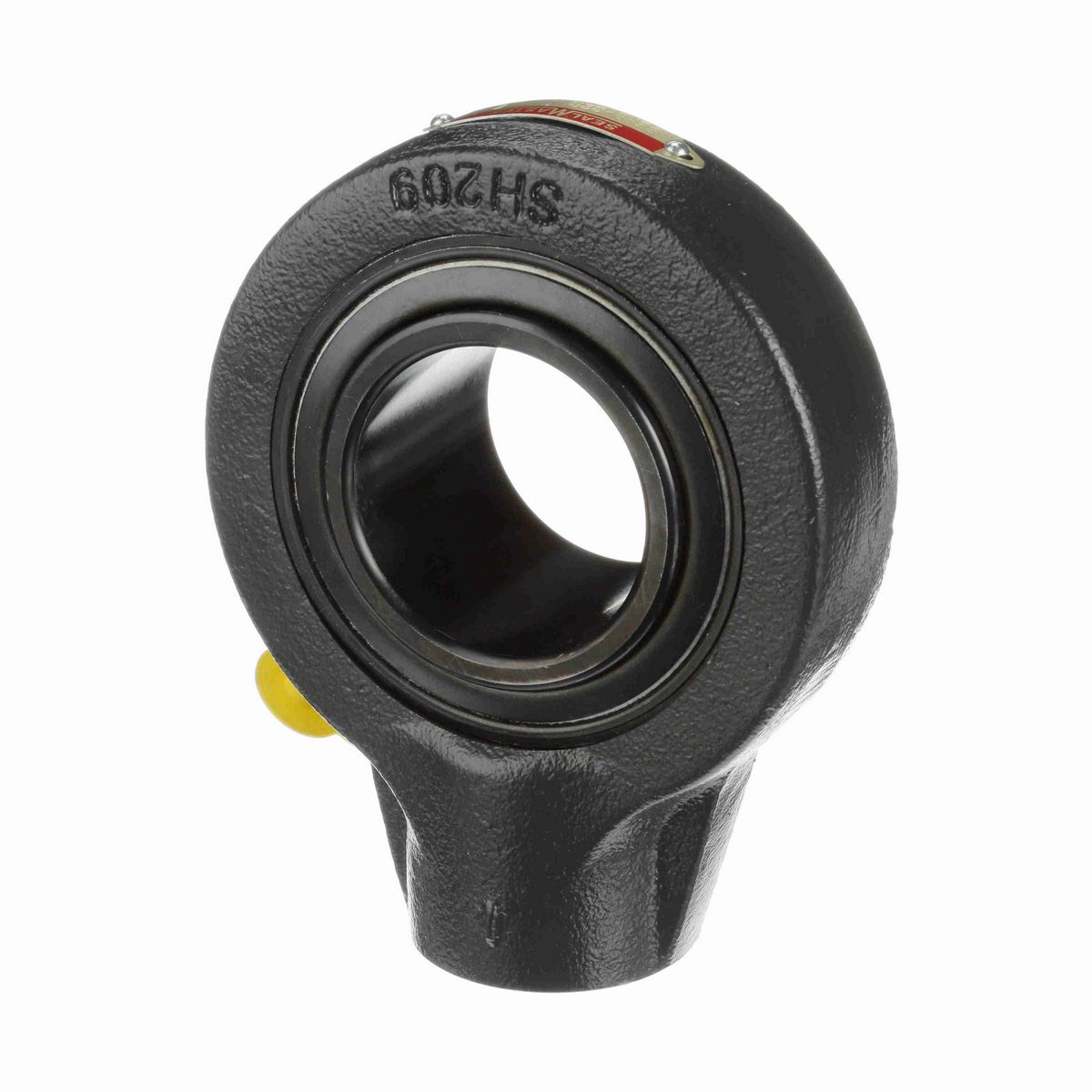

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	1-11 1/2
Overall Height (in)	5.44 in
Overall Width (in)	2.03 in
Base Width (in)	1.88 in
Overall Length (in)	4.38 in
Bore Diameter (in)	2 in
Thread Depth (in)	0.81 in
Base to Center Height (in)	3.25 in
Length Through Bore (in)	2.027 in
Centerline to Outermost Bearing Face (in)	1.281 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Series	SEHB
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Hanger Unit
Housing Style	Hanger Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	7,889 lb
Shaft Locking Type	Set Screw
Vibration Frequency Fundamental Train	0.0068 cps
Bearing Type	Standard Duty
Max Operating Temperature (F)	220 °F
Radial Clearance	Standard
Vibration Frequency Outer Ring Defect	0.0683 cps
Inner Ring Outside Diameter (in)	2.469 in
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Insert	1-2
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	5,216 lb
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	3550 rpm
Vibration Frequency Inner Ring Defect	0.0984 cps
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/8 NPT
Size Code	2-115
Vibration Frequency Roller Spin	0.0445 cps
Housing Width (in)	1.31 in

General Specifications

UPC	662461003169
Weight	4.68 LB
Packaged Length	5.50 IN
Packaged Width	2.13 IN
Packaged Height	5.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
