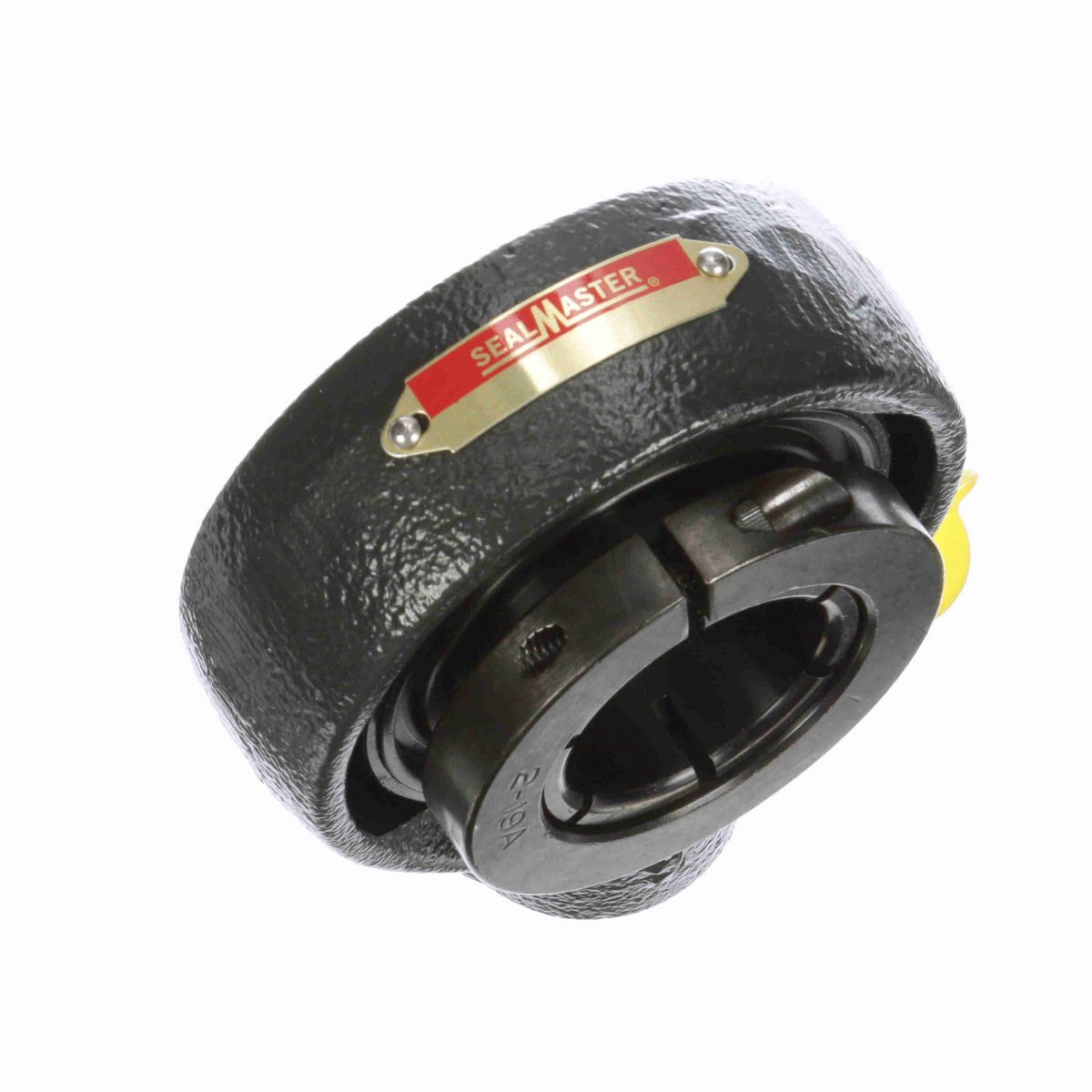

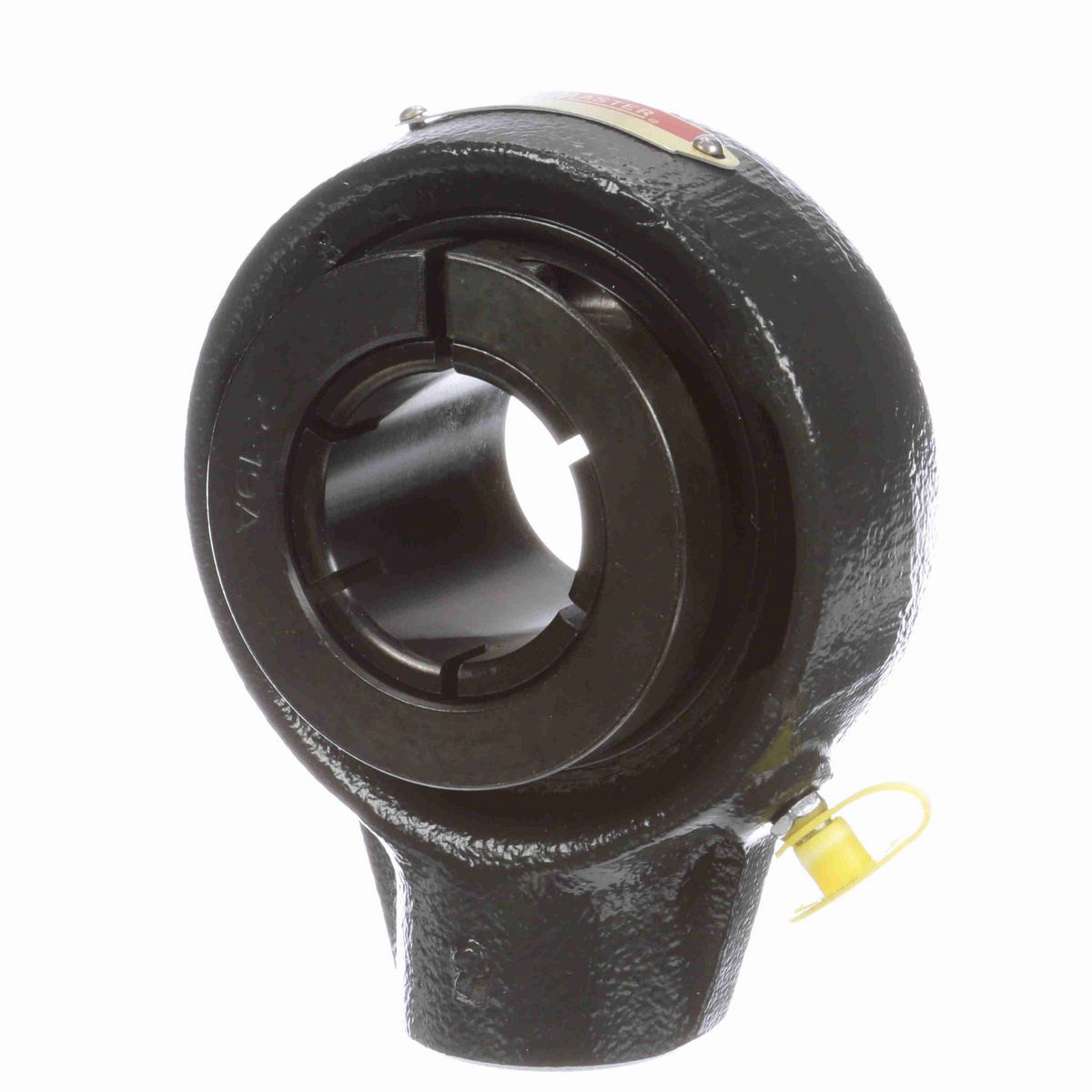

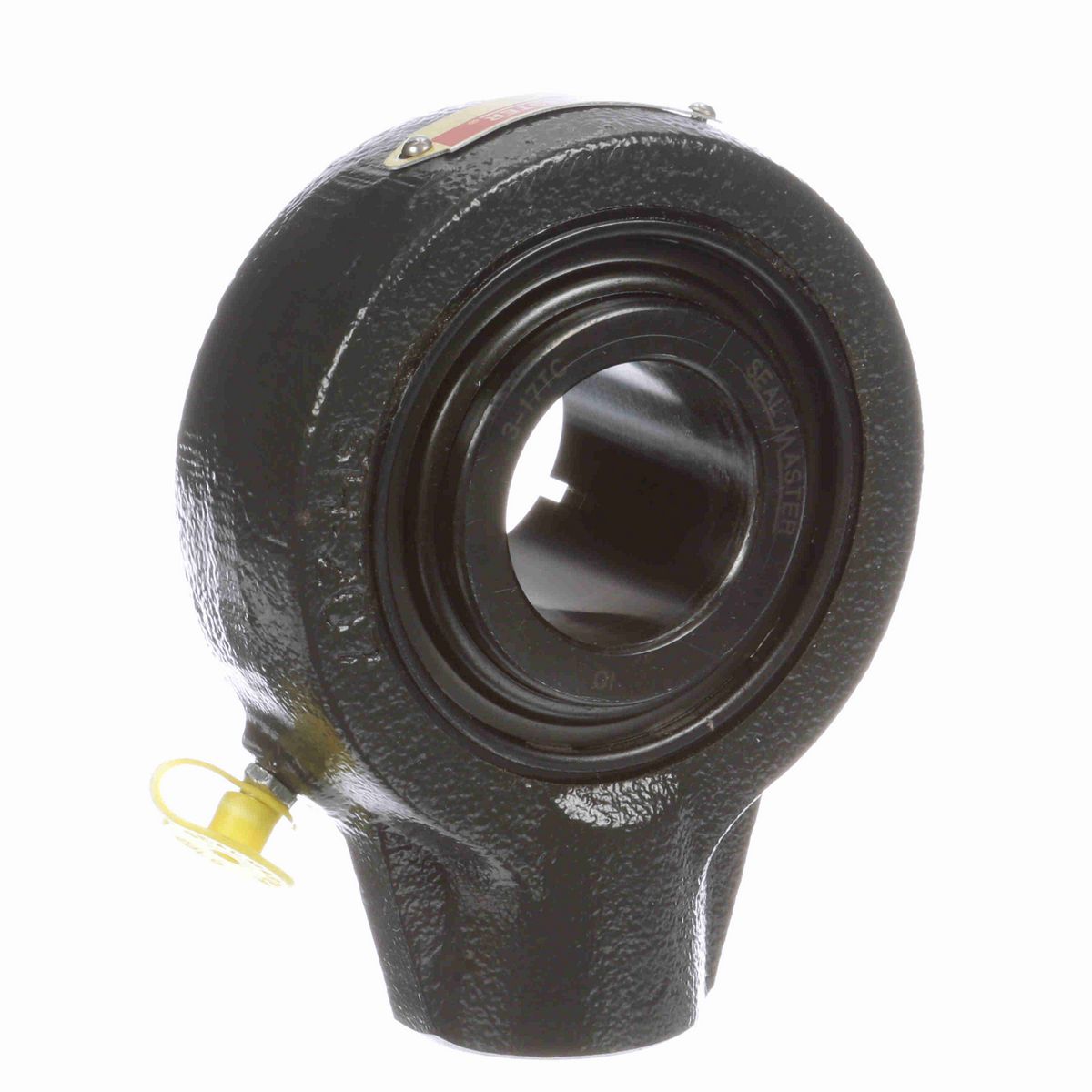

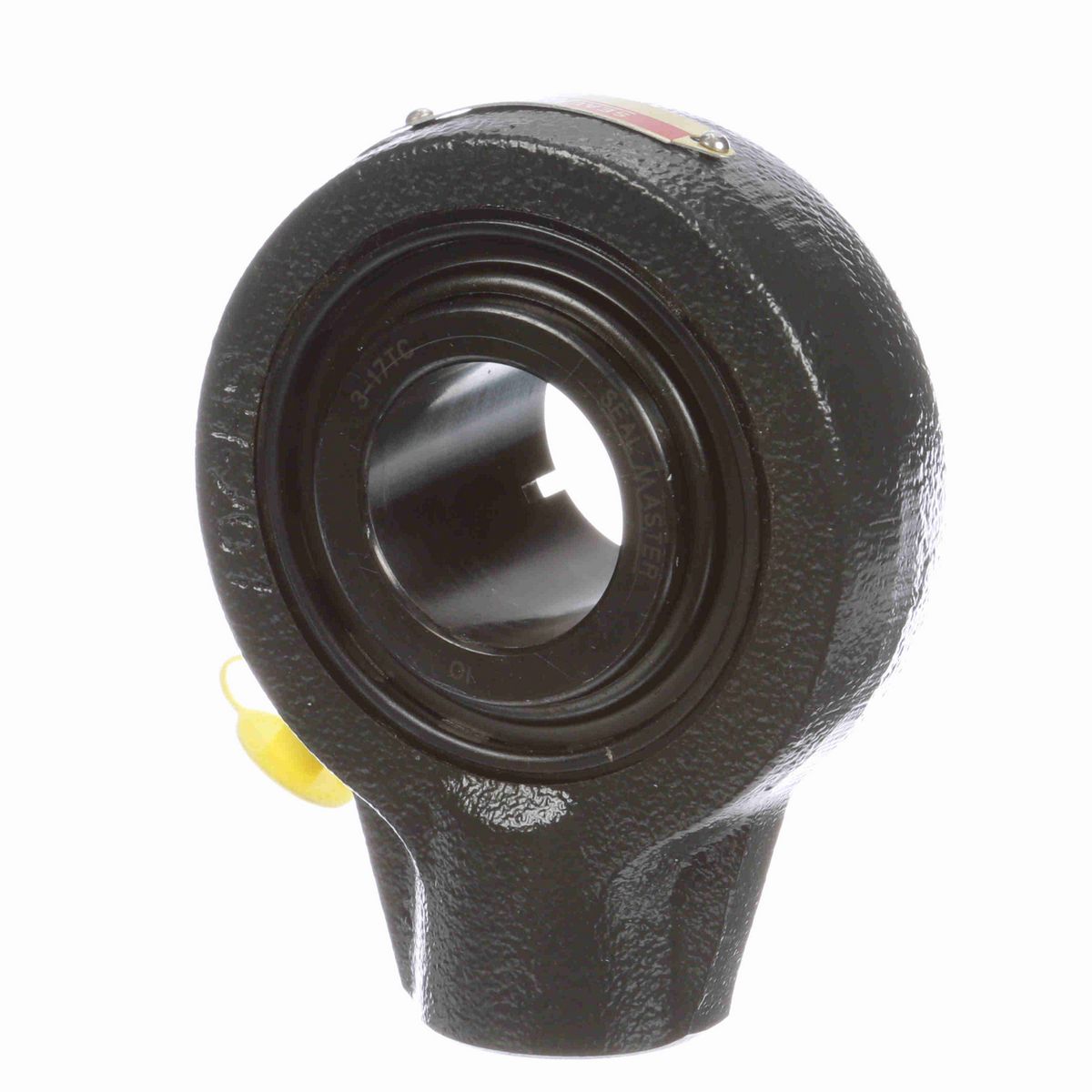

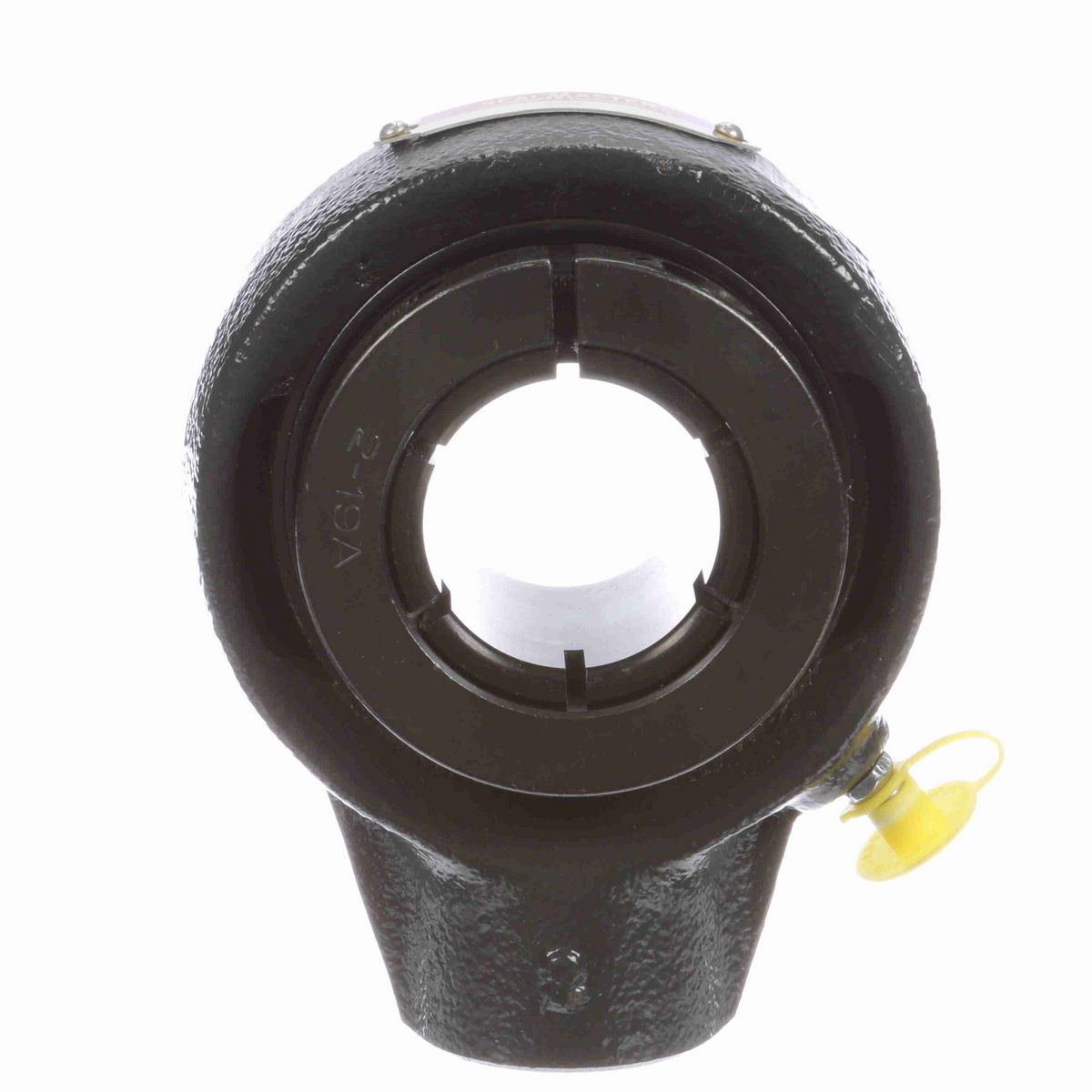

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Thread Size	3/4-14
Overall Height (in)	4.75 in
Overall Width (in)	2.06 in
Base Width (in)	1.56 in
Overall Length (in)	3.75 in
Bore Diameter (in)	1.4375 in
Thread Depth (in)	0.75 in
Base to Center Height (in)	2.875 in
Length Through Bore (in)	2.06 in
Centerline to Outermost Bearing Face (in)	1.25 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Series	SEHB
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Hanger Unit
Seal Type	Single Lip Contact Seal
Housing Style	Hanger Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.75 in
Radial Clearance	Standard
Insert	3-17TC
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0909 cps
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Static Load Rating (lb)	4,467 lb
Shaft Locking Type	Concentric
Vibration Frequency Roller Spin	0.0376 cps
Bearing Insert Finish	Black Oxide
Size Code	2-19
Vibration Frequency Fundamental Train	0.0066 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0591 cps
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Dynamic Load Rating (lb)	7,340 lb
Housing Coating	Powder Coated
Maximum Speed (RPM)	4150 rpm
End Cap Available	No
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.07 in
Lubricant	Lithium Complex NLGI 2 Grease
Housing Width (in)	1.25 in

General Specifications

UPC	662461279304
Weight	3.70 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
