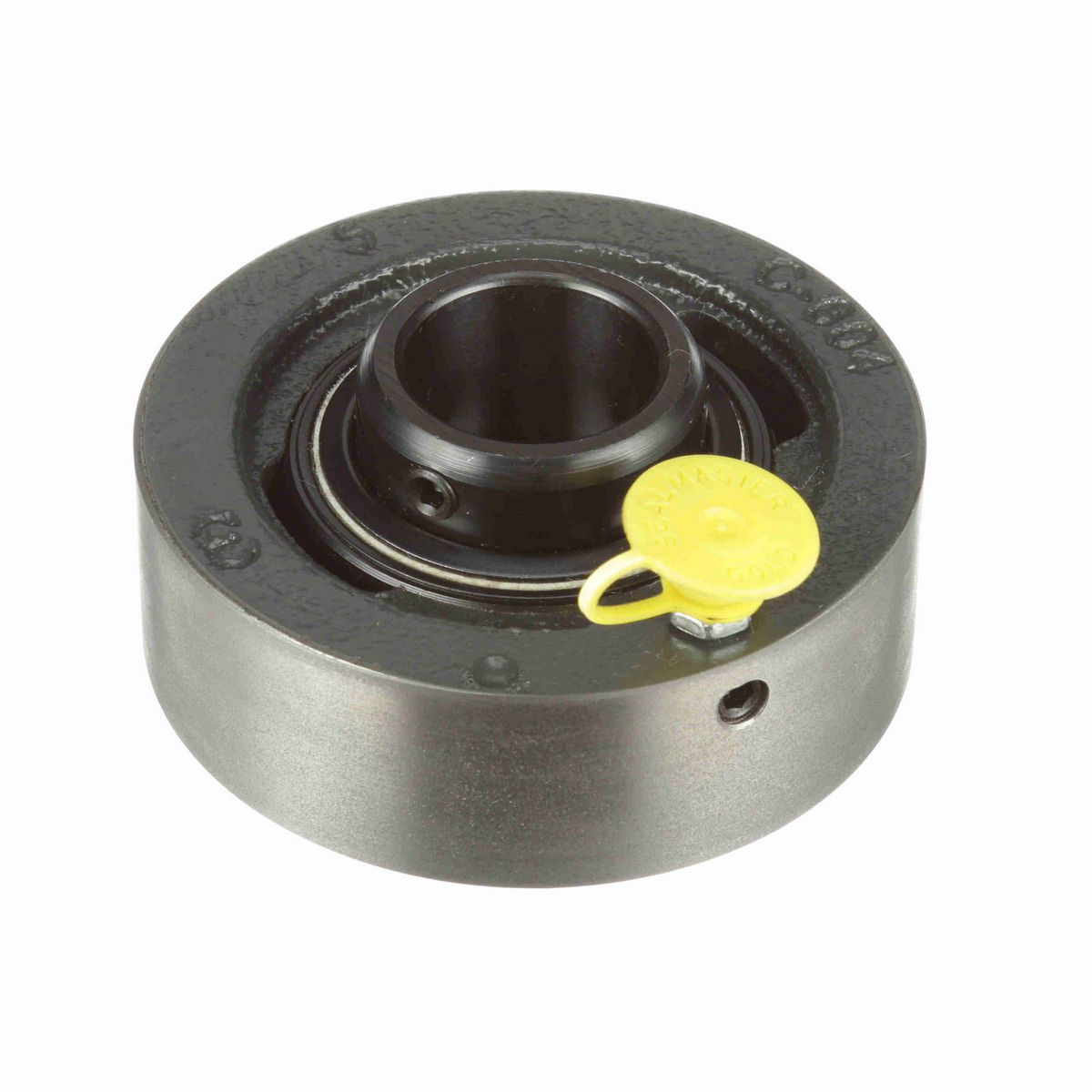

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	6.25 in
Overall Height (in)	6.25 in
Overall Width (in)	3.06 in
Bore Diameter (in)	2.9375 in
Length Through Bore (in)	3.063 in
Centerline to Outermost Bearing Face (in)	1.75 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	Brass
Series	SC
Housing Type	Cartridge, Cylindrical
Seal Type	Single Lip Contact Seal
Housing Style	Cartridge Block
Outside Diameter (in)	6.625
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (RPM)	2100 rpm
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	14,839 lb
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
End Cap Available	No
Inner Ring Outside Diameter (in)	3.656 in
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Bearing Type	Standard Duty
Shaft Locking Type	Set Screw
Insert	2-215C
Static Load Rating (lb)	11,224 lb
Bearing Insert Material	52100 Bearing Steel
Size Code	2-215
Housing Width (in)	2 in

General Specifications

UPC	662461021279
Weight	13.50 LB
Packaged Length	7.19 IN
Packaged Width	7.00 IN
Packaged Height	3.31 IN
HTC	8482.10.5056
Country of Origin	United States of America
