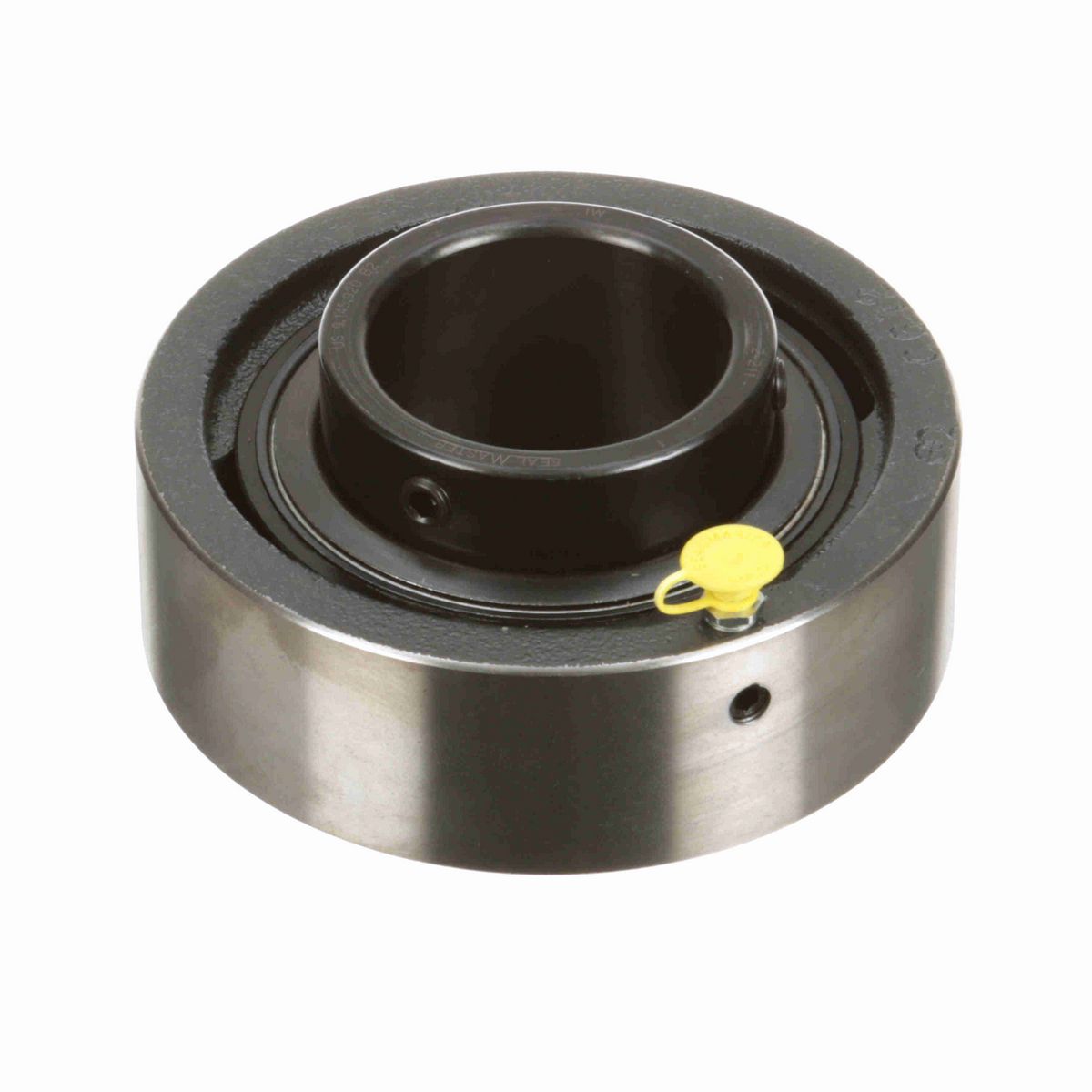

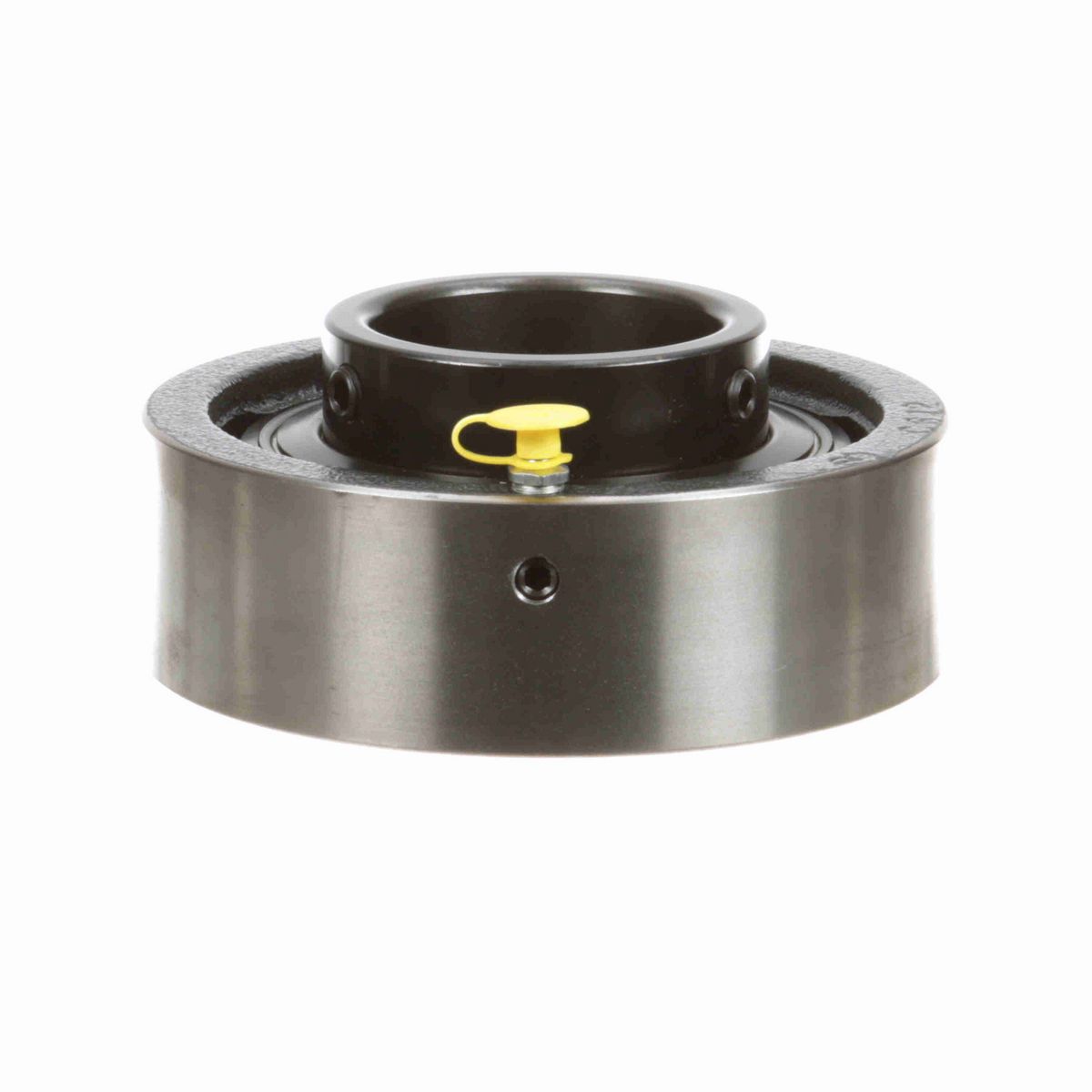

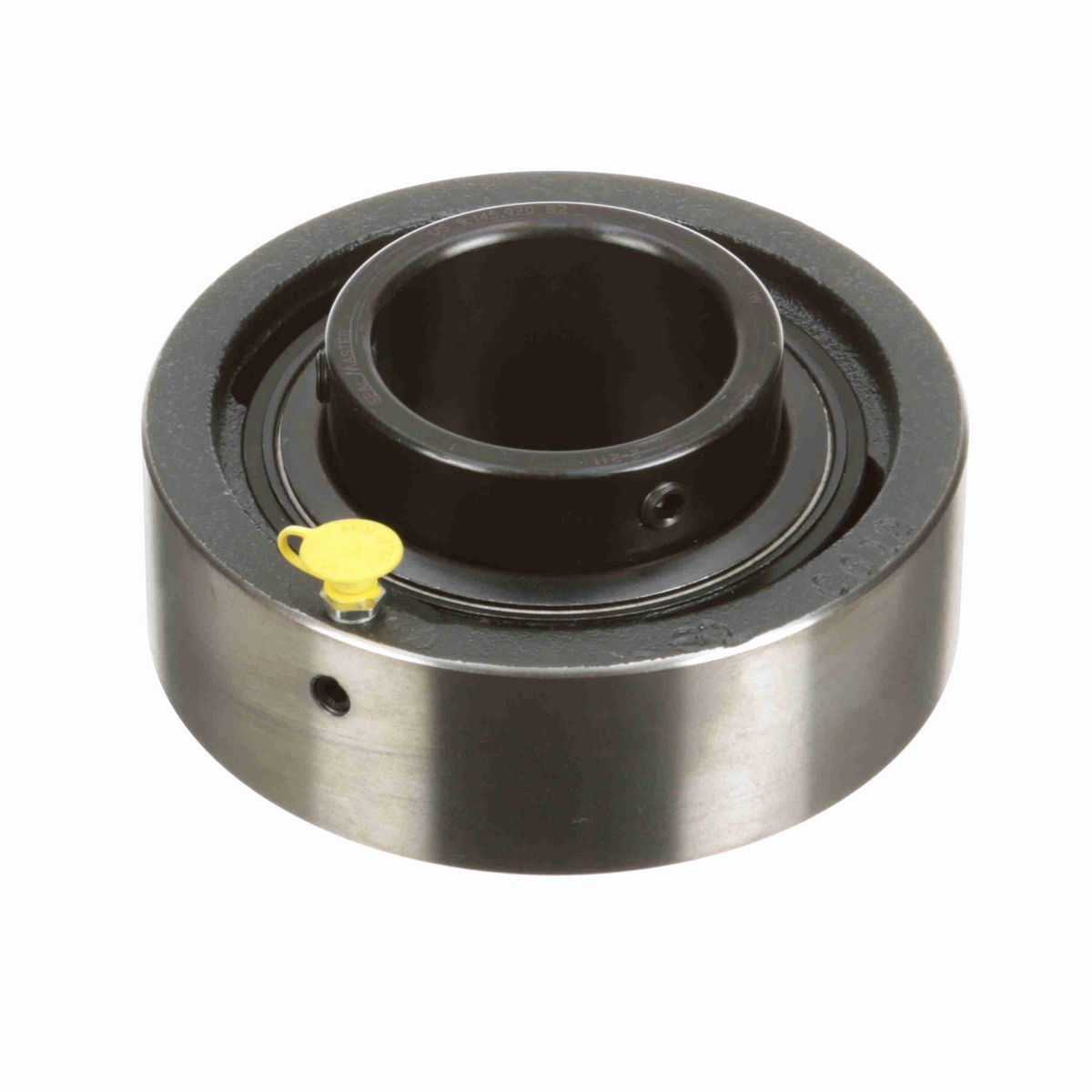

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	6.25 in
Overall Width (in)	2.75 in
Overall Length (in)	6.25 in
Bore Diameter (in)	2.6875 in
Length Through Bore (in)	2.75 in
Centerline to Outermost Bearing Face (in)	1.69 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Gray
Cage Material	Brass
Series	SC
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	6.25
Housing Style	Cartridge Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
End Cap Available	No
Maximum Speed (RPM)	2500 rpm
Insert	2-211
Size Code	2-211
Lubricant	Lithium Complex NLGI 2 Grease
Dynamic Load Rating (lb)	13,971 lb
Radial Clearance	Standard
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	3.438 in
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/8 NPT
Static Load Rating (lb)	10,063 lb
Bearing Insert Finish	Black Oxide
Housing Width (in)	2 in

General Specifications

UPC	662461002643
Weight	12.60 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	3.06 IN
HTC	8482.10.5056
Country of Origin	United States of America
