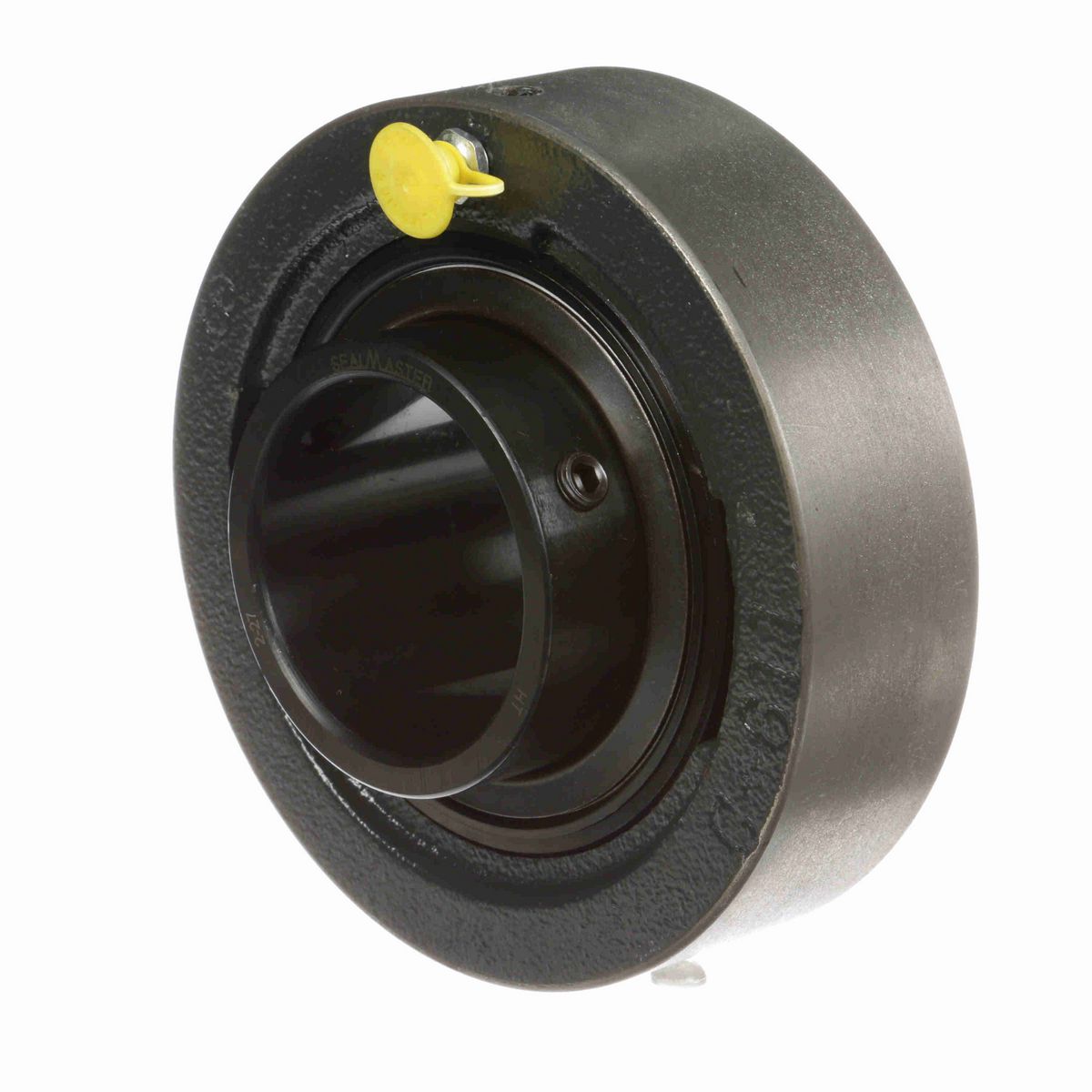

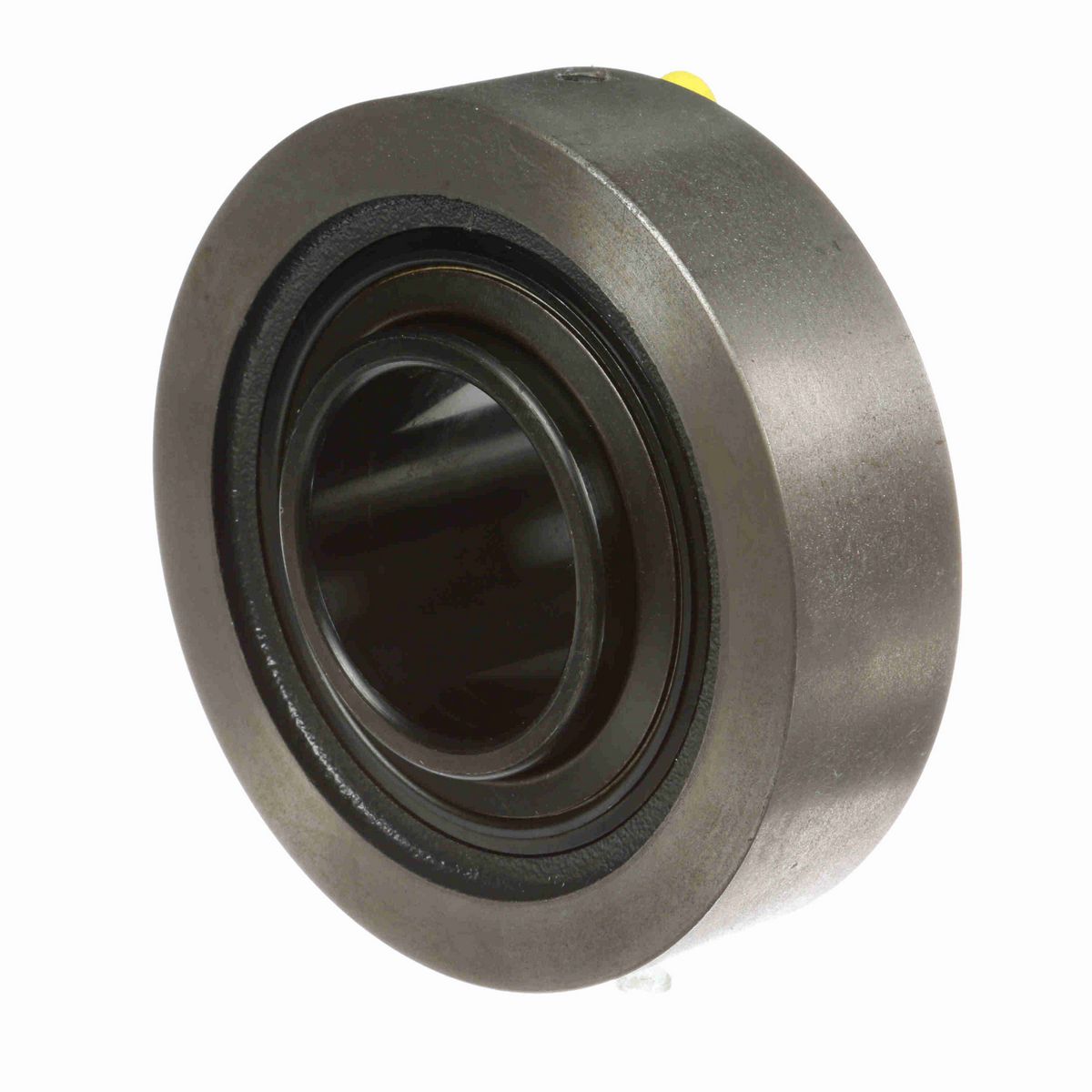

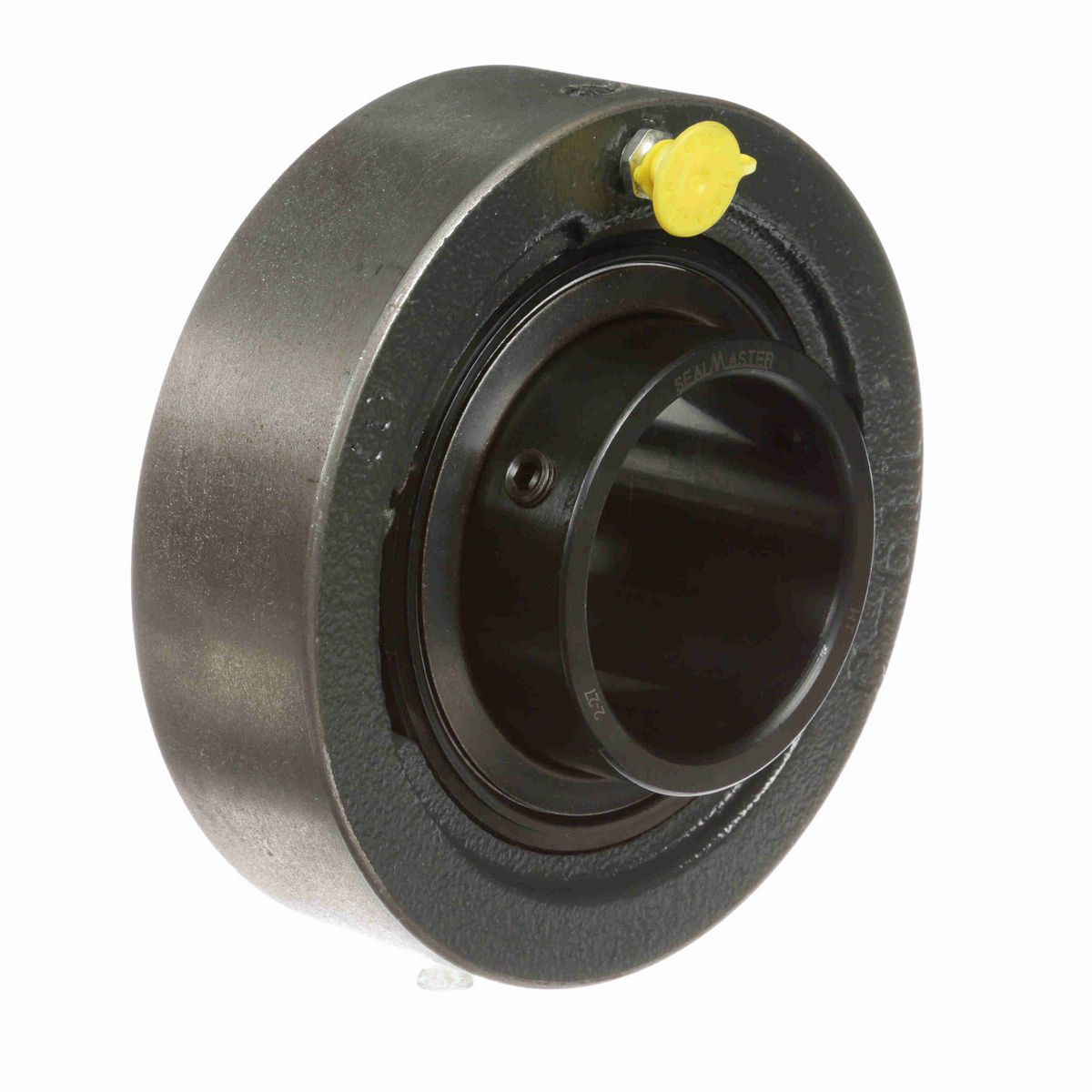

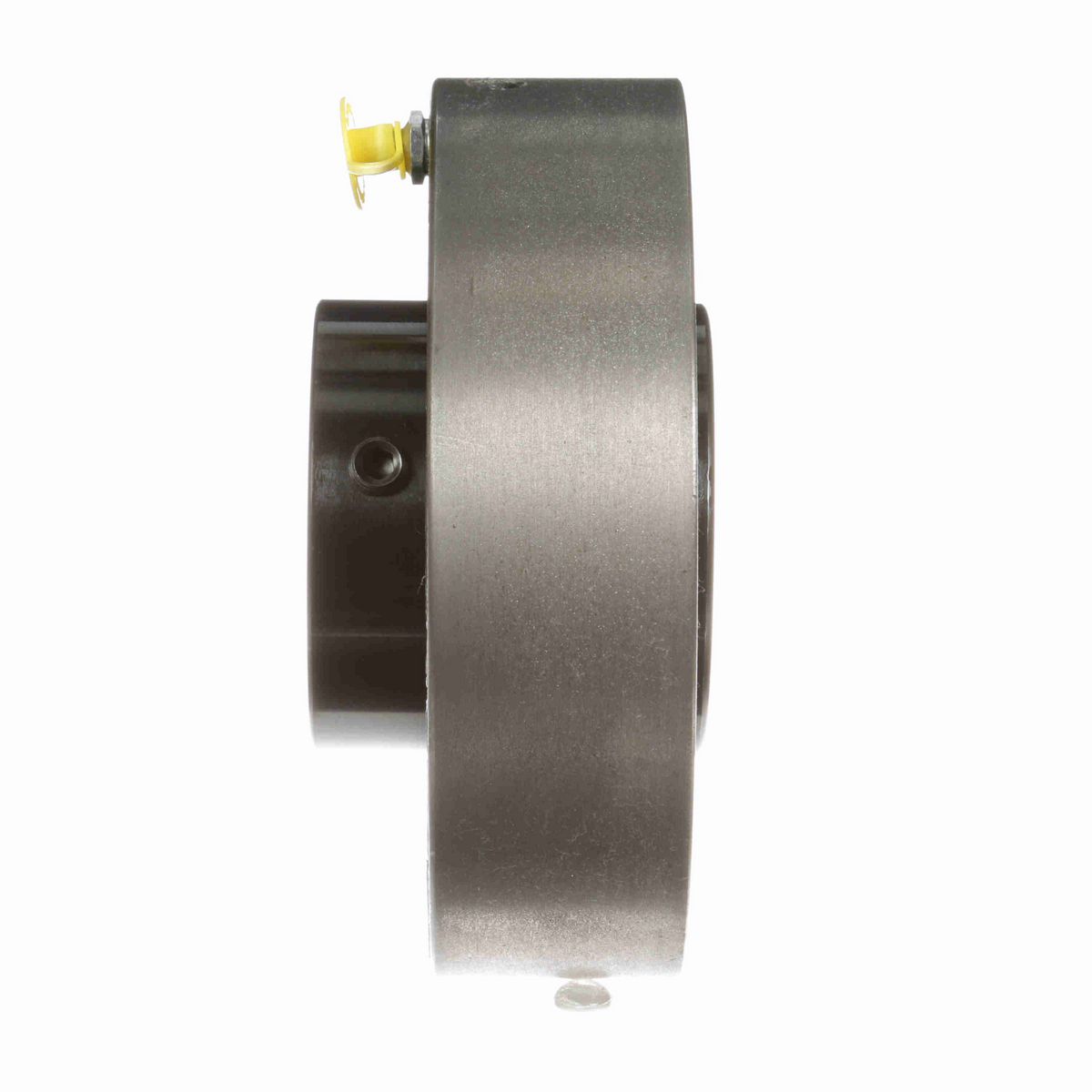

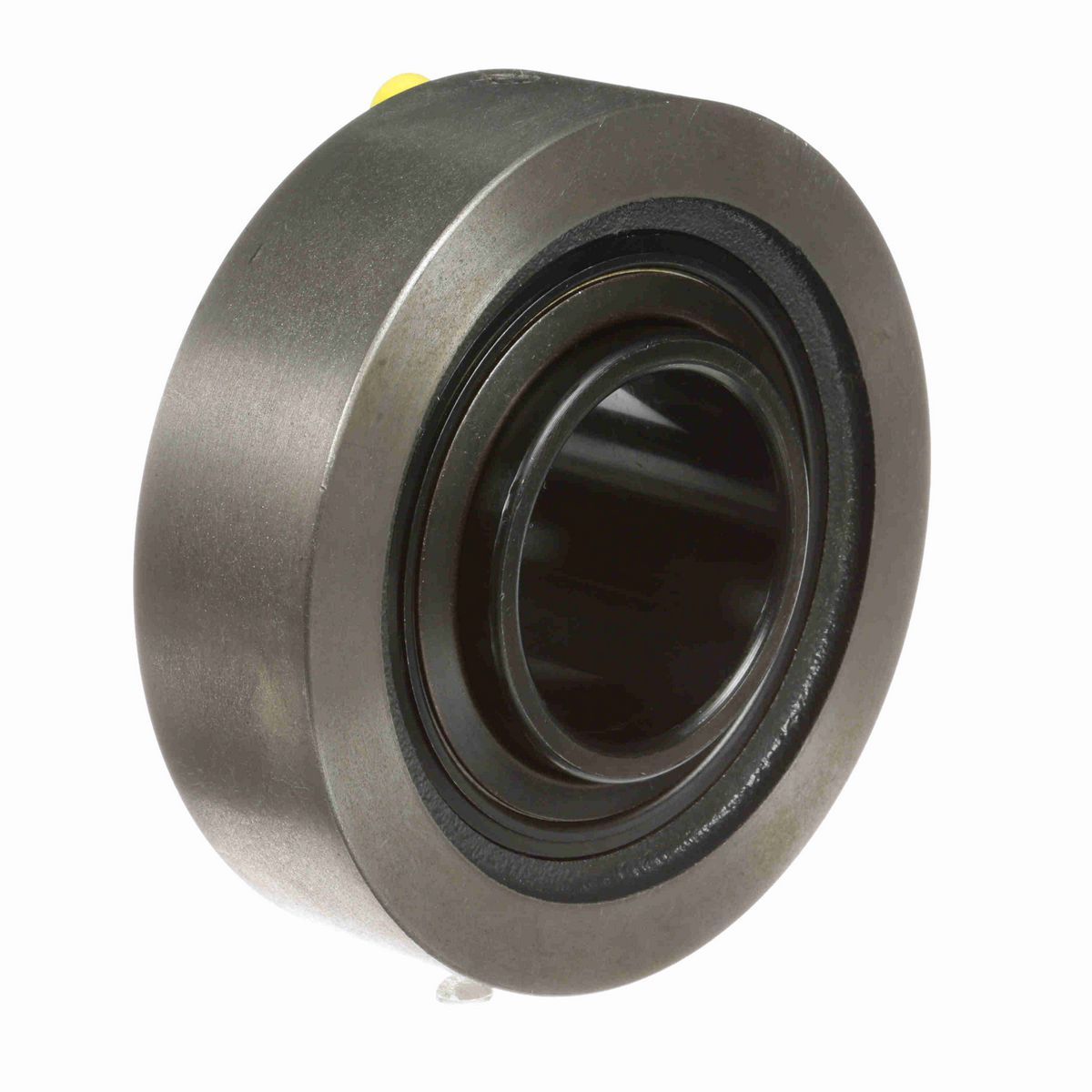

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	5.88 in
Overall Height (in)	5.88 in
Overall Width (in)	2.56 in
Bore Diameter (in)	2.4375 in
Length Through Bore (in)	2.563 in
Centerline to Outermost Bearing Face (in)	1.56 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Gray
Series	SC
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Housing Style	Cartridge Block
Outside Diameter (in)	5.875
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Size Code	2-27
Maximum Speed (RPM)	3000 rpm
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Insert	2-27
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Grease Fitting Thread Size	1/8 NPT
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Inner Ring Outside Diameter (in)	2.984 in
Static Load Rating (lb)	8,150 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	11,789 lb
Cage Type	Land Riding Retainer
End Cap Available	No
Housing Width (in)	1.63 in

General Specifications

UPC	662461002629
Weight	8.75 LB
Packaged Length	6.88 IN
Packaged Width	6.88 IN
Packaged Height	2.63 IN
HTC	8482.10.5056
Country of Origin	Mexico
