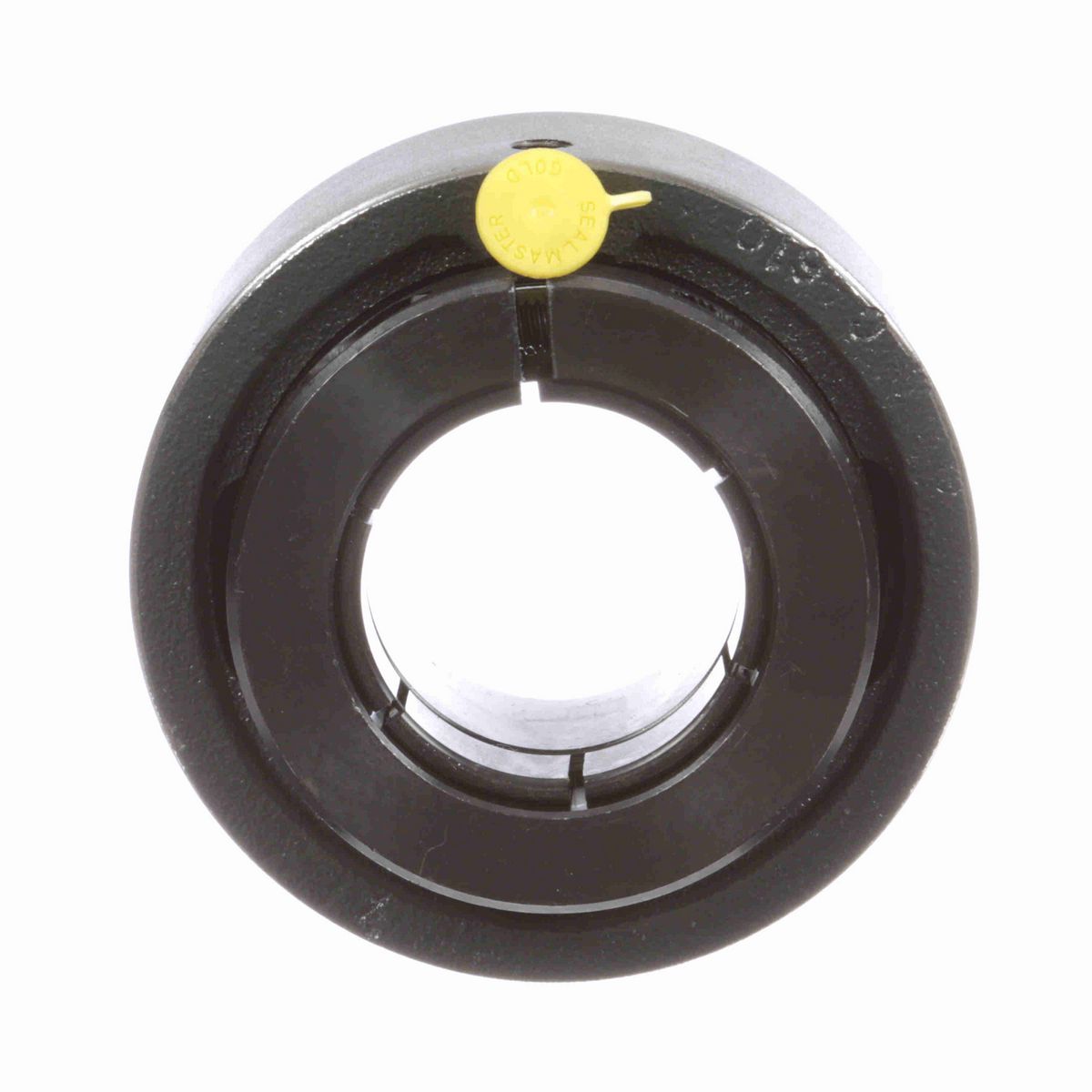

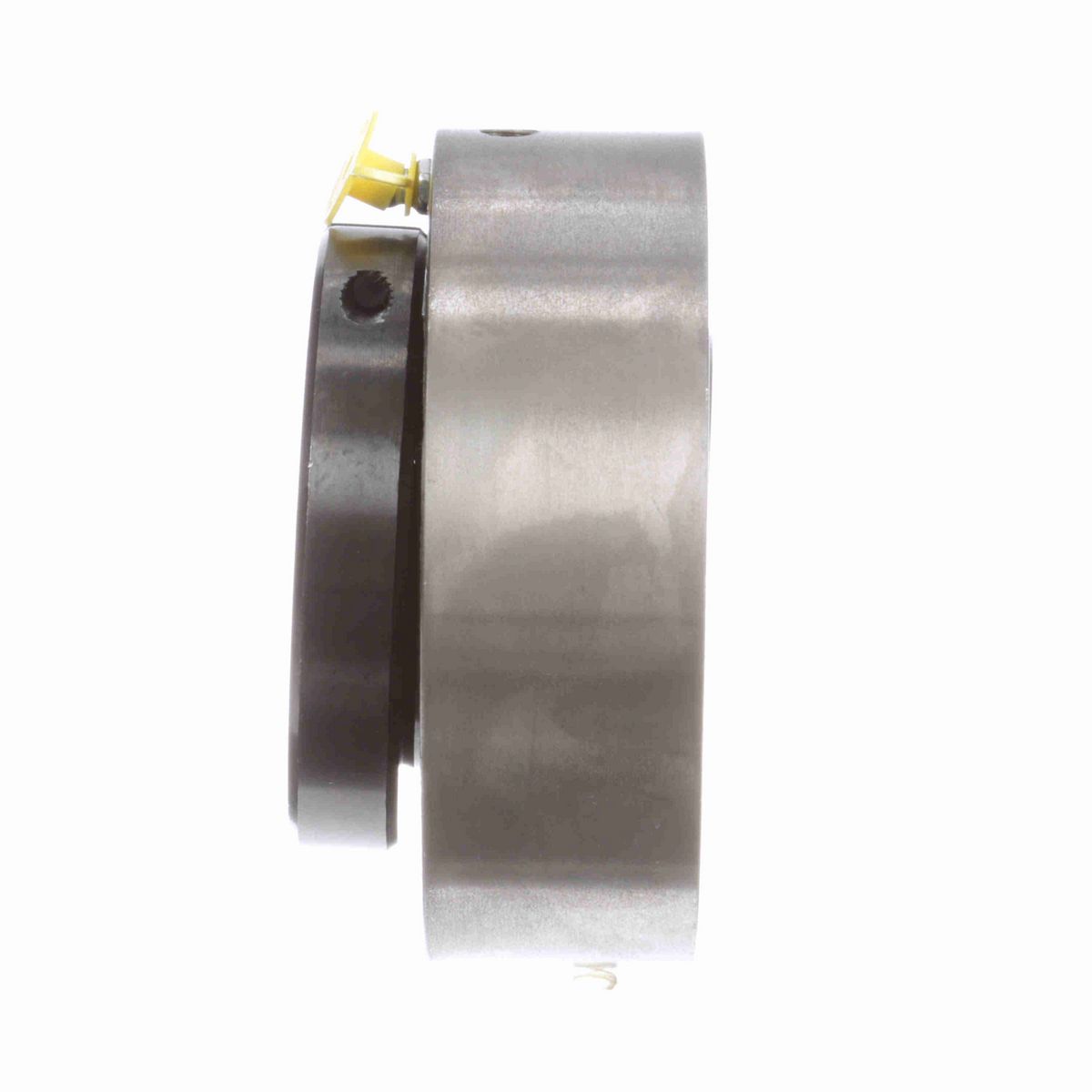

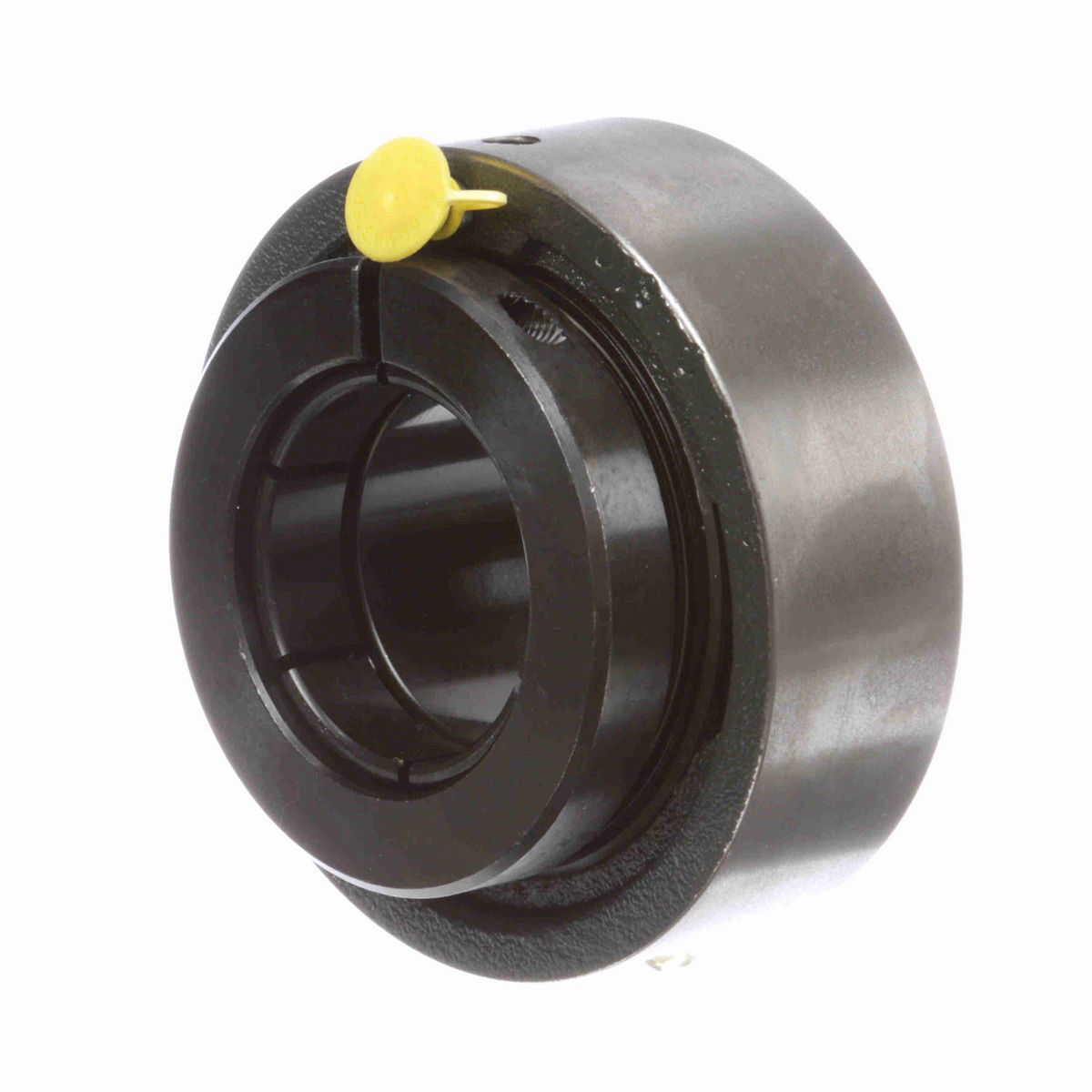

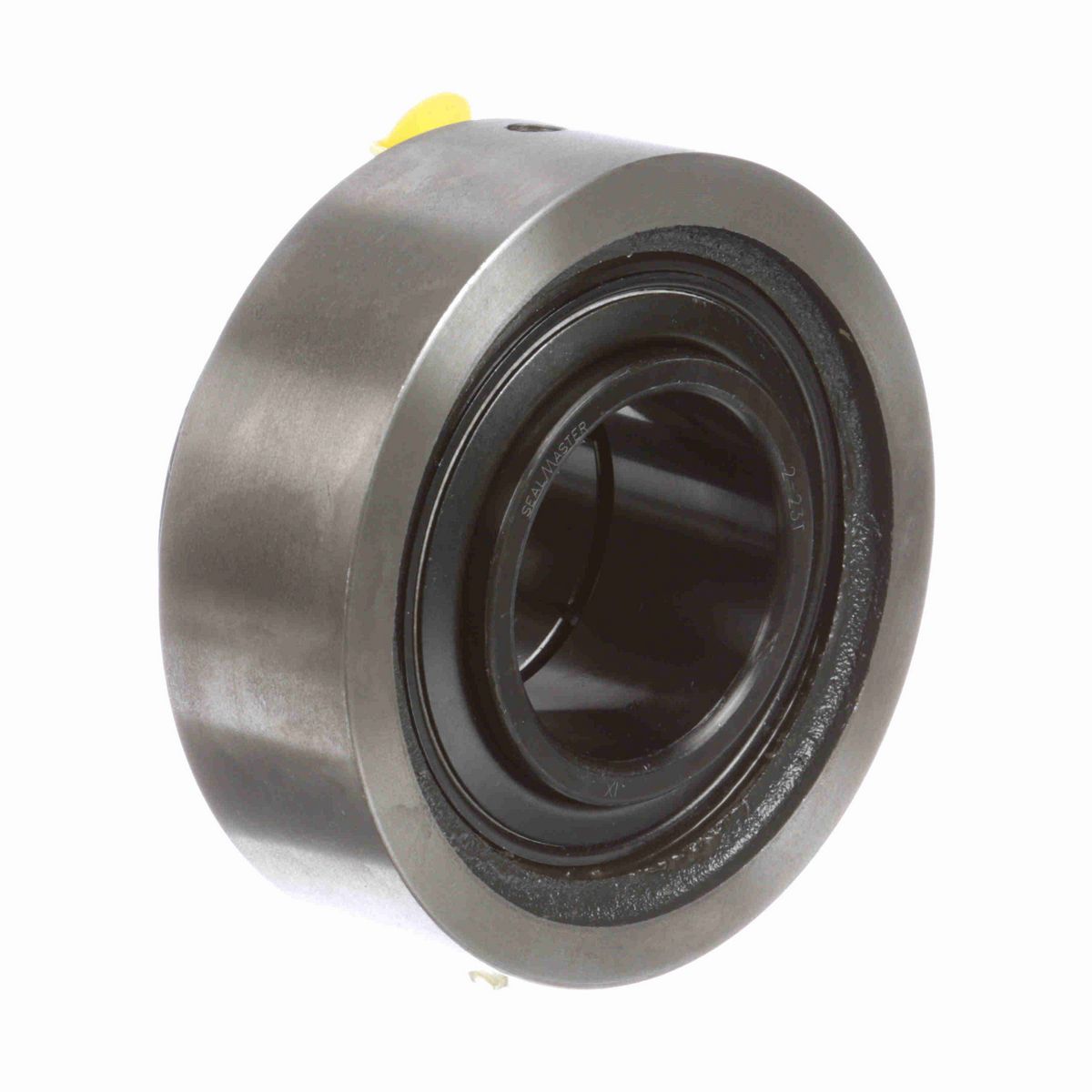

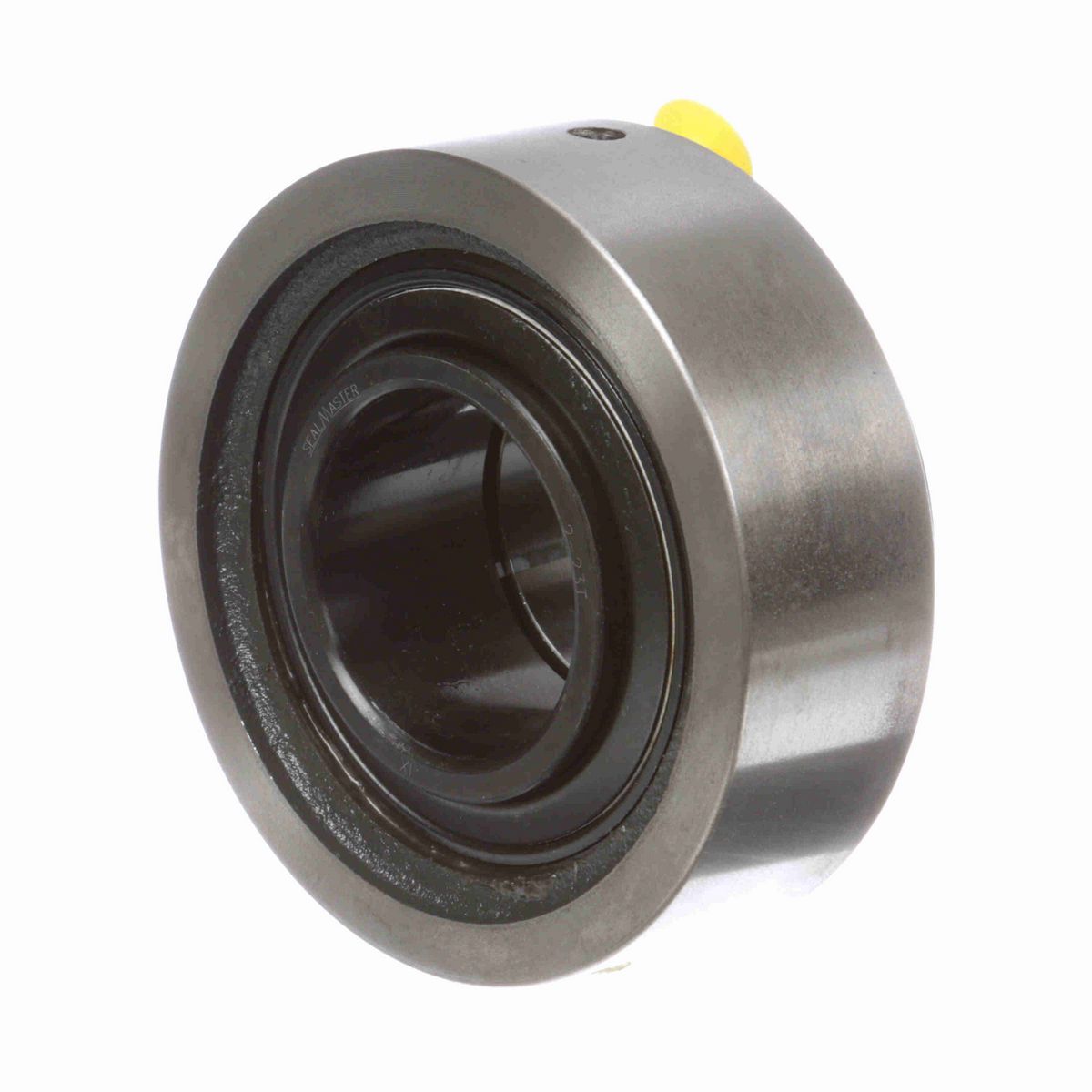

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	4.94 in
Overall Height (in)	4.94 in
Overall Width (in)	2.25 in
Bore Diameter (in)	2.1875 in
Length Through Bore (in)	2.25 in
Centerline to Outermost Bearing Face (in)	1.38 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Gray
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Series	SC-T
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Outside Diameter (in)	4.938
Housing Style	Cartridge Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.6 in
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.719 in
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-23
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Shaft Locking Type	Concentric
Bearing Type	Standard Duty
Maximum Speed (RPM)	4500 rpm
Bearing Insert Material	52100 Bearing Steel
Insert	2-23T
Static Load Rating (lb)	6,601 lb
Dynamic Load Rating (lb)	9,752 lb
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Housing Width (in)	1.59 in

General Specifications

UPC	662461029923
Weight	6.40 LB
Packaged Length	5.50 IN
Packaged Width	5.38 IN
Packaged Height	3.50 IN
HTC	8482.10.5052
Country of Origin	Mexico
