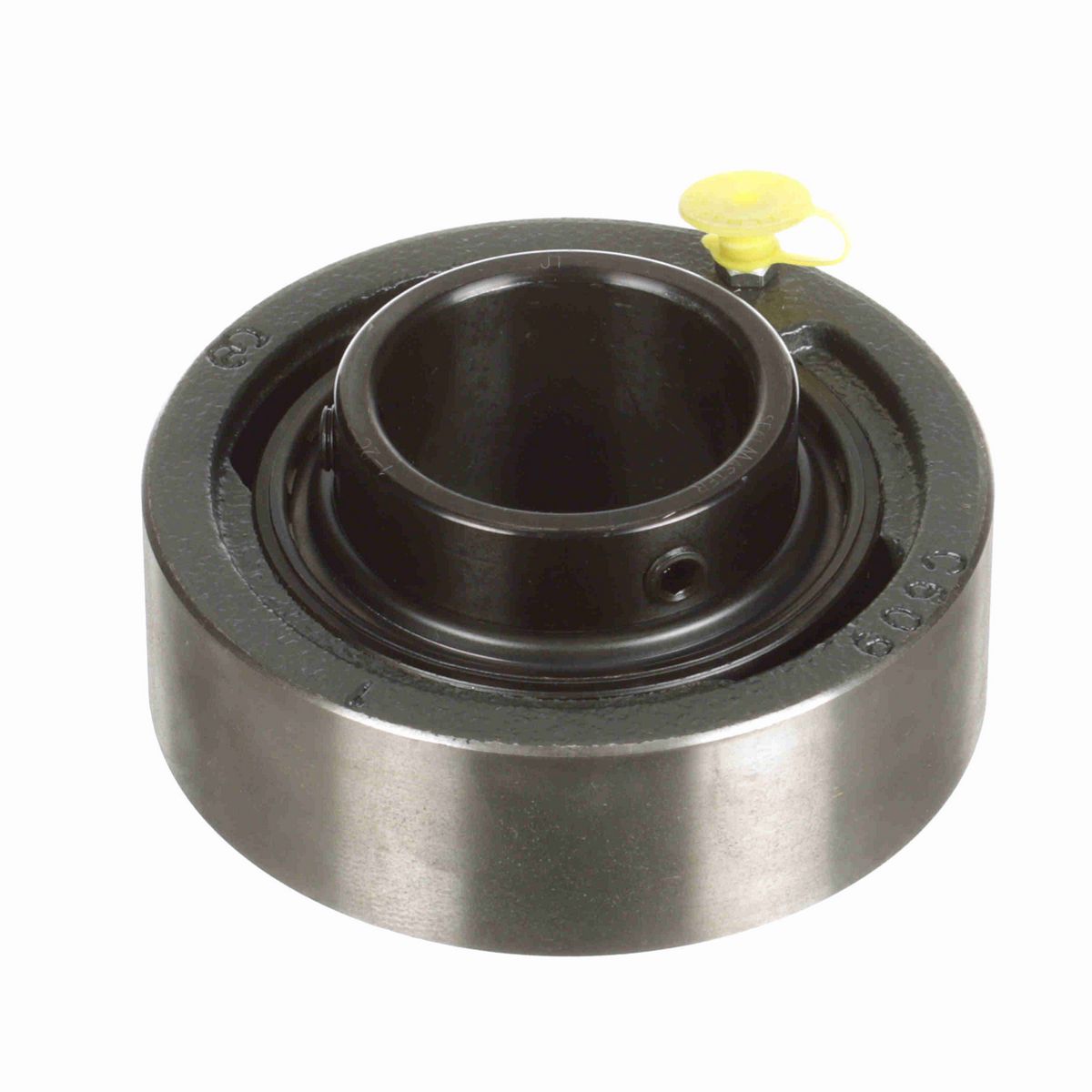

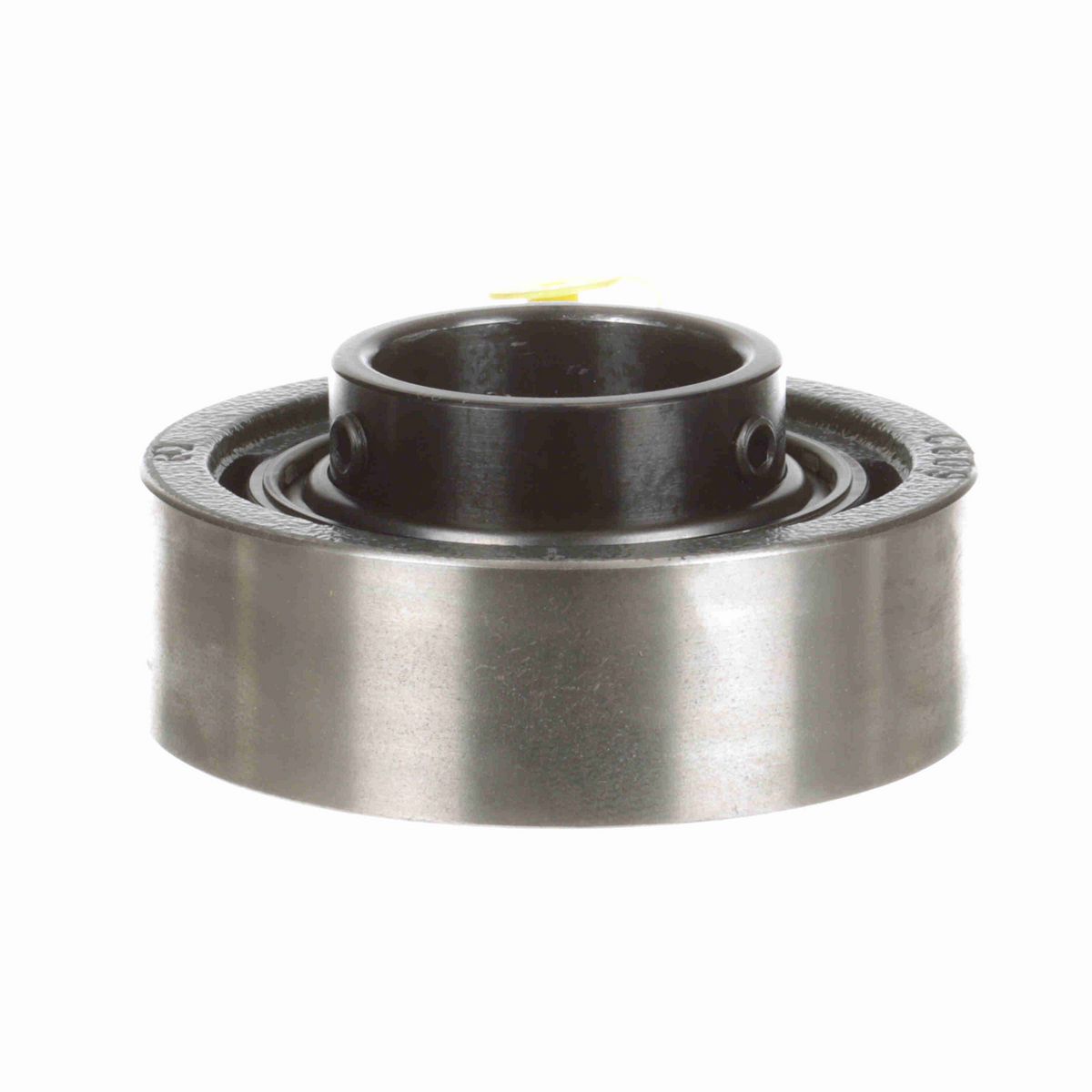

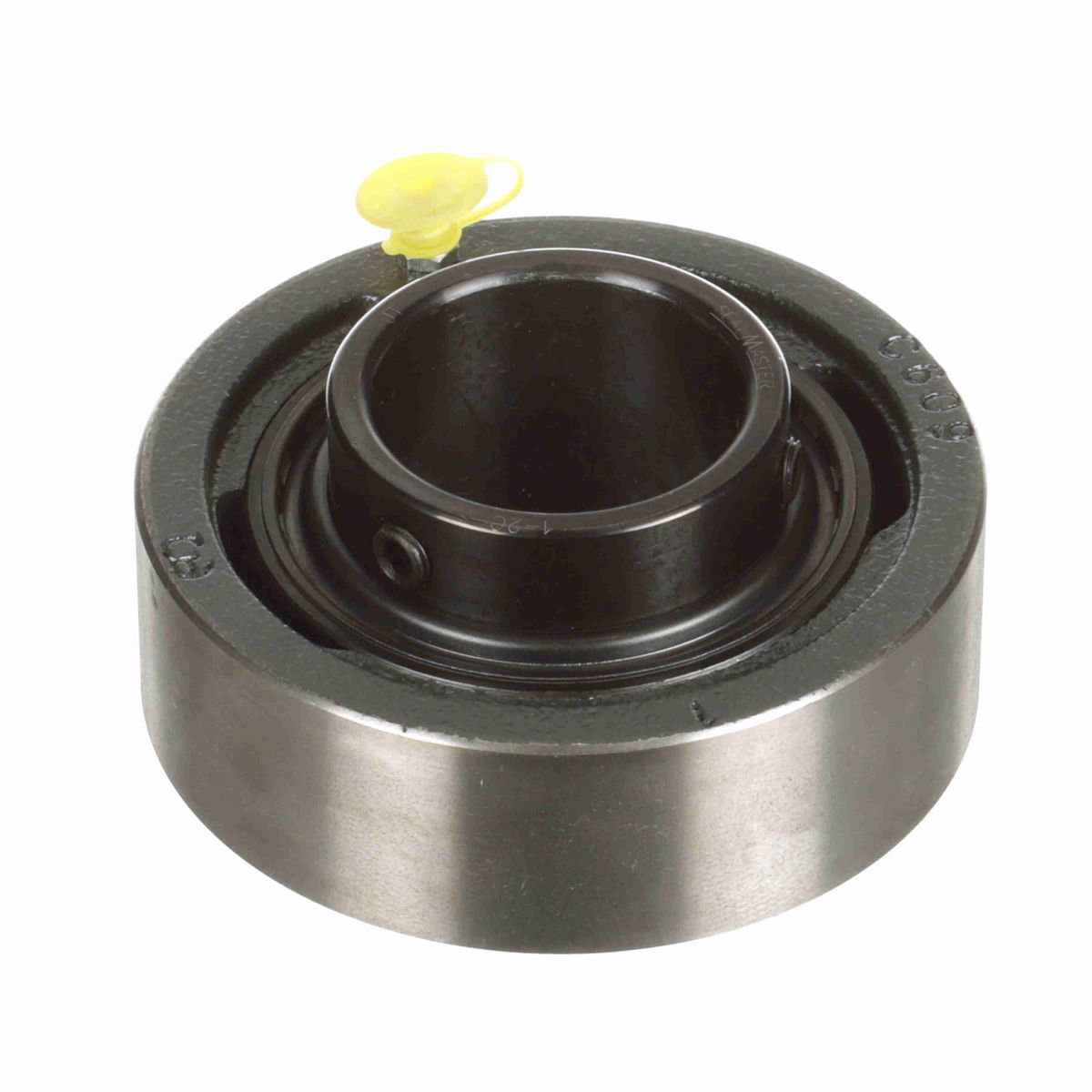

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	4.56 in
Overall Width (in)	2.03 in
Overall Height (in)	4.56 in
Bore Diameter (in)	2 in
Length Through Bore (in)	2.031 in
Centerline to Outermost Bearing Face (in)	1.28 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Series	SC
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Cartridge, Cylindrical
Seal Type	Single Lip Contact Seal
Outside Diameter (in)	4.563
Housing Style	Cartridge Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide
Size Code	2-115
Dynamic Load Rating (lb)	7,889 lb
Cage Type	Land Riding Retainer
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Insert	1-2C
Maximum Speed (RPM)	3550 rpm
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.469 in
Housing Material	Cast Iron
Static Load Rating (lb)	5,216 lb
Max Operating Temperature (F)	220 °F
End Cap Available	No
Housing Width (in)	1.47 in

General Specifications

UPC	662461021170
Weight	4.45 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8482.10.5052
Country of Origin	Mexico
