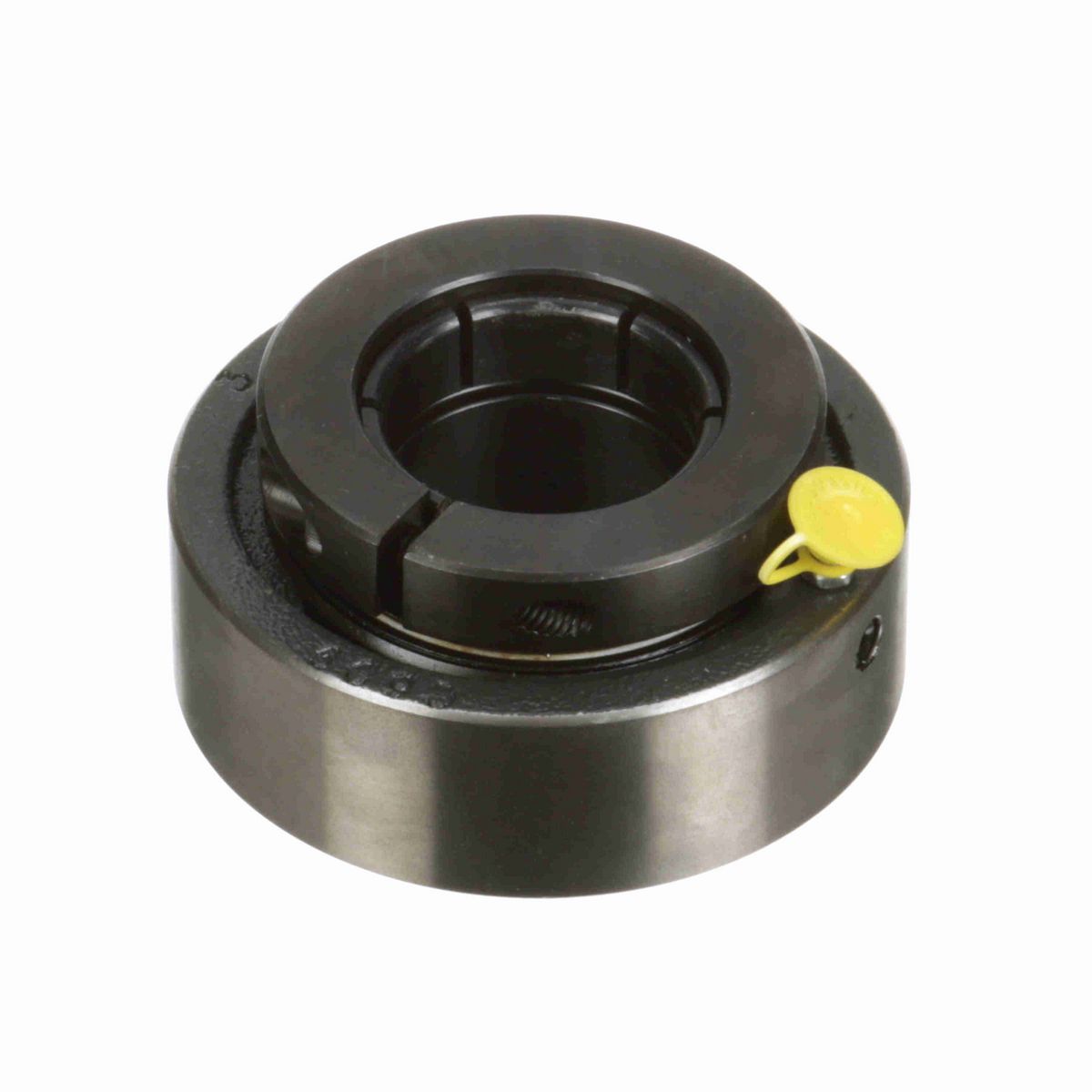

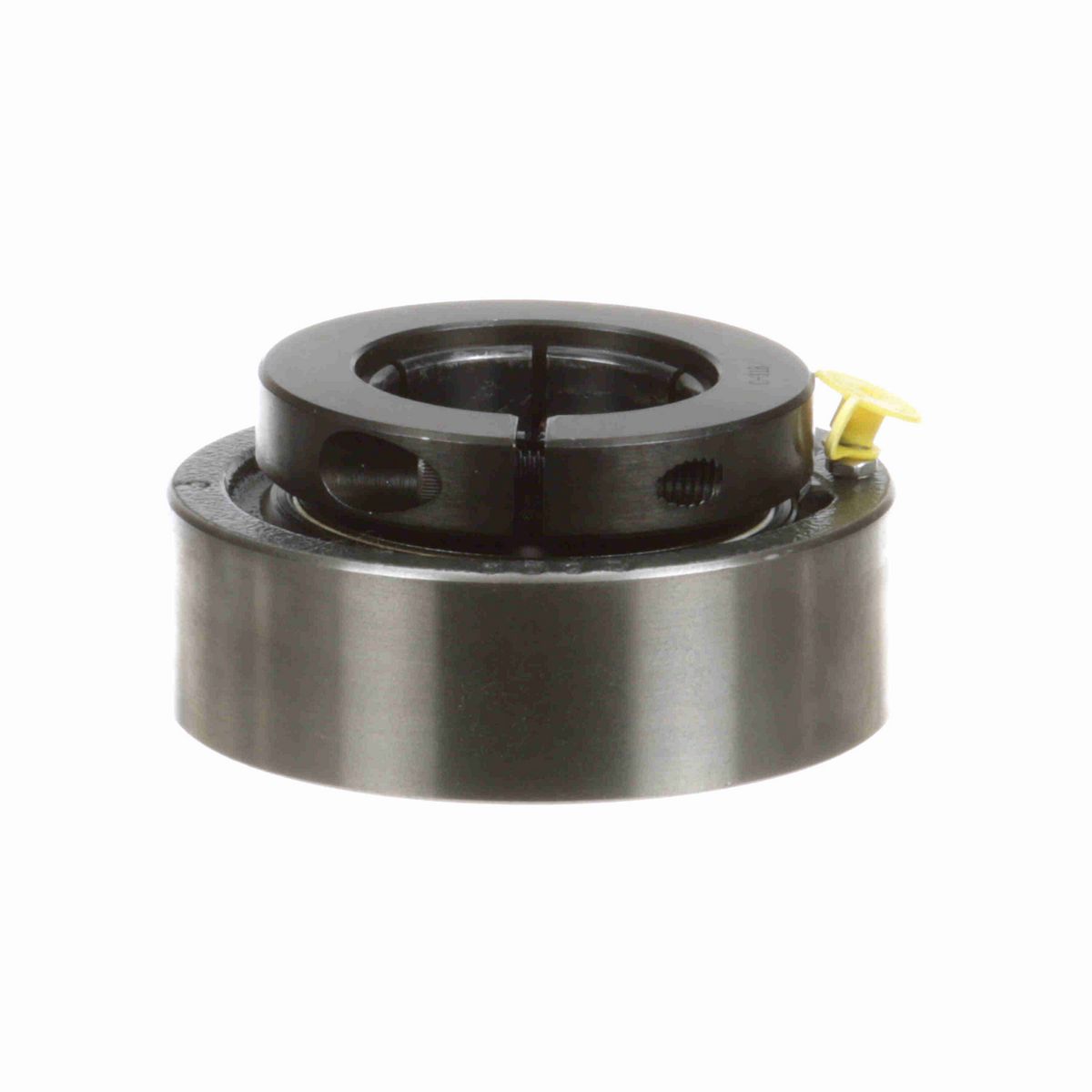

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	4.56 in
Overall Width (in)	2.09 in
Overall Height (in)	4.56 in
Bore Diameter (in)	1.9375 in
Length Through Bore (in)	2.094 in
Centerline to Outermost Bearing Face (in)	1.34 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Series	SC-T
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	4.563
Housing Style	Cartridge Block
Locking Collar Outside Diameter (in)	3.47 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	5,216 lb
Bearing Type	Standard Duty
Radial Clearance	Standard
Insert	2-115T
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Concentric
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	7,889 lb
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.469 in
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Maximum Speed (RPM)	5000 rpm
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-115
End Cap Available	No
Grease Fitting Thread Size	1/4-28
Housing Width (in)	1.47 in

General Specifications

UPC	662461029893
Weight	5.15 LB
Packaged Length	5.50 IN
Packaged Width	2.13 IN
Packaged Height	5.50 IN
HTC	8482.10.5052
Country of Origin	Mexico
