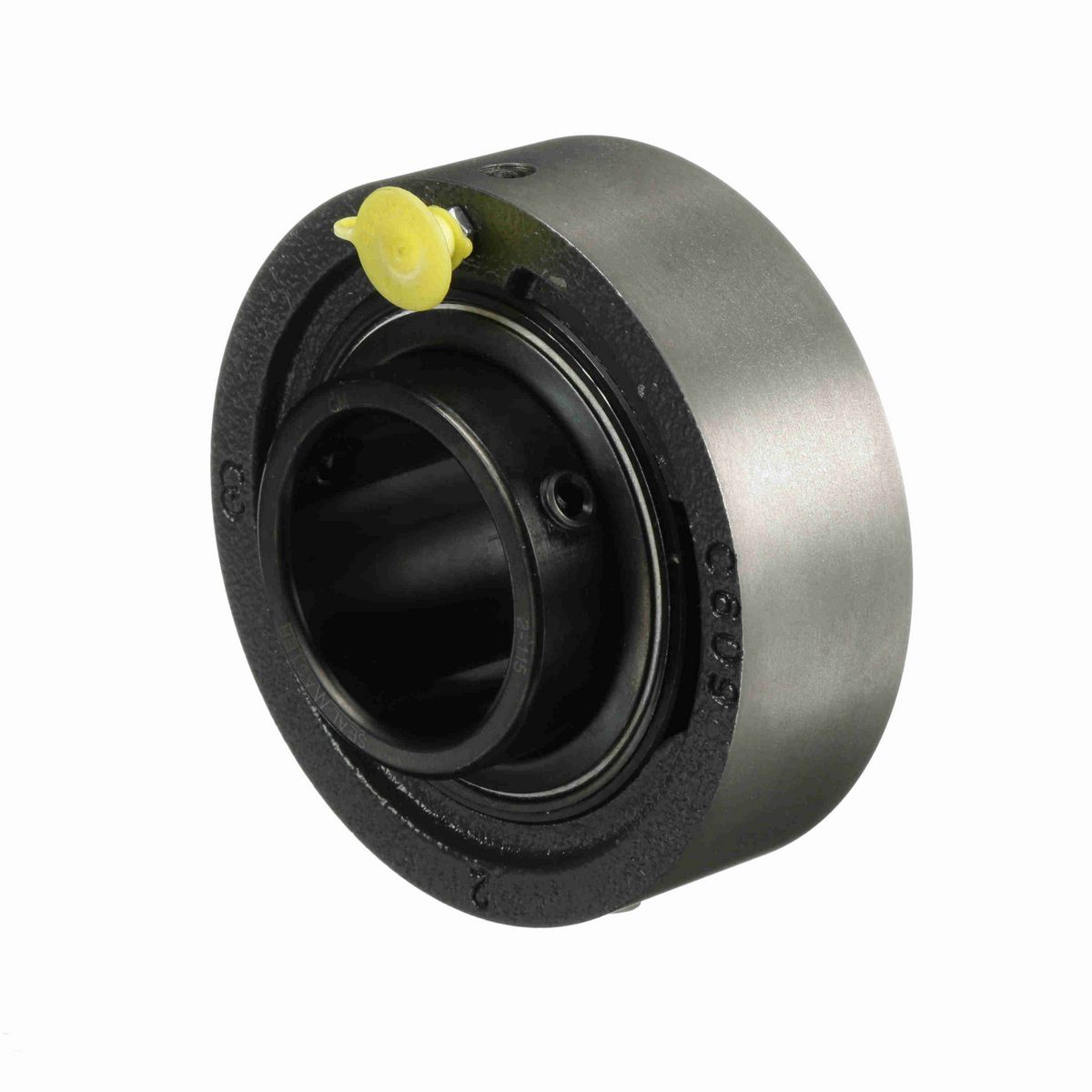

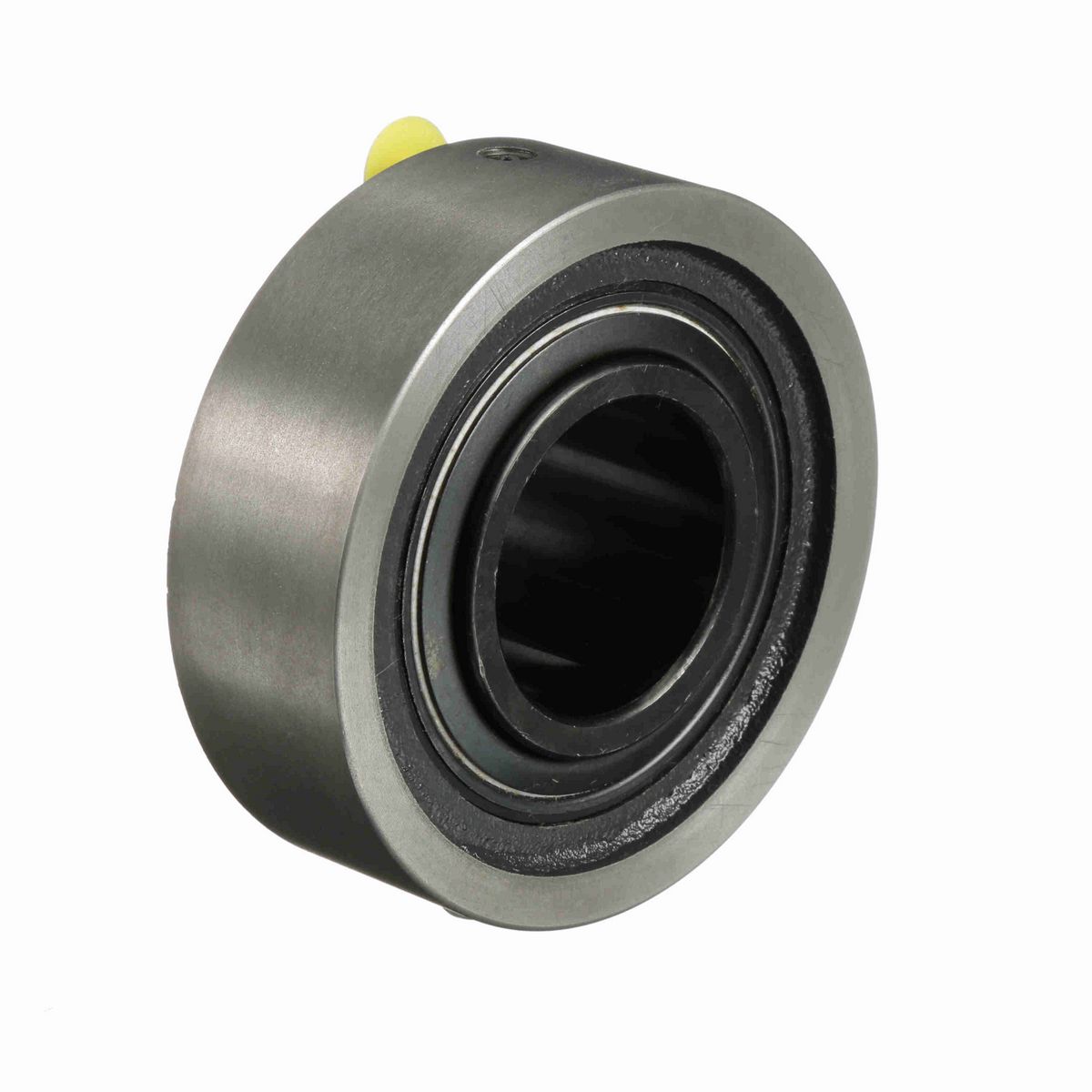

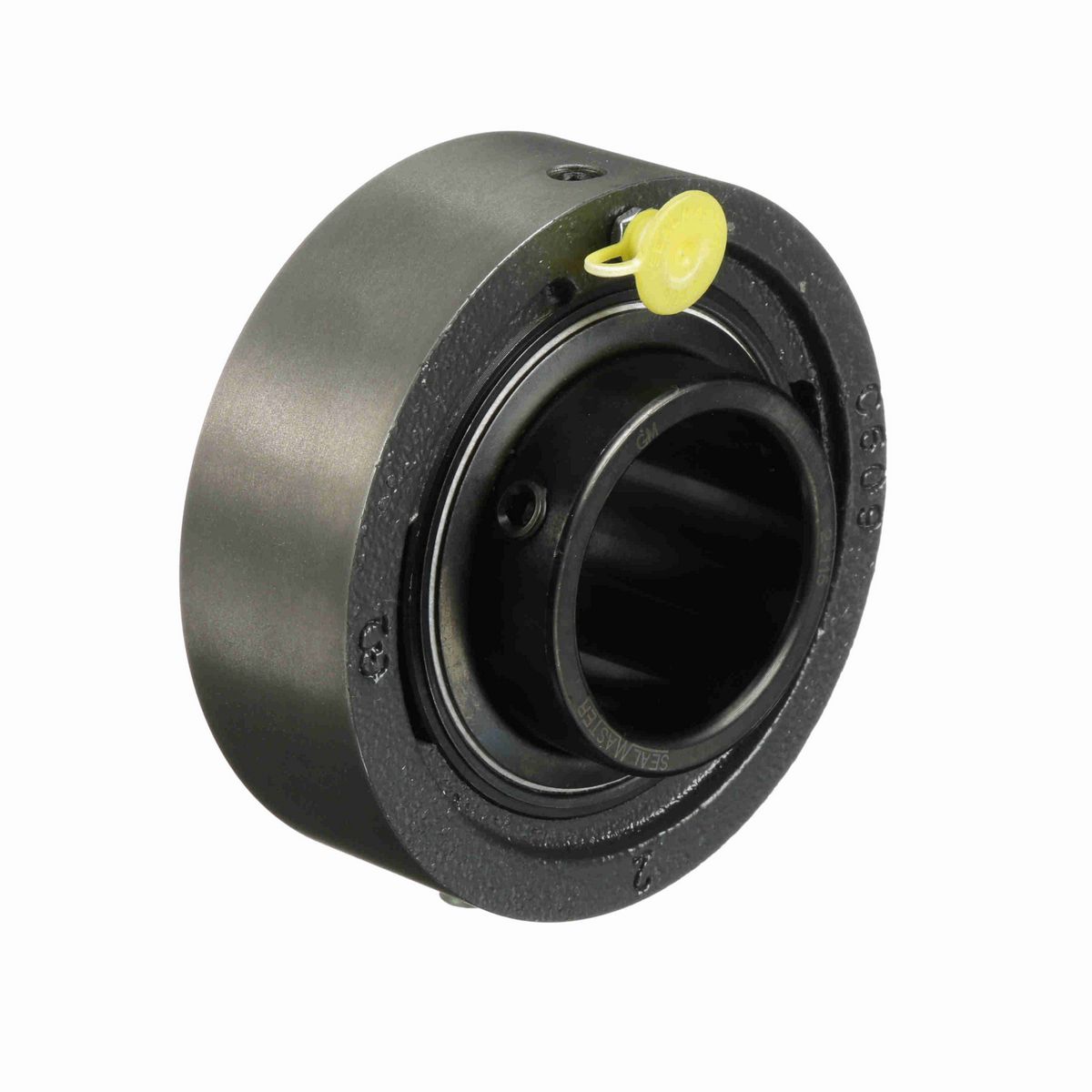

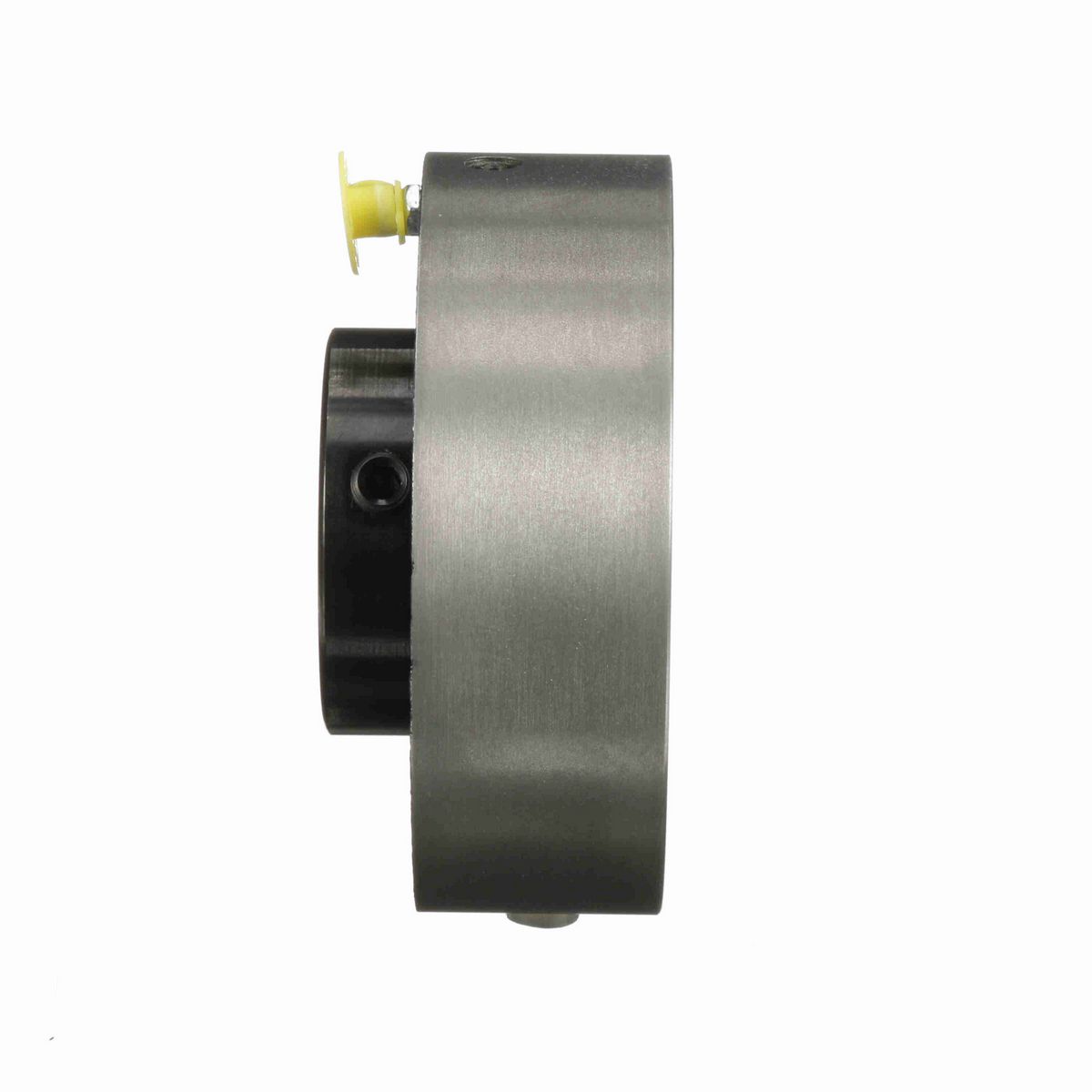

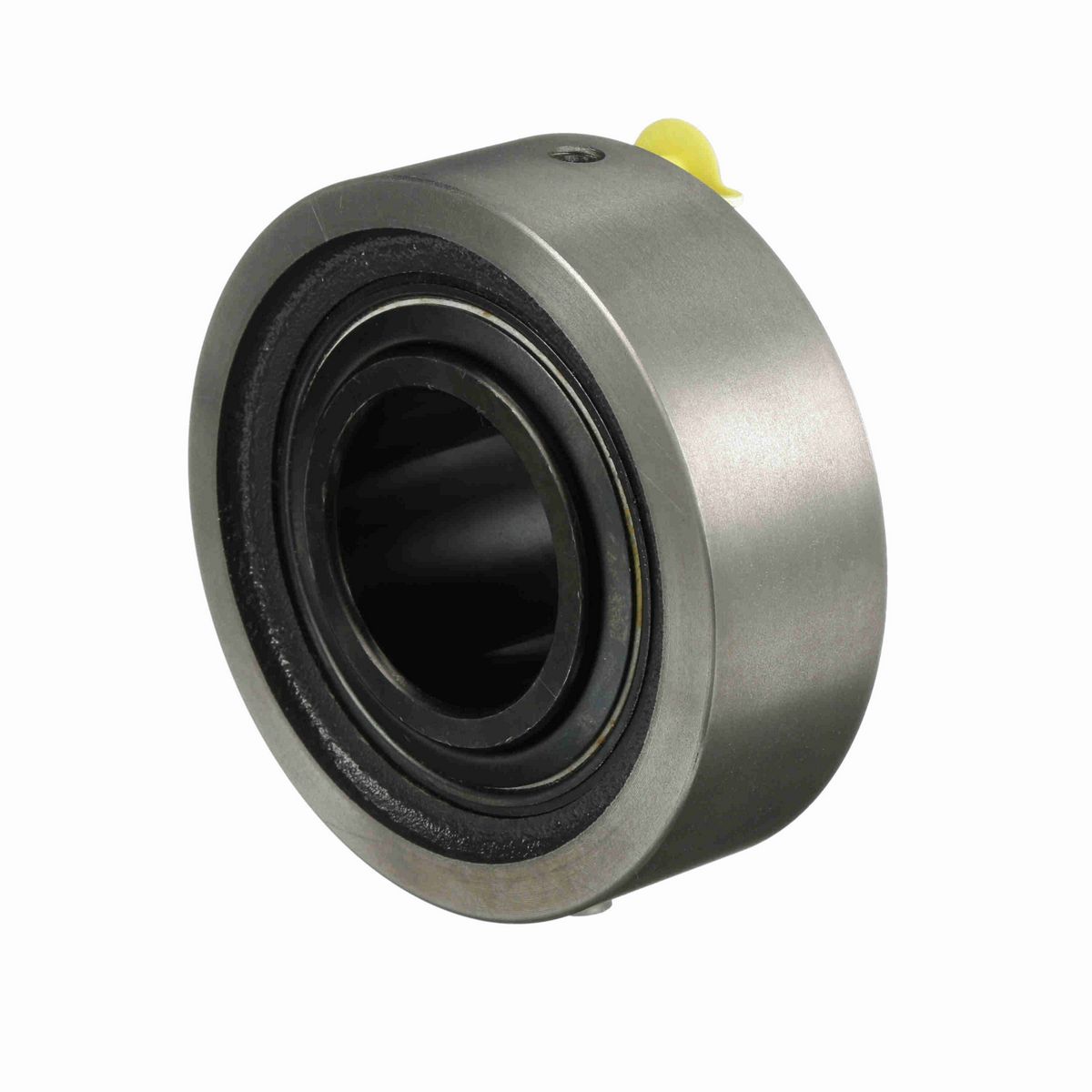

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	4.56 in
Overall Width (in)	2.03 in
Overall Height (in)	4.56 in
Bore Diameter (in)	1.9375 in
Length Through Bore (in)	2.031 in
Centerline to Outermost Bearing Face (in)	1.28 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Gray
Series	SC
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Outside Diameter (in)	4.563
Housing Style	Cartridge Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Type	Standard Duty
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.469 in
Housing Material	Cast Iron
Dynamic Load Rating (lb)	7,889 lb
Maximum Speed (RPM)	3550 rpm
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Static Load Rating (lb)	5,216 lb
Size Code	2-115
Insert	2-115
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Set Screw
Fixed vs. Expansion	Fixed
Radial Clearance	Standard
Housing Width (in)	1.47 in

General Specifications

UPC	662461002551
Weight	4.50 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8482.10.5052
Country of Origin	Mexico
