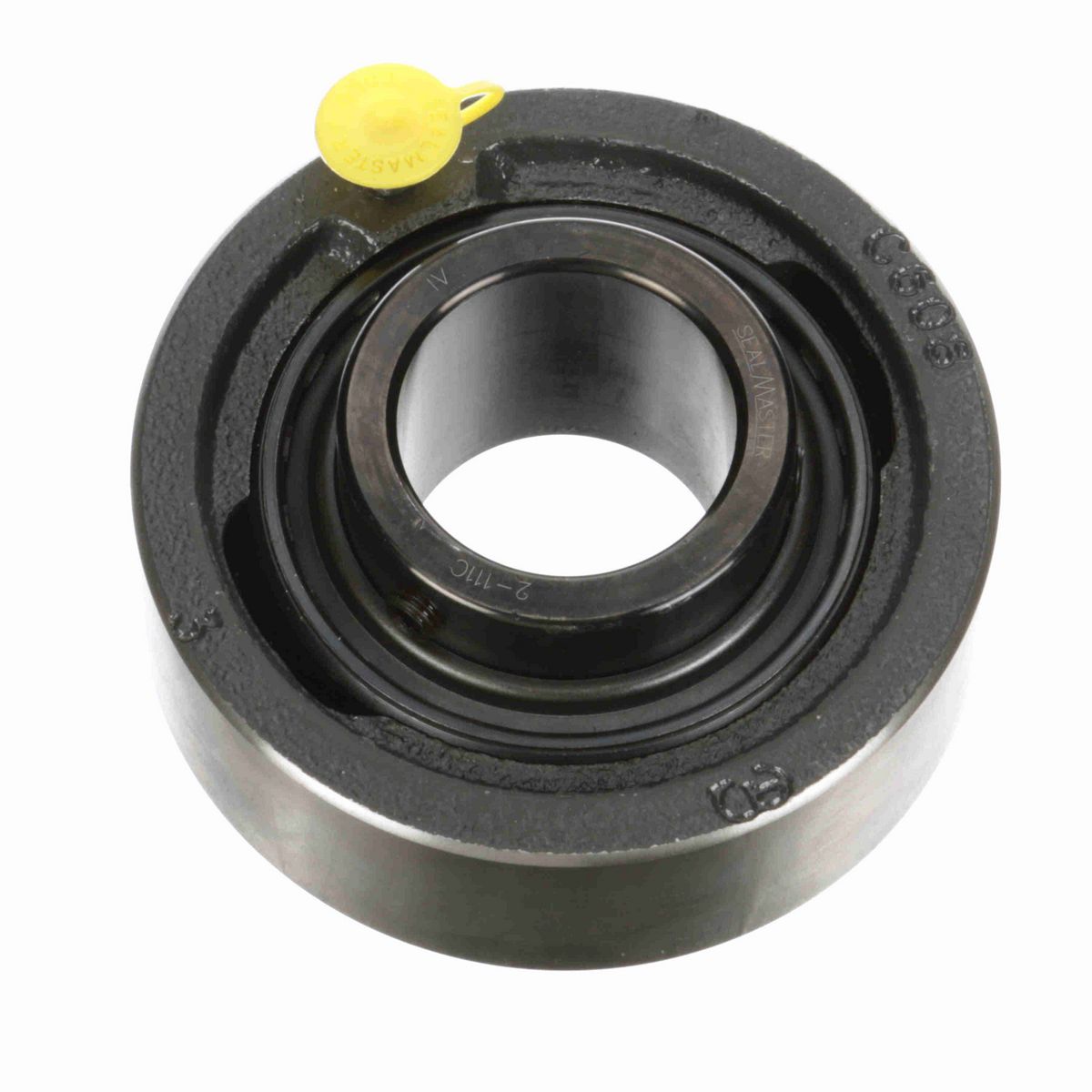

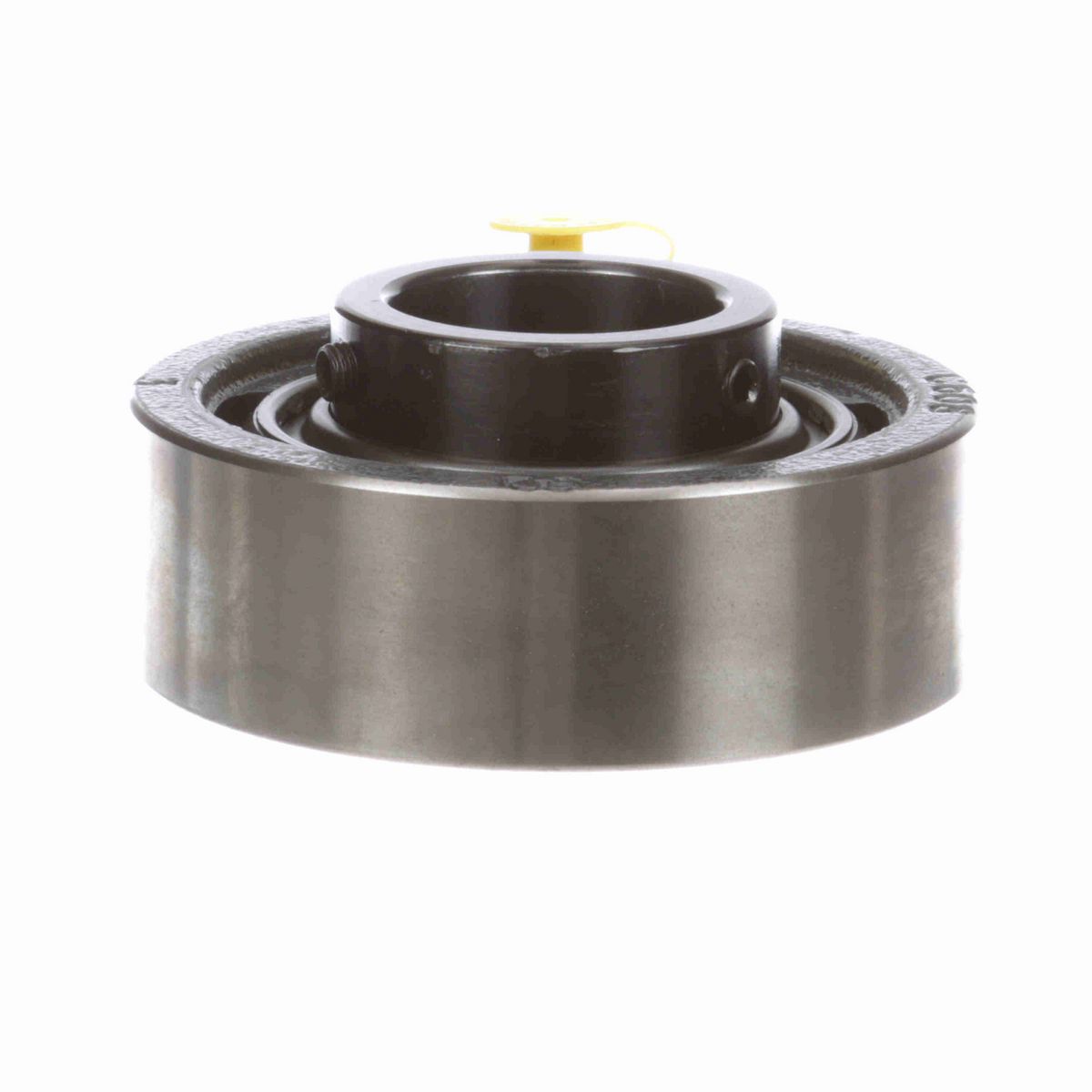

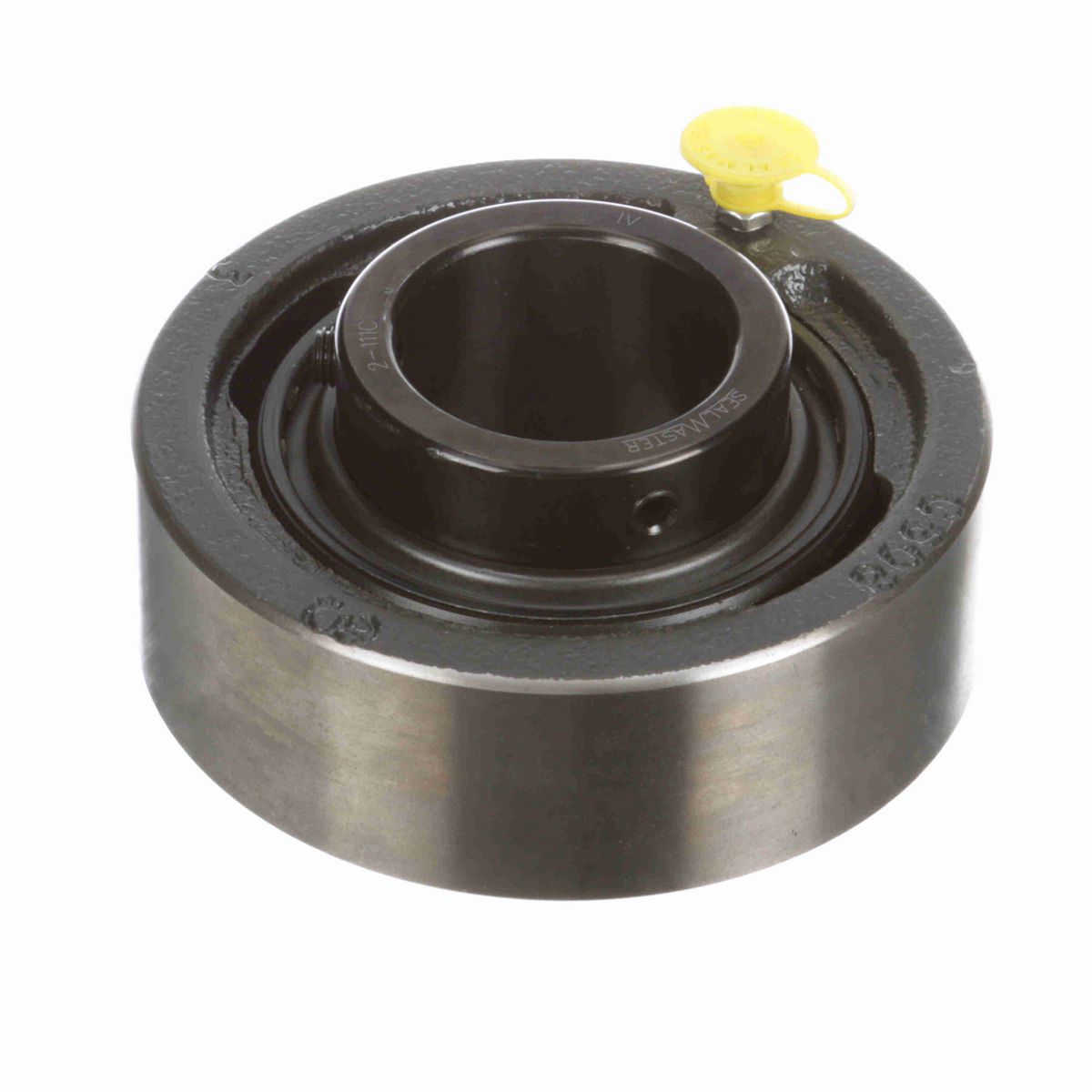

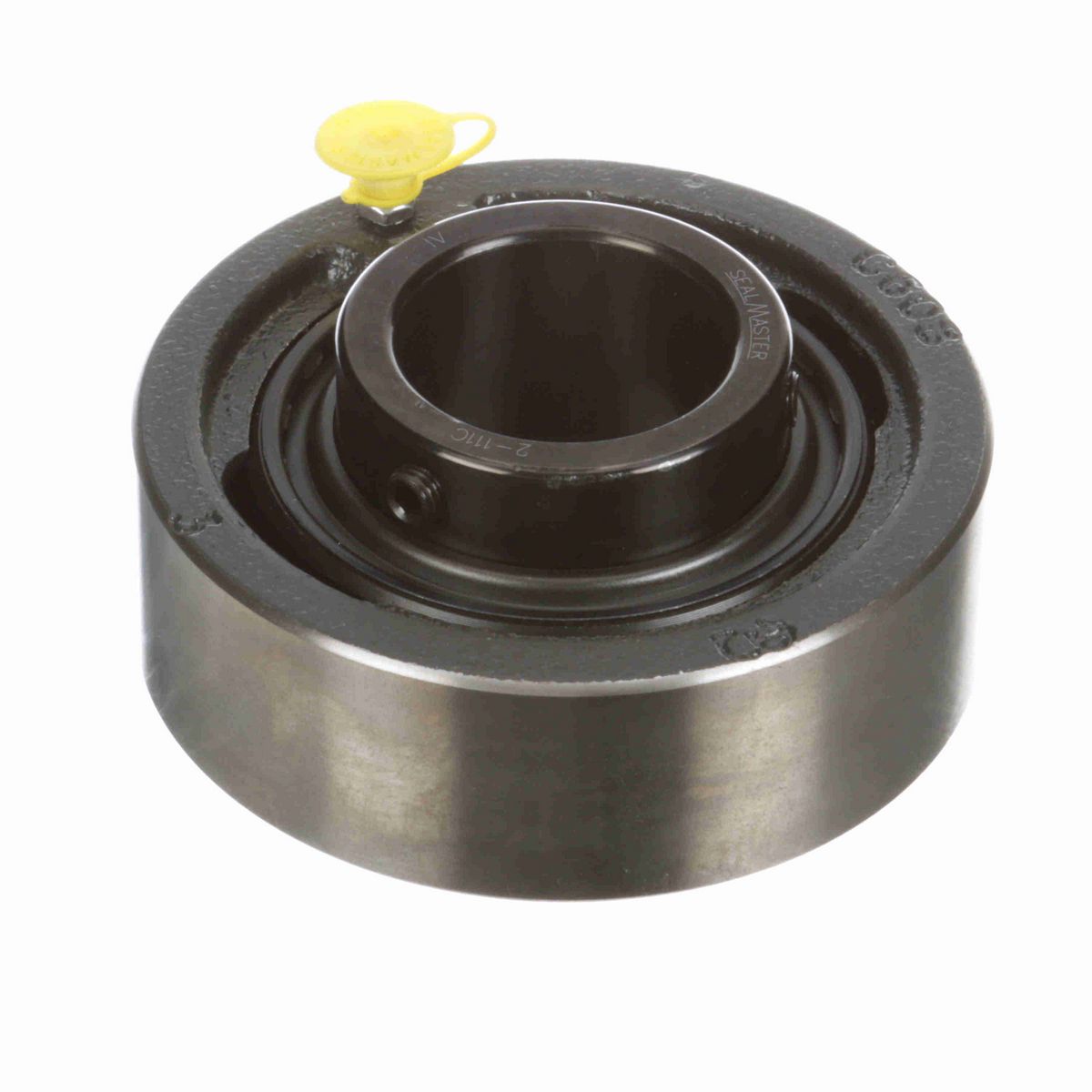

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	1.94 in
Overall Height (in)	4.38 in
Overall Length (in)	4.38 in
Bore Diameter (in)	1.6875 in
Length Through Bore (in)	1.938 in
Centerline to Outermost Bearing Face (in)	1.19 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Series	SC
Housing Type	Cartridge, Cylindrical
Seal Type	Single Lip Contact Seal
Housing Style	Cartridge Block
Outside Diameter (in)	4.375
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (RPM)	3800 rpm
Shaft Locking Type	Set Screw
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/4-28
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	Fixed
Insert	2-111C
Housing Material	Cast Iron
Radial Clearance	Standard
Static Load Rating (lb)	5,139 lb
Size Code	2-111
Dynamic Load Rating (lb)	7,901 lb
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.297 in
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Housing Width (in)	1.44 in

General Specifications

UPC	662461021125
Weight	4.25 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8482.10.5052
Country of Origin	Mexico
