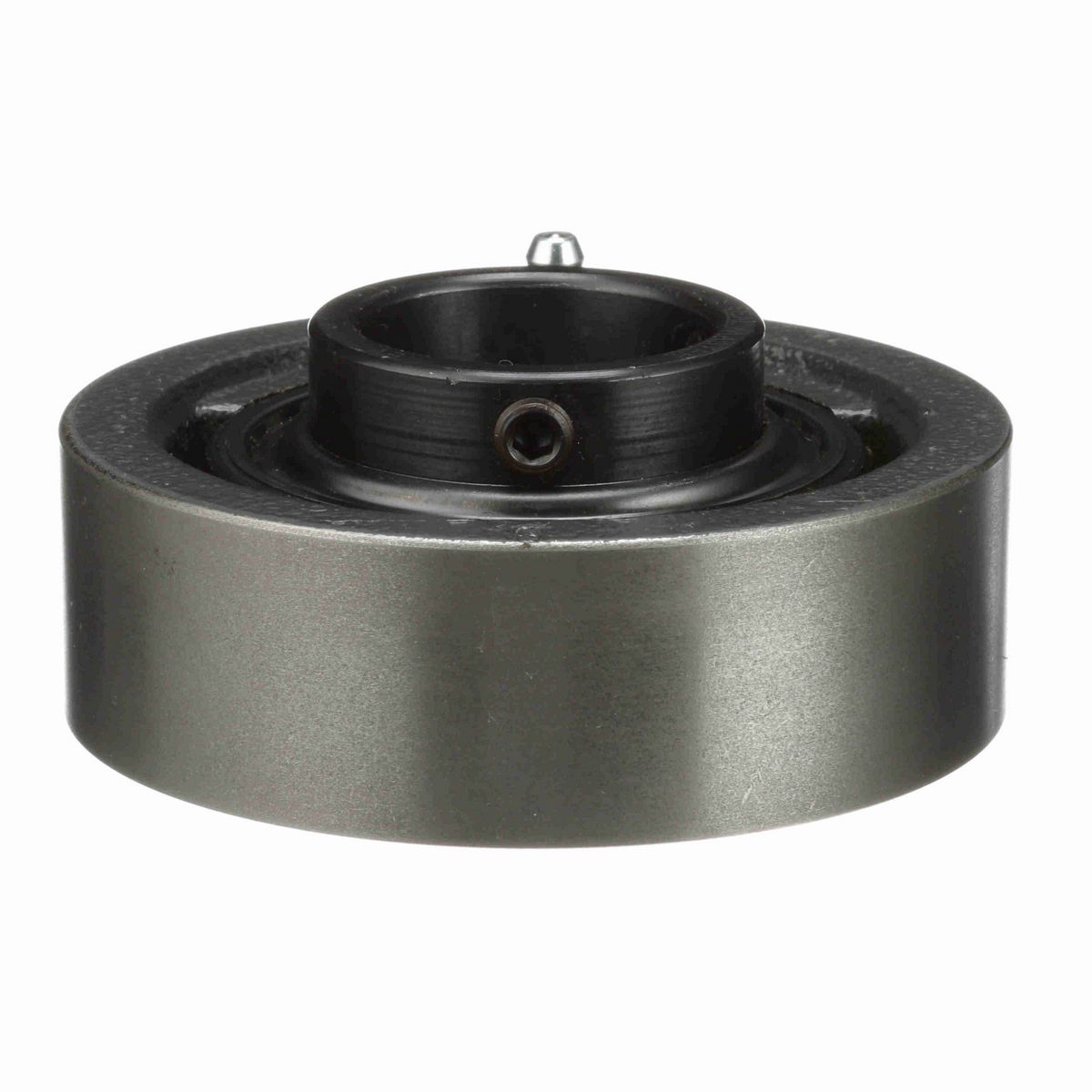

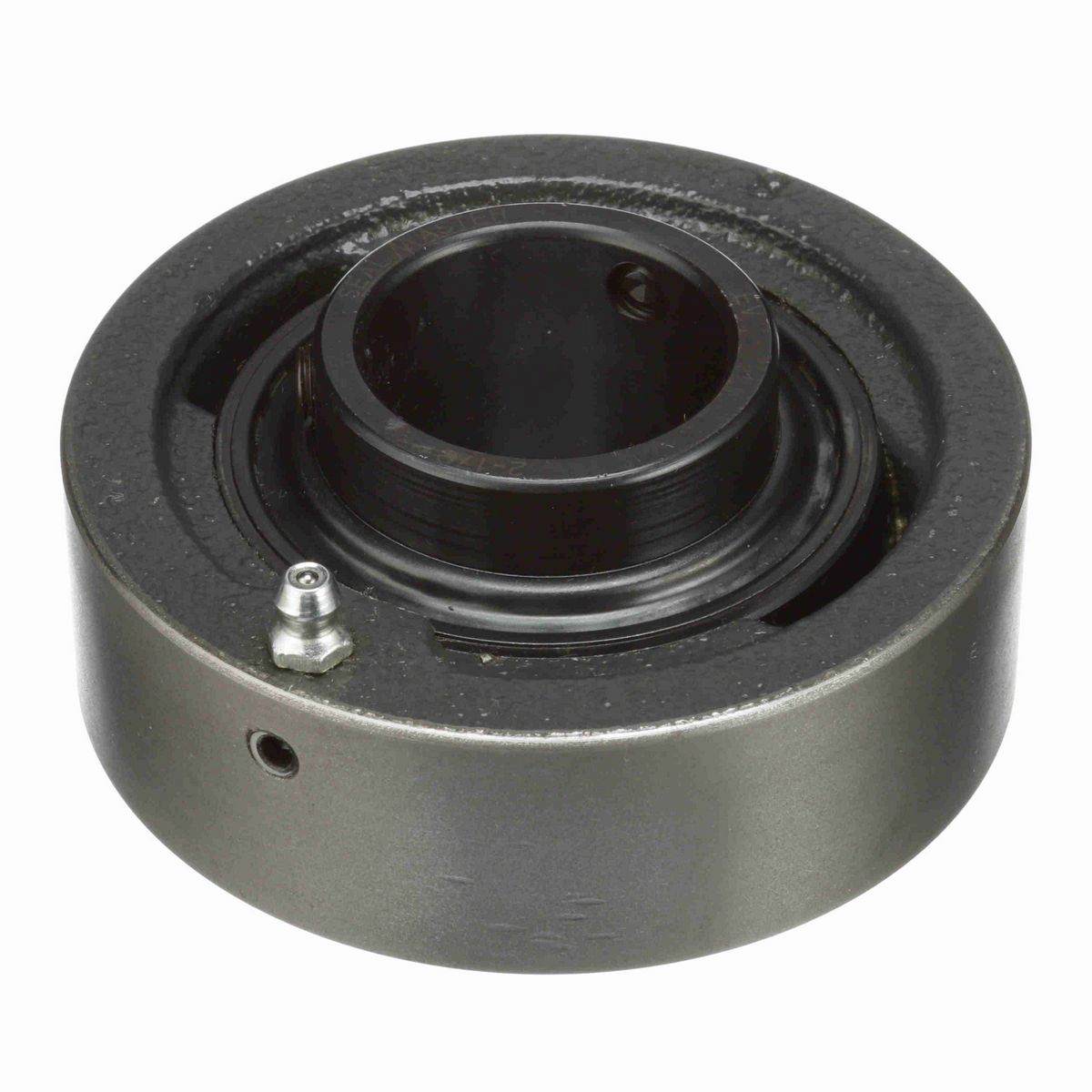

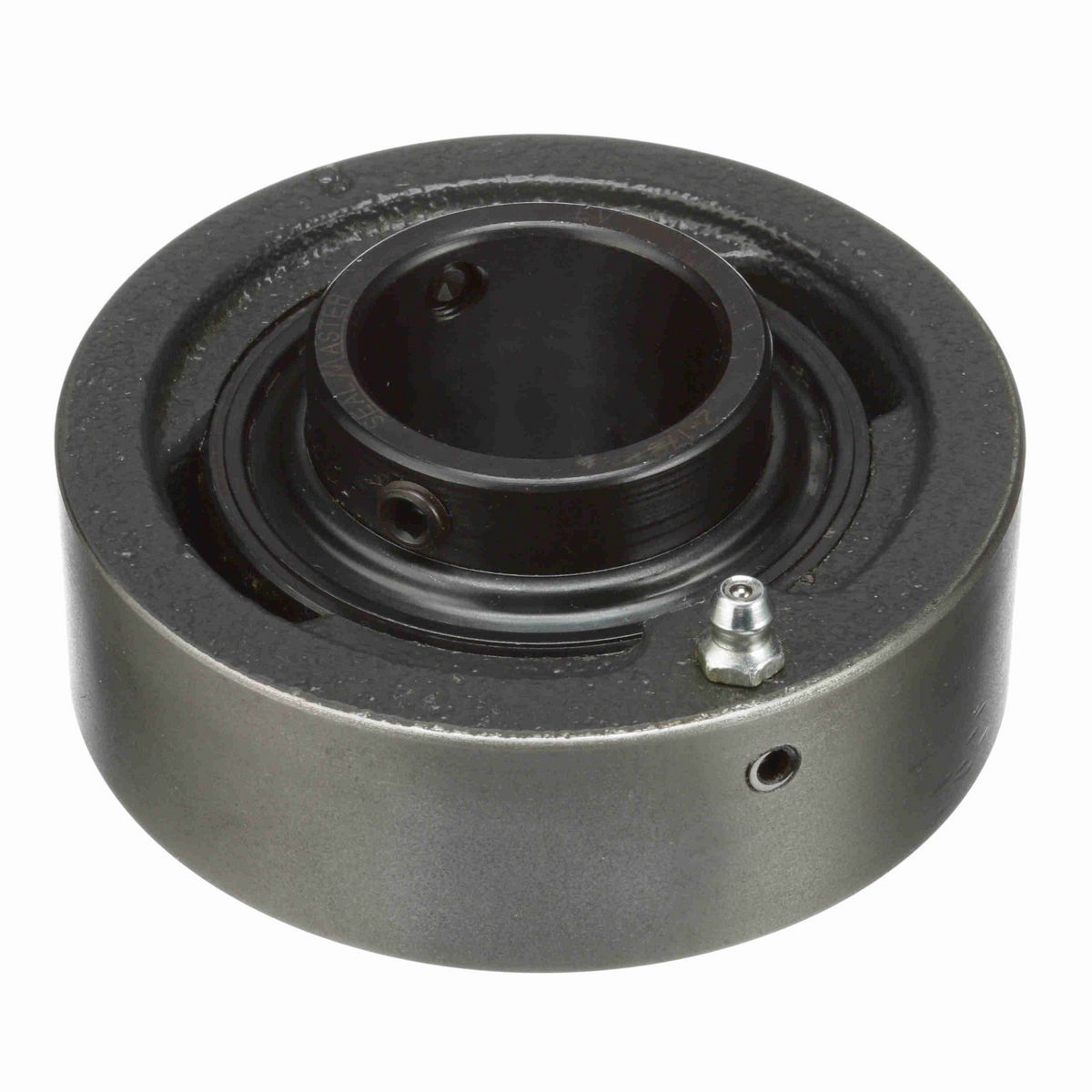

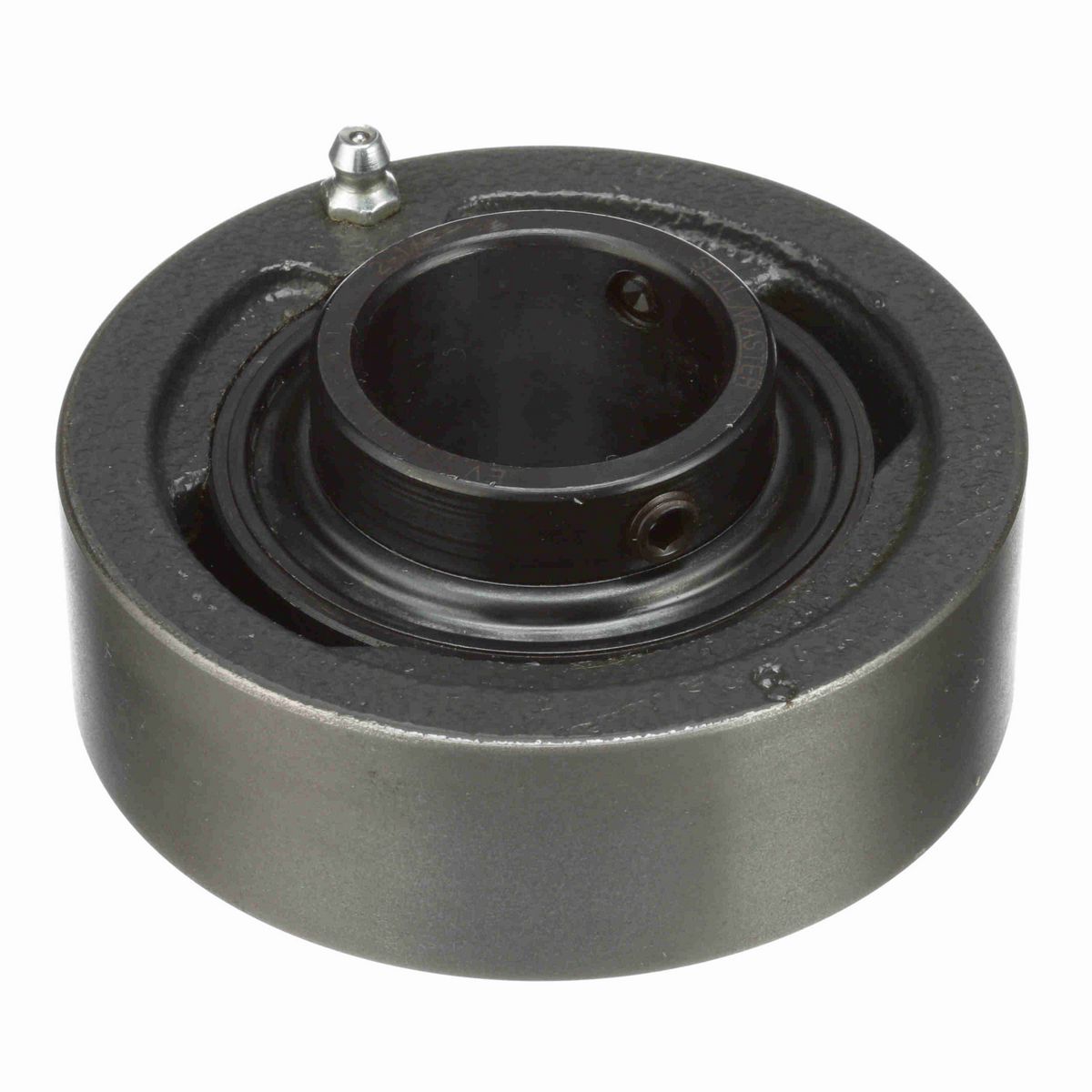

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	3.88 in
Overall Length (in)	3.88 in
Overall Width (in)	1.75 in
Bore Diameter (in)	1.4375 in
Length Through Bore (in)	1.75 in
Centerline to Outermost Bearing Face (in)	1.06 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Gray
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Series	SC-T
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	3.875
Housing Style	Cartridge Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.5 in
Inner Race Heat Treat Method	Zone-Hardened
Grease Fitting Thread Size	1/4-28
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	5,782 lb
Maximum Speed (RPM)	4650 rpm
End Cap Available	No
Cage Type	Land Riding Retainer
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Concentric
Size Code	2-17
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Radial Clearance	Standard
Static Load Rating (lb)	3,493 lb
Fixed vs. Expansion	Fixed
Bearing Type	Standard Duty
Inner Ring Outside Diameter (in)	1.859 in
Insert	2-17TC
Housing Width (in)	1.22 in

General Specifications

UPC	662461032893
Weight	3.50 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8482.10.5052
Country of Origin	Mexico
