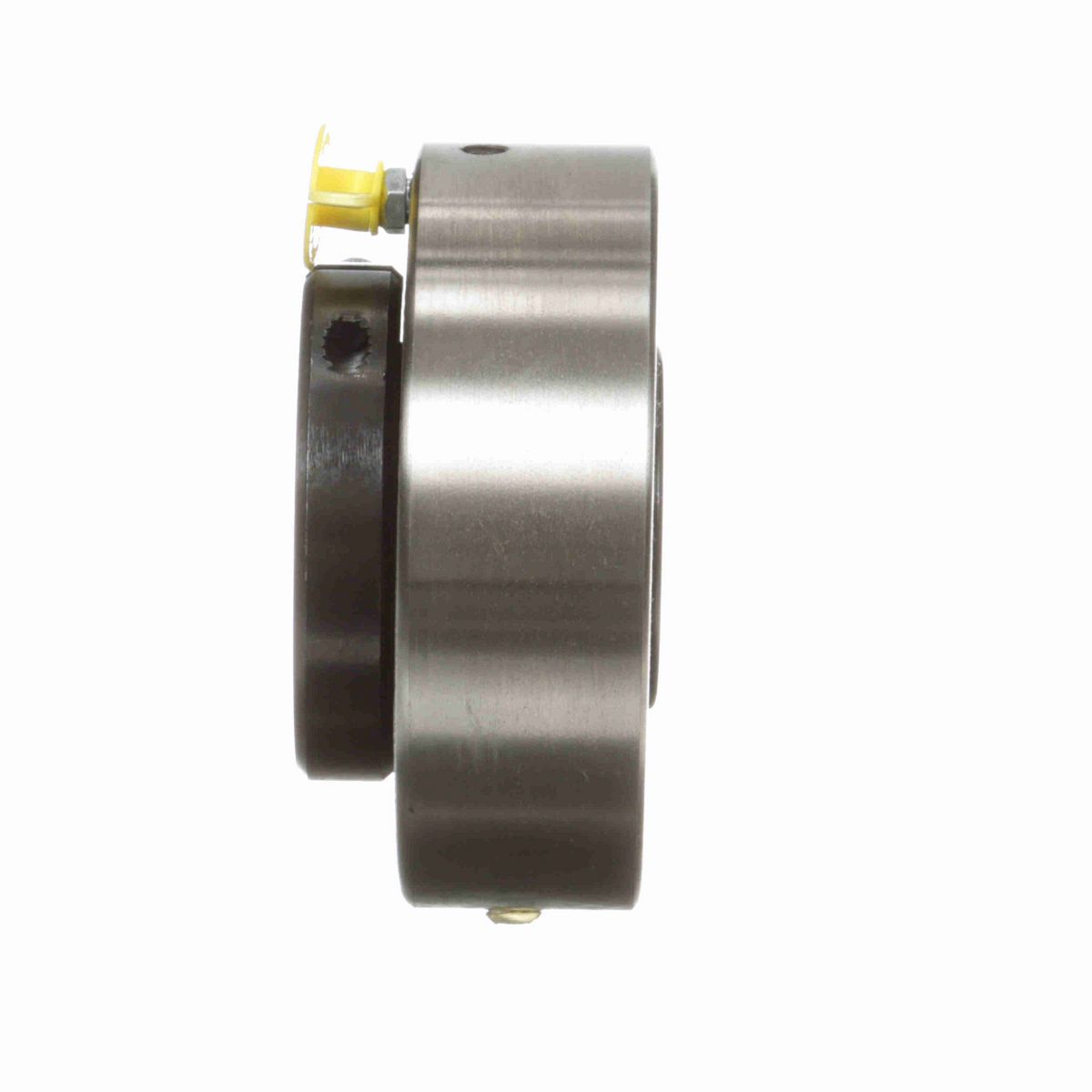

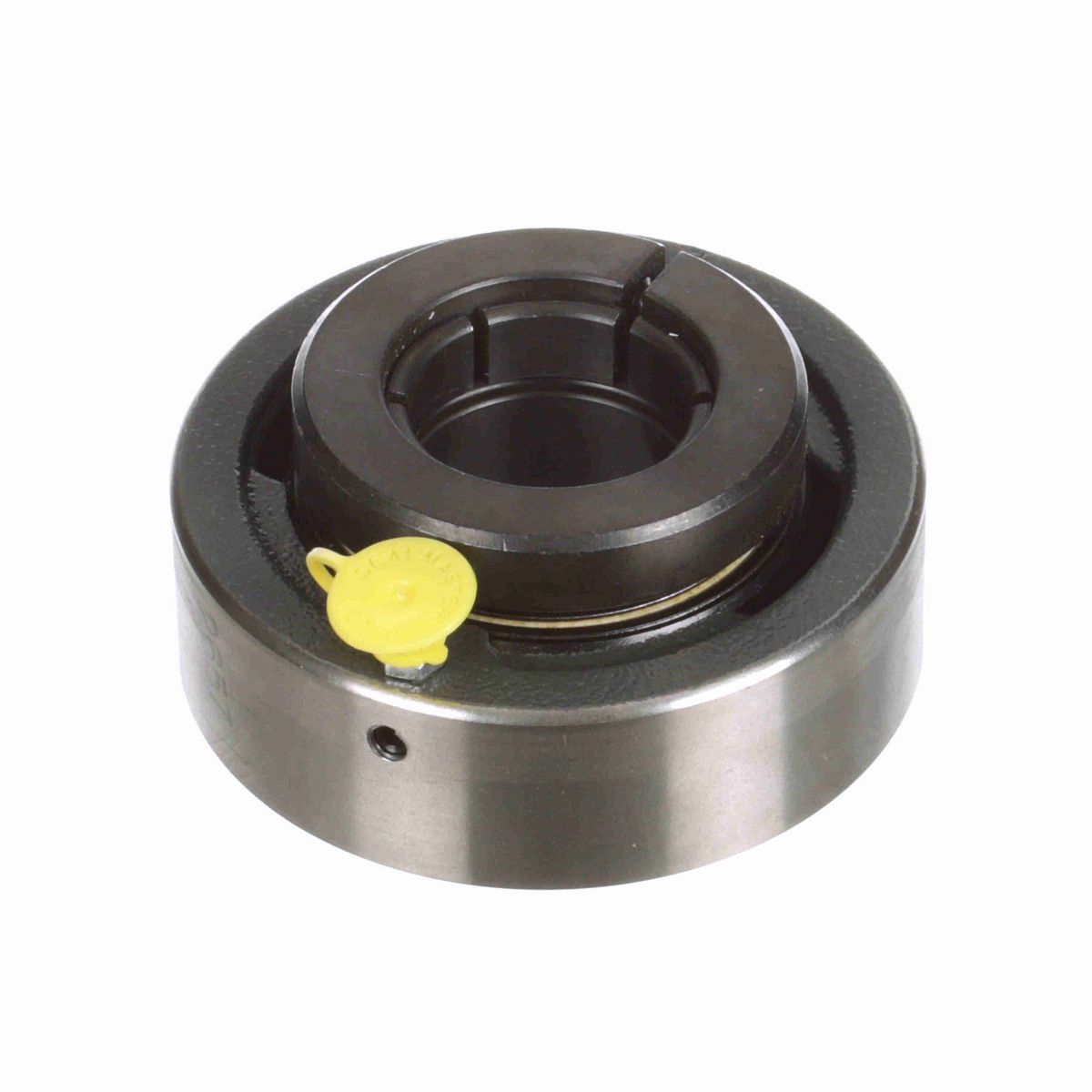

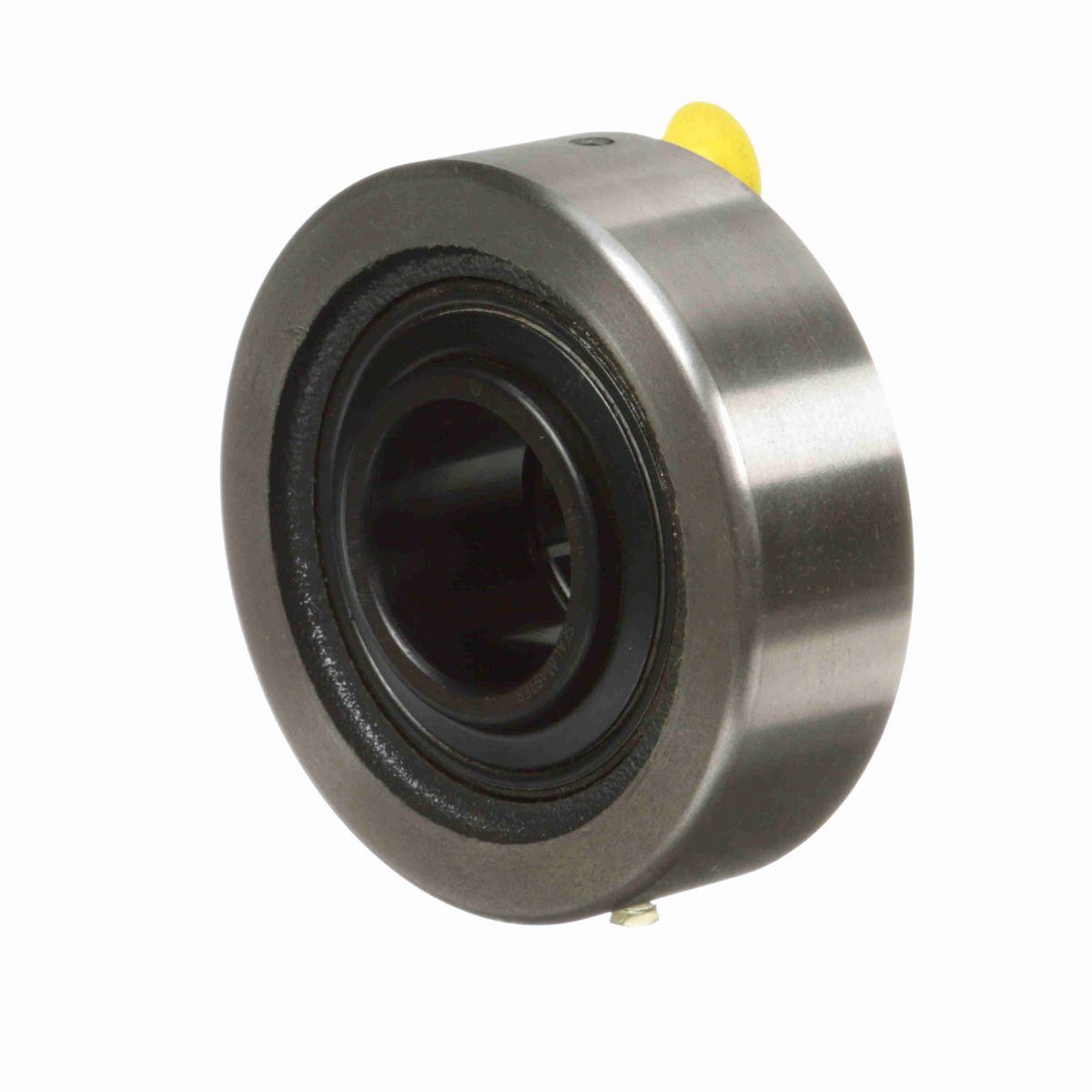

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	3.88 in
Overall Length (in)	3.88 in
Overall Width (in)	1.75 in
Bore Diameter (in)	1.4375 in
Length Through Bore (in)	1.75 in
Centerline to Outermost Bearing Face (in)	1.06 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Series	SC-T
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Housing Style	Cartridge Block
Outside Diameter (in)	3.875
Locking Collar Outside Diameter (in)	2.5 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Finish	Black Oxide
End Cap Available	No
Inner Ring Outside Diameter (in)	1.859 in
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Standard Duty
Size Code	2-17
Maximum Speed (RPM)	6500 rpm
Radial Clearance	Standard
Dynamic Load Rating (lb)	5,782 lb
Insert	2-17T
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Shaft Locking Type	Concentric
Grease Fitting Thread Size	1/4-28
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	3,493 lb
Housing Material	Cast Iron
Housing Width (in)	1.22 in

General Specifications

UPC	662461029848
Weight	3.19 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8482.10.5052
Country of Origin	Mexico
