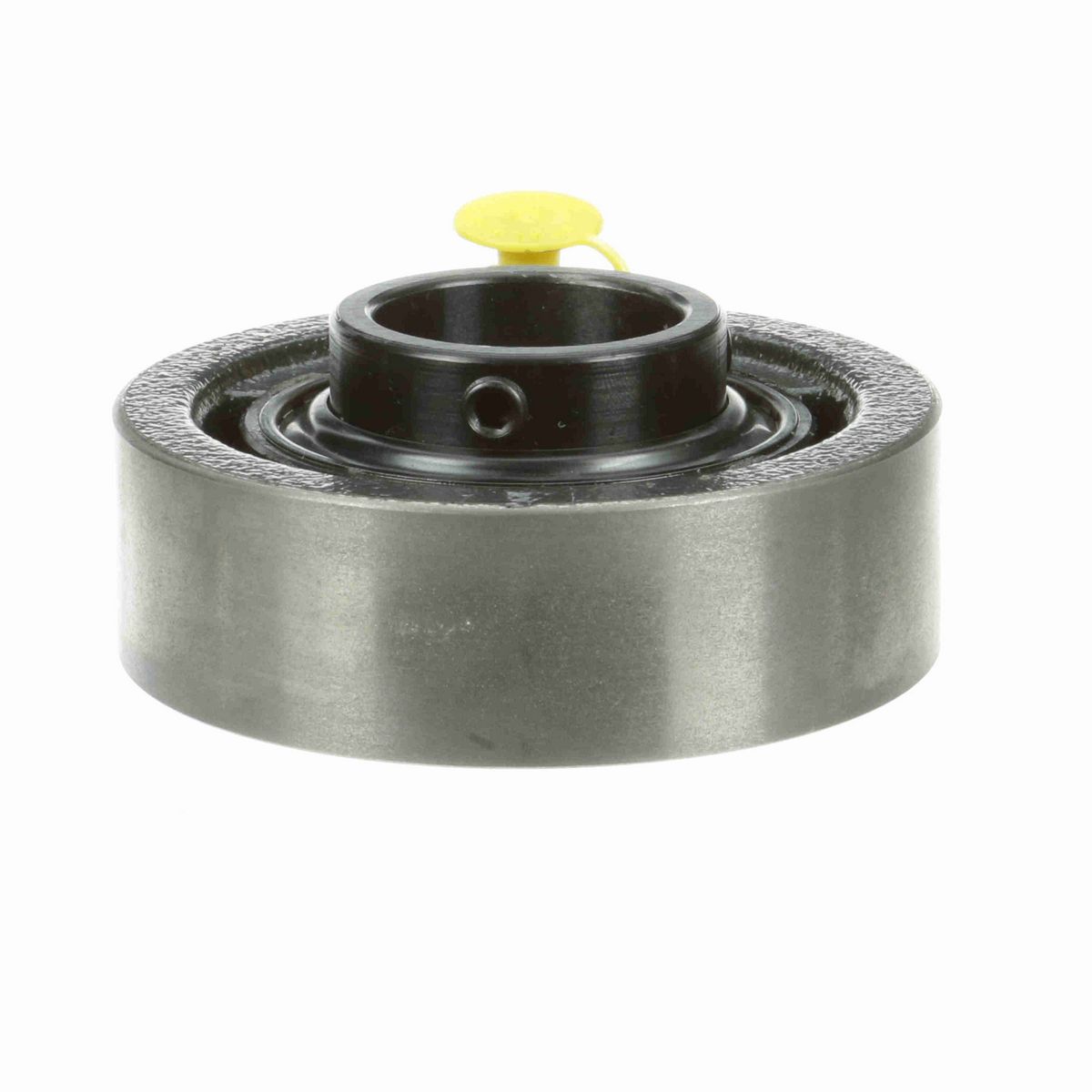

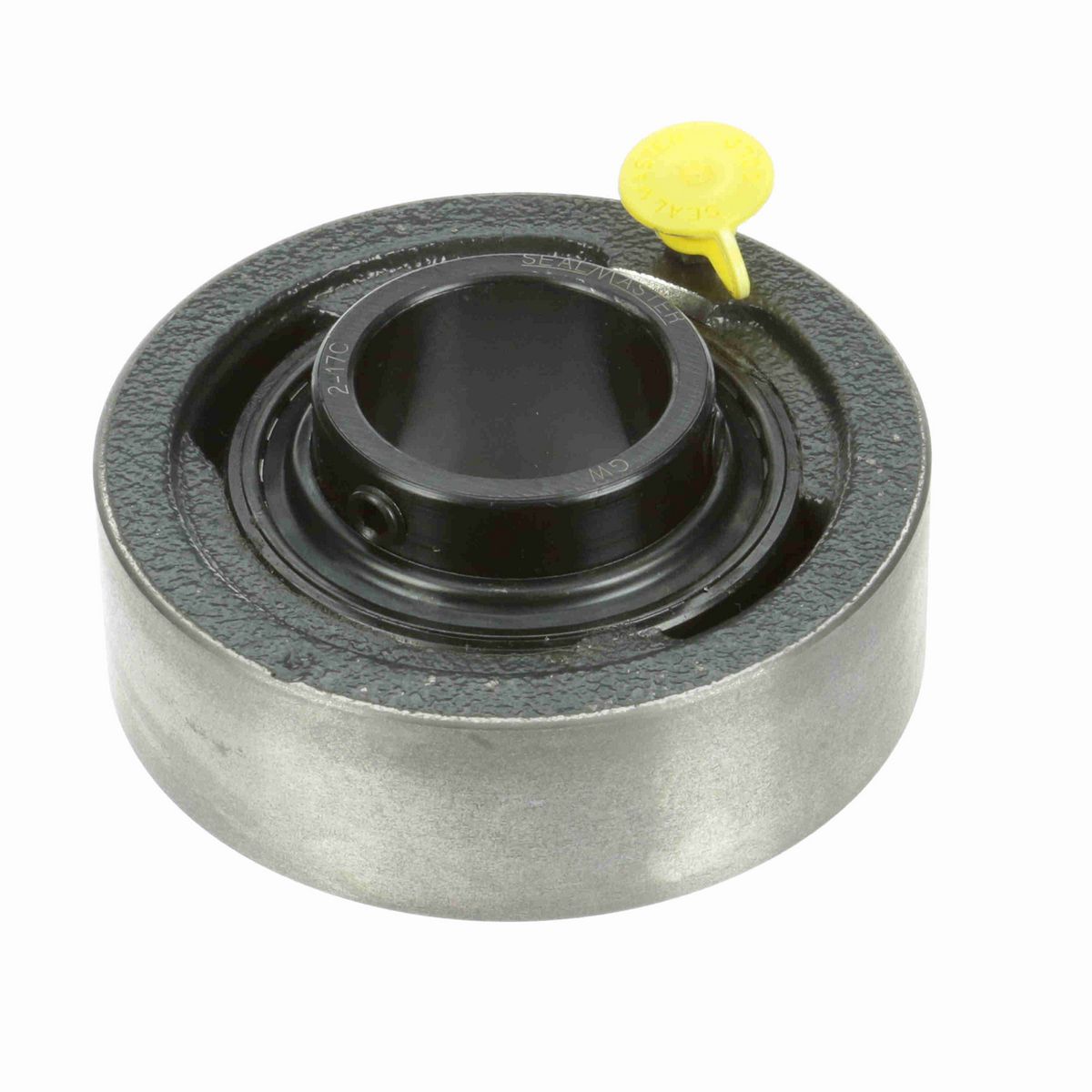

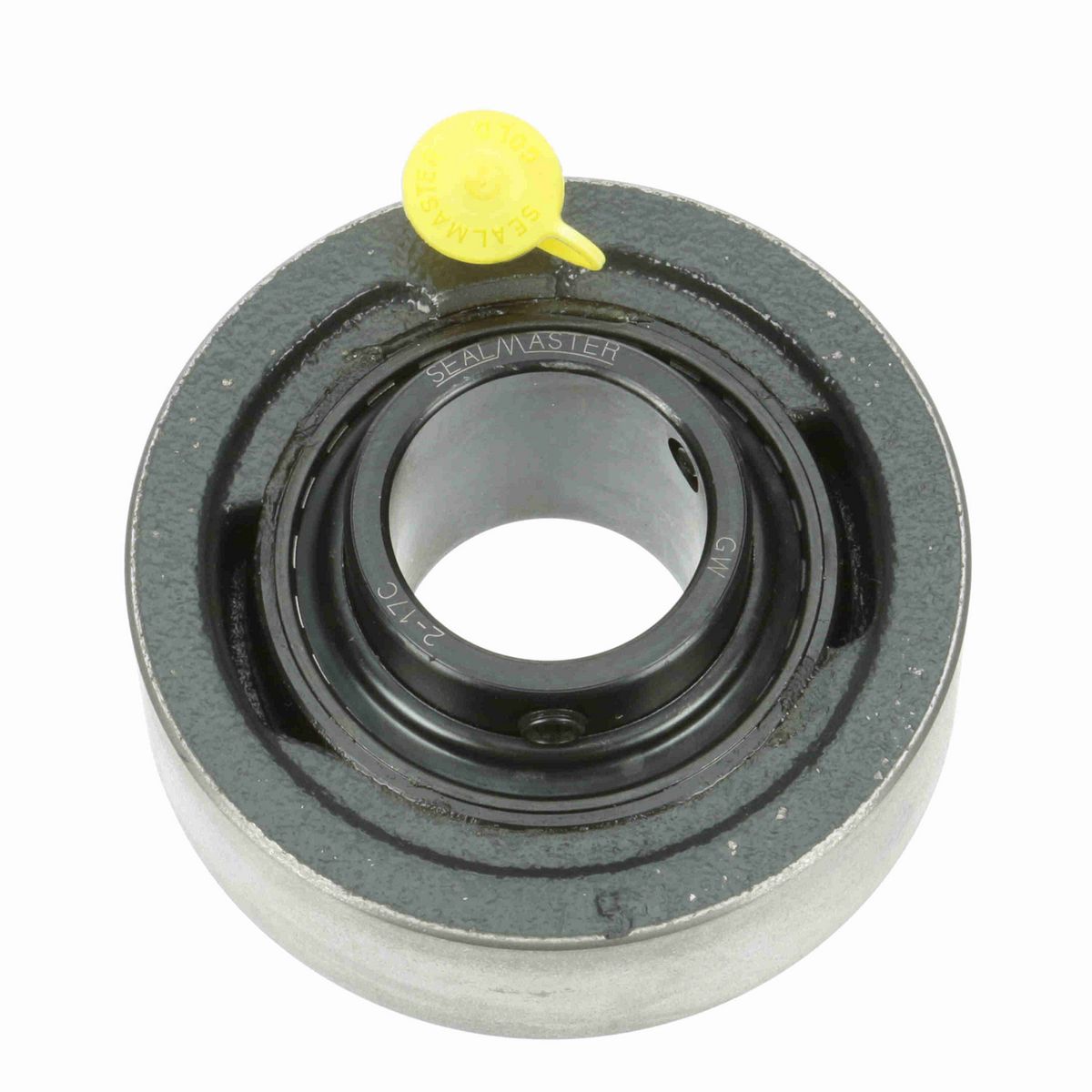

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	3.88 in
Overall Width (in)	1.69 in
Overall Height (in)	3.88 in
Bore Diameter (in)	1.4375 in
Length Through Bore (in)	1.688 in
Centerline to Outermost Bearing Face (in)	1 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Series	SC
Seal Type	Single Lip Contact Seal
Housing Type	Cartridge, Cylindrical
Housing Style	Cartridge Block
Outside Diameter (in)	3.875
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	1.859 in
Shaft Locking Type	Set Screw
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Insert	2-17C
Bearing Type	Standard Duty
Size Code	2-17
Grease Fitting Thread Size	1/4-28
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	3,493 lb
Maximum Speed (RPM)	4650 rpm
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	5,782 lb
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Housing Width (in)	1.22 in

General Specifications

UPC	662461021088
Weight	2.85 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8482.10.5052
Country of Origin	Mexico
